RATING or WARRANTY PLATE and CERTIFICATION LABEL - continued

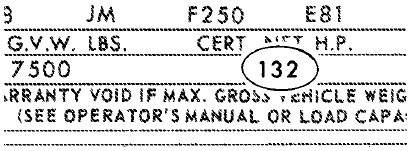

CERTIFIED NET HORSEPOWER

1964/65 U.S. BUILT VEHICLES
1966/ U.S. and CANADIAN BUILT VEHICLES

THE ACTUAL CERTIFIED NET HORSEPOWER @ THE R.P.M. SHOWN IS
INDICATED ABOVE OR BELOW " CERT. NET H.P."

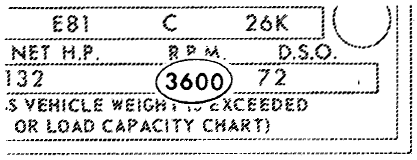

R.P.M.

1964/65 U.S. BUILT VEHICLES
1966/ U.S. and CANADIAN BUILT VEHICLES

THE ACTUAL REVOLUTIONS PER MINUTE REQUIRED TO DEVELOP THE
CERTIFIED NET HORSEPOWER LISTED IS SHOWN ABOVE OR BELOW
"R.P.M".

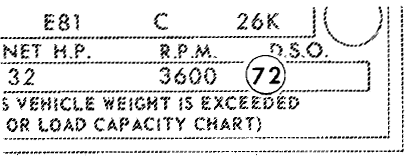

DISTRICT CODES

1964/65 U.S. BUILT VEHICLES
1966/ U.S. and CANADIAN BUILT VEHICLES

THE CODE SHOWN ABOVE OR BELOW "D.S.O." IDENTIFIES THE DISTRICT
WHICH ORDERED THE UNIT.

THE FOLLOWING CHART LISTS THESE CODES AND THE DISTRICT WHICH
THEY REPRESENT.

FOR AN EXPLANATION OF THE D.S.O. PORTION OF THE NUMBER REFER TO PAGE 22.

CODE DISTRICT CODE DISTRICT CODE DISTRICT CODE DISTRICT
11 Boston 35 Lansing 55 St. Louis 89 transportation service
12 Buffalo 36 Louisville 56 Davenport 90's Export
13 New York 37 Buffalo 57 Houston
14 Pittsburgh 38 Pittsburgh 58 Twin Cities FORD of CANADA
15 Newark 41 Chicago 61 Dallas A1 Central (Ford)
16 Philadelphia 42 Fargo (1964/71) 62 Houston A2 Eastern (Ford)
17 Washington Cleveland(1972) 63 Memphis A3 Atlantic (Ford)
21 Atlanta 43 Milwaukee 64 New Orleans A4 Midwestern (Ford)
22 Charlotte 44 Twin Cities 65 Oklahoma City A6 Western (Ford)
23 Philadelphia (1964/71) 45 Davenport (1964/71) 71 Los Angeles A7 Pacific (Ford)
Memphis(1972) Lansing (1972) 72 San Jose
24 Jacksonville 46 Indianapolis 73 Salt Lake City B1 Central
(Lincoln -Mercury)
25 Richmond 47 Cincinnati 74 Seattle
26 Washing ton (1964/71) 48 Detroit 75 Phoenix B2 Eastern
(Lincoln-Mercury)
New Orleans(1972) 76 Denver
27 Cincinnati 51 Denver 81 Ford of Canada B3 Atlantic
(Lincoln -Mercury)
28 Louisville 52 Des Moines(1964/71) 83 Government
31 Cincinnati Dallas (1972) 84 Home Office Reserve B4 Midwestern
(Lincoln-Mercury)
32 Cleveland 53 Kansas City 85 American Red Cross
33 Detroit 54 Omaha 86 DIPLOMATIC SERVICE COMM. B6 Western
(Lincoln -Mercury)
34 Indianapolis     87 Body Company
  B7 Pacific
(Lincoln-Mercury)


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
