RATING or WARRANTY PLATE and CERTIFICATION LABEL - continued

AUXILIARY TRANSMISSION CODES

1964/65 U.S. BUILT VEHICLES
1966/ U.S. and CANADIAN BUILT VEHICLES

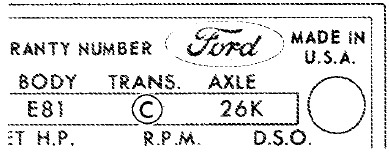

THE FIRST DIGIT OF THE TRANSMISSION CODE IDENTIFIES THE
TYPE OF AUXILIARY TRANSMISSION.

THE FOLLOWING CHART LISTS THESE CODES, THE NUMBER OF
FORWARD SPEEDS AND THE MANUFACTURERS NAME AND MODEL NUMBER.

FOR FURTHER TRANSMISSION IDENTIFICATION REFER TO
SECTION 70 IN THIS CATALOG.


CODE YEAR SPEED MANUFACTURER CODE YEAR SPEED MANUFACTURER
NAME MODEL NAME MODEL
1 64/69 3 Dana (Spicer) 5831-C 8 64/ 4 Dana (Spicer) 7041
2 64/ 3 Dana (Spicer) 5831-D 9 65/69 3 Fuller 3D65
3 64/ 3 Dana (Spicer) 7231-B
4 64/ 3 Dana (Spicer) 7231-D A 67/69 3 Fuller 3J65
5 64/ 4 Dana (Spicer) 8341-C B 67/69 4 Fuller 4C75
5 64/ 3 Dana (Spicer) 8031-C C 70/ 3 Fuller 3K65
7 64/68 3 Dana (Spicer) 8031-P D 70/ 4 Fuller 4E75



MAIN TRANSMISSION CODES

1964/65 U.S. BUILT VEHICLES
1966/ U.S and CANADIAN BUILT VEHICLES

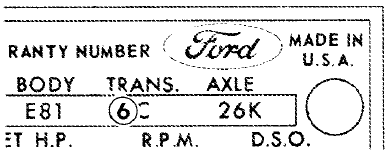

THE SECOND DIGIT OF THE TRANSMISSION CODE IDENTIFIES THE TYPE OF MAIN TRANSMISSION.

THE FOLLOWING CHART LISTS THESE CODES, THE NUMBER OF FORWARD SPEEDS AND THE MANUFACTURERS NAME AND MODEL NUMBER.

FOR FURTHER TRANSMISSION IDENTIFICATION REFER TO SECTIONS 70, A70 OR T70 IN THIS CATALOG.


CODE YEAR SPEED DESCRIPTION MANUFACTURER CODE YEAR SPEED DESCRIPTION MANUFACTURER
NAME MODEL NAME MODEL
A 64/65 3 Manual Ford   G 64/ 3 Automatic Ford
64 5 Direct Fuller SW74 64/65 10 Overdrive Fuller RA-960
64/ 4 Synchronized New Process 435 66/67 5 Direct Fuller SH75
66/67 5 Direct Dana (Spicer) 8052 68/ 5 Overdrive Clark 380VO
B 64/ 3 Overdrive Warner T85, T86 H 64/65 6 Transmatic Allison MT-30
64/65 5 Overdrive Dana (Spicer) 8051-A ,C 66 5 Direct Fuller T905-B
66/69 10 Direct Fuller R-96 66/67 5 Direct Clark 305-V
70/ 16 Overdrive Dana (Spicer) 8516 70/71 13 Overdrive Fuller RTO-913
C 64/65 5 Direct Dana (Spicer) 8052 I 64/65 10 Overdrive Fuller R-960
66 10 Direct Fuller RA-96 65/67 5 Direct Clark 307V
66/ 3 Manual Ford   66 15 Overdrive Fuller RTO-915
68/70 10 Direct Fuller RT-510
71/ 10 Direct Fuller RT-610 J 64/65 5 Direct Clark 250V
  66 5 Overdrive Dana (Spicer) 8051-A, C
D 64/ 3   Warner T89C, E, F 66/68 5 Overdrive Clark 264VO
64/65 10 Direct Fuller R-96 71/ 13 Overdrive Fuller RTO-9513
66 10 Overdrive Fuller RA-960
68/ 5 Direct Clark 387-V K 64/66 5 Overdrive Clark 251VO
E 64/ 3   Warner T87E, G 66/ 5 Overdrive Dana (Spicer) 6453-A
64/65 10 Direct Fuller RA-96
66 10 Overdrive Fuller R-960 L 64/68 5 Direct Clark 2651-V1,
2653-V1
68/ 5 Direct Fuller 5H74
  66 5 Direct Dana (Spicer) 6352-B
F 64/66 4 Synchronized Warner T98A 71/ 6 Transmatic Allison AT-540
64 4 Synchronized Dagenham
65/ 4 Synchronized Warner T18 M 64/65 5 Overdrive Clark 264VO
65 5 Direct Clark 305-V 66/67 5 Direct Clark 250V
66/67 5 Direct Fuller 5H74 66/67 5 Direct Dana (Spicer) 6452-A
68/ 5 Direct Fuller 5HA74 68/ 5 Direct Clark 285V


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
