RATING or WARRANTY PLATE and CERTIFICATION LABEL - continued

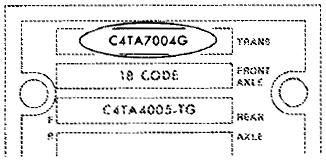

TRANSMISSION ASSEMBLY IDENTIFICATION NUMBERS

1965 CANADIAN BUILT VEHICLES THE TRANSMISSION ASSEMBLY NUMBER IDENTIFIES THE MANUFACTURER, MODEL NUMBER AND TRANSMISSION SPEEDS. REFER TO SECTION 70 FOR A LISTING OF THESE NUMBERS AND THE CORRESPONDING MANUFACTURER, MODEL NUMBER AND TRANSMISSION SPEEDS.

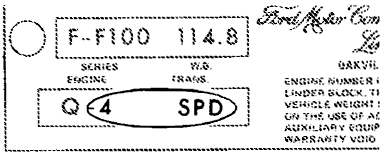

TRANSMISSION SPEEDS 1965 CANADIAN BUILT VEHICLES THE NUMBER OF TRANSMISSION SPEEDS IS SHOWN BELOW "TRANS."

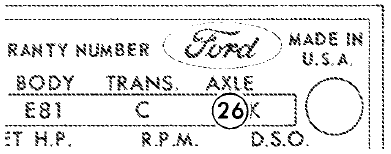

REAR AXLE RATIO CODES 1964/65 U.S. BUILT VEHICLES 1966/ U.S. and CANADIAN BUILT VEHICLES THE FIRST TWO DIGITS OF THE AXLE CODE IDENTIFY THE RATIO AND CAPACITY OF THE REAR AXLE. REFER TO SECTION 40.1 FOR A LISTING OF THESE CODES AND THE CORRESPONDING RATIO AND CAPACITY.

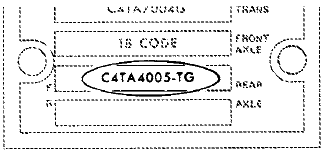

REAR AXLE ASSEMBLY IDENTIFICATION NUMBERS

1965 CANADIAN BUILT VEHICLES THE REAR AXLE ASSEMBLY NUMBER IDENTIFIES THE MANUFACTURER, MODEL NUMBER, CAPACITY AND RATIO OF THE FRONT "F" REAR AXLE AND THE REAR "R" REAR AXLE. REFER TO THESE NUMBERS AND THE CORRESPONDING MANUFACTURER, MODEL NUMBER, CAPACITY AND RATIO.

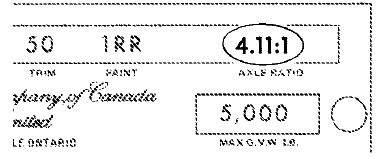

REAR AXLE RATIO

1965 CANADIAN BUILT VEHICLES THE ACTUAL REAR AXLE RATIO IS SHOWN ABOVE "AXLE RATIO"
