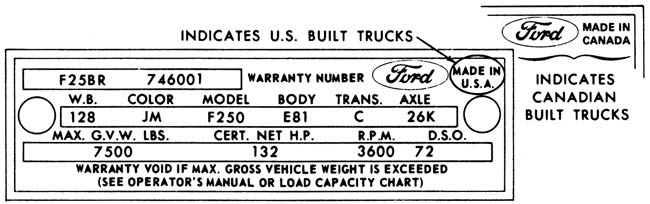

1966/69 RATING or WARRANTY PLATE - TYPICAL

Installed in the following locations:

• B-F100/750 (84, 85).......................................................................Glove compartment door (inside) - 1966
• B-F100/750 (84, 85).......................................................................Right side of dash panel - 1967/69
• C-CT-H-HT550/1100,E100/300,F-N-NT-T100/1100 (81) .... Latch face of the left front door
• P100/500 .........................................................................................Right side of radiator support
• W-WT1000 .....................................................................................Left front door (inside)

The Rating or Warranty Plate includes:

• 1. Warranty Number (first line) consisting of Codes which identify Series, Engine, Assembly Plant and Numerical Sequence of Assembly.
• 2. Miscellaneous Vehicle Data (second line Consisting of Wheelbase and Codes which identify Color of Exterior Paint, Model, Trim, Body Type, Auxiliary Transmission, Main Transmission, Rear Axle Ratio and Front Axle Capacity.
• 3. The third line consists of Gross Vehicle Weight rating, Certified Net Horsepower @ the R.P.M. shown, a Code which identifies the District and the D.S.O. number when applicable.

The page number(s) on which the Codes are listed is shown in parenthesis.

(FIRST LINE) WARRANTY NUMBER (F25BR 746001)

(SECOND LINE) MISCELLANEOUS VEHICLE DATA (128 JM F250 E81 C 26K)

"128" - 128" Wheelbase "JM" - Rangoon Red Lower Body (J), Wimbledon White Upper Body (M) "F250" - F250 Unit with necessary equipment to rate the given G.V.W. "E" - Red vinyl and Red woven plastic (on Custom Cab) Refer to Appropriate Soft Trim Section for complete instructions and Trim Code listing "81" - Conventional Cab "MC" - 3 Speed Light Duty Transmission (When applicable the Auxiliary Transmission Code will be shown to the left of the Main Transmission Code.) "26" - Rear Axle Ratio of 4.88 to 1 and a capacity of 5.2M Dana (Spicer)#60 "K" - 3.5M Front Axle (Optional front axles only shown)

(PART OF THIRD LINE) DISTRICT CODE (72)
