RATING or WARRANTY PLATE and CERTIFICATION LABEL - continued

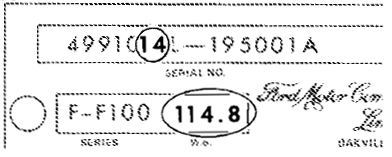

WHEELBASE CODES 1965 CANADIAN BUILT VEHICLES THE SIXTH AND SEVENTH DIGITS OF THE SERIAL NUMBER INDICATE THE WHEELBASE OF THE VEHICLE. THE FOLLOWING CHART LISTS THESE CODES AND THE WHEELBASE WHICH THEY REPRESENT. IN ADDITION, THE ACTUAL WHEELBASE IN INCHES IS SHOWN ON THE RATING OR WARRANTY PLATE.

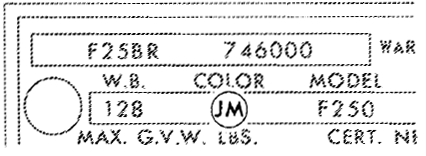

COLOR CODES (EXTERIOR PAINT) 1964/65 U.S. BUILT VEHICLES 1966/ U.S. and CANADIAN BUILT VEHICLES THE CODE UNDER "COLOR" INDICATES THE EXTERIOR PAINT COLOR OF THE VEHICLE. REFER TO THE PAINT SECTION FOR A LISTING OF THESE CODES AND THE PART NUMBER OF THE REQUIRED PAINT.

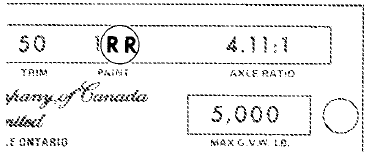

COLOR CODES (EXTERIOR PAINT) 1965 CANADIAN BUILT VEHICLES THE SECOND AND THIRD DIGITS OF THE CODE ABOVE "PAINT" INDICATES THE EXTERIOR PAINT COLOR OF THE VEHICLE. FOR SOLID COLOR VEHICLES THE DIGITS ARE THE SAME.
FOR TWO-TONE VEHICLES THE DIGITS DIFFER. REFER TO THE PAINT SECTION FOR A LISTING OF THESE CODES AND THE PART NUMBER OF THE REQUIRED PAINT

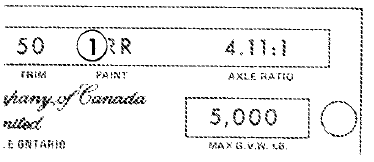

COLOR CODES (INTERIOR PAINT) 1965 CANADIAN BUILT VEHICLES THE FIRST DIGIT OF THE "PAINT" CODE IDENTIFIES THE COLOR OF THE INTERIOR PAINT OF THE VEHICLE. REFER TO THE PAINT SECTION FOR A LISTING OF THESE CODES AND THE PART NUMBER OF THE REQUIRED PAINT.

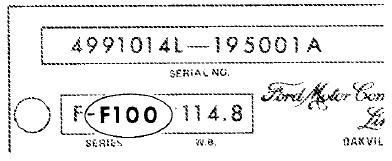

MODEL CODES 1965 CANADIAN BUILT VEHICLES THE MODEL CODE IS SHOWN ABOVE "SERIES" AND IDENTIFIES THE MODEL LISTED IN THE CATALOG.
