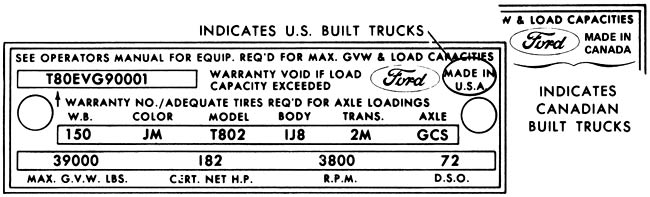

1970/ RATING or WARRANTY PLATE - TYPICAL

Installed in the following locations:

• B-F100/750 (84,85).............................................................................Right side of dash panel
• C-CT500/1000,E100/300,F-L-LN-LNT-LT-LTS100/900 (81)......Latch face of left front door
• P100/500 ..............................................................................................Right side of radiator support
• W-WT900/1000 ...................................................................................Left front door (inside)

The Rating or Warranty Plate includes:

• 1. Warranty Number (first line) consisting of Codes which identify Series, Engine, Assembly Plant and Numerical Sequence of Assembly.
• 2. Miscellaneous Vehicle Data (second line) consisting of Wheelbase and Codes which identify Color of Exterior Paint, Model, Trim, Body Type, Auxiliary Transmission, Main Transmission, Rear Axle Ratio and Front Axle Capacity.
• 3. The third line consists of Gross Vehicle Weight rating, Certified Net Horsepower @ the R.P.M. shown, a Code which identifies the District and the D.S.O. number when applicable.

The page number(s) on which the Codes are listed is shown in parenthesis.

(FIRST LINE) WARRANTY NUMBER (T80EV G90001)

"T80" - LT800 Series "E" - 8 Cyl. Engine - 361 C.I.D. - 2 Venturi Carburetor "V" - Assembled at Kentucky Truck Plant "G90001" - First unit built at Kentucky Truck Plant

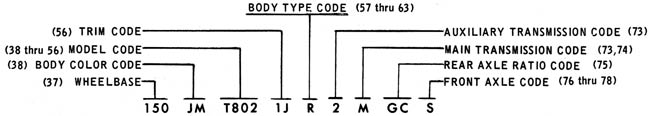

(SECOND LINE) MISCELLANEOUS VEHICLE DATA (150 JM T802 1JR 2M GCS)

"150" - 150" Wheelbase "JM" - Rangoon Red lower body (J), Wimbledon White upper body (M) "T802"   LT800 Unit with necessary equipment to rate the given G.V.W. "1J" - Gray all vinyl (on Standard Cab) (Refer to appropriate Soft Trim Section for complete instructions and Trim Code Listing.) "R" - Conventional Cab "2" - 3 Speed Dana (Spicer) 5831 -D with ratio of 2.0/.85 When applicable the Auxiliary Transmission Code will be shown to the left of the main Transmission Code. "M" - Clark 5 Speed 285V Direct Drive "GC" - Rear Axle Ratio of 7.60 and a capacity of 32M (Eaton No. 30DSC) "S"   16M Front Axle with power steering

(PART OF THIRD LINE) DISTRICT CODE (72)
