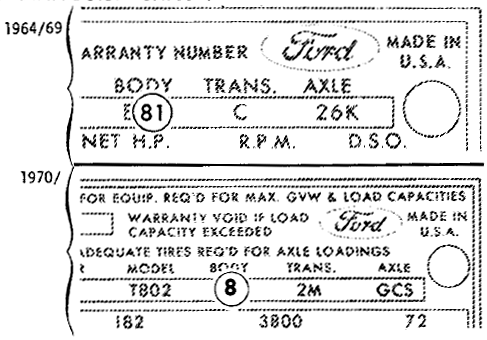

RATING or WARRANTY PLATE and CERTIFICATION LABEL - continued

BODY TYPE CODES

1964/65 U.S. BUILT VEHICLES
1966/ U.S. and CANADIAN BUILT VEHICLES

THE LAST TWO DIGITS OF THE BODY TYPE CODE IDENTIFY THE TYPE OF CAB.

USE THE BODY TYPE CODE IN CONJUNCTION WITH THE MODEL CODE TO DETERMINE THE EXACT BODY TYPE OF THE UNIT.

THESE CODES AND THE CORRESPONDING BODY TYPE INFORMATION ARE LISTED AT THE BOTTOM OF THIS PAGE AND THE PAGES WHICH FOLLOW.

THE FIRST DIGIT OF THE BODY TYPE CODE IDENTIFIES THE TYPE OF CAB.

THE LAST DIGIT OF THE BODY TYPE CODE IDENTIFIES THE TYPE OF
BACK-OF-CAB EQUIPMENT.

USE THE BODY TYPE CODE IN CONJUNCTION WITH MODEL CODES SHOWN TO DETERMINE THE EXACT BODY TYPE OF THE UNIT.

THESE CODES AND THE CORRESPONDING BODY TYPE INFORMATION ARE LISTED AT THE BOTTOM OF THIS PAGE AND THE PAGES WHICH FOLLOW.

1964 ECONOLINE

(U.S. built vehicles)
(From Serial 445,001 thru 580,000)

THREE DIGIT CODE:

FIRST DIGIT Indicates color of Interior trim. (Refer to 1964 Soft Trim Section page A1 etc. for listing of Trim Codes.)
LAST TWO DIGITS indicate type of cab.

BODY
TYPE		 MODEL DESCRIPTION CATALOGED AS -
87 E103/E104 Pickup (Standard) - with numeric trim codes - exc. Heavy Duty 87A
E103/E104 Pickup (Deluxe) - with alpha trim codes - exc. Heavy Duty 87B
El05/E106 Pickup (Standard) - with numeric trim codes - Heavy Duty 87A
E105/E106 Pickup (Deluxe) - with alpha trim codes - Heavy Duty 87B
89 E110 Station Bus (Standard) 89B
E120 Custom Club Wagon 89C
E130 Deluxe Club Wagon 89D
89 E143/E144 Cargo Van - with R.H. body side doors (less windows) - exc. Heavy Duty 89A
E143/E144 Display Van - with R.H. body side doors and windows - exc. Heavy Duty 89E
E143/E144 Window Van - with R.H. body side doors and R.H. and L.H. windows - exc. Heavy Duty 89F
E143/E144 Cargo Van - with R.H. and L.H. body side doors (less windows) - exc. Heavy Duty 89G
E145/E146 Cargo Van - with R.H. body side doors (less windows) - Heavy Duty 89A
E145/E146 Display Van - with R.H. body side doors and windows - Heavy Duty 89E
E145/E146 Window Van - with R.H. body side doors and R.H. and L.H. windows - Heavy Duty 89F
E145/E146 Cargo Van - with R.H. and L.H. body side doors (less windows) - Heavy Duty 89G
E153/E154 Panel Van - exc. Heavy Duty 89H
E155/E156 Panel Van - Heavy Duty 89H


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
