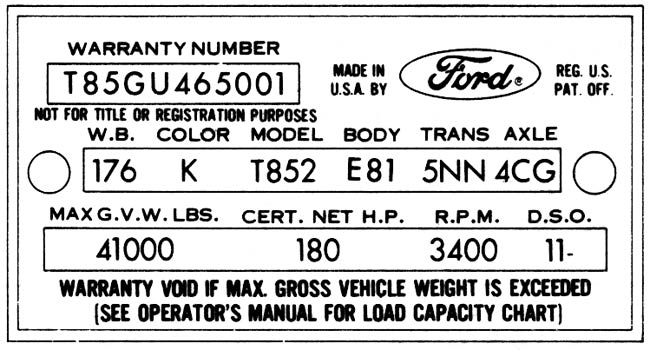

1964/65 RATING or WARRANTY PLATE - TYPICAL

(U.S. built vehicles)

Installed in the following locations:

• B-F100/750 (84,85)................................................................Glove compartment door (inside)
• C-CT-H-HT550/1100,E100,F-N-NT-T100/1100 (81).......Latch face of the left front door
• P100/500 (85).........................................................................Upper right corner of the dash panel
• P100/500 (88).........................................................................Upper right corner of the radiator support

The Rating or Warranty Plate includes:

• 1. Warranty Number (first line) consisting of Codes which identify Series, Engine, Assembly Plant and Numerical Sequence of Assembly.
• 2. Miscellaneous Vehicle Data (second line) consisting of Wheelbase and Codes which identify Color of Exterior Paint, Model, Trim, Body Type, Auxiliary Transmission, Main Transmission, Rear Axle Ratio and Front Axle Capacity.
• 3. The third line consists of Gross Vehicle Weight rating, Certified Net Horsepower @ the R.P.M. shown, a Code which identifies the District and the D.S.O. number (when applicable).

The page numbers (s) on which the Codes are listed is shown in parenthesis.

(FIRST LINE) WARRANTY NUMBER (T85GU465001)

"T85" - T850 Series "G" - 8 Cyl. Engine - 401 C.I.D. - 2 Venturi Carburetor "U" - Assembled at Louisville Plant "465001" - First unit built at Louisville during Model Year

 (SECOND LINE) MISCELLANEOUS VEHICLE DATA (176 K T852 E81 5NN 4CG)

"176" - 176" Wheelbase "K" - Medium Beige "T852" - T850 Unit with necessary equipment to rate the given G.V.W. "E" - Red woven plastic (on Custom Cab) Refer to appropriate Soft Trim Section for complete instructions and Trim Code listing. "81" - Conventional Cab "5" - 4 Speed Dana (Spicer) 8341-C with ratio of 2.40/.84 (When applicable the Auxiliary Transmission Code will be shown to the left of the Main Transmission Code.) "N" - 5 Speed Dana (Spicer) 5652 Direct Drive "N" - Used only when unit is equipped with New Process option "4C" - Rear Axle Ratio of 6.50 to 1 and a capacity of 32M (Eaton No. 30DS) "G" - 11M Front Axle (Optional front axles only shown)

(PART OF THIRD LINE) DISTRICT CODE (11)
