SECTION 22

2269 — HOSE OR TUBE - continued

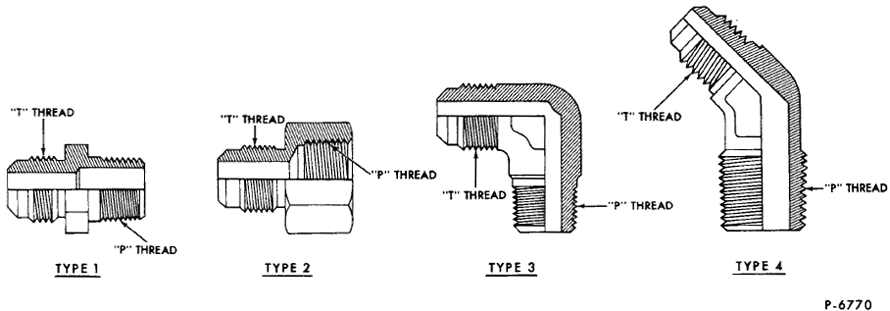

RE-USABLE HOSE ADAPTER

PART NUMBER TYPE O.D.
TUBE
SIZE		 THREAD
T		 THREAD
P
C9TZ 2074-A 1 1/2 3/4-16 1/4-18
C9TZ 2074-B 1 1/2 3/4-16 1/2-14
C9TZ 2074-C 1 5/8 7/8-14 3/8-18
C9TZ 2074-D 1 1/4 7/16-20 3/8-18
C9TZ 2074-E 1 3/8 5/8-18 3/8-18
C9TZ 2074-F 1 3/8 5/8-18 1/8-27

C9TZ 2074-G 1 1/2 3/4-16 3/4-14
C9TZ 2074-H 1 3/4 1 1/16-14 3/4-14
C9TZ 2074-J 2 1/4 7/16-20 1/4-18
C9TZ 2074-K 3 1/4 7/16-20 1/4-18
C9TZ 2074-L 3 1/2 3/4"-16 1/4-18
C9TZ 2074-M 3 1/2 3/4-16 3/8-18
PART NUMBER TYPE O.D.
TUBE
SIZE		 THREAD
T		 THREAD
P
C9TZ 2074-N 3 3/8 5/8-18 1/2-14
C9TZ 2074-R 3 1/2 3/4-16 1/2-14
C9TZ 2074-S 3 3/8 5/8-18 3/8-18
C9TZ 2074-T 3 1/4 7/16-20 3/8-18
C9TZ 2074-U 3 3/4 1 1/16-14 1/2-14
C9TZ 2074-V 3 3/4 1 1/16-14 3/4-14
C9TZ 2074-W 4 1/2 3/4-16 3/8-18
C9TZ 2074-Y 4 3/8 5/8-18 1/4-18
C9TZ 2074-Z 4 1/4 7/16-20 1/4-18
C9TZ 2074-AA 4 1/2 3/4-16 1/2-14
C9TZ 2074-AB 4 5/8 7/8-14 1/2-14
C9TZ 2074-AC 4
C9TZ 2074-AD 4

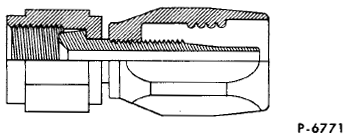

RE-USABLE SWIVEL FITTING
PART NUMBER O.D.
TUBE
SIZE		 THREAD
SIZE
C9TZ 2B323-A 1/4 7/16-20
C9TZ 2B323-B 3/8 5/8-18
C9TZ 2B323-C 1/2 3/4-16
C9TZ 2B323-D 5/8 7/8-14
C9TZ 2B323-E 3/4 1 1/16-14


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
