SECTION 23.1

BRAKE BOOSTER and RELATED PARTS   This section includes the following: Page   Page A.    Brake booster T.S.L. Cross-Reference Guide B.    Illustration to identify booster types C.    Bendix brake vacuum booster identification tag   1 1 1   D.    Brake Booster and Master Cylinder Chart E.    Brake Booster Components Parts List 2-11 14 & up BRAKE BOOSTER T.S.L. CROSS-REFERENCE GUIDE Locate the brake booster number shown on the Truck Specification List. Find the Booster Assy. or Repair Parts List by using the Cross-Reference below.

T.S.L. NUMBER SIZE (Inches) SERVICE PART NUMBER PARTS LIST NO. C3TA 2005 -B 11.00 C3TZ 2005-B 6 C3TA 2005-D 9.50 C3TZ 2005-D r/b D0TZ 2005-J 7 C4TA 2005-J 11.00 C3TZ 2005-T 10 C4TA 2005-K 12.75 C3TZ 2005-S 10 C6TA 2005-L 11.50 C4TZ 2005-P 9 C8HA 2005-L 12.75 C8HZ 2005-C r/b D0HZ 2005-1 18 C8HA 2005-M 12.75 C9HZ 2005-B 19 C8HA 2005-N 12.75 C9HZ 2005-C 19 C8HA 2005-R 12.75 C9HZ 2005-A 19 C8TA 2005-K 12.75 C8TZ 2005-K 17 C9HA 2005-A 8.94 C9HZ 2005-H None C9HA 2005-B 9.50 C3TZ 2005-D 7 C9HA 2005-G 12.75 C9HZ 2005-E 19 C9HA 2005-H 12.75 C9HZ 2005-F 19 C9HA 2005-J 12.75 C9HZ 2005-G 19 C9HA 2005-K 8.94 C9HZ 2005-H None C9TA 2005-D 8.94 C8TZ 2005-E 15 C9TA 2005-K 12.75 C9TZ 2005-F 17 D0HA 2005-C       D0HA 2005-D 9.50 D0HZ 2005-B 7 D0HA 2005-E 12.75 D0HZ 2005-C 20

T.S.L. NUMBER SIZE (Inches) SERVICE PART NUMBER PARTS LIST NO. D0TA 2005-C 12.75 D0TZ 2005-B 21 D0TA 2005-D 9.50 D0TZ 2005-A 7 ED-D1TA 2005-BA 12.75 D1TZ 2005-D 17 D1TA 2005-BB 12.75 D1TZ 2005-D 17 ED-D1TA 2005-CA 12.75 D1TZ 2005-C 17 D1TA 2005-CB 12.75 D1TZ 2005-C 17 D2TA 2005-EA 12.75 D2TZ 2005-A 22 D2TA 2005-EB 12.75 D2TZ 2005-A 22 TEAA 2005-B 10.00 TEAA 2005-B 13 C8TA 2B195-D 13.00 C8TZ 2005-C & C8TZ 2140-H 14 C8TA 2B195-K 13.00 C8TZ 2005-C & C8TZ 2140-G 14 C8TA 2B195-Y 13.00 C8TZ 2005-C 14 C8TA 2B195-Z 13.00 C8TZ 2005-C 14 C9TA 2B195-K 13.00 C9TZ 2005-E & C9TZ 2140-J 2 D0HA 2B195-B 13.00 D0HZ 2005-A & C9TZ 2140-J None D0HA 2B195-C 13.00 D0HZ 2005-A & D0HZ 2140-C None D0HA 2B195-D 13.00 D0HZ 2005-A & D0HZ 2140-C None D0TA 2B195-B 13.00 C9TZ 2005-E & C9TZ 2140-J 2 D2HA 2B195-AA 13.00 D0HZ 2005-A & D0HZ 2140-C None D2HA 2B195-BA 13.00 D0HZ 2005-A & C9TZ 2140-J None D2TA 2B195-AA 13.00 C9TZ 2005-E & C9TZ 2140-J 2

HOW TO USE the BRAKE BOOSTER and MASTER CYLINDER CHART and PARTS LISTS

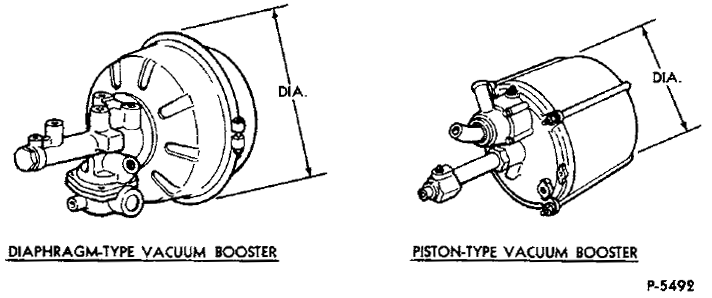

Determine the model year and truck series. When optional boosters are shown, determine diameter, type and mounting location of booster. See illustration below. When vendor's number is known, select appropriate line for desired booster or related parts. The booster repair kit, master cylinder and master cylinder repair kits are also listed in the Brake Booster and Master Cylinder Chart for each model. For other booster components, refer to the appropriate booster components parts list. Parts lists are shown in numerical sequence, starting on page 14 of this section. Refer to the Illustration Section and Page shown in the Brake Booster and Master Cylinder Chart when necessary for basic group numbers of booster components.

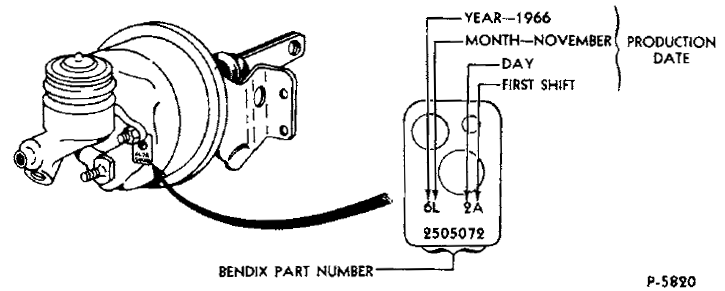

BRAKE BOOSTER IDENTIFICATION   BENDIX BRAKE VACUUM BOOSTER IDENTIFICATION TAGS
I.D. NO. SERVICE NO. PARTS LIST NO. 2501029 C3TZ 2005-D r/b D0TZ 2005-A 7 2503258 C3TZ 2005-S r/b D0TZ 2005-B 10 2505051 C7TZ 2005-B 12 2505396 C7TZ 2005-C 12 2506435 C8TZ 2005-E 15 2506763 C8TZ 2005-A 12 2506795 C8TZ 2005-B 12 2506828 C8TZ 2005-D 16 2507224 C8HZ 2005-C r/b D0HZ 2005-D 18 2507376 C8TZ 2005-J 17	I.D. NO. SERVICE NO. PARTS LIST NO. 2507377 C9HZ 2005-B r/b C9HZ 2005-E 19 2507378 C9HZ 2005-C r/b C9HZ 2005-F 19 2507379 C9HZ 2005-A r/b C9HZ 2005-G 19 2508014 C8TZ 2005-K 17 2508177 D0HZ 2005-B 7 2508336 C9TZ 2005-A None 2508522 C9TZ 2005-B None 2508523 C9TZ 2005-D None 2508524 C9TZ 2005-C None 2508638 C9HZ 2005-D r/b C9HZ 2005-H 17	I.D. NO. SERVICE NO. PARTS LIST NO. 2509143 C9HZ 2005-E 19 2509146 C9HZ 2005-F 19 2509149 C9HZ 2005-G 19 2509152 C9HZ 2005-H 17 2509426 D0TZ 2005-A 7 2509364 D0TZ 2005-B 21 2509547 D1HZ 2005-B 19 2509558 D1TZ 2005-C 17 2509559 D1TZ 2005-D 17 2509605 D0HZ 2005-C 20 2509662 D0HZ 2005-D 18 2510065 D2TZ 2005-A 22 2510185 D2UZ 2005-A None

Truck Specification List - included on Louisville-built trucks beginning August 14, 1967
