SECTION 28

YEAR MODEL DESCRIPTION QTY. PART NUMBER
2836 — BRACKET - PARKING BRAKE CONTROL MOUNTING - continued
64/66 N500/1100, NT850/950 "Before Ser. A70,001"   1 ■ C3TZ 2836-A
67/69 N850/1000, NT850/950 "From Ser. A70,001"   1 C7TZ 2836-A
64/66 H-HT950/1000 (Diesel) Bolt (brake to bracket) - 5/8"-11 x 1 3/4" 4 45754-S8 (B138)



YEAR MODEL DESCRIPTION QTY. PART NUMBER
2837 — STUD - PARKING BRAKE LINK
64/ F350, P350/500 Overall length- 1 17/32" 1 01T 2837
    Nut - 3/8"-16 1 33799-S7 (M52)
    Lockwasher - 3/8"   34847-S8 (X74)
    Cotter pin - 1/8" x 1"   72035-S7-8 (N51)



YEAR MODEL DESCRIPTION QTY. PART NUMBER
2849 — SPACER - PARKING BRAKE CONTROL MOUNTING
64/ P100/500 Lever to bracket - 27/32" long-use with B7J 2780-A 2 1J 2849-A
72 B600/750, (F500/750-84) w/AT 540 or C6 auto. trans. Use w/D2TZ 2780-A 2
65/66 B-F500/750 (Clark 265 transmission) Orscheln - control mounting -13/32" I.D. -
1 1/32" O.D. - 49/64" long		 2 C5TZ 2849-A



2853 — ROD - PARKING BRAKE

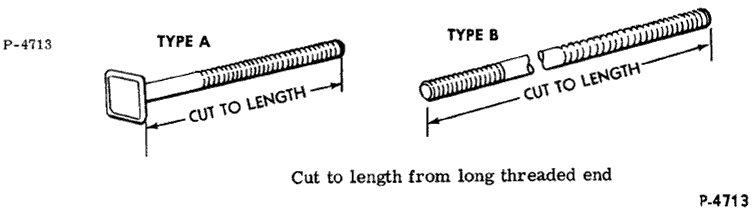

PARKING BRAKE ROD REPLACEMENT CHART
BRAKE ROD ASSY. TYPE CUT
LENGTH
(INCHES)		 FRONT CLEVIS SPRING REAR CLEVIS THREAD UNIVERSAL
ROD		 ROD
LENGTH
(INCHES)		 THREAD LENGTH
(INCHES)
B4TW 2853-A A 19.73 A9TZ 2854-A 01T 2635 A9TZ 2854-B 3/8-24 C0TZ 2826-B 20.00 10.00
B7Q 2853-C A 10.05 A9TZ 2854-A 01T 2635 8J 2854 3/8-24 C0TZ 2826-A 11.00 10.00
B7T 2853-D A 4.42 A9TZ 2854-A 01T 2635 B8TZ 2854-A 3/8-24 C0TZ 2826-A 11.00 10.00
B7T 2853-E A 10.05 A9TZ 2854-A 01T 2635 B3TZ 2854-A 3/8-24 C0TZ 2826-A 11.00 10.00
B80 2853-A A 5.47 A9TZ 2854-A 01T 2635 B3TZ 2854-A 3/8-24 C0TZ 2826-A 11.00 10.00
B8QH 2853-A A 41.74 A9TZ 2854-A 01T 2635 B8TZ 2854-B 3/8-24 C0TZ 2826-C 45.00 20.00
B8QH 2853-B A 8.25 A9TZ 2854-A 01T 2635 B8TZ 2854-B 3/8-24 C0TZ 2826-A 11.00 10.00
B8QH 2853-C A 18.56 A9TZ 2854-A 01T 2635 B8TZ 2854-B 3/8-24 C0TZ 2826-B 20.00 10.00
B8QH 2853-D A 40.58 A9TZ 2854-A 01T 2635 A9TZ 2854-B 3/8-24 C0TZ 2826-C 45.00 20.00
B8QH 2853-E A 39.90 A9TZ 2854-A 01T 2635 A9TZ 2854-B 3/8-24 C0TZ 2826-C 45.00 20.00
B9Q 2853-A A 4.92 A9TZ 2854-A None 97013-S8 (F3) 3/8-24 C0TZ 2826-A 11.00 10.00
B90 2853-B A 33.33 A9TZ 2854-A 01T 2635 B8TZ 2854-B 3/8-24 C0TZ 2826-C 45.00 20.00
B9Q 2853-D A 3.12 None None None 3/8-24 C0TZ 2826-A 11.00 10.00
B9QH 2853-A A 5.75 A9TZ 2854-A 01T 2635 B8TZ 2854-B 3/8-24 C0TZ 2826-A 11.00 10.00
B9QH 2853-B B 9.18 97013-S8 (F3) None B8TZ 2854-B 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B9T 2853-A B 9.88 97013-S8 (F3) None 97013-S8 (F3) 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B9T 2853-B A 3.42 A9TZ 2854-A None 97013-S8 (F3) 3/8-24 C0TZ 2826-A 11.00 10.00
TEAA 2853-A A 5.12 A9TZ 2854-A 01T 2635 B3TZ 2854-A 3/8-24 C0TZ 2826-A 11.00 10.00
TWAA 2853-C A 36.24 A9TZ 2854-A 01T 2635 A9TZ 2854-B 3/8-24 C0TZ 2826-C 45.00 20.00
8MWH 2853-B A 12.99 A9TZ 2854-A 01T 2635 A9TZ 2854-B 3/8-24 C0TZ 2826-B 20.00 10.00
B7QH 2864-A B 11.50 97013-S8 (F3) None A9TZ 2854-B 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B7QH 2864-B B 15.25 97013-S8 (F3) None A9TZ 2854-B 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B7T 2864-A B 8.06 97013-S8 (F3) None B3TZ 2854-A 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B7T 2864-C B 9.18 97013-S8 (F3) None B3TZ 2854-A 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B8QH 2864-A B 11.88 97013-S8 (F3) None B8TZ 2854-B 3/8-24 C0TZ 2826-D 23.00 17.00/2.00
B8QH 2864-B B 16.12 97013-S8 (F3) None B8TZ 2854-B 3/8-24 C0TZ 2826-D 23.00 17.00/2.00

Use 33800-S8 (M63) Nut with Clevis          Use 33800-S8 (M63) and 33925-S Nuts with Clevis

▲ Use (2) 33925-S7(M33) - Front & rear Clevis Nuts

Use 33925-S7 (M33) - Front Clevis Nut & 33925-S7 (M33) and 33800-S8 (M63) - Rear Clevis Nuts

  For service use details shown on this chart
