SECTION 37

3A719 — HOSE ASSY. - POWER STEERING PRESSURE LINE - continued

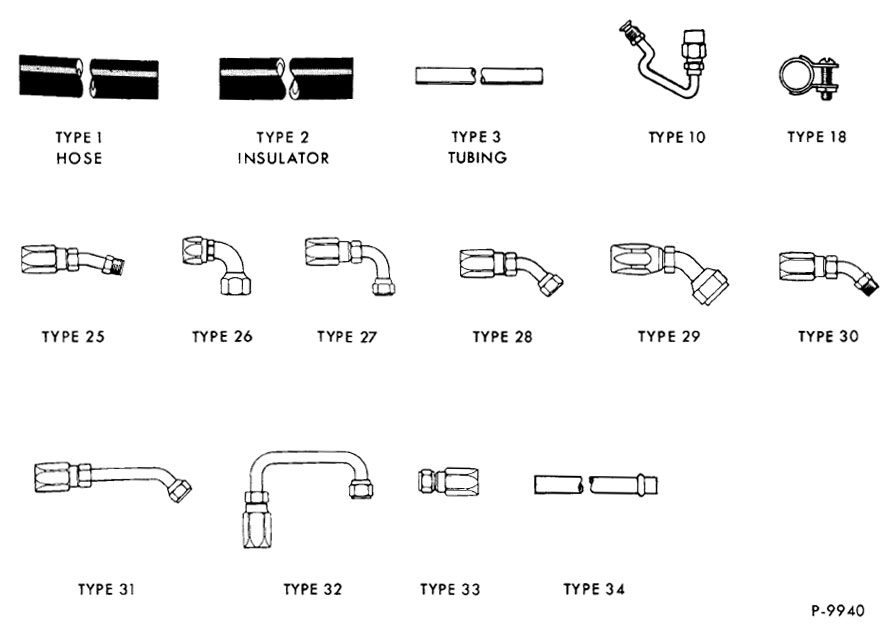

POWER STEERING HOSE REPLACEMENT DETAILS

PART NUMBER TYPE DESCRIPTION
B7Q 2269-A 3 Tubing - steel - 3/8" O.D. - 25 ft. roll
B5A 2344-A 18 Clamp - 5/8" dia. - with bolt and nut
C7AZ 3A005-A 1 Hose - 3/8" I. D. x 5/8" O.D. x 25 ft.
C6TZ 3C520-F 33 Fitting - straight hose - 1/2" tube
C6TZ 3C520-G 28 Fitting - 45° hose - 1/2" tube
C6TZ 3C520-H 27 Fitting - 90° hose - 1/2" tube
C6TZ 3C520-J 31 Fitting - 42° extra long hose - 1/2" tube
C6TZ 3C520-K 27 Fitting - 90° hose-1/2" tube
C6TZ 3C520-L 32 Fitting - 180° hose - 1/2" tube
C6TZ 3C520-M 30 Fitting - 45° hose - 1/2" tube
C6TZ 3C520-N 25 Fitting - 15° hose - 1/2“ tube
PART NUMBER TYPE DESCRIPTION
C9HZ 3C520-A 33 Fitting - straight hose - 1/2" tube
C9HZ 3C520-B 33 Fitting - straight hose - 7/8" tube
D0HZ 3C520-A 27 Fitting - 90° hose - 5/8" dia. - 7/8"-14 thrd.
D0HZ 3C520-B 33 Fitting - straight - 3/8" dia. - 9/16"-18 thrd.
D0HZ 3C520-C 28 Fitting - 45° - 1/2" dia. - 7/8"-14 thread
D1HZ 3C520-A 25 Fitting - 45° - 5/16" dia. - 5/8"-18 thread
D1HZ 3C520-B 30 Fitting - 90° - 5/16" dia. - 5/8"-18 thread
D1HZ 3C520-C 10 Fitting - 135° - 13/32" dia.
C6TZ 3B719-B 1 Hose - 13/32" I. D. x 3/4" O.D. x 25 ft.
C9TZ 3B719-A 1 Hose - 1/2" I.D. x 15/16" O.D. x 25 ft.
C9TZ 3B719-B 1 Hose - 7/8" I.D. x 1 3/16" O.D. x 12 ft.
D0HZ 3B719-A 1 Hose - 5/16" I.D. x 3/4" O.D. x 25 ft.


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
