SECTION 30

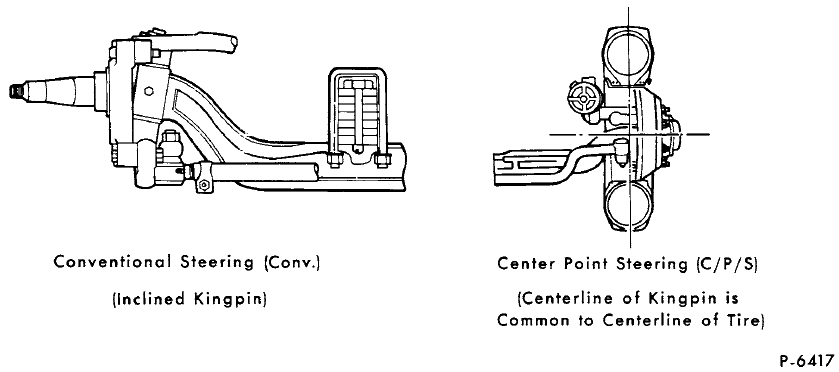

CONVENTIONAL and CENTER POINT STEERING AXLE
IDENTIFICATION - TYPICAL
|
 |
|
FRONT AXLE T.S.L.
CROSS REFERENCE GUIDE |
- Locate Front Axle assembly shown on Truck Specification
List.
- Use the cross reference below to find the Front Axle parts
list which contains service parts for that axle.
- When a Truck Specification List is not available, refer to
the Front Axle Model Application Chart
on Page 4 of this section to determine Front Axle Parts List.
|
FRONT AXLE ASSY.
T.S.L. OR IDENTIFICATION
NUMBER |
MANUFACTURER
INFORMATION |
AXLE CAPACITY |
FRONT AXLE
SECTION &
PARTS LIST NO. |
ILLUSTRATION
 |
| SECTION |
PAGE |
| C3TA 3004-Z |
FF-903-TW-X-1 |
12M - Conv. |
30.8B |
30 |
23 |
| C3TA 3004-AA |
FF-903-TW-X-2 |
12M - Conv. |
30.8B |
30 |
23 |
| C3TA 3004-AB |
FF-903-TW-X-3 |
12M - Conv. |
30.8A |
30 |
23 |
| C3TA 3004-AC |
FF-903-TW-X-4 |
12M - Conv. |
30.8A |
30 |
23 |
| C3TA 3004-AD |
FF-903-TW-X-5 |
12M - Conv. |
30.8B |
30 |
23 |
| C3TA 3004-AE |
FF-903-TW-X-6 |
12M - Conv. |
30.8B |
30 |
23 |
| C3TA 3004-AF |
FF-903-TW-X-7 |
12M - Conv. |
30.8A |
30 |
23 |
| C4TA 3004-G |
FF-903-HD-X-1 |
12M - Conv. |
30.8B |
30 |
23 |
| C5TA 3004-N |
FL-901-FDA-X-32 |
18M |
30.10B |
30 |
26 |
| C6TA 3004-AN |
FE-970-Y-103 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-AR |
FE-970-TW-X-153 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3003-AS |
FE-970-TW-X-154 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-AT |
FE-970-TW-X-155 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3004-AU |
FE-970-TW-X-156 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-AV |
FE-970-TW-X-157 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3004-AY |
FE-970-RSA-X-18 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3004-AZ |
FE-970-RSA-X-19 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-BA |
FE-970-RSA-X-20 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3004-BB |
FE-970-RSA-X-21 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-BC |
FE-970-RSA-X-22 |
12M - C/P/S |
30.8C |
30 |
24 |
| C6TA 3004-BD |
FE-970-RSA-X-23 |
12M - C/P/S |
30.8D |
30 |
24 |
| C6TA 3004-BE |
FF-903-TW-X-40 |
12M - Conv. |
30.8B |
30 |
23 |
| C6TA 3004-BF |
FF-903-TW-X-41 |
12M - Conv. |
30.8B |
30 |
23 |
| C6TA 3004-BG |
FF-903-TW-X-42 |
12M - Conv. |
30.8A |
30 |
23 |
| C6TA 3004-BH |
FF-903-TW-X-43 |
12M - Conv. |
30.8A |
30 |
23 |
| C6TA 3004-BJ |
FF-903-TW-X-44 |
12M - Conv. |
30.8B |
30 |
23 |
| C6TA 3004-BK |
FF-903-TW-X-45 |
12M - Conv. |
30.8B |
30 |
23 |
| C6TA 3004-BL |
FF-903-TW-X-46 |
12M - Conv. |
30.8A |
30 |
23 |
| C6TA 3004-BM |
FF-903-TW-X-47 |
12M - Conv. |
30.8A |
30 |
23 |
| C6TA 3004-BN |
FF-903-TW-X-48 |
12M - Conv. |
30.8B |
30 |
23 |
Truck Specification List - included on Louisville built trucks beginning
August 14, 1967
ADMIN NOTE: The referenced illustrations are in the separate
'Illustrations Manual' and will be added at a later date.
|
'
Symbol (in the text listings or exploded-view diagram)
indicates part is not supplied for service due to the
following:
-
Identifies unique Canadian part numbers and application and have been
and footnoted.
- Identifies unique U.S. part numbers and application and have been
footnoted.
