SECTION 35.1

STEERING GEAR ASSEMBLIES

3504 — GEAR ASSY. STEERING - continued

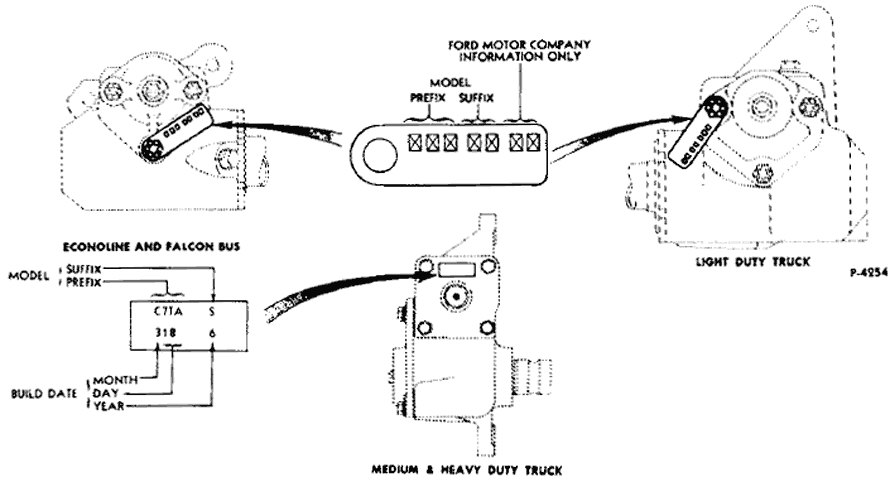

IDENTIFICATION TAG A metal identification tag is attached to Ford-designed steering gear housings, beginning with the 1964 light-duty models, as shown in the illustration below. Ross-designed steering gears on medium-duty and heavy-duty models have a tag on the cover which gives the gear prefix and suffix, beginning December 1, 1966.
MODEL APPLICATION
YEAR	MODEL	FRONT AXLE	IDENTIFICATION	HOUSING CASTING NUMBER	MTG. FLG. STAMPED	PARTS LIST NO.	QTY.	PART NUMBER

B SERIES
64	B500/750	5M, 5.5M, 6M, 7M		35DC06	00	18	1	C4TZ 3504-K
65	B500/750	5M, 5.5M, 6M, 7M	C5TA-A	35DC13	12	25	1	C5TZ 3504-C
66	B500/750 - Manual steering	5M, 5.5M, 6M, 7M	C5TA-A	35DC13	12	25	1	C5TZ 3504-C
66	B500/750 - P/S	5M, 5.5M, 6M, 7M	C6TA-U	35DC18	17	35	1	C6TZ 3504-M

67/	B500/750 - Man. - "Before Ser. D82,001"	5M, 5.5M, 6M, 7M	C7TA-S			43	1	C7TZ 3504-B r/b C9TZ 3504-B
	B500/750 - Man. - "From Ser. D82,001"	5M, 5.5M, 6M, 7M	C8TA-K, D1TA-BA	35JC29	27	43	1	C9TZ 3504-B
	B500/750 - Man. - "From Ser. E70,001"	5M, 5.5M, 6M, 7M	C9TA-D			65	1	C9TZ 3504-D
	B500/750 - Man. - P/S "Before Ser. G90,001"	5M, 5.5M, 6M, 7M	C7TA-F,V			53	1	C7TZ 3504-S
	B500/750 - Man. - "From Ser. G90,001"	5M, 5.5M, 6M, 7M	NOTE 2			53		D0TZ 3504-A

C & CT SERIES
64/65	C550/750 "Before Ser. 470,001"	6M, 7M				2	1	B7T 3504-A
	C550/750 "From Ser. 470,001"	6M,7M		35JC02		22	1	C4TZ 3504-R
	C800/1000 - Manual & P/S	5M, *11M	C4TA-M	6JC25		20	1	C4TZ 3504-M
	C1100 - Manual	9M, 11M		7JC62		21	1	C4TZ 3504-N
	C1100 - P/S	9M	C4TA-M	6JC25		20	1	C4TZ 3504-M
	C800/1100 - Manual	12M, 15M		7JC62		21	1	C4TZ 3504-N
	C800/1100 - P/S	12M, 15M	C4TA-M	6JC25		20	1	C4TZ 3504-M
	CT750/950 - Manual	9M, 11M, 12M, 15M		7JC62		21	1	C4TZ 3504-N
	CT750/950 - P/S	9M, 12M, 15M	C4TA-M	6JC25		20	1	C4TZ 3504-M
66/69	C500/800, (C850 exc. 175" W/B) - Man. "Before Ser. C70,001"	6M, 7M, 9M, (*11M, 12M - ctr. pt. strg.)	C6TA-C	26JC04		29	1	C6TZ 3504-A
	C500/800, (C850 exc. 175" W/B) - Man. "From Ser. C70,001"	6M, 7M, 9M, (*11M, 12M - ctr. pt. strg.)	C8HA-C	408CC009		58	1	C8HZ 3504-B
	C500/800, (C850 exc. 175" W/B) - P/S	6M, 7M, 9M	C6TA-H	35JC05		31	1	C6TZ 3504-G

* - Power Steering not available with 11M, 12M center point steering
- Parts lists start on page 12
- Ross-designed gears tagged beginning December 1, 1966
NOTE 2 - Marked D0TA 3N503-A

Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand

- Identifies unique Canadian part numbers and application and have been and footnoted.

- Identifies unique U.S. part numbers and application and have been footnoted.

- Site Admin notes (not part of the original MPC)
