SECTION 22.1

YEAR RESTRICTIONS PART NUMBER QTY. PART NAME AND DESCRIPTION
REAR BRAKE PARTS LIST NO. 14 - continued — 16 1/2 x 4 1/2, 16 1/2 x 5 1/2, 16 1/2 x 6, 16 1/2 x 7 - AIR BRAKES

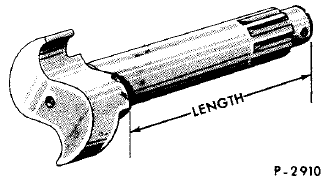

2316-17 CAMSHAFT - BRAKE

17M, 17.5M AXLES
64 Eaton brake B7QH 2316-A
B7QH 2317-A		 1 R.H. - stamped 40547 - 10 15/32"  shaft length
L.H. - stamped 40548
68/ 16 1/2 x 4 1/2 Eaton brake C8TZ 2316-A
C8TZ 2317-A		 1 R.H. - stamped 70308 - 10 13/16" shaft length
L.H.  - stamped 70309
64 Rockwell (Timken) brake B8QH 2316-A
BEQH 2317-A		 1 R.H. - stamped 2210-P-2980 - 11 3/4"  shaft length
L.H. - stamped 2210-Q-2981
65/ Rockwell (Timken) brake C5TZ 2316-A
C5TZ 2317-A		 1 R.H. - stamped 2710-C-211 - 10 3/4"  shaft length
L.H. - stamped 2710-D-212

18M DEAD AXLE (Page & Page Susp.)
64/ Rockwell (Timken) brake C1TT 2316-A
C1TT 2317-A		 1 R.H. - 11 15/32" shaft length
L.H. - stamped 2210-L-3028

18M & 18.5M AXLES
64 Eaton brake B7QH 2316-A
B7QH 2317-A		 1 R.H. - stamped 40547 - 10 15/32"  shaft length
L.H.  - stamped 40548
65/67 Eaton brake C5TZ 2316-C
C5TZ 2317-C		 1 R.H. - stamped 304001, 304003 - 11 27/32"  shaft length
L.H. - stamped 304002, 304004
68/ Eaton brake C8TZ 2316-B
C8TZ 2317-B		 1 R.H. - stamped 70306 - 11 13/16" shaft length
L.H. - stamped 70307
65/ Rockwell (Timken) brake B8QH 2316-A
B8QH 2317-A		 1 R.H. - stamped 2210-P-2980 - 11 3/4"  shaft length
L.H. - stamped 2210-Q-2981

21M & 22M AXLES 2316-17
64 Eaton brake B8QH 2316-B
B8QH 2317-B		 1 R.H. - stamped 45530 - 11 7/16" shaft length
L.H. - stamped 45531
65/67 Eaton brake C5TZ 2316-C
C5TZ 2317-C		 1 R.H. - stamped 304001, 304003 - 11 27/32" shaft diameter
L.H. - stamped 304002, 304004
68/ Eaton brake C8TZ 2316-B
C8TZ 2317-B		 1 R.H. - stamped 70306 - 11 13/16"  shaft length
L.H. - stamped 70307
64/ Rockwell (Timken) brake B8QH 2316-A
B8QH 2317-A		 1 R.H. - stamped 2210-P-2980 - 11 3/4" shaft length
L.H. - stamped 2210-Q-2981

23M AXLE
64 Eaton brake B8QH 2316-B
B8QH 2317-B		 1 R.H. - stamped 45530 - 11 7/16" shaft length
L.H. - stamped 45531
65/67 Eaton brake C5TZ 2316-C
C5TZ 2317-C		 1 R.H. - stamped 304001, 304003 - 11 27/32" shaft diameter
L.H. - stamped 304002, 304004
68/ Eaton brake C8TZ 2316-B
C8TZ 2317-B		 1 R.H. - stamped 70306 - 11 13/16" shaft length
L.H. - stamped 70307
64/ Rockwell (Timken) brake B8QH 2316-A
B8QH 2317-A		 1 R.H. - stamped 2210-P-2980 - 11 3/4" shaft length
L.H. - stamped 2210-Q-2981


29M AXLE
64/65 Rockwell (Timken) brake B8QH 2316-A
B8QH 2317-A		 1 R.H. - stamped 2210-P-2980 - 11 3/4"  shaft length
L.H. - stamped 2210-Q-2981


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
