| YEAR |
RESTRICTIONS |
PART NUMBER |
QTY. |
PART NAME AND DESCRIPTION |
| REAR BRAKE PARTS
LIST NO. 4 - continued —
12 x 2 1/2 & 12 x 3 |
| 66/ |
|
C6TZ 2A142-B
C6TZ 2A142-A |
1 |
CAM PLATE - PARKING BRAKE LEVER - R.H.
L.H. |
| 66/ |
|
C7TZ 2A176-B |
2 |
LEVER - BRAKE SHOE ADJUSTING |
| |
|
|
|
|
| 66 |
|
C6TZ 2A179-B
C6TZ 2A179-A |
1 |
GUIDE - BRAKE SHOE ADJUSTING LEVER CABLE - R.H.
L.H. |
| 67/ |
|
C7TZ 2A179-A |
2 |
R.H. & L.H. |
| 66/ |
|
C9TZ 2A180-A
C9TZ 2A180-B |
1 |
SPRING - BRAKE AUTOMATIC ADJUSTING LEVER RETURN - R.H.
L.H. |
| 66/ |
|
C6TZ 2A178-A |
2 |
CABLE ASSY. - BRAKE SHOE ADJUSTING LEVER |
| |
|
2196-7 |
|
PISTON - BRAKE CYLINDER |
| 66/ |
|
C3OZ 2196-D |
2 |
15/16" diameter |
| 67/ |
|
C3OZ 2196-B |
4 |
1 1/16" diameter |
| 68/ |
|
 96H
2197-A |
|
1" diameter |
| 69/ |
E300 |
8A 2197-A |
4 |
7/8" diameter |
| 66/ |
|
C3OZ 2201-B |
4 |
CUP - BRAKE CYLINDER - 15/16" diameter
Also Refer to Groups 2128 & 2221 in this parts list |
| 67/ |
|
2201 |
4 |
1 1/16" diameter |
| 68/ |
|
91A
2201 |
4 |
1" diameter |
| 69/ |
E300 |
C3AZ 2201-B |
4 |
7/8" diameter |
| 66/72 |
"Before Ser. P40,001" |
A0A 2204-A |
2 |
SPRING - BRAKE CYLINDER PISTON RETURN |
| 72 |
"From Ser. P40,001" |
D3TZ 2204-A |
2 |
Also serviced in kit - Group 2128 |
66/67
68/
68/
69/ |
P400 - 12 x 3 brake
F250 (4x4), P350 - 12 x 2 1/2 brake
E300 - 12 x 3 brake |
96H 2206 |
4
4
4
4 |
BOOT - BRAKE CYLINDER |
| 68/ |
F350 - 12 x 3 brake |
C5TZ 2206-B |
4 |
|
| 66/ |
|
8M 2208 |
2 |
SCREW - BRAKE CYLINDER BLEEDER |
| |
|
2211-2 |
|
PLATE ASSY. - BRAKE CARRIER |
| 66/ |
F250/350, E300 |
C6TZ 2211-C
C6TZ 2212-C |
1 |
R. H. - stamped 317885-R
L.H. - stamped 317884-L |
| 67/ |
P350/400 |
C7TZ 2211-B |
1 |
R.H. & L.H. - stamped 318902-R |
67/68
71/ |
F350
F350 |
C4TZ 2221-A
r/b C5TZ 2221-A |
2
2 |
* BRAKE CYLINDER REPAIR KIT - 1 1/16" diameter -
Also Refer to Group 2128 in this Parts List |
| 66/70 |
"Before Ser. G70,001"
Part not required "From Ser. G70,001" |
C6TZ 2240-C |
2 |
BAFFLE - BRAKE GREASE - 4 bolt hole - 5" circle diameter |
| 66/ |
|
C6TZ 2248-B |
8 |
BOLT - BRAKE CARRIER PLATE - 1/2"-20 x 1 21/64" |
| 66/ |
|
34424-S7 (M84) |
8 |
Locknut - 1/2"-20 |
| |
|
2261-2 |
|
CYLINDER ASSY. - BRAKE |
| 66/ |
F250, P350 -12 x 2 1/2 brake |
C7AZ 2261-C
C7AZ 2262-C |
1
1 |
R.H. - 15/16" diameter
L.H. |
| 68/ |
F350 -12 x 3 brake |
C5TZ 2261-D
C5TZ 2262-B |
1 |
R.H. - 1" diameter
L.H. |
67
68/
|
12 x 3 brake
P400-12 x 3 brake
|
C6TZ 2061-A
C6TZ 2062-A |
1
1
|
R.H. - 1 1/16" diam.
L.H. |
| 69/72 |
E300 - 12 x 2 1/2 brake - "Before Ser. P40,001" |
C6OZ 2261-A
C6OZ 2262-A |
1 |
R.H. - 7 /8" diameter
L.H. |
| 72 |
E300 - 12 x 2 1/2 brake - "From Ser. P40, 001" |
D3TZ 2261-A |
1 |
R.H. - 7/8" diameter |
| |
|
D3TZ 2262-A |
1 |
L.H. |
| 66/ |
|

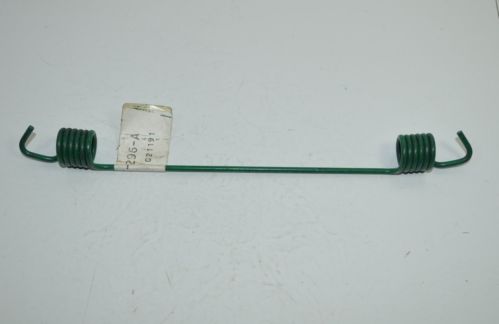

C6TZ 2296-A
 |
2 |
SPRING - BRAKE SHOE RETRACTING |
| 66/ |
|

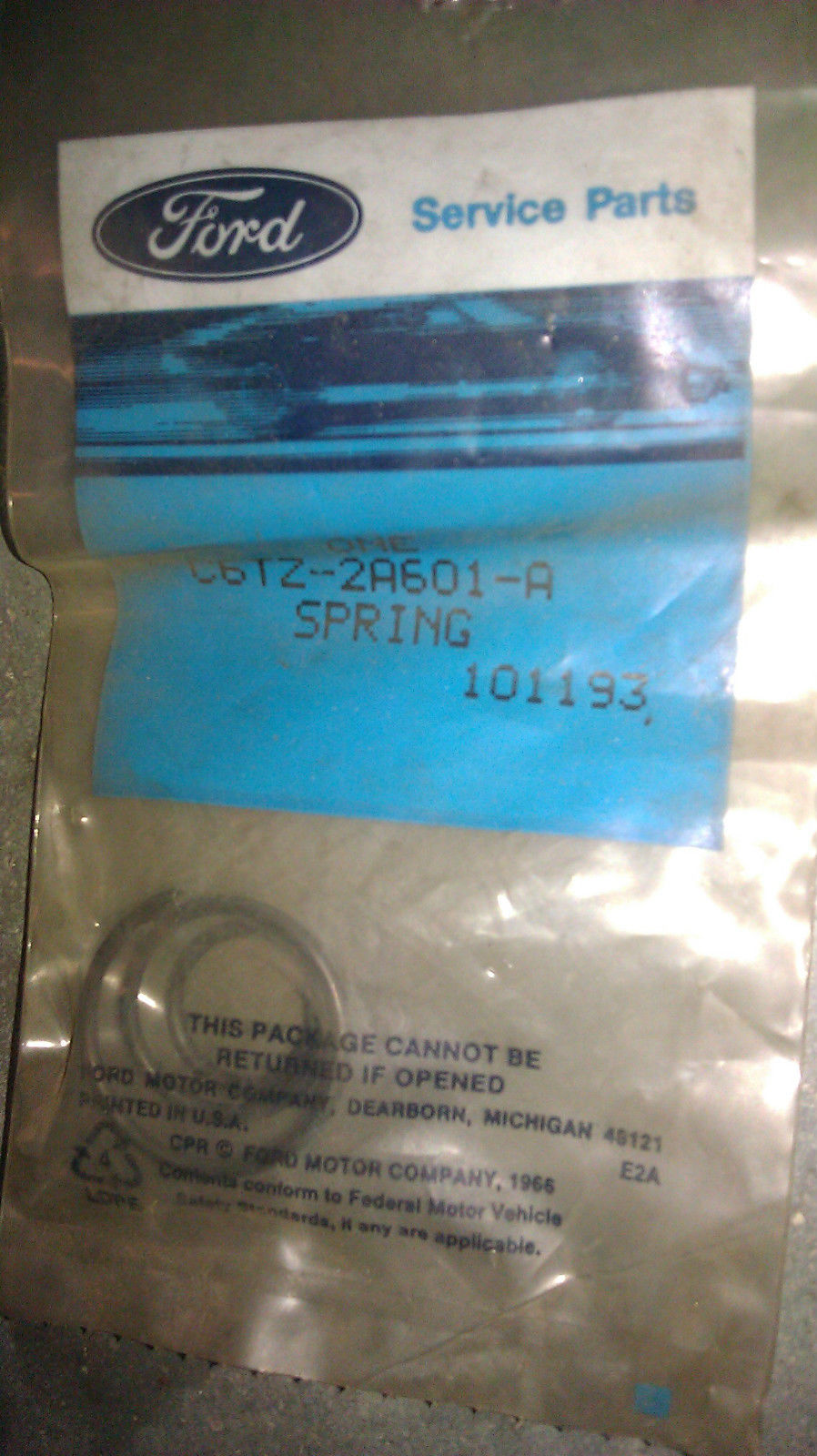

C6TZ 2A601-A
|
2 |
SPRING - REAR BRAKE CAM & LEVER ANTI-RATTLE |
| |
|
|
|
|
| |
|
2A637-8 |
|
LEVER - PARKING BRAKE OPERATING |
| 66/ |
12 x 2 1/2 brake |
C8TZ 2A637-A
C8TZ 2A638-A |
1 |
R.H.
L.H. |
| 67/ |
12 x 3 brake |
C7TZ 2A637-A
C7TZ 2A638-A |
1 |
R.H. - stamped 320330
L.H. - stamped 320329 |
'
-
Identifies unique Canadian part numbers and application and have been
and footnoted.
- Identifies unique U.S. part numbers and application and have been
footnoted.
- Site Admin notes (not part of the original MPC)
