SECTION 11

YEAR MODEL DESCRIPTION QTY. PART NUMBER
1125-26 DRUM - BRAKE - continued
64/ F250, P350 Screw (drum to hub) - 3/8"-16 x 21/32" 6 359189-S8 (BB88)
64/ B-F-P500, B-C-F-N600, C500/550 Screw (drum to hub) - 1/2''-13 x 3/4" 6 355812-S2 (BB89)
64/ C-F-N700 (15" x 4 1/2" rear brakes)   6
64/ C-F-L-LN-N800/850 Screw (drum to hub) - 1/2"-13 x 1" 8 or 10 355816-S7 (BB91)
64/ LNT-LT-LTS-NT-T800/850   16 or
64/ B-C-F-LN -N700/750   8 or 10
64/ CT-NT-T850, HT950 Bolt (drum to hub) - 5/8"-11 x 1 7/16" 24 350724- S(BB201)
64/ B-C-F-L700/1100 (with 5 spoke wheels) Bolt (drum to hub) - 5/8"-18 x 15/16" - square hd. 10 358703-S8 (BB841)
64/ LT-LTS-T750/950, NT850   20
64/ B-C-F-LN-N600   10
64/ H-1000, LN-N700/1000   10
64/ CT750/950, HT950   20
    Nut - 5/8"-18   33850-S8 (M72)
  Lockwasher - 5/8"   34811-S2 (X71)
64/69 T700 Bolt (drum to hub) - 1/2"-20 x 1 3/4" square hd. 20 358B88-S8 (UU118)
64/ B-C-F-N700 (15" x 4 1/2" rear brakes)   10
64/ B-C-F-N600 (15" x 4 1/2" brakes)   20
. Nut - 1/2" - 20   33846-S8 (M69)
  Lockwasher - 1/2"   34809-S8 (X68)
67/ NT850. WT900/1000 (Diesel) (15" x 5" wedge
brake)		 Washer (attach drum to hub) - 3/4" lock AR 34813-S (X71A)

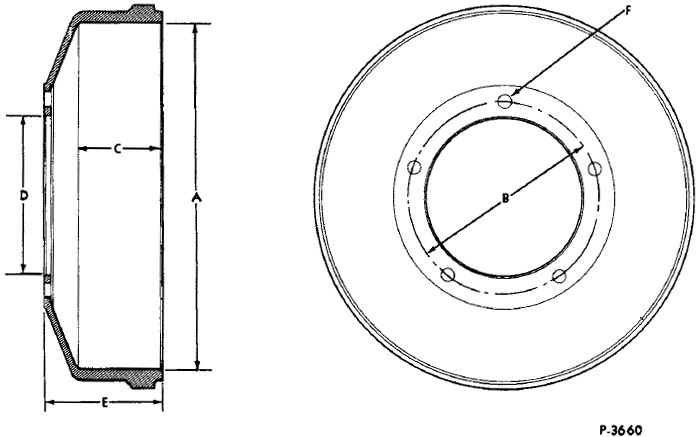

BRAKE DRUM SIZE CHART
PART NUMBER No.
Spokes		 A B C D E F
Drum
Inside
Diameter		 Drum
Bolt
Circle		 Brake
Surface
Width		 Mounting
Diameter		 Overall
Depth		 DRUM MOUNTING HOLES
No. Diameter No. Diameter
FRONT DRUM - SPOKE WHEEL
B7Q 1125-A 5 14" 11" 2 29/32" 10" 3 1/2"
C4TZ 1125-A
m/w C4TZ 1125-B		 5 15" 11" 3 1/2" 10" 4 1/4" 5 17/32"
C4TZ 1125-B 5 15" 11" 3 9/16" 10" 4 1/4" 5 17/32"
D1TZ 1125-D 5 15" 11" 3 9/16" 10" 4 1/8" 5 17/32"
C4TZ 1125-H 5 15" 11" 3 27/32" 9" 4 9/32" 5 49/64"


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
