SECTION 11

1109 - continued
REAR HUBS for DISC WHEELS

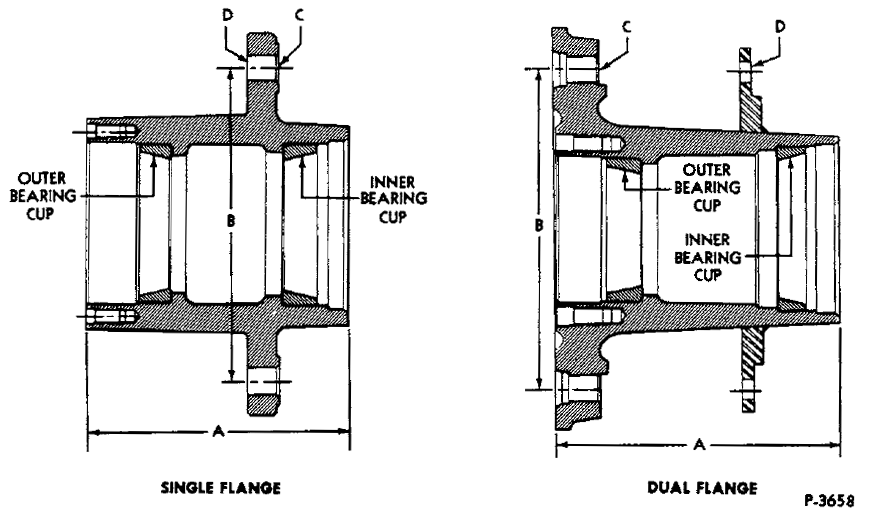

HUB IDENTIFICATION CHART
PART NUMBER A B C D BEARING CUPS
Length Bolt Circle BOLT HOLES BOLT HOLES INNER OUTER
No. Diameter No. Diameter Part Number Stamped No. Part Number Stamped No.



SINGLE FLANGE
B1D 1109-A 5 63/64" 6 1/2" 8 39/64" 3 3/8"-16 91D 1243 18720 91D 1243 18720
B4J 1109-A 5 63/64" 6 1/2" 8 39/64" 3 3/8"-16 B6J 1243-A 362-A 61 1239 354-A

B3QH 1109-A 8 13/16" 11 1/4" 10 25/32"     TUAA 1243-A 592-A TUAA 1239-A 572
B5QH 1109-A 9 5/8" 11 1/4" 10 25/32" 5 1/2"-13 7EQH 1243 47620 7EQH 1239 39520
B8QH 1109-A 10 3/4" 11 1/4" 10 25/32"     B8QH 1243-A 752 B8QH 1239-A 742

C1TT 1109-A 7 5/16" 11 1/4" 10 25/32"     B8QH 4222-D 653 B9TT 1202-A HM 212011
C1TZ 1109-A 7 13/32" 11 1/4" 10 31/32" 5 1/2"-13 B60 1243-A 493 B6T 1243-A 3920

C2TZ 1109-A   11 1/4" 10 63/64" 8   TUAA 1243-A 592-A TUAA 1239-A 572

C3TZ 1109-B 7 13/32" 8 3/4" 6 25/32"     B6Q 1243-A 493 B6T 1243-A 3920
C3TZ 1109-G 6 7/16" 7 1/4" 6 5/8"     TCAA 1243-A 382-A B6J 1243-A 362-A

C4TZ 1109-B 7 7/16" 8 3/4" 6 25/32"     B4Q 1243-A 33462 B6T 1243-A 3920

C5TZ 1109-F 8 13/16" 11 1/4" 10 25/32"     TUAA 1243-A 592-A TUAA1239-A 572
C5TZ 1109-L 8 13/16" 11 1/4" 10 25/32"     TUAA 1243-A 592-A TUAA 1239-A 572
C5TZ 1109-M 8 13/16" 11 1/4" 10 .982"     TUAA 1243-A 592-A TUAA 1239-A 572

C5TZ 1109-N 9 5/8" 11 1/4" 10 25/32"     7EQH 1243 47620 7EQH 1239 39520
C5TZ 1109-P 7 13/32" 11 1/4" 10 25/32"     B6Q 1243-A 493 B6T 1243-A 3920
C5TZ 1109-T 7" 8 3/4" 6 25/32"     B6T 1243-A 3920 BB 1239-A 453-X

C6TZ 1109-A 6 1/32" 6 1/2" 8 39/64"     91D 1243 18720 C3TZ 1202-B 25520

C7TZ 1109-A
r/b C9TZ 1109-U		 6 41/64" 6 1/2" 8 39/64"     TCAA 1243-A 382-A C7TZ 1239-A
C9TZ 1109-T 5 53/64" 6 1/2" 8 39/64"     TCAA 1243-A 3B2-A C7TZ 1239-A LM-104911
C9TZ 1109-U 6 41/64" 6 1/2" 8 39/64"     TCAA 1243-A 382-A C7TZ 1239-A LM-104911
C9TZ 1109-V 6 7/16" 7 1/4" 6 5/8"     TCAA 1243-A 382-A C7TZ 1239-A LM-104911

TEAA 1109-B 7" 8" 5 25/32" 3 1/2"-13 B6T 1243-A 3920 BB 1239-A 453-X

B9TZ 1113-A 5 63/64" 6 1/2" 8 39/64" 3 3/8"-16 91D 1243 18720 91D 1243 18720
C6TZ 1113-A 6 1/32" 6 1/2" 8 39/64"     TCAA 1243-A 382-A C7TZ 1239-A


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
