SECTION 11

1109 - continued

FRONT and REAR HUB - SPOKE TYPE
For front hubs for disc wheels refer to Group 1104

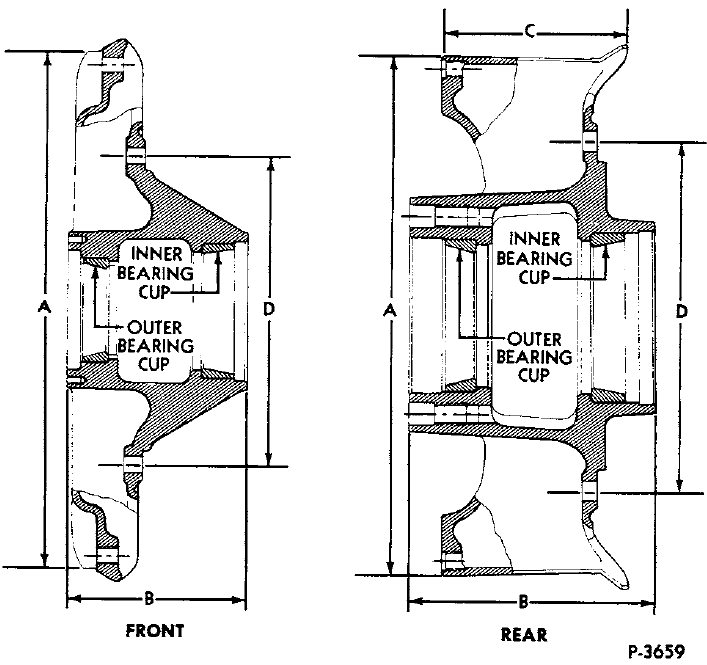

HUB IDENTIFICATION CHART
PART NUMBER SPOKES A B C D BEARING CUPS
DIAMETER LENGTH RIM
WIDTH		 BOLT
CIRCLE		 INNER OUTER
PART
NUMBER		 STAMPED
NO.		 PART
NUMBER		 STAMPED
NO.
FRONT HUB - SPOKE TYPE
B7QH 1014-A 5 19 3/8" 6 9/16"   11" 7EQH 1239 39520 81T 1202 3525
B7QH 1014-B 5 21 3/8" 6 9/16"   11" 7EQH 1239 39520 81T 1202 3525

B9TT 1014-D 5 21 3/8" 6 1/2"   11" B9TT 1202-A HM 212011 9N 4222 3720

C3TZ 1014-A 5         9N 4222 or
C7EQ4222		 3720 C3TZ 1202-A 25820
C3TZ 1014-B 5 21 3/8" 5 3/8"   11" TGAA 1202-A 45220 C3TZ 1202-A 25820
C3TZ 1014-C 5 19 3/8" 5 3/8"   11" TGAA 1202-A 45220 C3TZ 1202-A 25820
C3TZ 1014-E 5 18 9/16" 5 3/16" 20" x 8" 11" C3TZ 1202-B 25520 B5A 1202-A 67010

C4TZ 1014-E 5 19 3/8" 6 23/32"   11" B8QH 1243-A 752 B9TT 1202-A HM212011
C4TZ 1014-F 5 21 3/8" 6 23/32"   11" B8QH 1243-A 752 B9TT 1202-A HM212011

C5TZ 1014-D 5 20 1/2" 6 1/2"   11" B9TT 1202-A HM 212011 9N 4222 3720
C5TZ 1014-E 5 18 1/2" 6 1/2"   11" 7EQH 1239 39520 81T 1262 3525
C5TZ 1014-F 5 20 9/16" 6 9/16"   11" 7EQH 1239 39520 81T 1202 3525
C5TZ 1014-G 5 20 1/2" 6 1/2"   11" B9TT 1202-A HM 212011 9N 4222 3720
C5TZ 1014-H 5         B9TT 1202-A HM 212011 9N 4222 3720

C7TZ 1014-A
r/b C7TZ 1014-G		 5 19 3/8" 16 15/32"   4 27/32" B9TT 1202-A HM 212011 9N 4222 3720
C7TZ 1014-B 5 21 5/8" 16 15/32"   4 27/32" B9TT 1202-A HM 212011 9N 4222 3720

C7TZ 1014-C 5 19 3/8" 7 1/8"   11" B8QH 1243-A 752 B9TT 1202-A HM 212011
C7TZ 1014-D 5 21 3/8" 7 1/8"   11" B8QH 1243-A 752 B9TT 1202-A HM 212011

C7TZ 1014-E 5 19 3/8" 6 3/4"   6 1/2" B8QH 1243-A 752 B9TT 1202-A HM 212011
C7TZ 1014-F 5 21 3/8" 6 3/4"   6 1/2" B8QH 1243-A 752 B9TT 1202-A HM 212011

* C7TZ 1014-G 5 19 3/8" 6 15/32"   11" B9TT 1202-A HM 212011 9N 4222 3720
* C7TZ 1014-H 5 21 3/8" 6 15/32"   11" B9TT 1202-A HM 212011 9N 4222 3720

* Used for Front Wheel Speedometer Drive     Canada only     U.S. only


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
