| YEAR |
MODEL |
DESCRIPTION |
QTY. |
PART NUMBER |
| 2078 — HOSE ASSY.
- BRAKE - continued - Also refer to Group 2282
and 2A420 |
| |
|
F SERIES |
| 64/69 |
F800/1100 |
Rear - 29 1 /8" long |
2 |
C3TZ 2078-D |

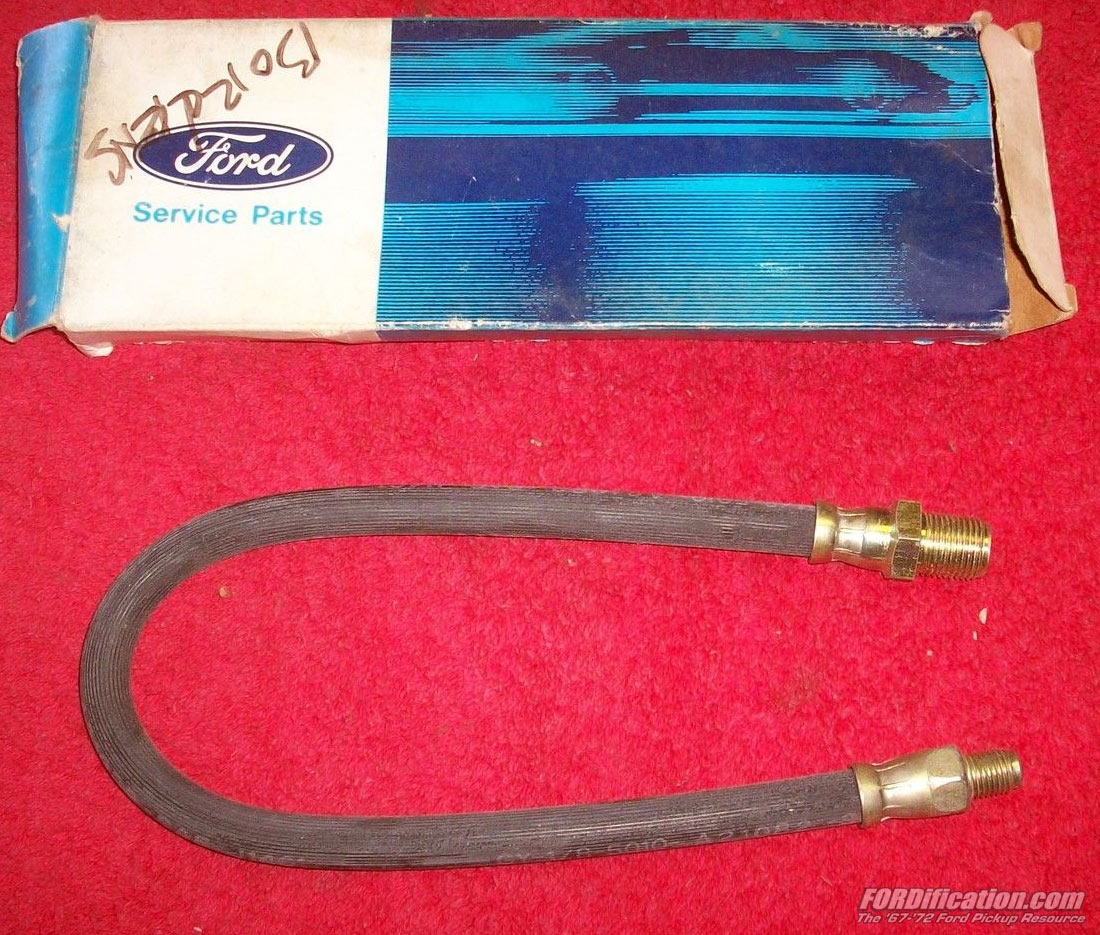

| 65/66 |
F350 |
Front - 18 5/8" long - 3/8"-24 & 5/8"-18 threads
 |
2 |
C5TZ 2078-B |
65/71
67/71 |
F100/250 (4 x 2)
F350 |
Front - approx. 17 3/4" long |
2
2 |
C5TZ 2078-A |
| 72 |
F100/250 (4 x 2), F350 (with drum brakes) |
Front - 17 1/4" long |
2 |
D2TZ 2078-B |
| 66/ |
F100
(4x4) |
Front - includes connector - 3/8"-24 - hose - length 16 1/4" |
1 |
C6TZ 2078-C |
| 67 |
F500/750 |
Front |
2 |
C7TZ 2078-H |
| 67/69 |
F250
(4x4) - 3.5M Dana axle |
Front - 15 1/8" long |
2 |
C7TZ 2078-C |
| 67/69 |
F950/1000 - Diesel (cam brakes) |
Front - 21 5/8" long |
2 |
C6TZ 2078-E |

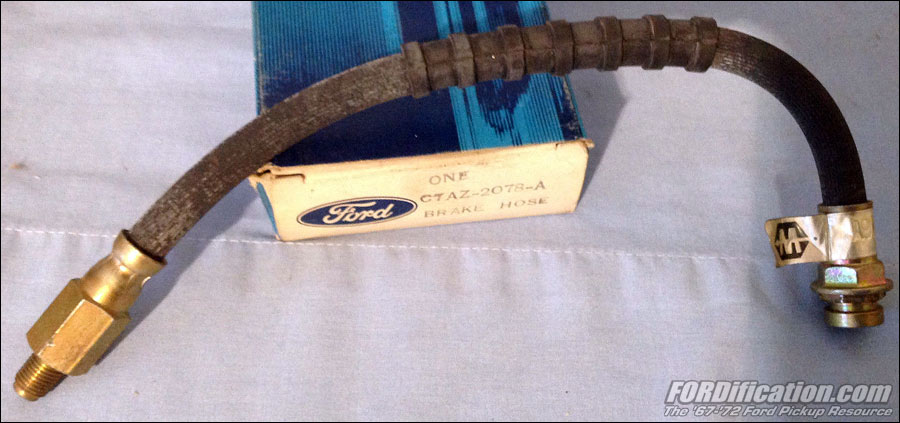

| 67/71 |
F100
(4x4) |
Front - includes connector - 14 1/2" long
|
1 |
C7TZ 2078-A |
| 72 |
F100
(4x4) |
Front - includes connector - 14 1/2" long |
1 |
D2TZ 2078-A |
| 67/ |
F250
(4x4) - 3M axle |
Front - 22 1/4" long |
2 |
C7TZ 2078-E |
| 68 |
F800/950 (8 cyl. Gas engines & hydraulic
vacuum brakes) "From Ser. C70,001" |
Front - 15" x 3"-23 1/4" long |
2 |
C8HZ 2078-B |
| 68 |
F800 (8 cyl. Gas engines & hydraulic vacuum
brakes) - "From Ser. C56,001" |
Front - 14" x 2 1/2" - 23 1/4" long |
2 |
C8HZ 2078-C |

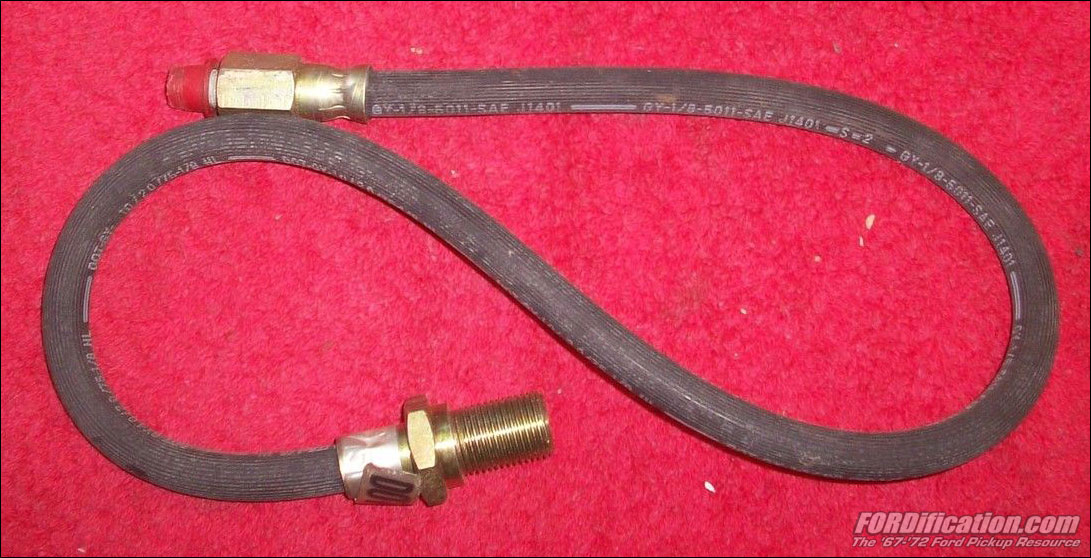

68/69
69
|
F500/750 (with 14" x 2 1/2" brakes) -
"Before Ser. D96,001"
F500/750 (14" X 2 1/2" brake) -
"From Ser. D96,001" |
Front - 25 1/8" long
|
2
1
|
C8TZ 2078-B |
| 68/69 |
F600/750 (15" x 3" brakes) |
Front - 25 1/8"long |
2 |
C8TZ 2078-F |
| 68/70 |
F250 (4 x 2), F350 (with disc brakes) -
"Before Ser. H10,001" |
Front - approx. 20 1/4" long |
2 |
C8TZ 2078-C |

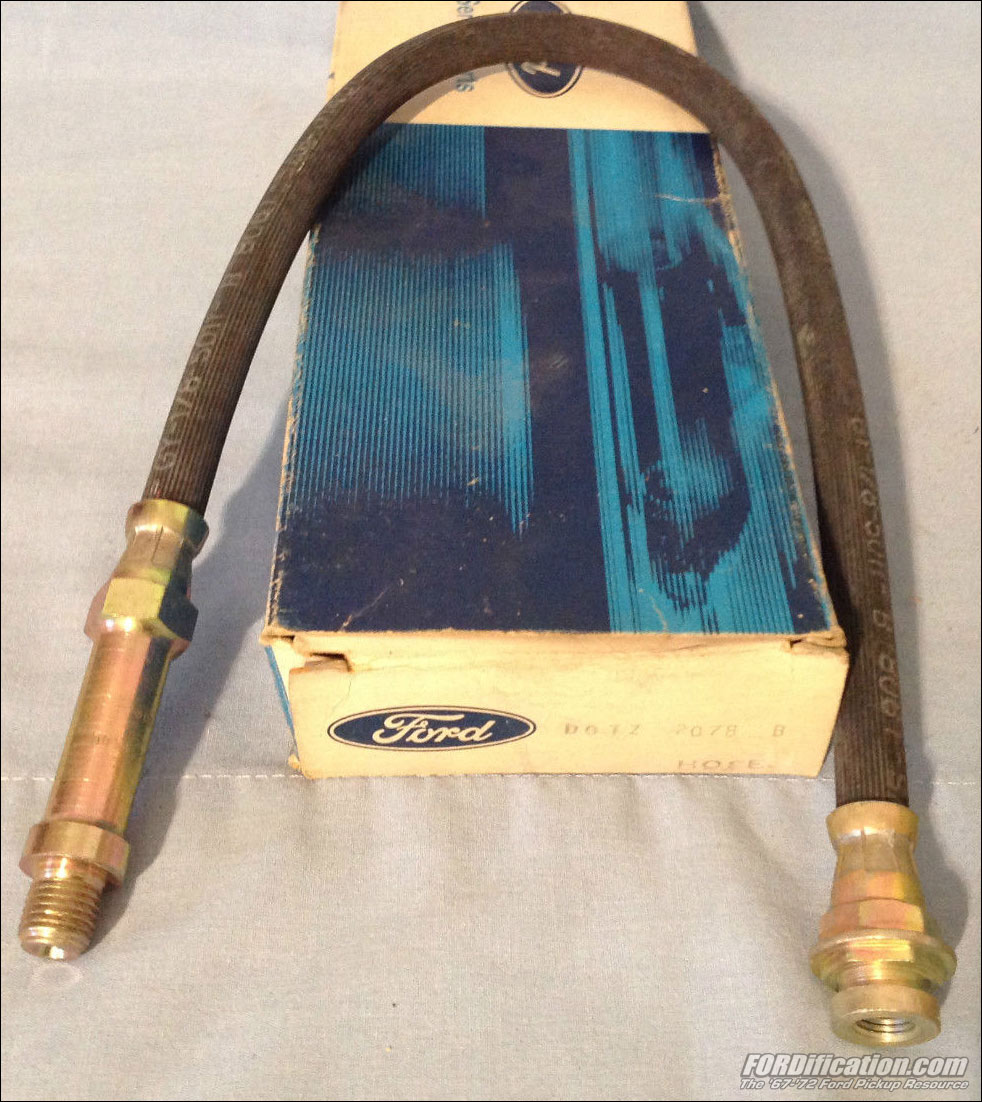

| 70/71 |
F250 (4 x 2), F350 (with disc brakes) -
"From Ser. H10,001 to Ser. M80,001" |
Front - 19 1/2" long
|
2 |
D0TZ 2078-B |
| 72 |
F250 (4 x 2), F350 (with Disc Brakes)
"From Ser. M80,001" |
Front - R.H. - 19 3/4" long - yellow |
1 |
D2TZ 2078-C |
| Front - L. H. - 19 3/4" long - red |
1 |
D2TZ 2078-D |
| 68/71 |
F250 (4 x 2), F350 (with disc brakes) |
Front - 19 1/4" long - to be used only with caliper
kit - D1TZ 2B120-B, caliper stamped 69710308 |
2 |
D1TZ 2078-D |
| 69 |
F800/950 (8 cyl. engines) |
Front - with 15" x 3" split hyd. vac. brakes - 23 3/4" long |
1 or 2 |
C8TZ 2078-J |
| 69 |
F500/750 (14" x 2 1/2" brake) -
"From Ser. D96,001" |
Front - 24 3/8" long - L. H. |
1 |
C8TZ 2078-G |
| 71/ |
F600
(4x4) - w/single hyd. vac. brakes |
Front - 25 1/2" long |
2 |
D1TZ 2078-A |
| 71/ |
F600
(4x4) - w/split hyd. vac. brakes |
Front - 25 1/2" long |
2
2 |
D1TZ 2078-A
D1TZ 2078-B |
| 69 |
F500/750 (15" x 3" brake) |
Front - R.H. - 22 3/4" long |
1 |
C8TZ 2078-H |
| Front - L.H. - 23 3/4" long |
1 |
C8TZ 2078-J |
| 70/ |
F600/750 |
Parking brake relief valve - 21 5/8" long |
2 |
C6TZ 2078-E |
| 70/ |
F250
(4x4) - 3500 lb. Dana axle |
Front |
2 |
D0TZ 2078-A |
70/
70/ |
F500/750 (with 14 x 2 1/2" hyd. vacuum brakes
F500/750 (with 15 x 3" single hyd. vac. brakes) |
Front - 23 1/4" long - 3/4"-16 thread |
2
2 |
C9TZ 2078-D |
| 70/ |
F500/750 (with 14 x 2 1/2", 15 x 3" split hyd.
vac. brakes) |
Front - 23 1/4" long - 3/4"-16 thread |
2 |
C9TZ 2078-D |
| Front - 23 1/4" long - 7/8"-14 thread |
2 |
C9TZ 2078-E |
| 70/ |
F600/750 (with cam air brakes) |
Front - 24" long |
2 |
C9TZ 2078-F |
| 70/ |
F600/750 (with wedge air brakes) |
Front - 20" long |
2 |
C9TZ 2078-G |
| |
|
H-HT SERIES |
| 64/66 |
HT950 |
Rear - 26" long |
1 |
A9QH 2078-A |
| 64/66 |
H-HT950/1000 |
Front - air - 24 1/4" long |
2 |
B3TZ 2078-A |
| 64/66 |
H1000 |
Rear - 29 1/8" long |
2 |
C3TZ 2078-D |
|
L-LN-LNT-LT-LTS SERIES |
| 70/ |
LN500/750 (14" x 2 1/2" - single & split &
15" x 3" single hyd. vacuum brakes) |
Front - 23 1/4" long - 3/4"-16 thread |
2 |
C9TZ 2078-D |
| 70/ |
LN500/750 (15" x 3" split hyd. vacuum brakes) |
Front - R.H. - 23 1/4" long - 3/4"-16 thread |
1 |
C9TZ 2078-D |
| Front - R.H. - 23 1/4" long - 7/8"-14 thread |
1 |
C9TZ 2078-E |
| Front - L.H. - 23 1/4" long - 3/4"-16 thread |
1 |
C9TZ 2078-D |
| Front - L.H. - 23 1/4" long - 7/8"-14 thread |
1 |
C9TZ 2078-E |
| 70/ |
L-LN-LNT-LT-LTS800/900 (14" x 2 1/2"
single & split & 15" x 3" single hyd. vacuum
brakes) |
Front - 27 1/4" long - 3/4"-16 thread |
2 |
D0HZ 2078-A |
'
Symbol (in the text listings or exploded-view diagram)
indicates part is not supplied for service due to the
following:
-
Identifies unique Canadian part numbers and application and have been
and footnoted.
- Identifies unique U.S. part numbers and application and have been
footnoted.
- Site Admin notes (not part of the original MPC)
