Technical Drawings and Schematics - Section I
Electrical and Wiring


Exploded-view schematics of electrical-related parts are presented below.
To view wiring diagrams and misc. info, visit Technical Drawings and Schematics - Section
H

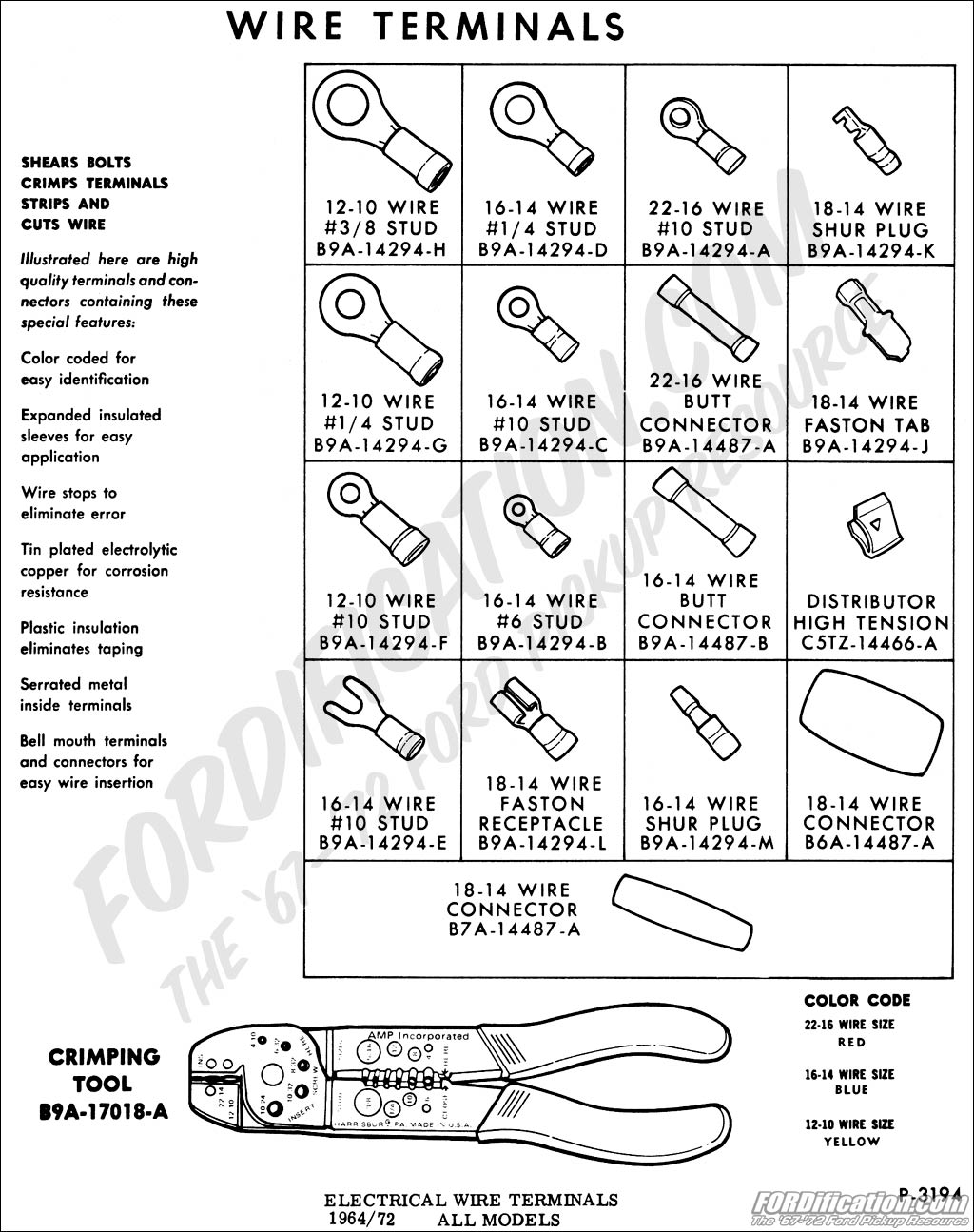

Electrical Wire Terminals
1964-1972 All Models

1024 x 1295, 211K

Wire Connection Sleeve Kit
1964-1972 All Models

1044 x 1024, 157K

Wiring System (8 Cylinder Engine) - Typical
1965-1972 F100/F350

1486 x 1024, 312K

(CLICK HERE TO VIEW IN HIGHER RESOLUTION (2638 X 1818 - 768K)

Alternator (Motorcraft 38, 42, 55, 60, 61 AMP - Printed Circuit)
1965-1972

1682 x 1024, 250K

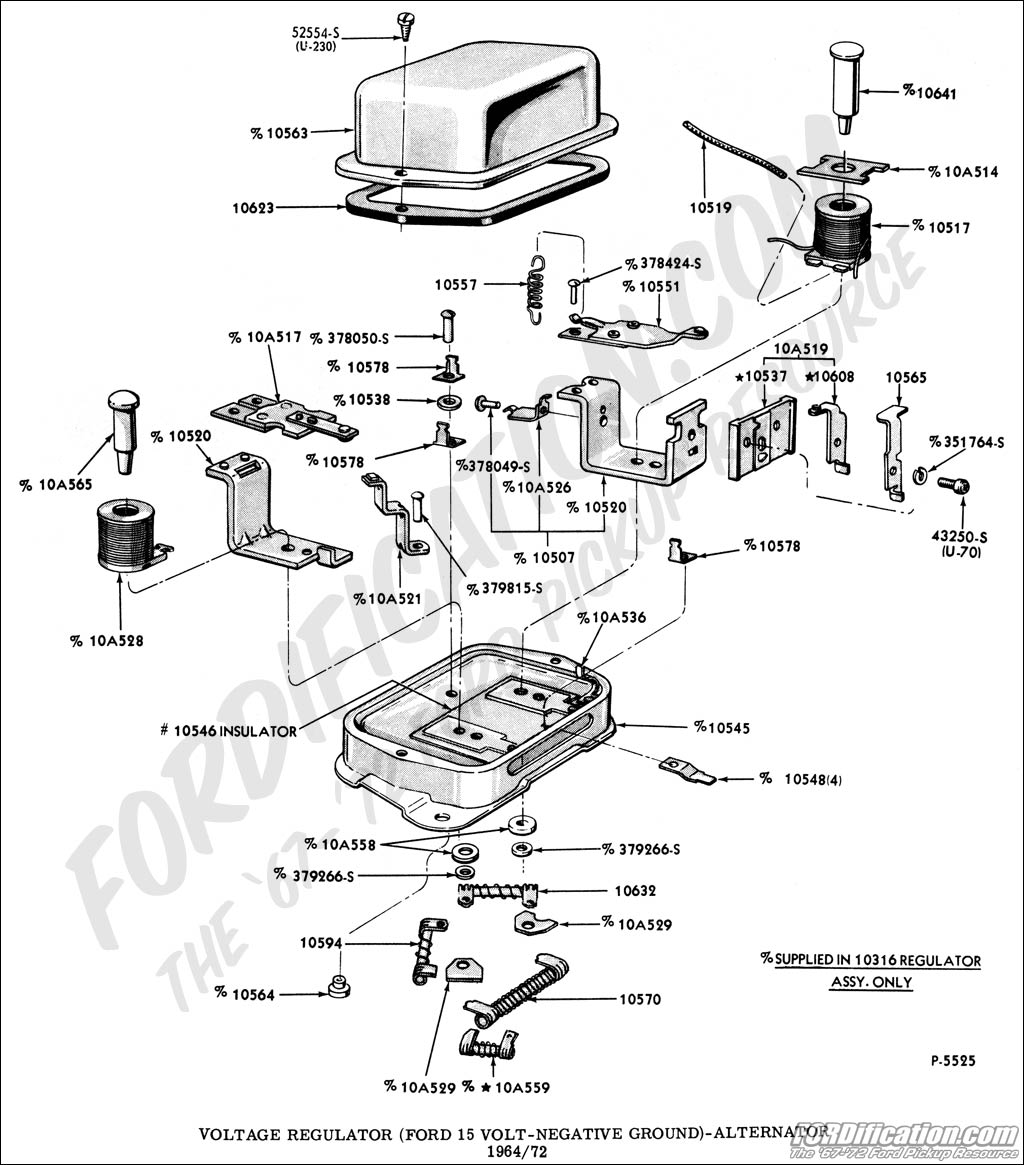

Voltage Regulator (Ford 15 Volt - Negative Ground) - Alternator
1964-1972

1024 x 1165, 150K

Instrument Cluster and Related Parts - Typical
1967-1972 F100/F350 (81, 85)

Instrument Cluster and Related Parts - Typical
1967-1972 F500/F750 (81, 85)

1024 x 1343, 226K

Wiring System - Instrument Panel and Flasher Signal
1967-1969 F100/350

1024 x 728, 139K

Wiring System - Instrument Panel and Flasher Signal (Printed Circuit)
1970-1972 F100/350

1024 x 717, 137K

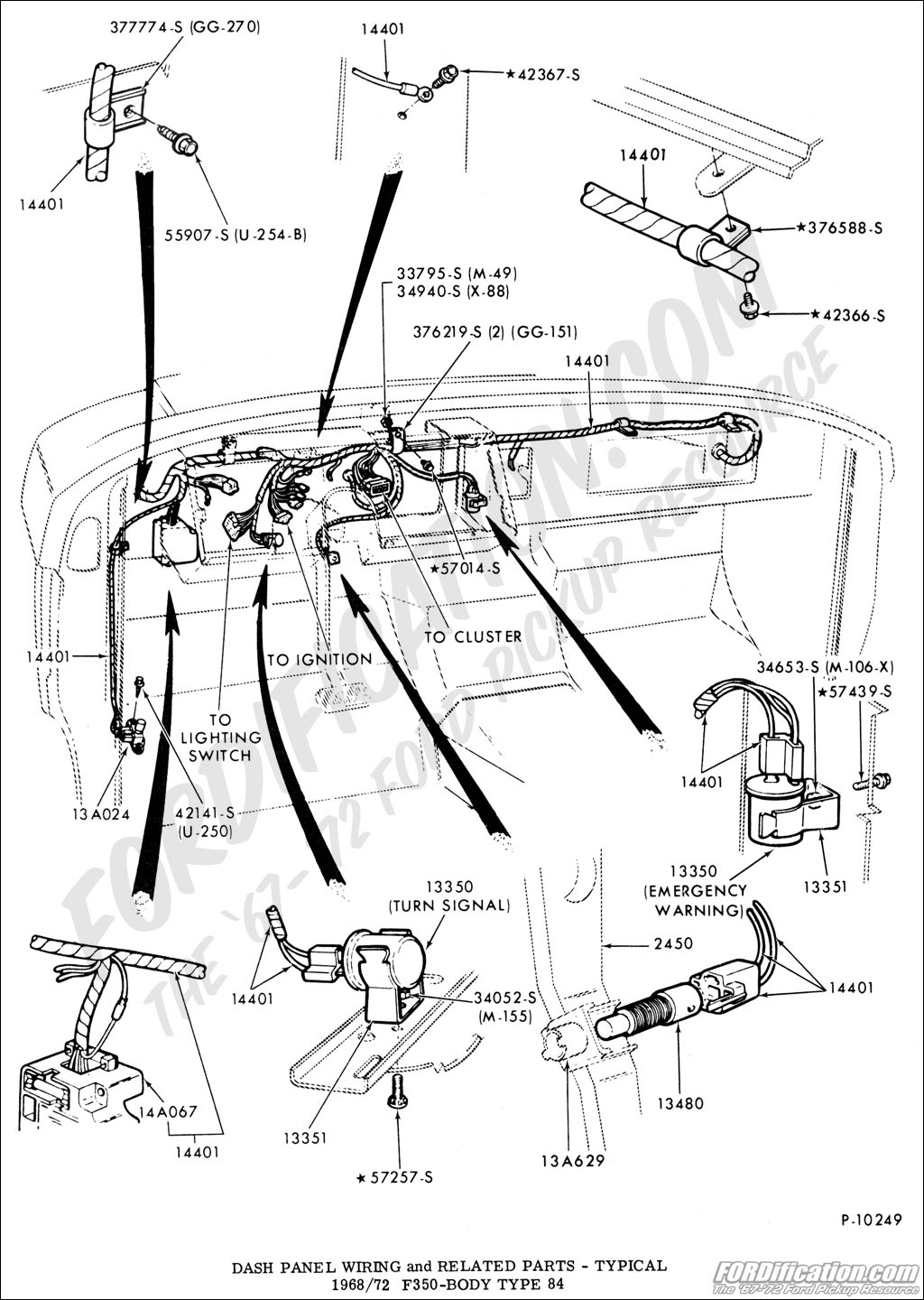

Dash Panel Wiring and Related Parts - Typical
1968-1972 F350 - Body Type 84

1024 x 1440, 212K

Dash Panel Wiring and Related Parts - Typical
1968-1972 F100/350 - Body Type 81 and 85

1024 x 1351, 241K

Fuse Junction Panel - Typical
1964-1972 B-F-P100/750, C-CT500/1000

768 x 835, 107K

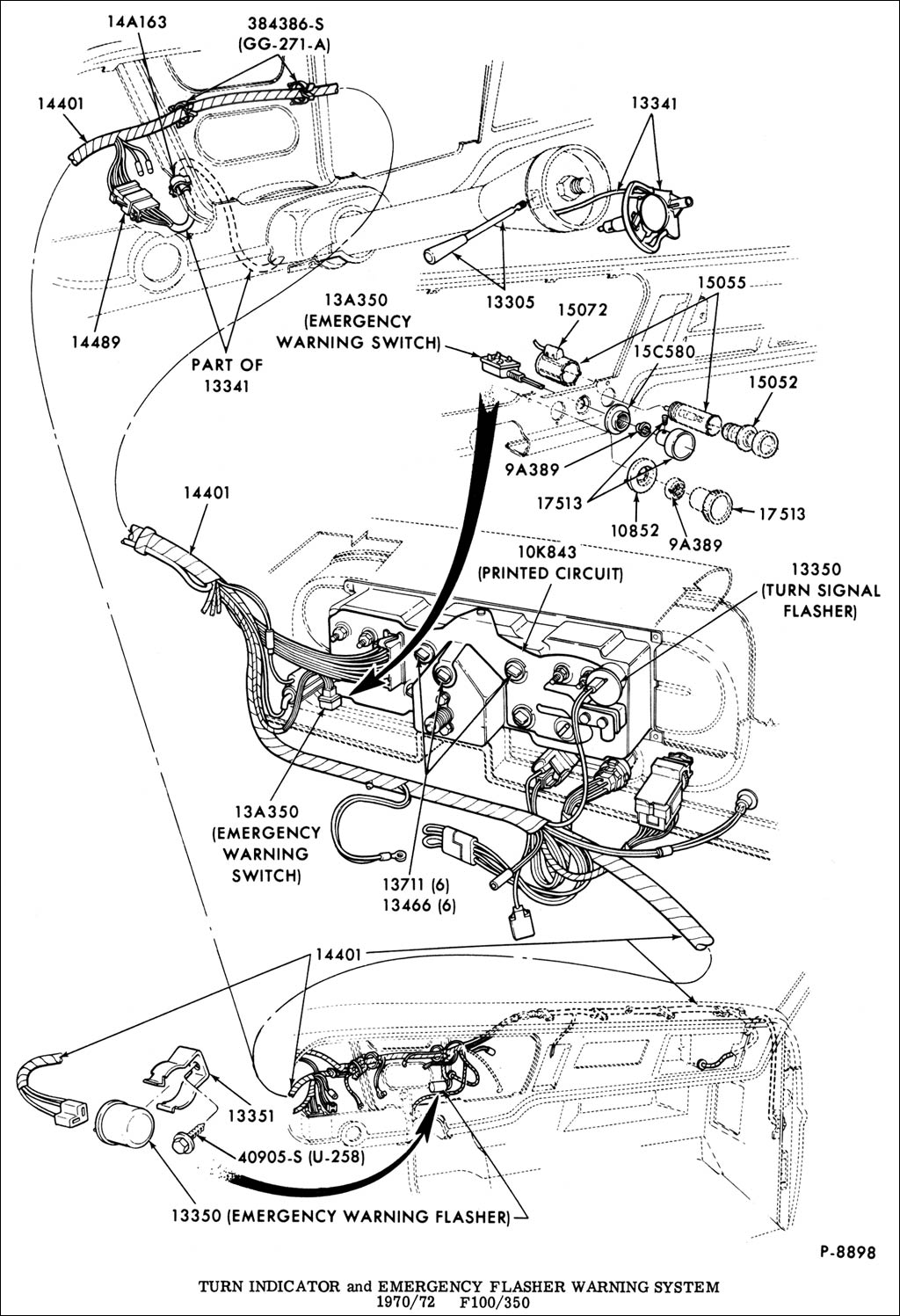

Turn Indicator and Emergency Flasher Warning System
1967-1969 F350 - F100/350

1024 x 1451, 250K

Turn Indicator and Emergency Flasher Warning System
1970-1972 F350 - F100/350

1024 x 1497, 243K

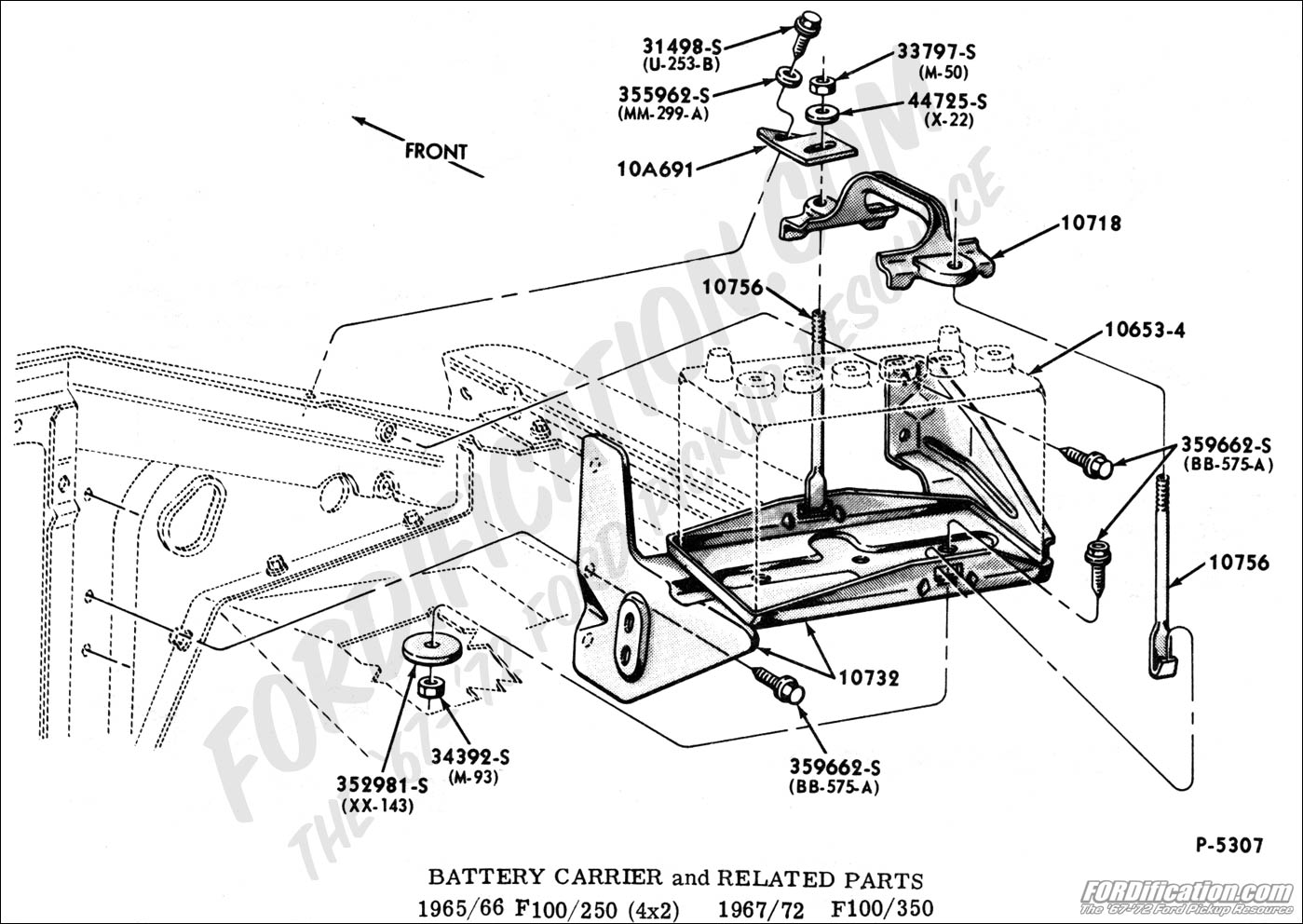

Battery Carrier and Related Parts
1965-1966 F100/250 (4x2)
1967-1972 F100/F350

1399 x 992, 187K

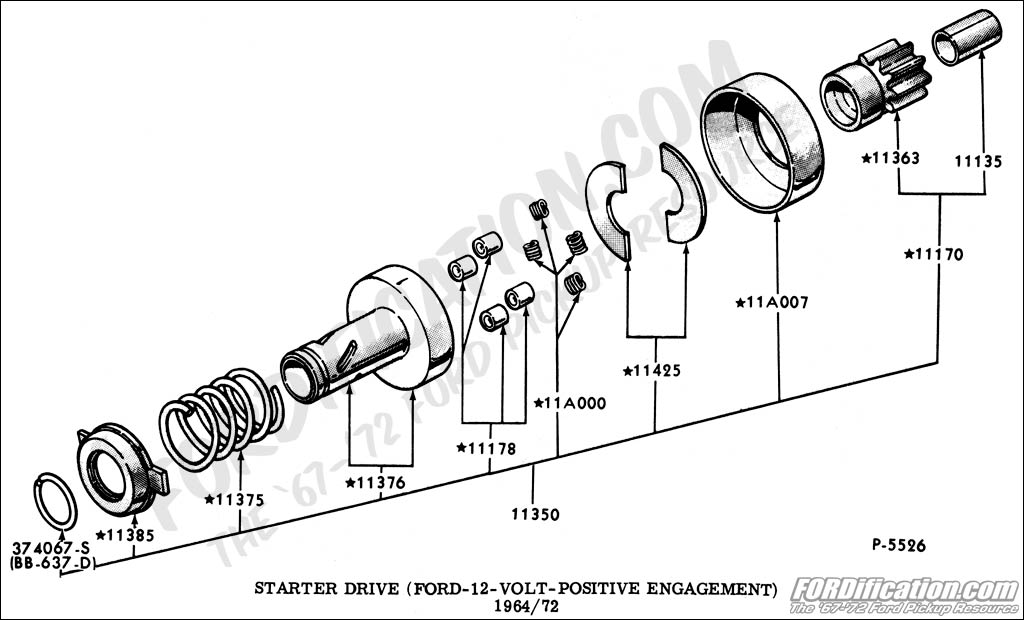

Starter and Drive Assembly (Ford 12 Volt Positive Engagement)
1964-1972

1373 x 1024, 242K

Starter Drive Assembly (Ford 12 Volt Positive Engagement)
1964-1972

1024 x 620, 72K

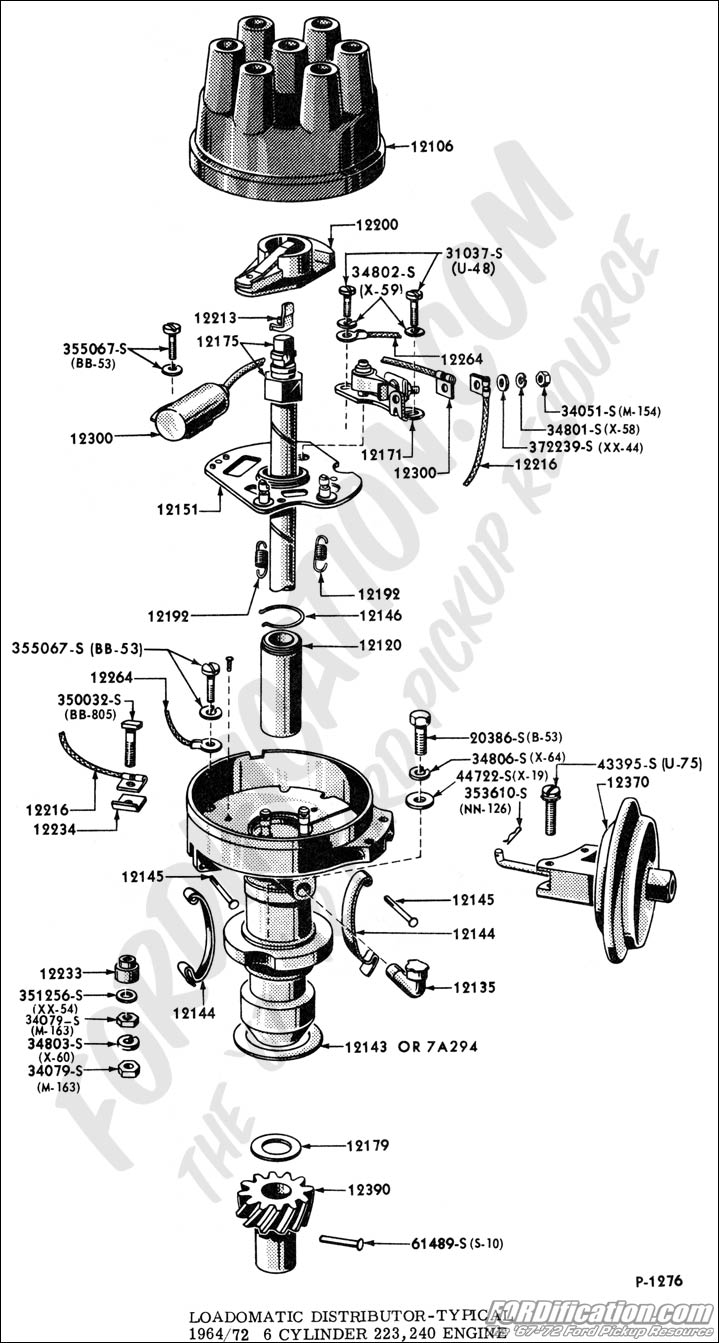

Loadomatic Distributor - Typical
1964-1972 6 Cylinder 223, 240 Engine

719 x 1343, 138K

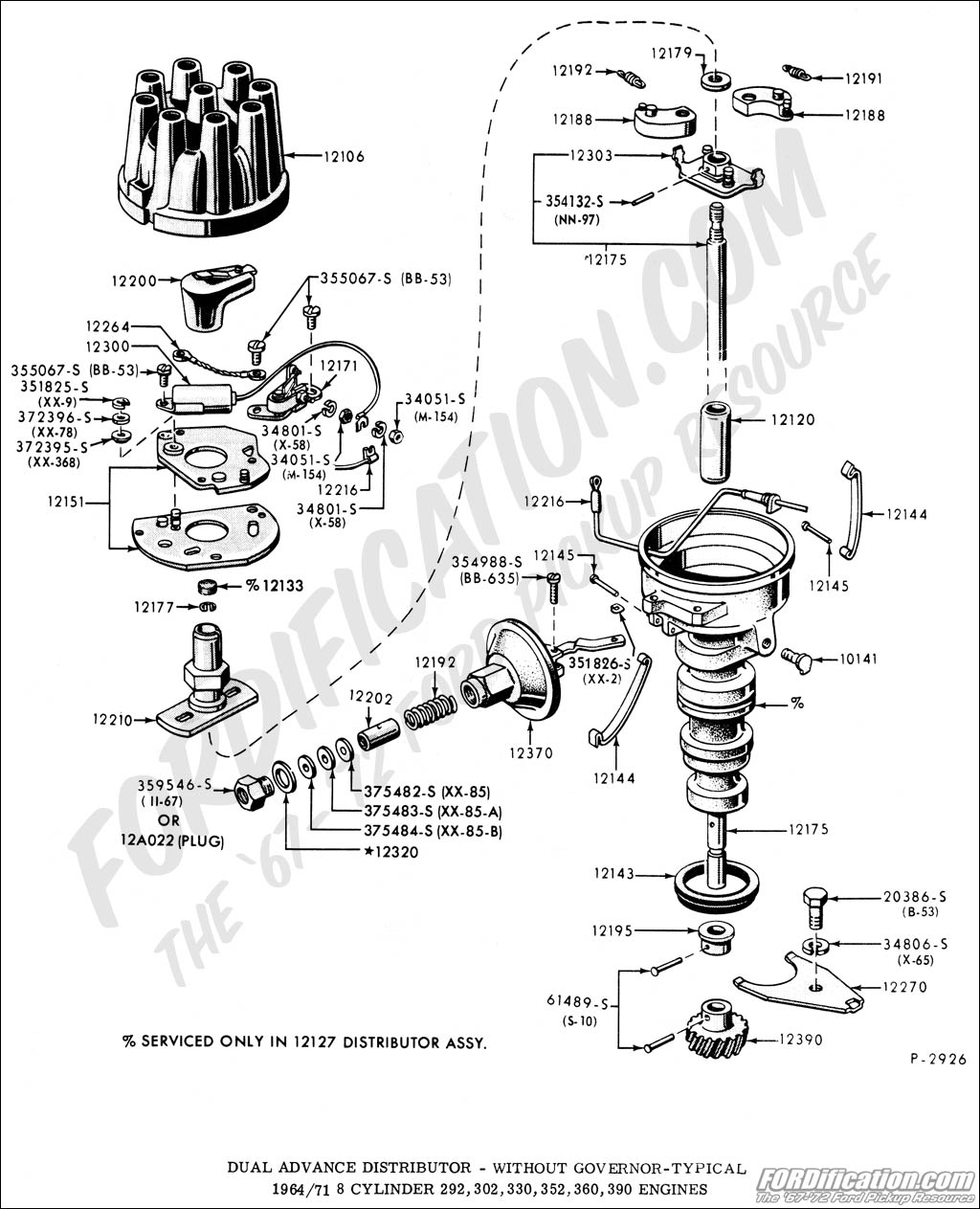

Dual Advance Distributor - Without Governor - Typical
1964-1971 8 Cylinder 292, 302, 330, 352, 390 Engines

1024 x 1263, 156K

Dual Advance Distributor - Typical
1965-1971 6 Cylinder 170, 240, 300 Engines

1024 x 1405, 199K

Distributor (Conventional) - Typical
1972 6 Cylinder 240, 300 Engine

1024 x 1447, 170K

Distributor (Conventional) - Typical
1972 8 Cylinder 302, 330 M/D, 360, 390 Engine

1024 x 1375, 164K

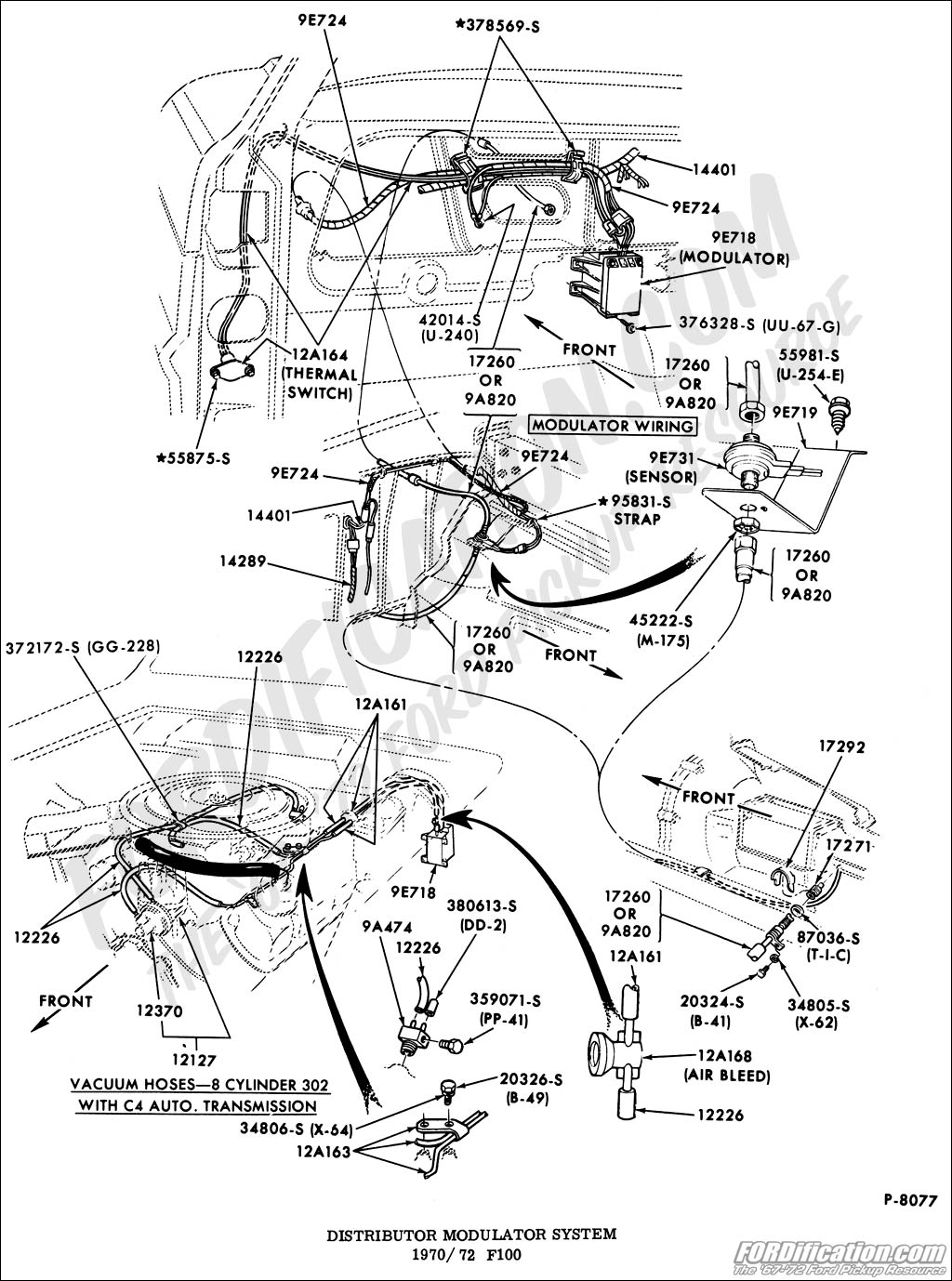

Distributor Modulator System
1970-1972 F100

1024 x 1378, 237K

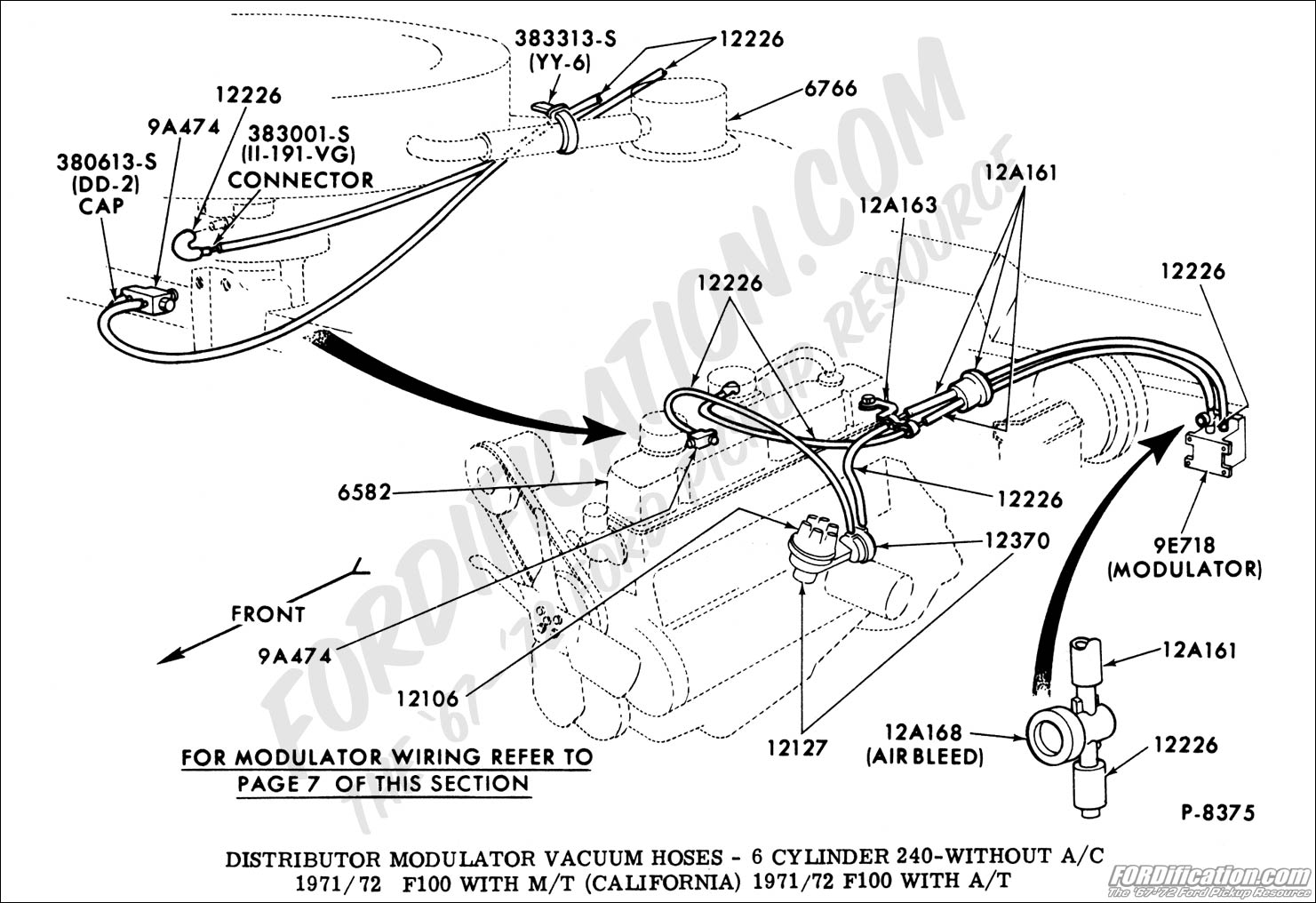

Distributor Modulator Vacuum Hoses - 6 Cylinder 240 w/o AC
1971-1972 F100 with M/T (California), 1971-1972 F100 with M/T

1481 x 1016, 191K

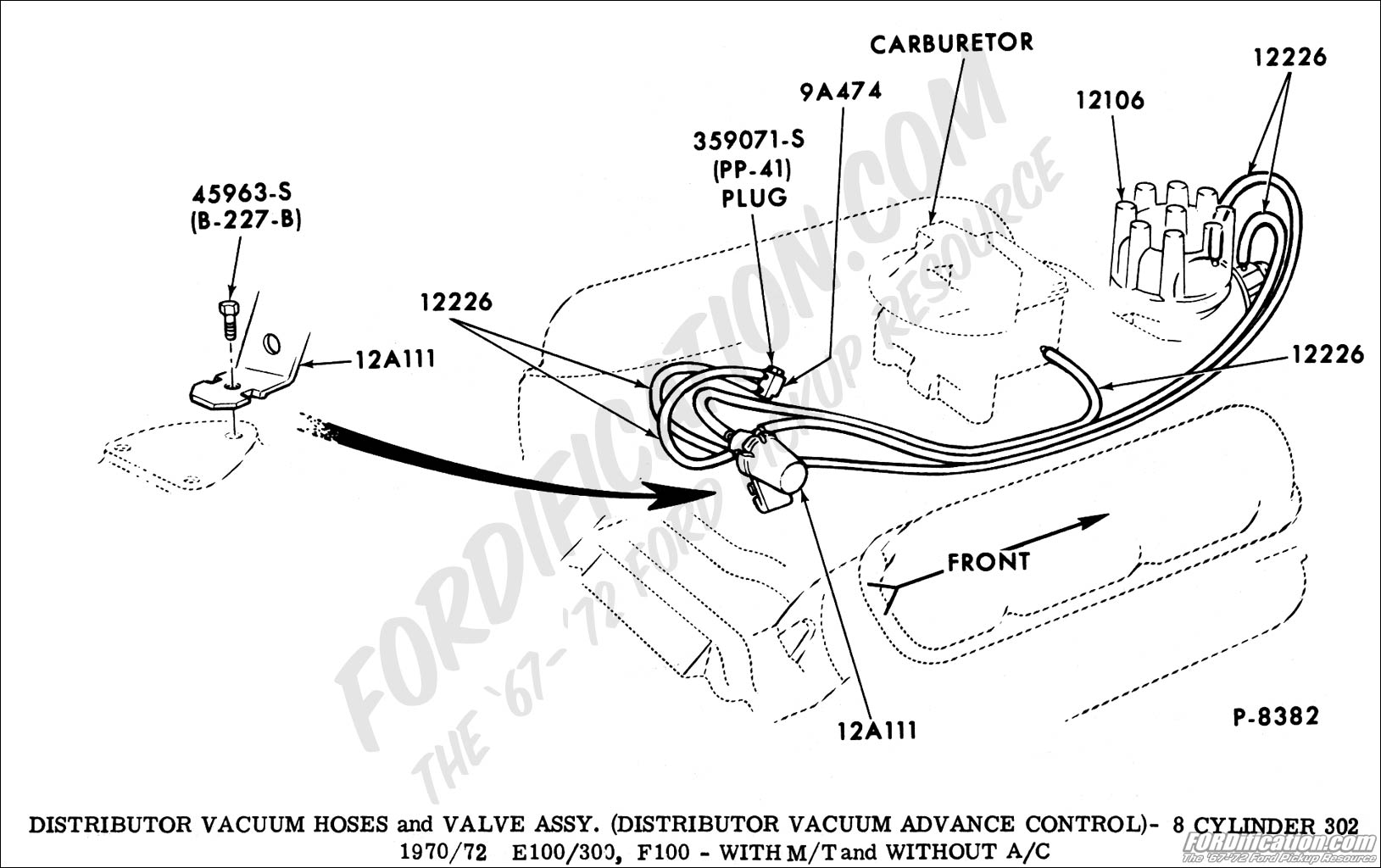

Distributor Vacuum Hoses and Valve Assy. (Distributor Vacuum Advance Control) - 8 Cylinder 302
1970-1972 E100/D350, F100 with M/T and w/o A/C

1629 x 1024, 160K

Distributor Vacuum Hoses and Valve Assy. (Distributor Vacuum Advance Control) - 6 Cylinder 240
1970-1972 F100 with M/T and w/o A/C

1539 x 1024, 219K

Distributor Vacuum Hoses - 8 Cylinder 302
1971-1972 F100 with M/T

1307 x 1024, 212K

Transmission Regulated Spark Control System - 8 Cyl - 360, 390 engine
1972 F100 with 3 or 4 Speed Manual Transmission

1014 x 1485, 235K

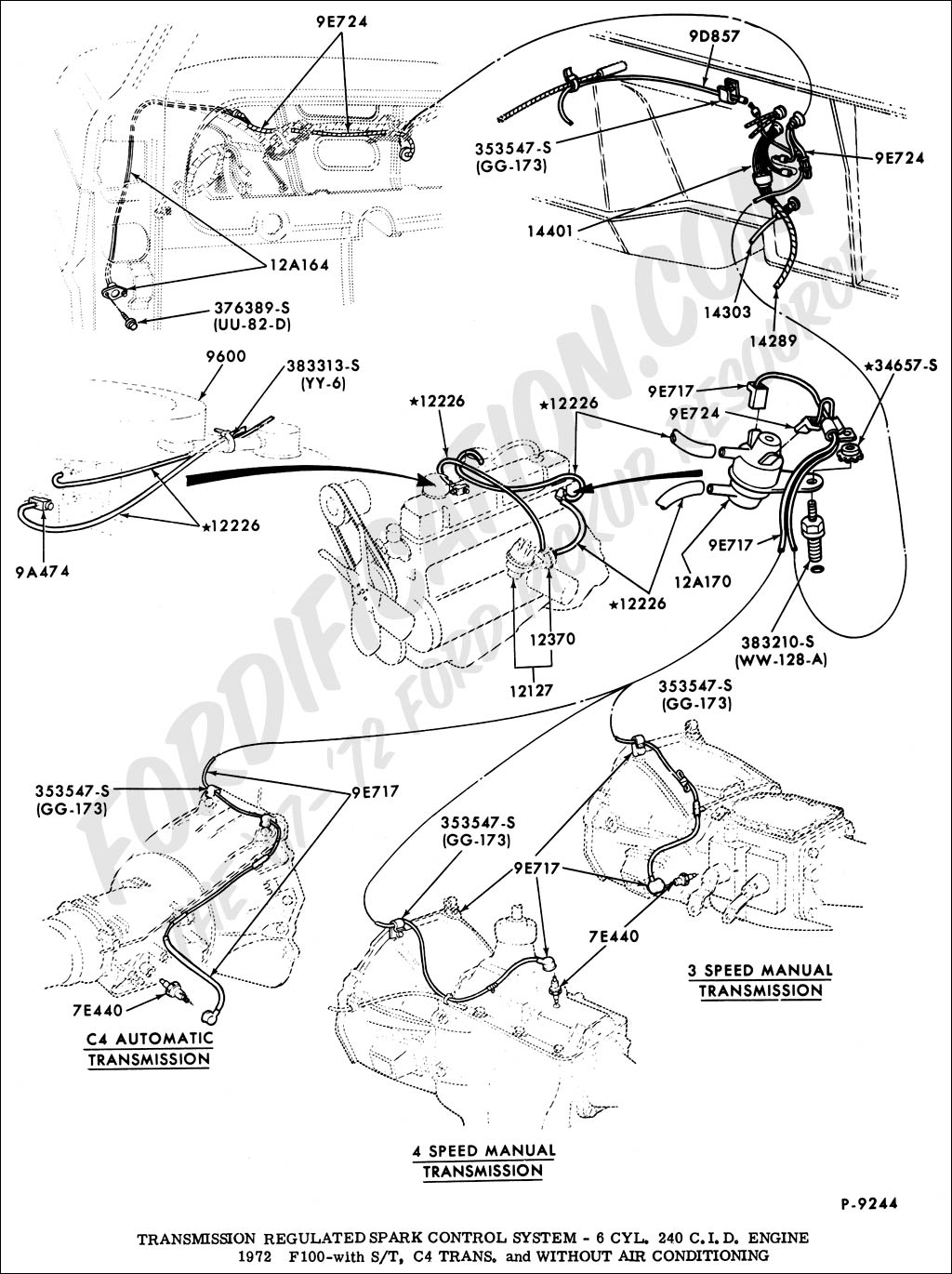

Transmission Regulated Spark Control System - 6 Cyl - 240 engine
1972 F100 with S/T, C4 Trans. and w/o A/C

1024 x 1370, 217K

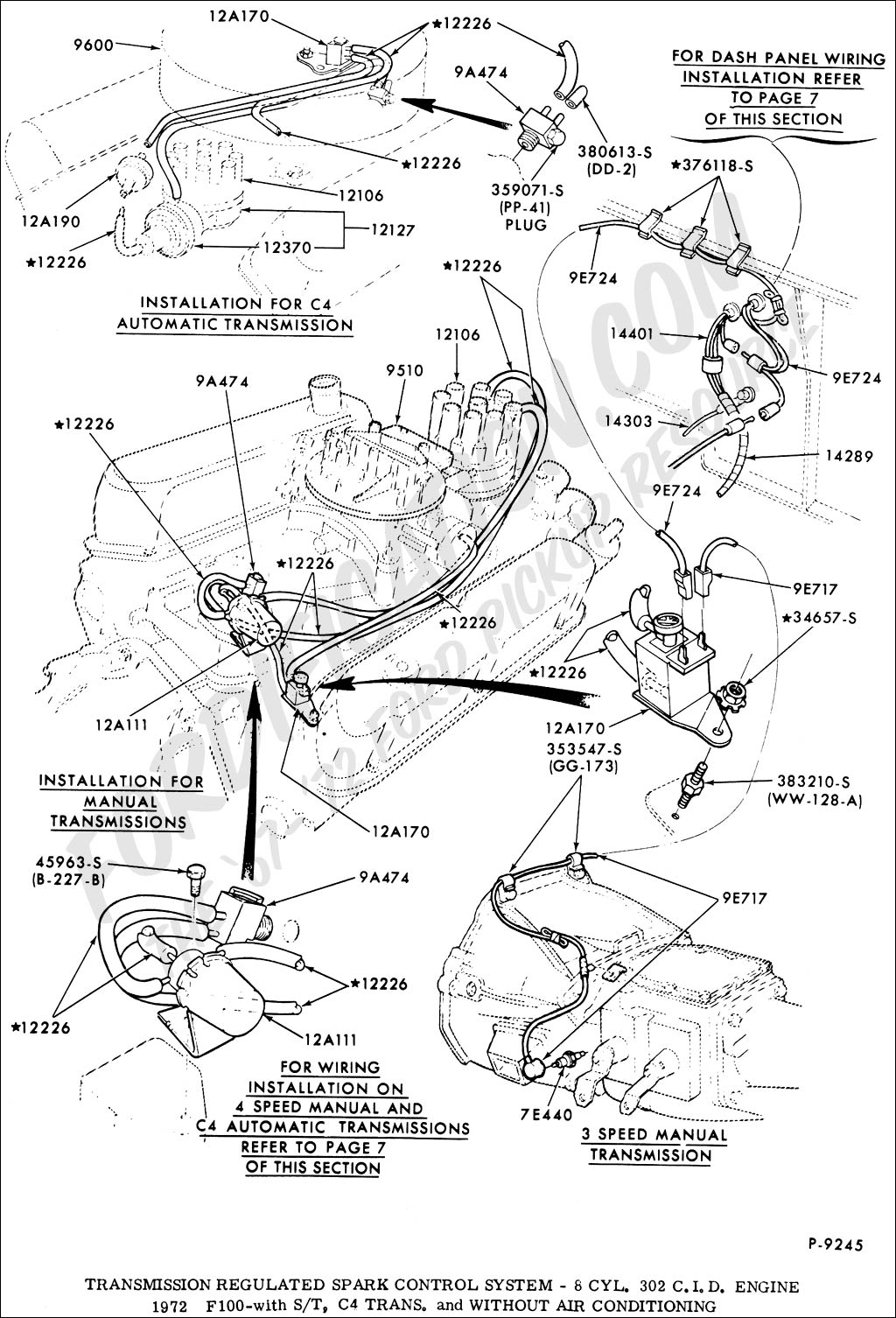

Transmission Regulated Spark Control System - 8 Cyl - 302 engine
1972 F100 with S/T, C4 Trans. and w/o A/C

1024 x 1506, 274K

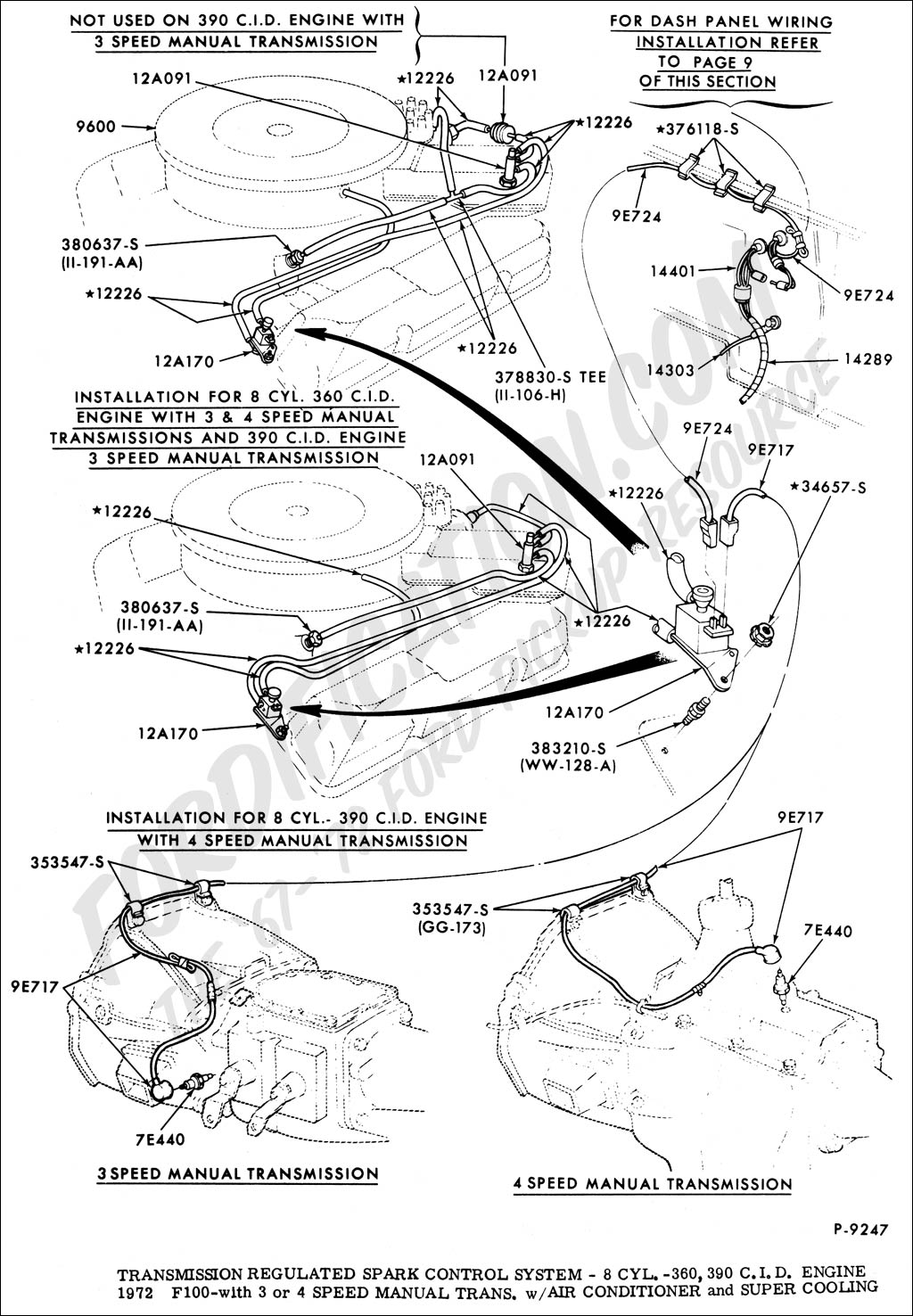

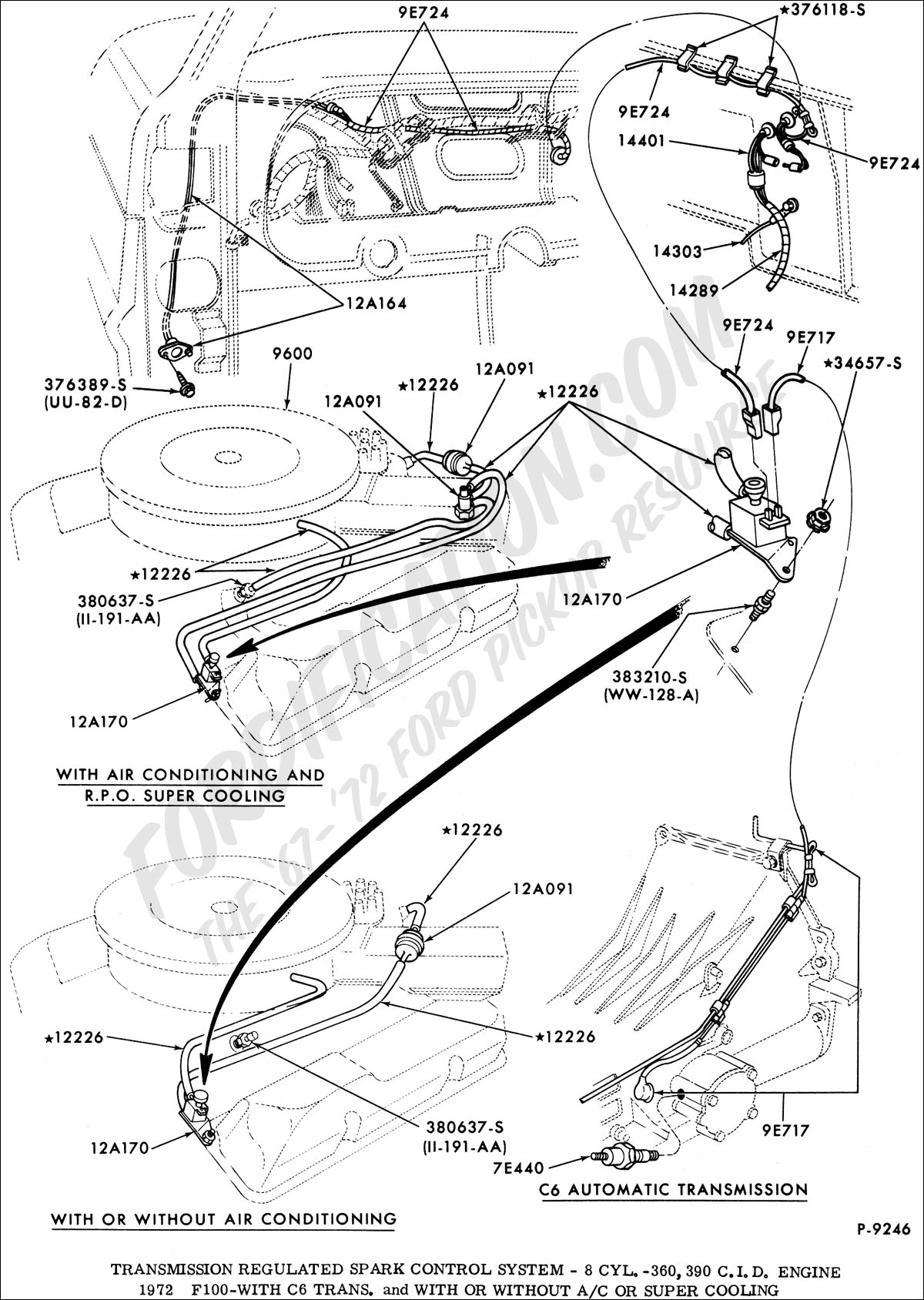

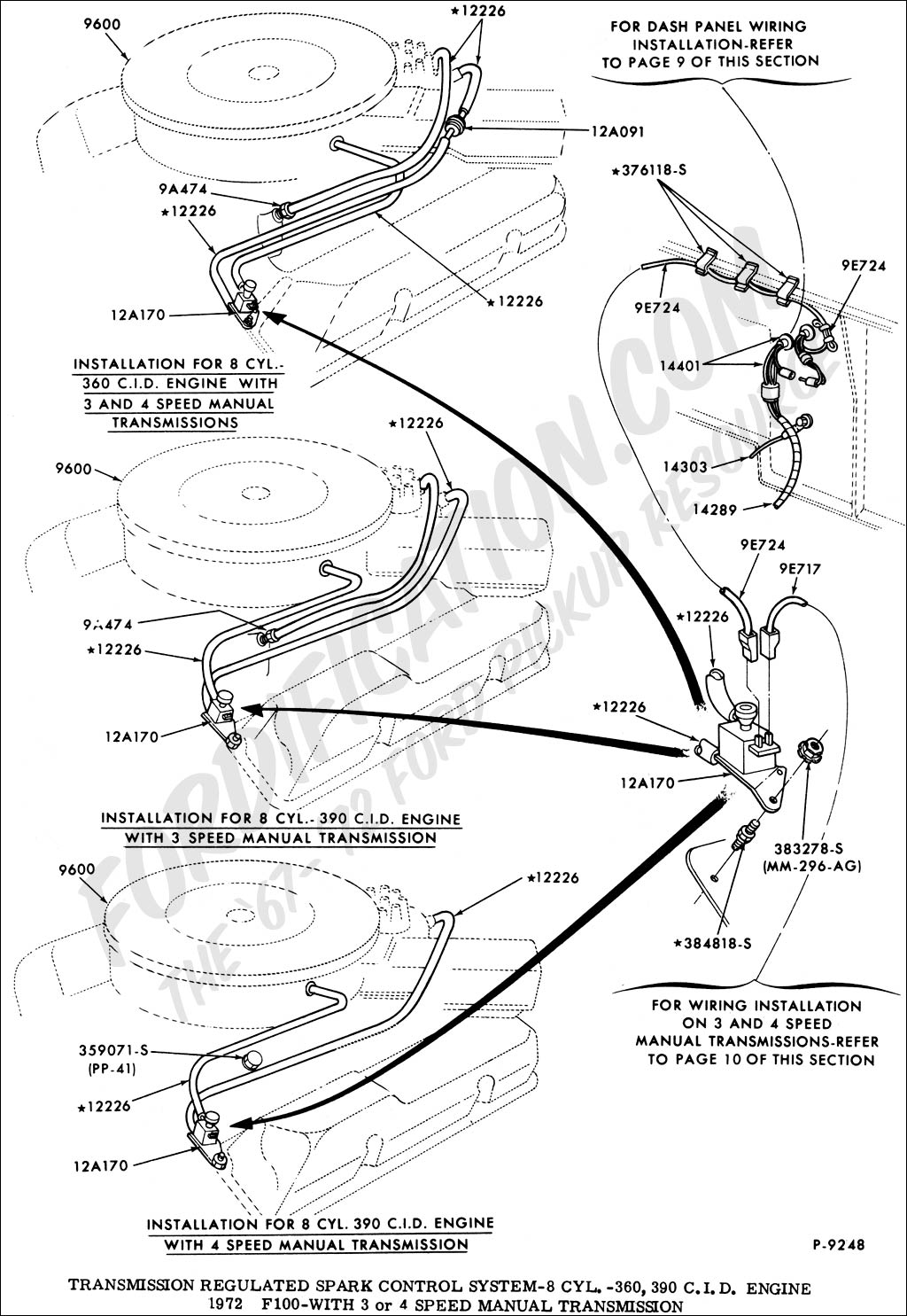

Transmission Regulated Spark Control System - 8 Cyl - 360, 390 CID Engine
1972 F100 with C6 trans. and with or without A/C or Super Cooling

1200 x 1688, 311K

Transmission Regulated Spark Control System - 8 Cyl - 360, 390 CID Engine
1972 F100 with
3 or 4 Speed Manual Trans. w/Air Conditioner and Super Cooling

1024 x 1476, 252K

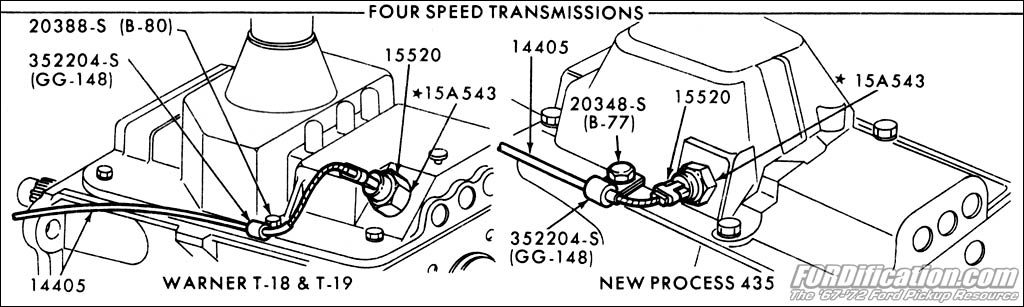

Back-Up Lamp Switch and Wiring - Typical
1969-1972 4-Speed Manual Transmission

1024 x 307, 72K

Windshield Wiper Motor Parts
1964-1972

1666 x 1024, 233K

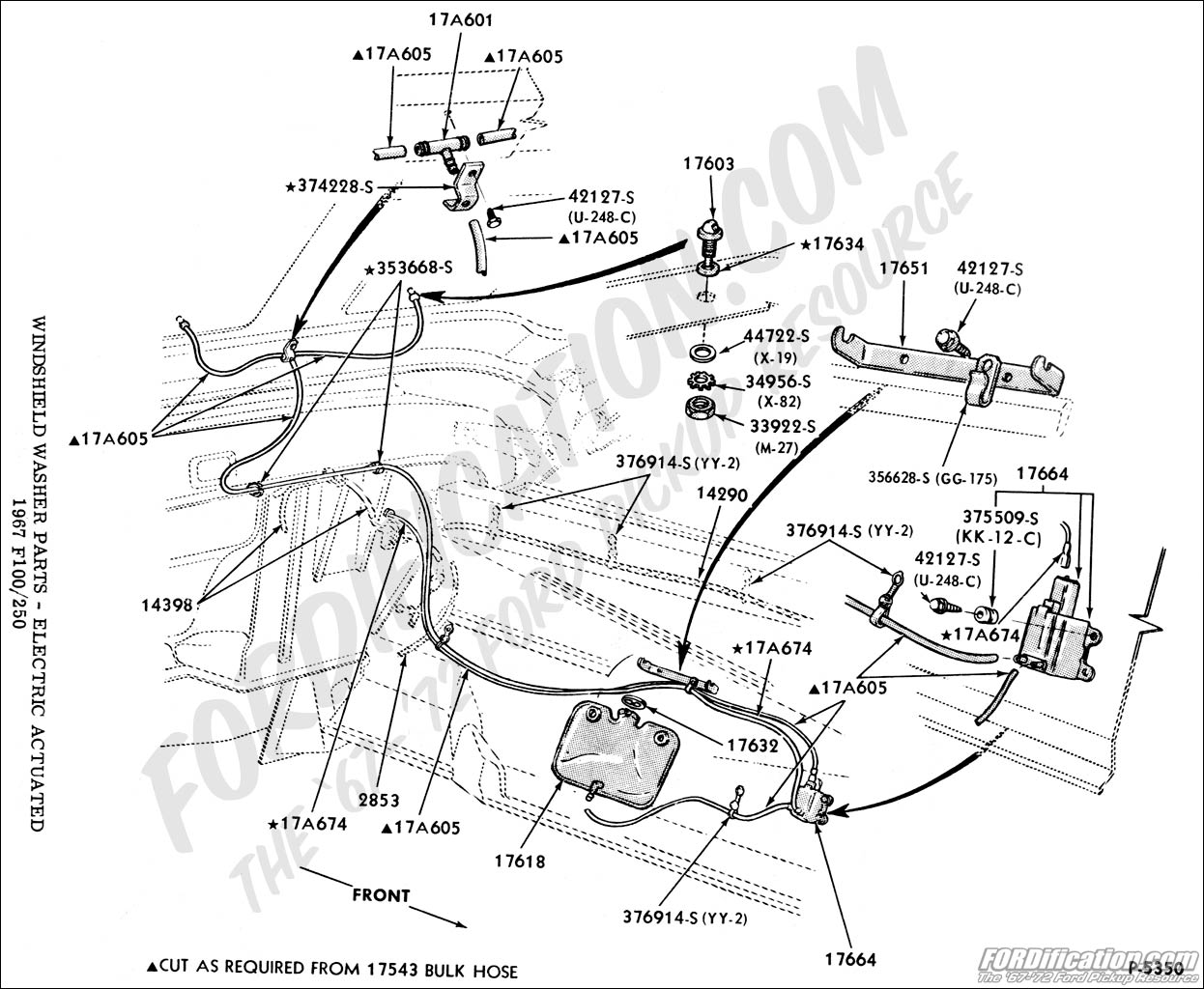

Windshield Washer Parts - Electric Actuated
1967 F100/250

1246 x 1024, 190K

Windshield Wiper Parts - Electric
1968-1972 F100/350

Windshield Washer Parts - Electric
1968-1970 F100/350

1024 x 1406, 232K

Windshield Washer Parts
1971-1972 F100/350 - w/o Power Pac

1024 x 1426, 193K

Windshield Washer Parts
1971-1972 F100/350 - with Power Pac

1024 x 1399, 240K

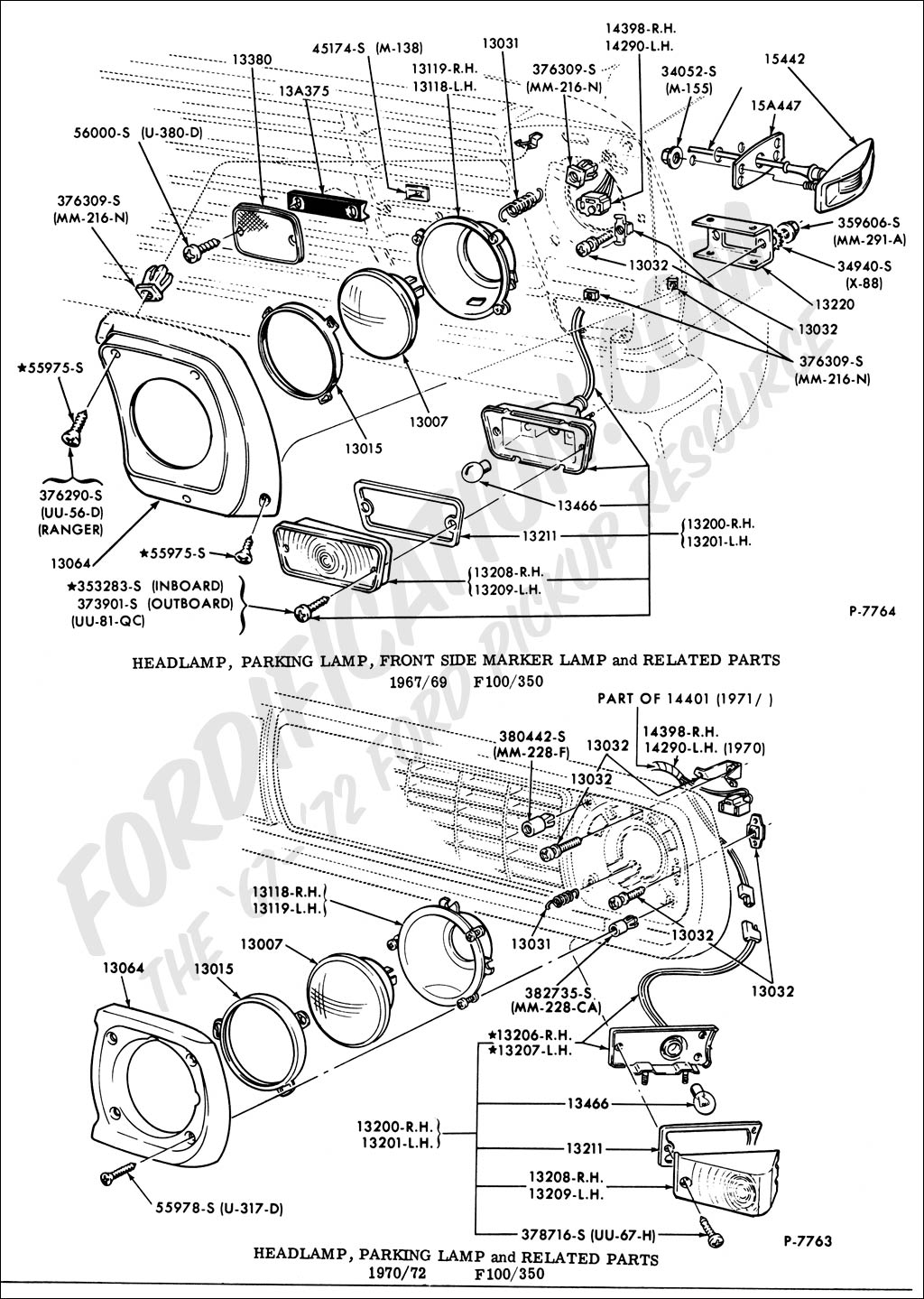

Headlamp, Parking Lamp, Front Side Marker Lamp and Related Parts
1967-1969 F100/F350

Headlamp, Parking Lamp, and Related Parts
1970-1972 F100/F350

1024 x 1439, 266K

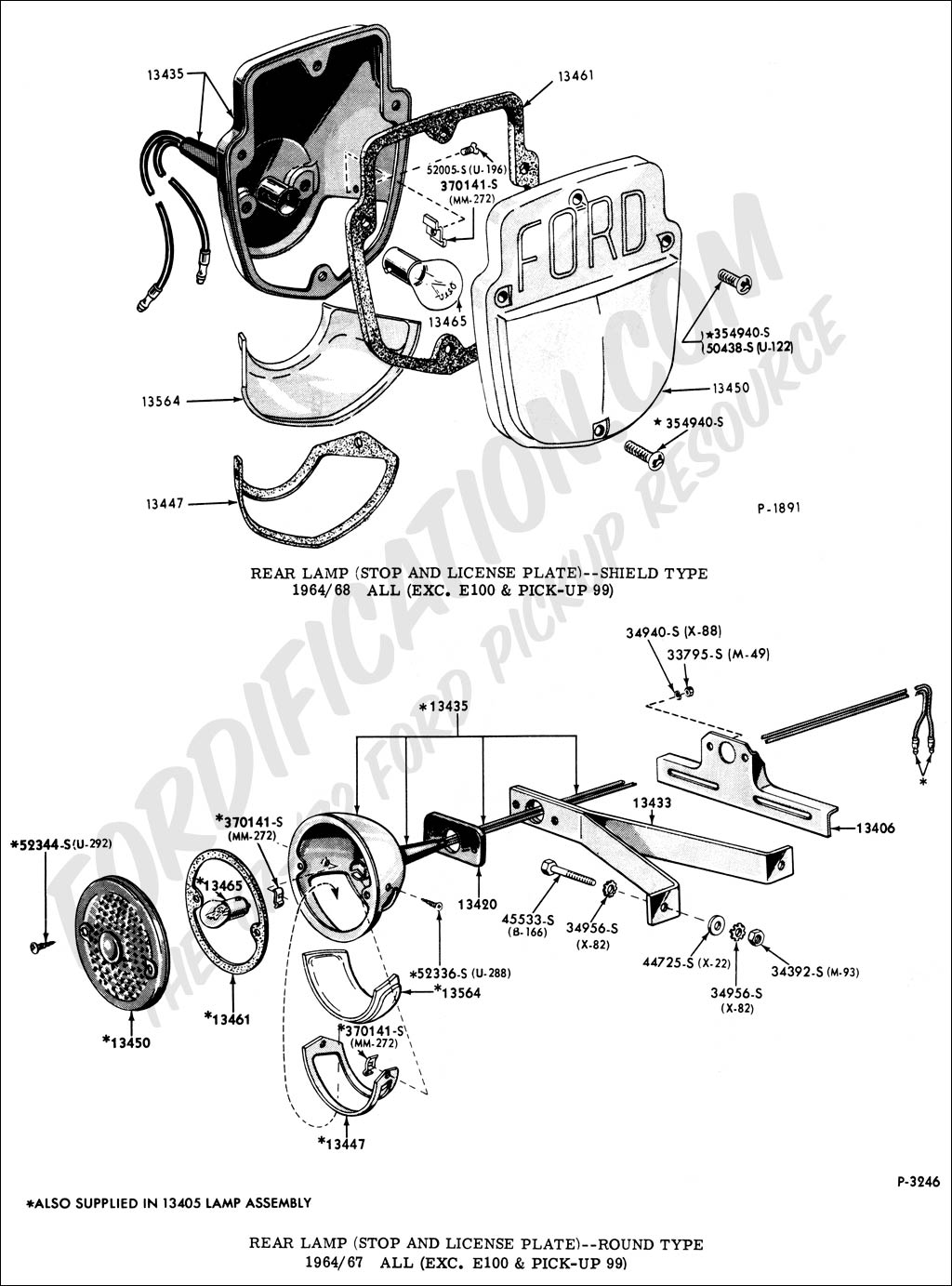

Rear Lamp (Stop and License Plate) - Shield Type
19
64-1968 All (Exc. E100 & Pickup 99)

Rear Lamp (Stop and License Plate) - Round Type
19
64-1967 All (Exc. E100 & Pickup 99)

1024 x 1383, 176K

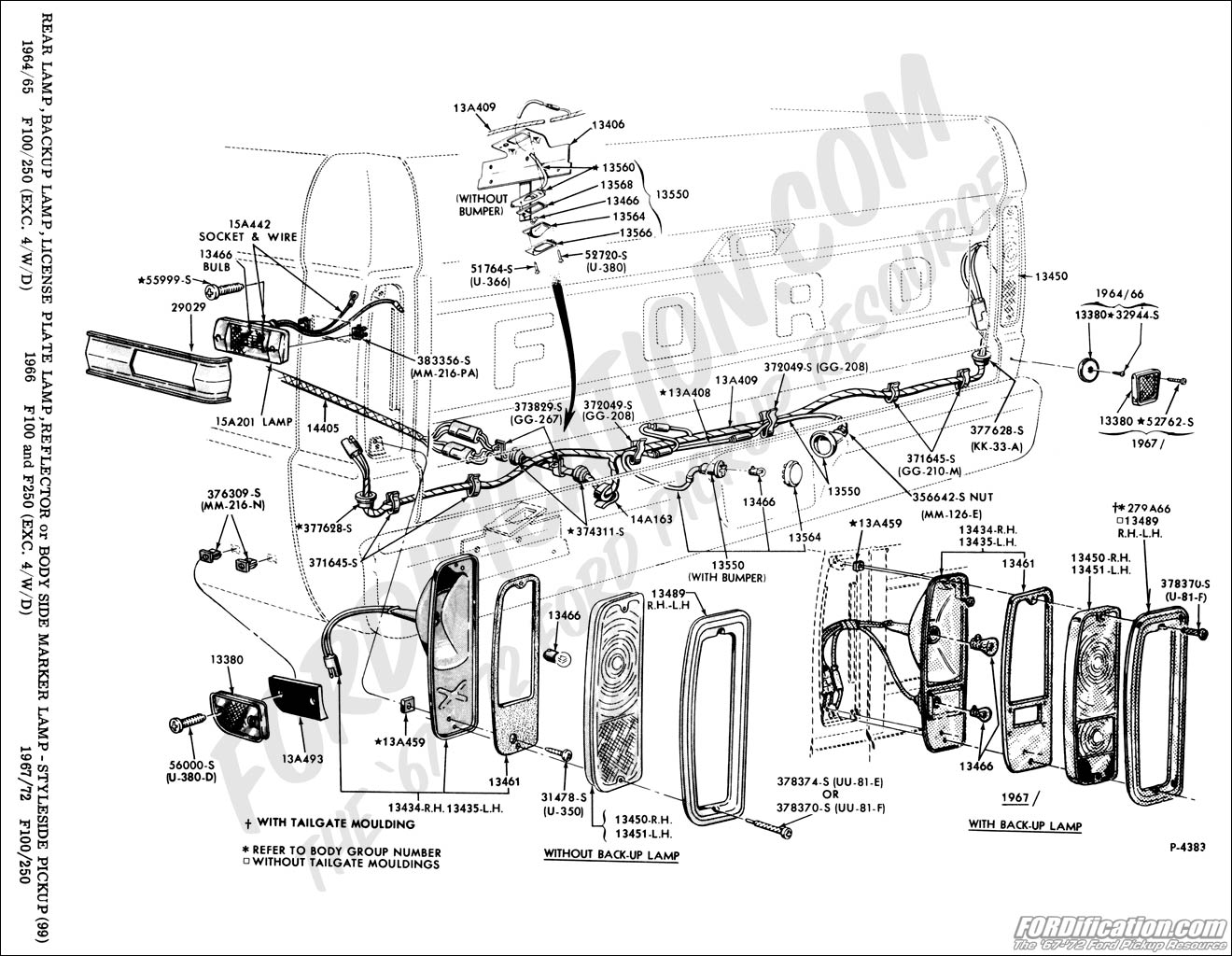

Rear Lamp, Backup Lamp, License Plate Lamp, Reflector or Body Side Marker Lamp - Styleside Pickup (99)
1964-1965 F100/F250 (Exc. 4WD)
1966 F100 and F250 (Exc. 4WD)
1967-1972 F100/250

1320 x 1024, 231K

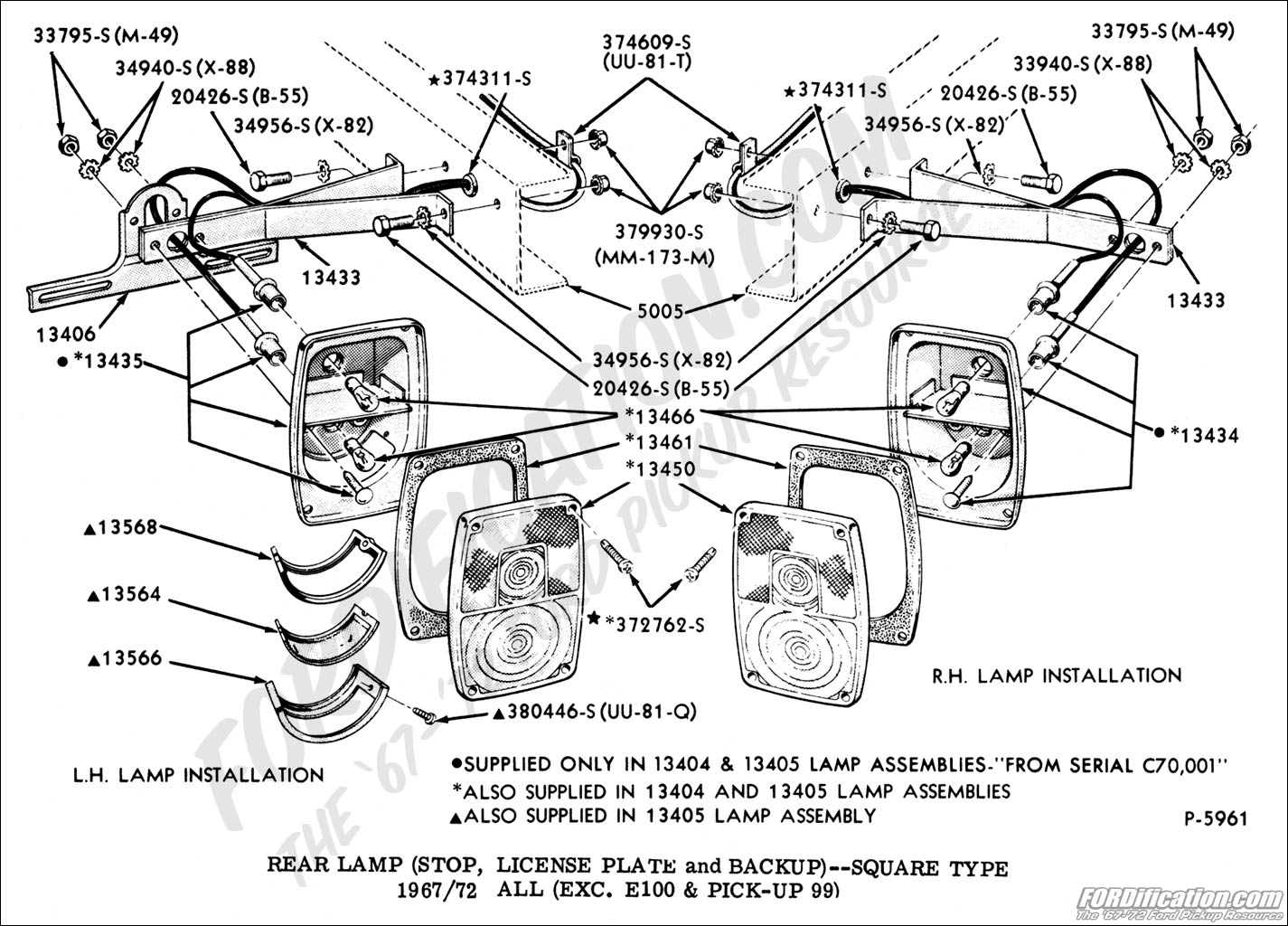

Rear Lamp (Stop, License Plate and Backup) - Square Type
19
67-1972 All (Exc. E100 & Pickup 99)

1425 x 1024, 243K

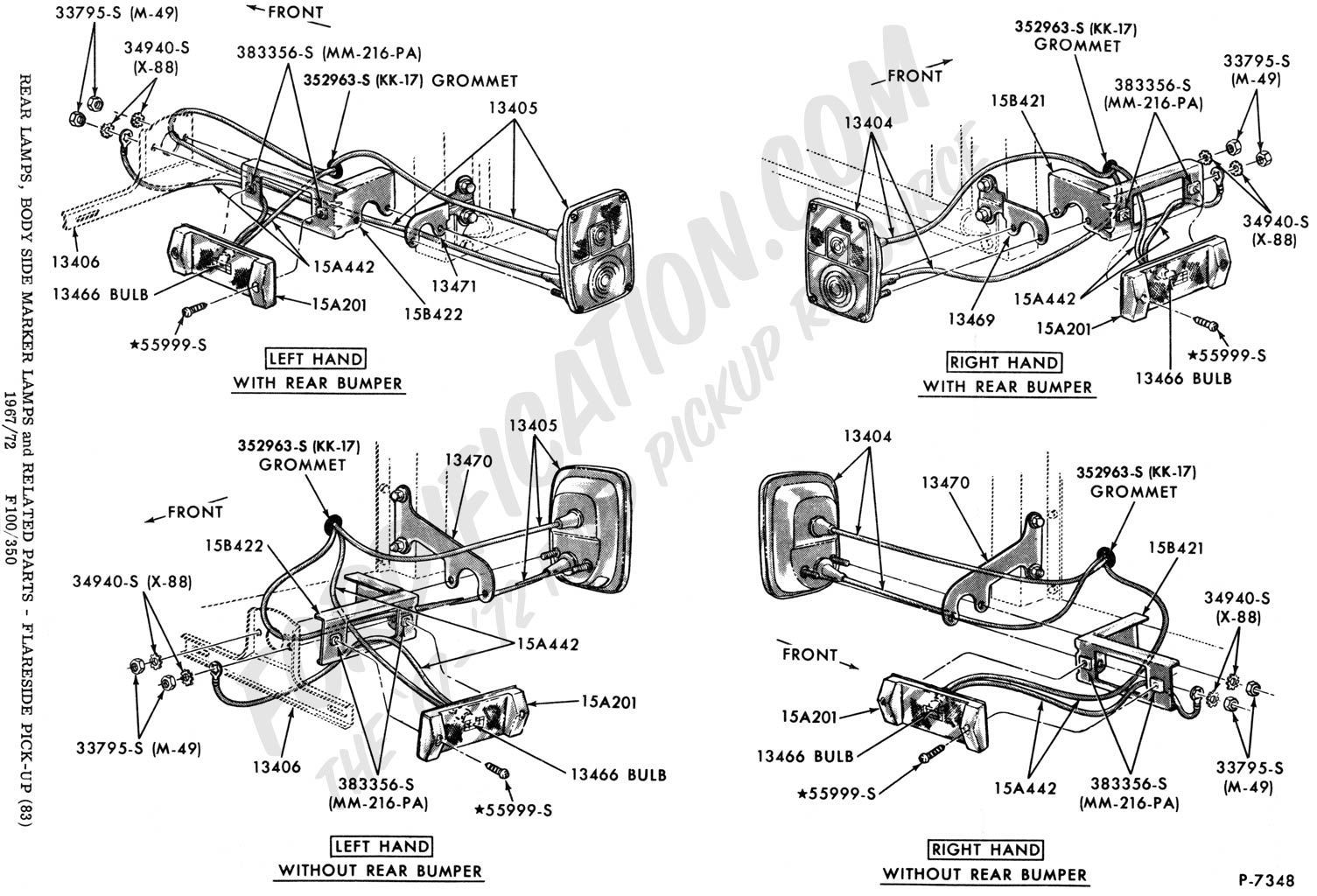

Rear Lamps, Body Side Marker Lamps and Related Parts - Flareside Pickup (83)
19
67-1972 F100/F350

1505 x 1024, 241K

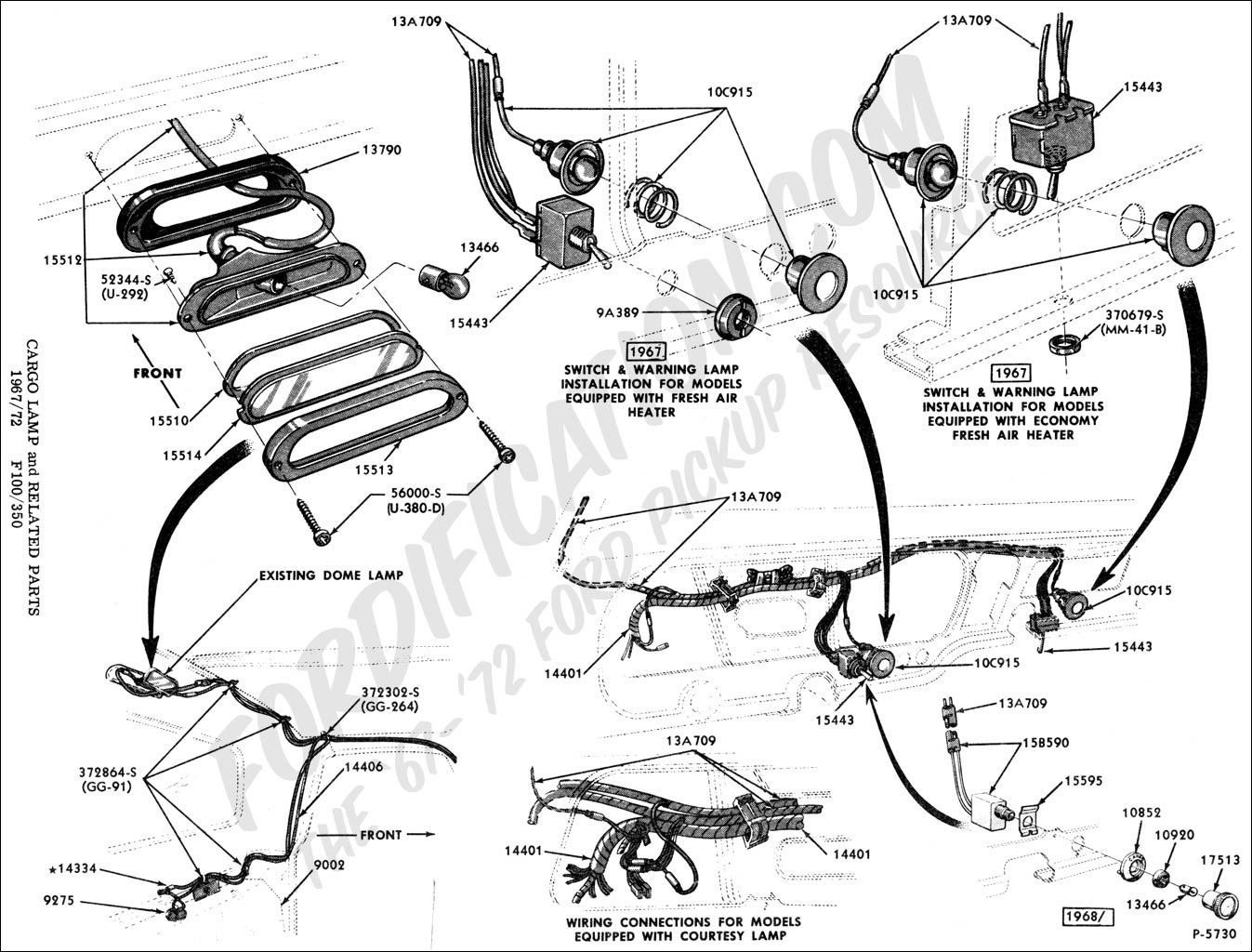

Cargo Lamp and Related Parts
19
67-1972 F100/F350

1347 x 1024, 226K

Marker Lamps (Roof Mounted, Fender & Bed Mounted Clearance) - Typical
19
67-1972 B-F100/750
1967-1968 F-T800/1000

1437 x 1024, 218K

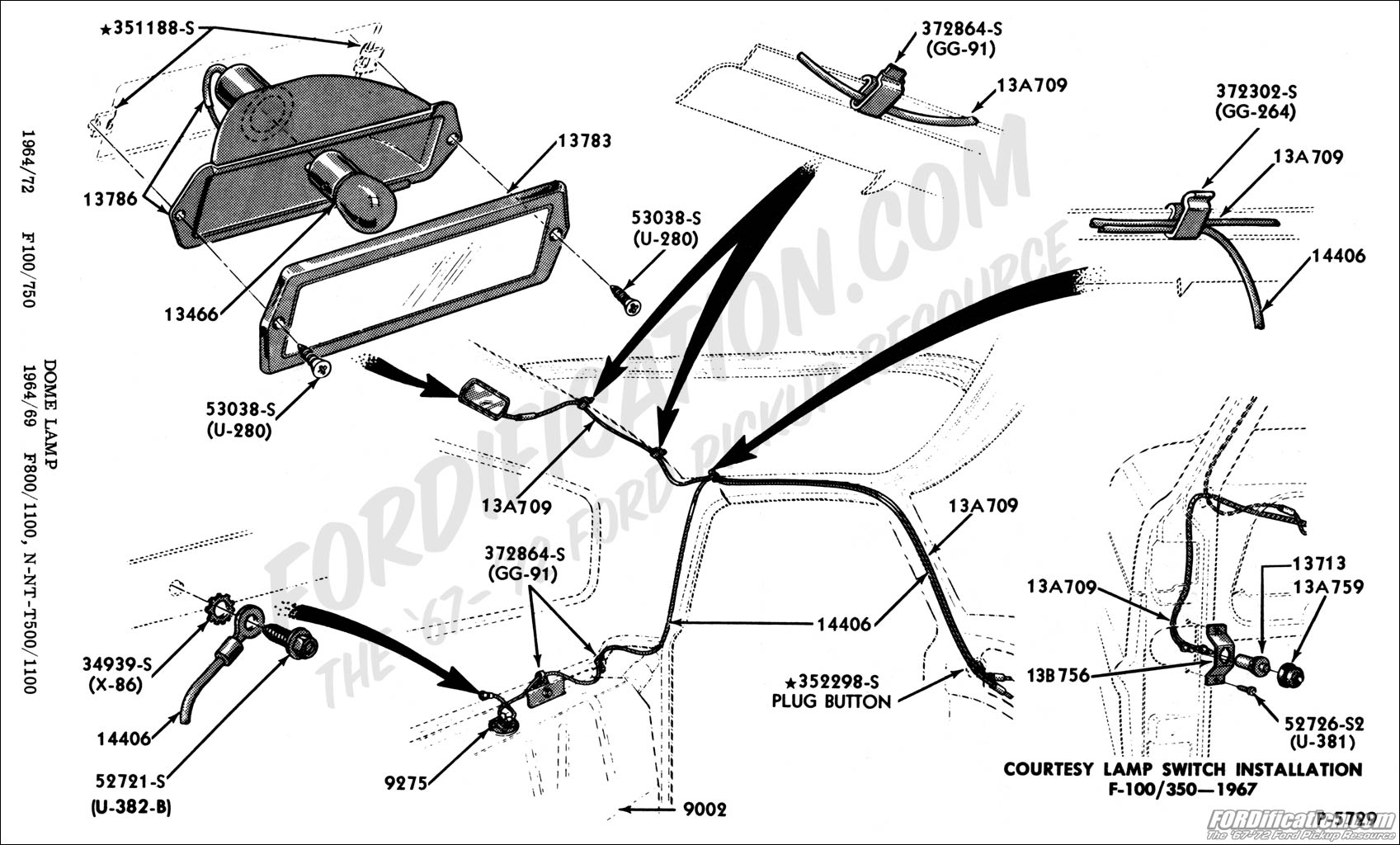

Dome Lamp
19
64-1972 F100/F750
1964-1969 F800/1100, N-NT-T500/1100

1697 x 1024, 235K

2-Spoke Steering Wheel with Bar Blow Horn and Related Parts
19
71-1972 F100/F350

1197 x 1024, 111K

Camper Wiring System
19
67-1972 F100/F350

1024 x 1412, 241K

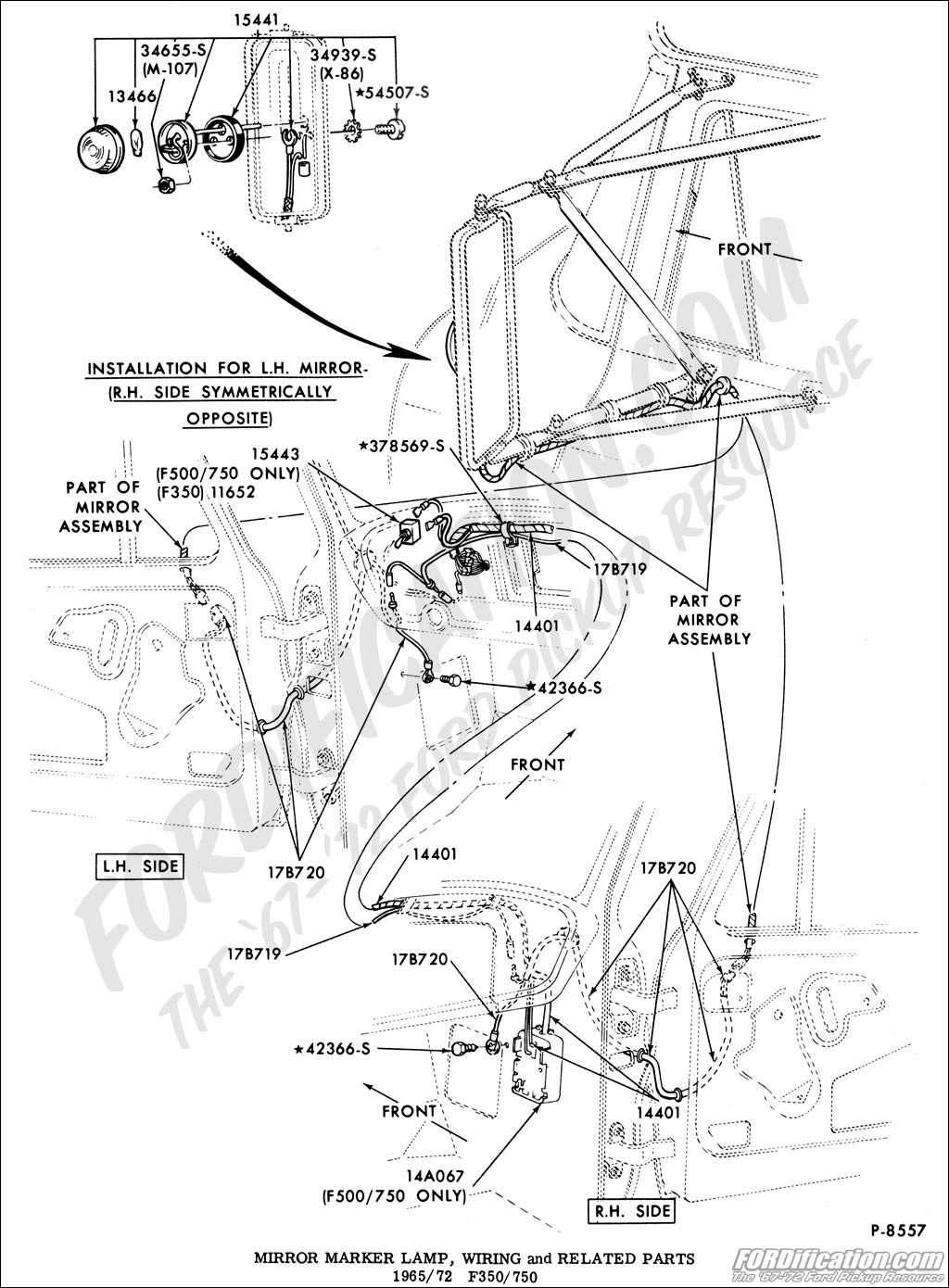

Mirror Marker Lamp, Wiring and Related Parts
1965-1972 F350 - F350/750

1024 x 1390, 214K
