Technical Drawings and Schematics - Section D
Frame, Body and Related Components

Frame (Typical)
1965-1972 F100, F250 (4x2)

1024 x 699, 97K

Frame (Typical)
1966-1972 F100 (4x4)

1024 x 664, 93K

Frame
1967-1972 F250 (4x4)

1024 x 735, 94K

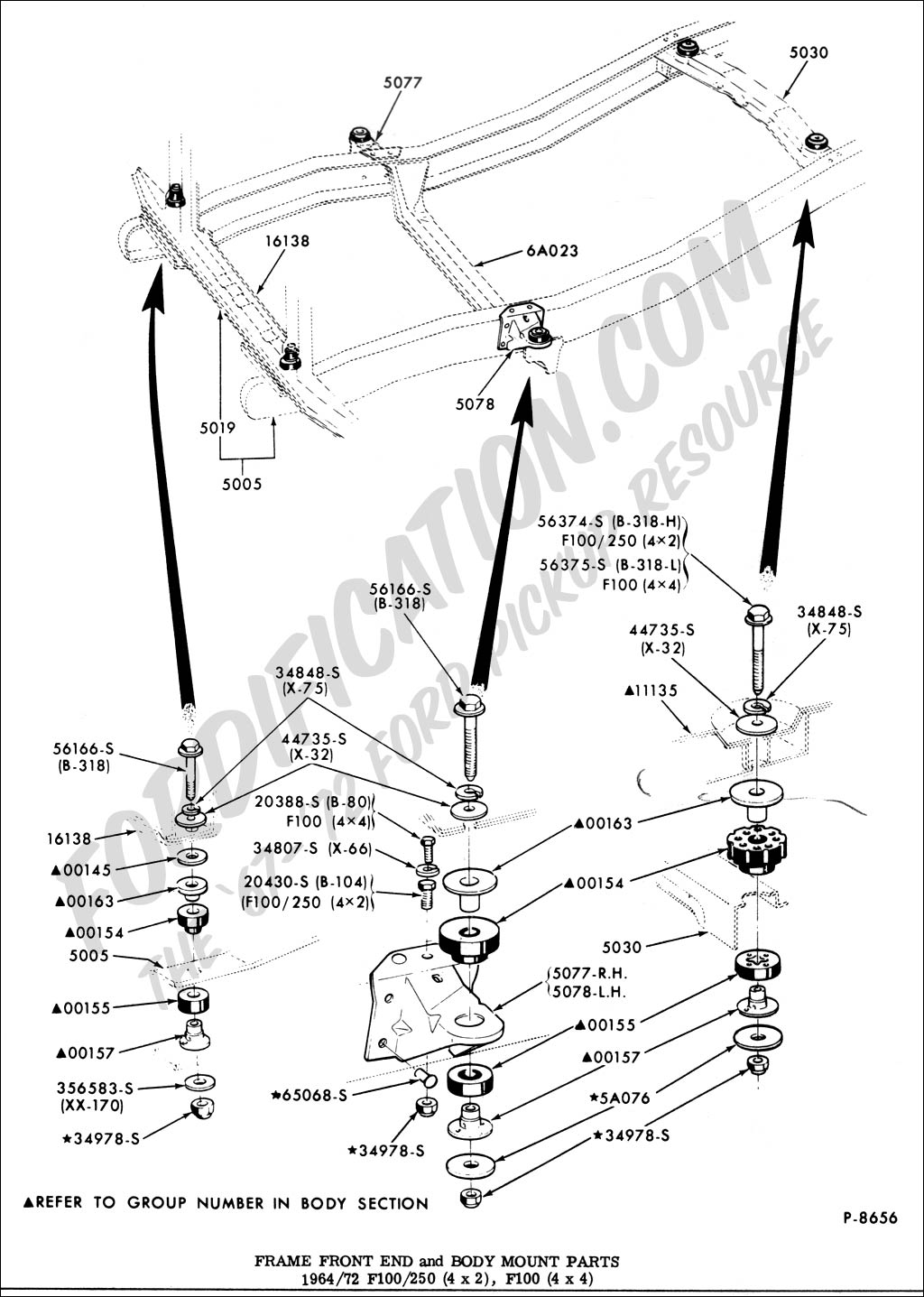

Frame Front End and Body Mount Parts
1964-1972 F100-F250 (4x2), F100 (4x4)

1024 x 1437, 178K

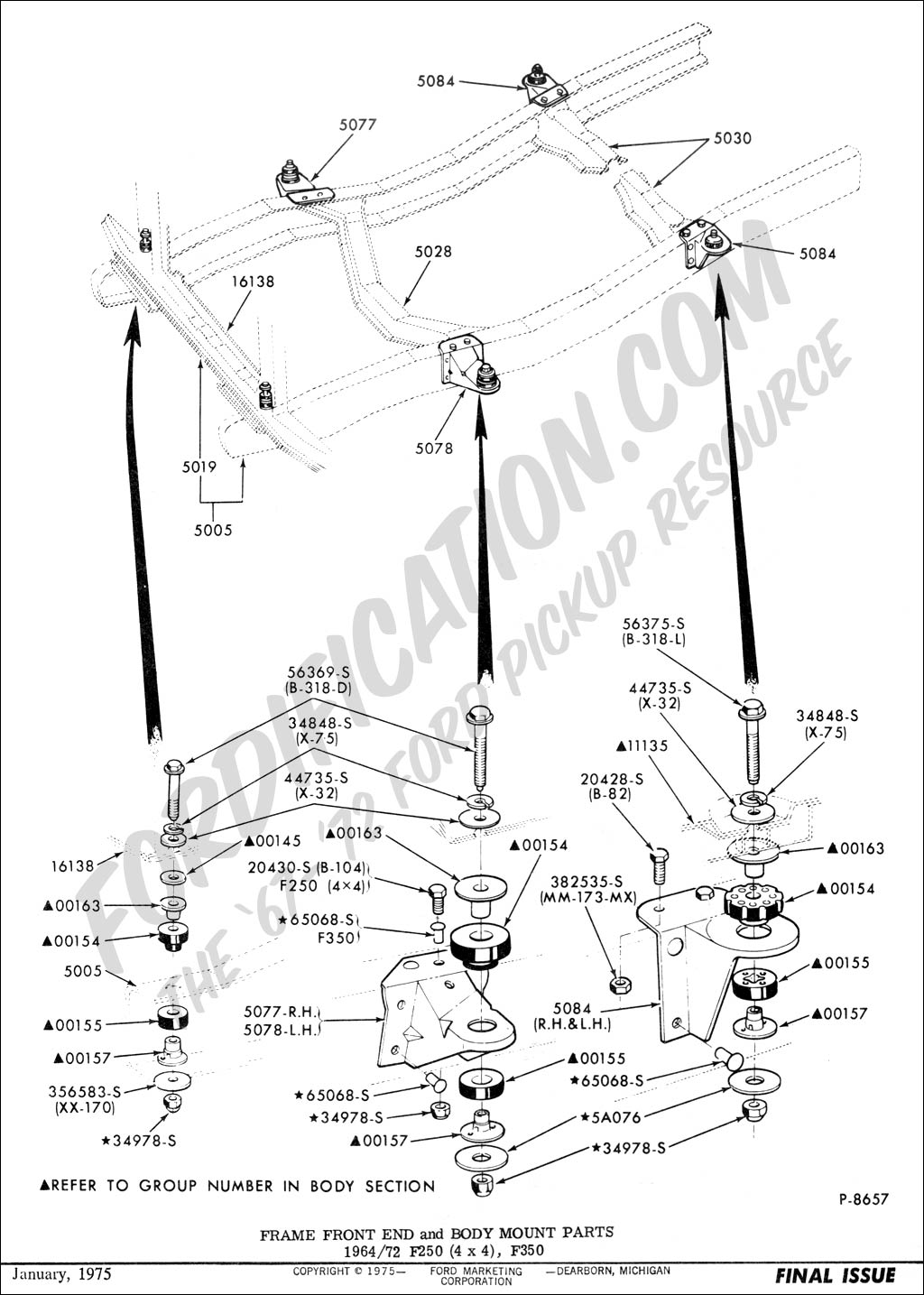

Frame Front End and Body Mount Parts
1964-1972 F250 (4x2), F350

1024 x 1435, 175K

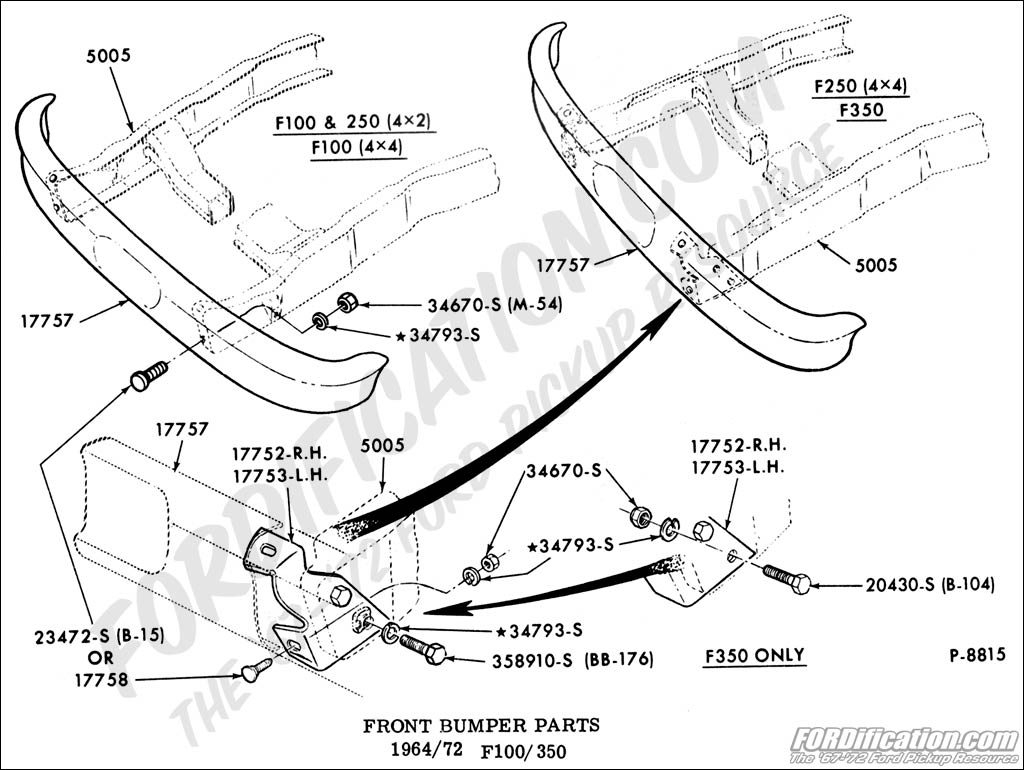

Front Bumper Parts
1964-1972 F100/350

1024 x 770, 112K

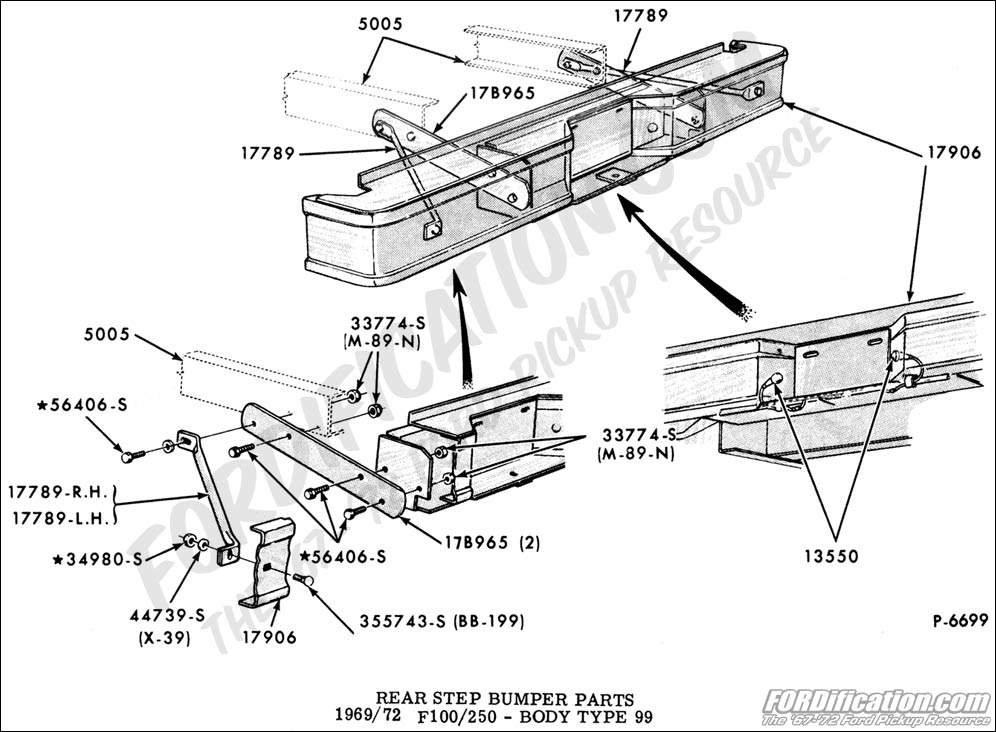

Rear Step Bumper Parts
1969-1972 F100/250 - Body Type 99

996 x 732, 105K

Radiator Grille and Related Parts
1964-1969 F100/F350

1200 x 857, 192K

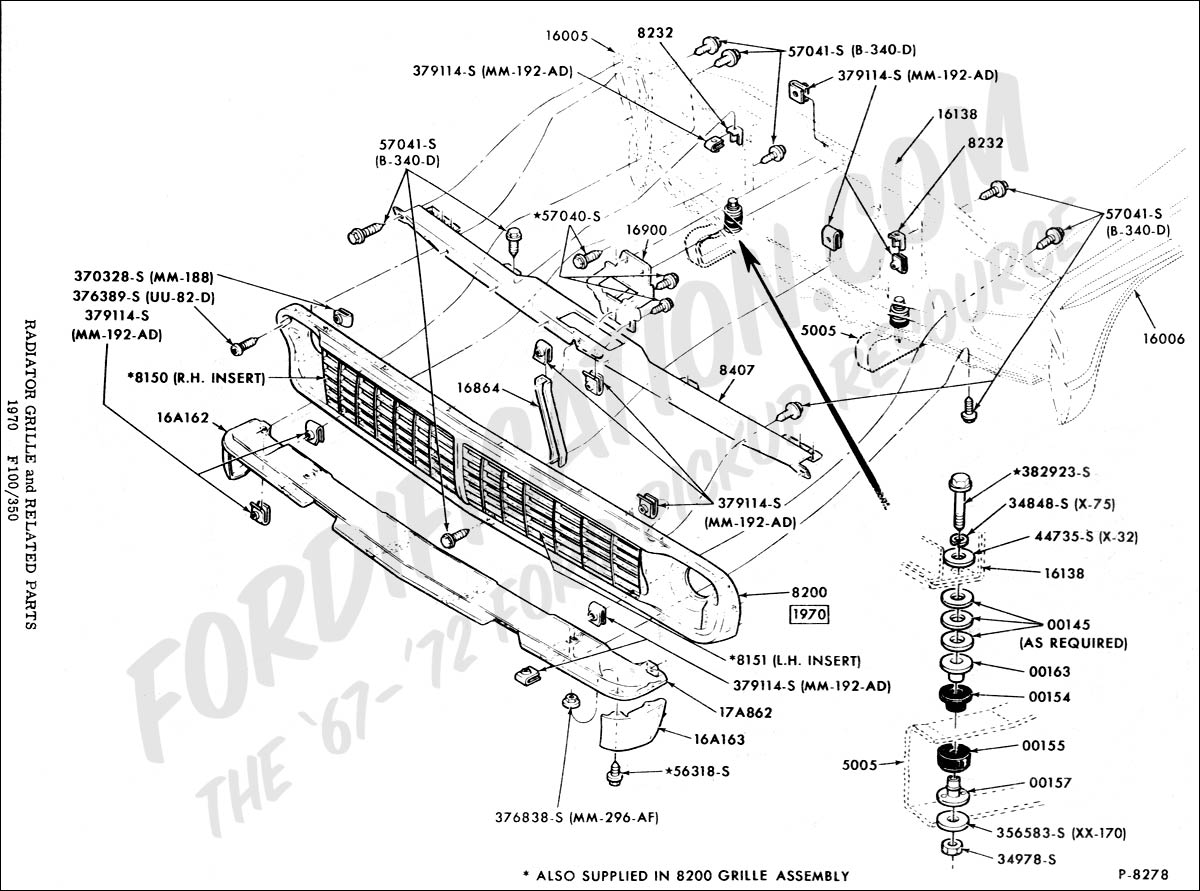

Radiator Grille and Related Parts
1970 F100/F350

1200 x 891, 165K

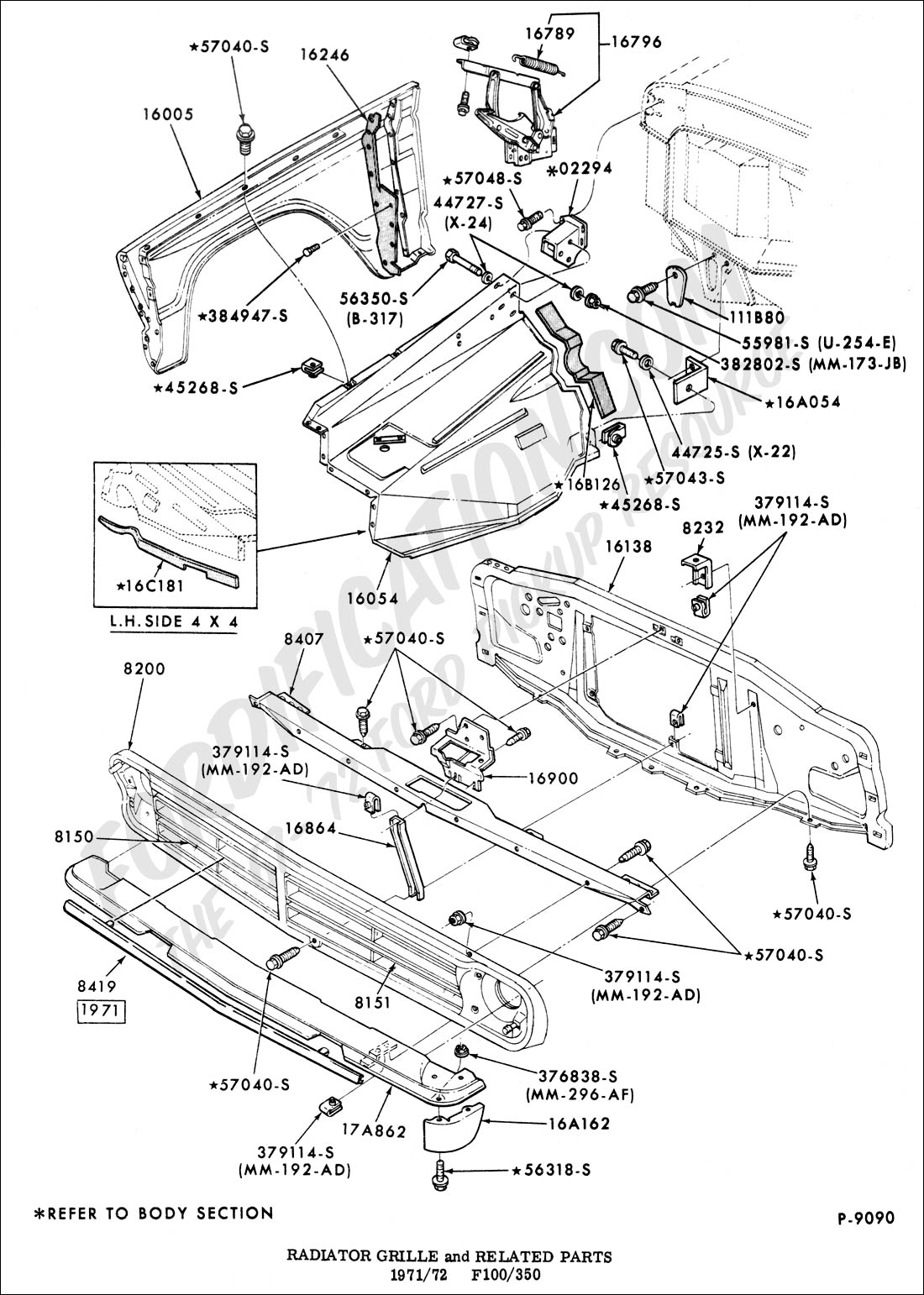

Radiator Grille and Related Parts
1971-1972 F100/F350

1200 x 1542, 261K

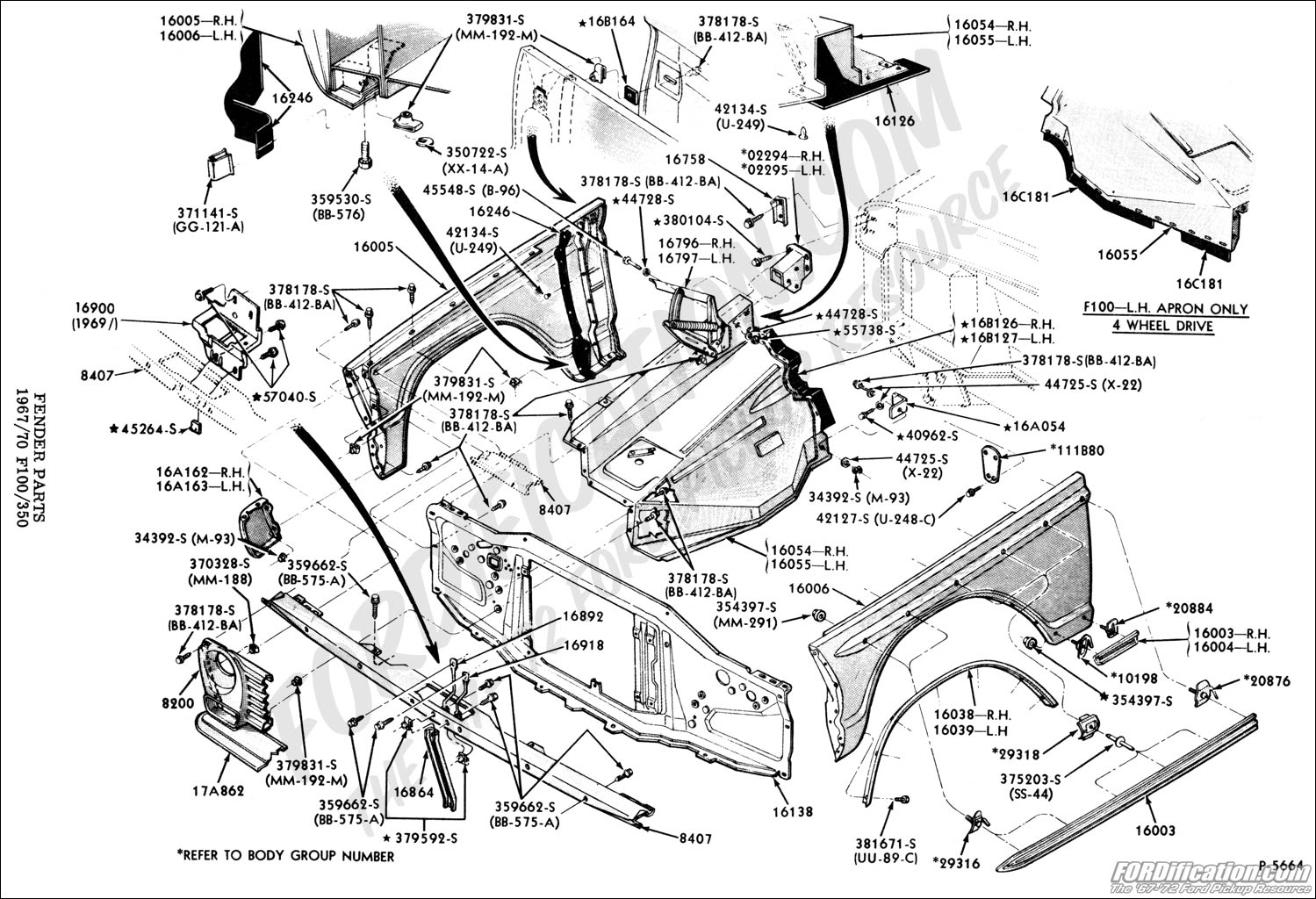

Fender Parts
1967-1970 F100/F350

1499 x 1024, 261K

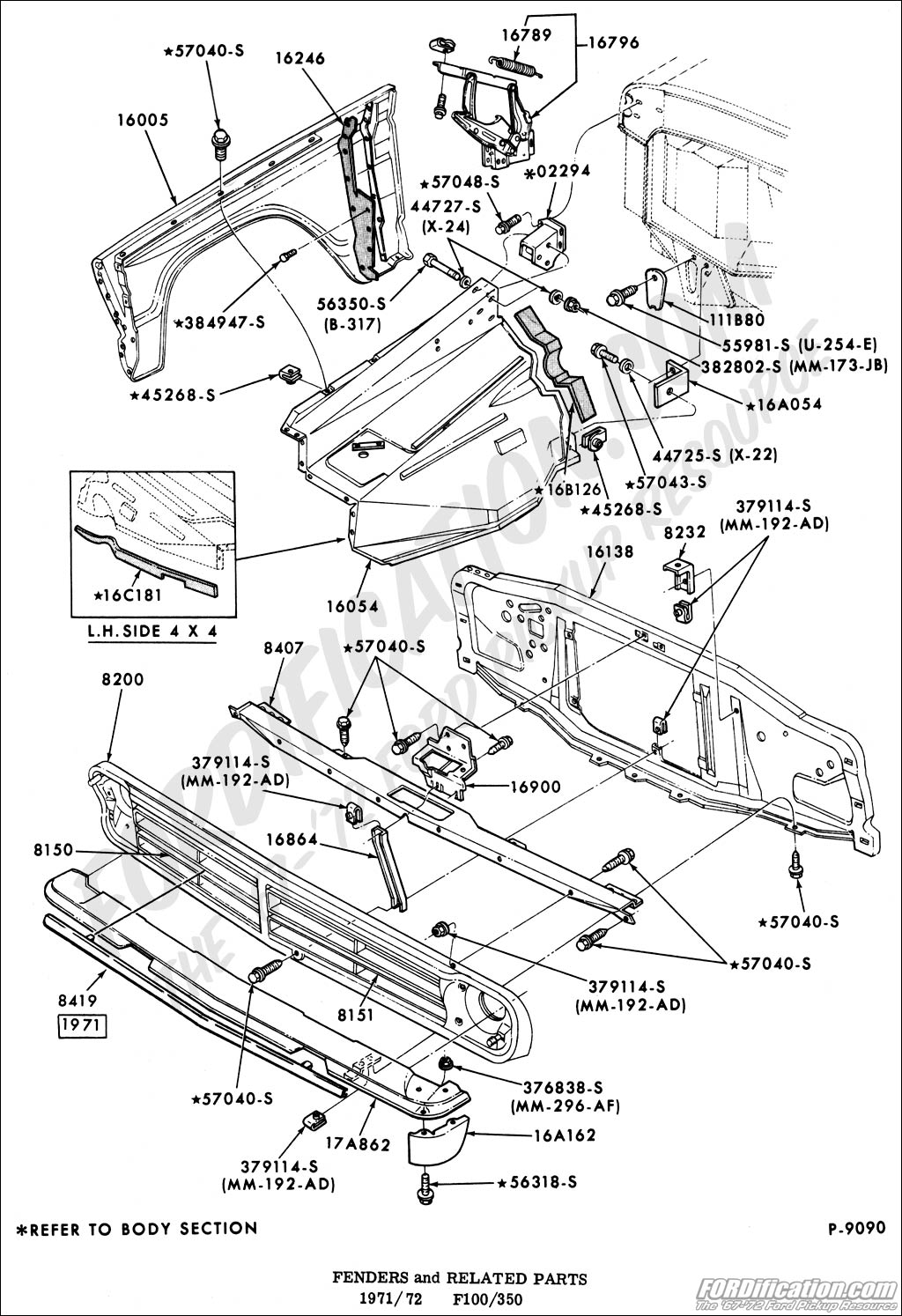

Fender and Related Parts
1971-1972 F100/F350

1024 x 1494, 261K

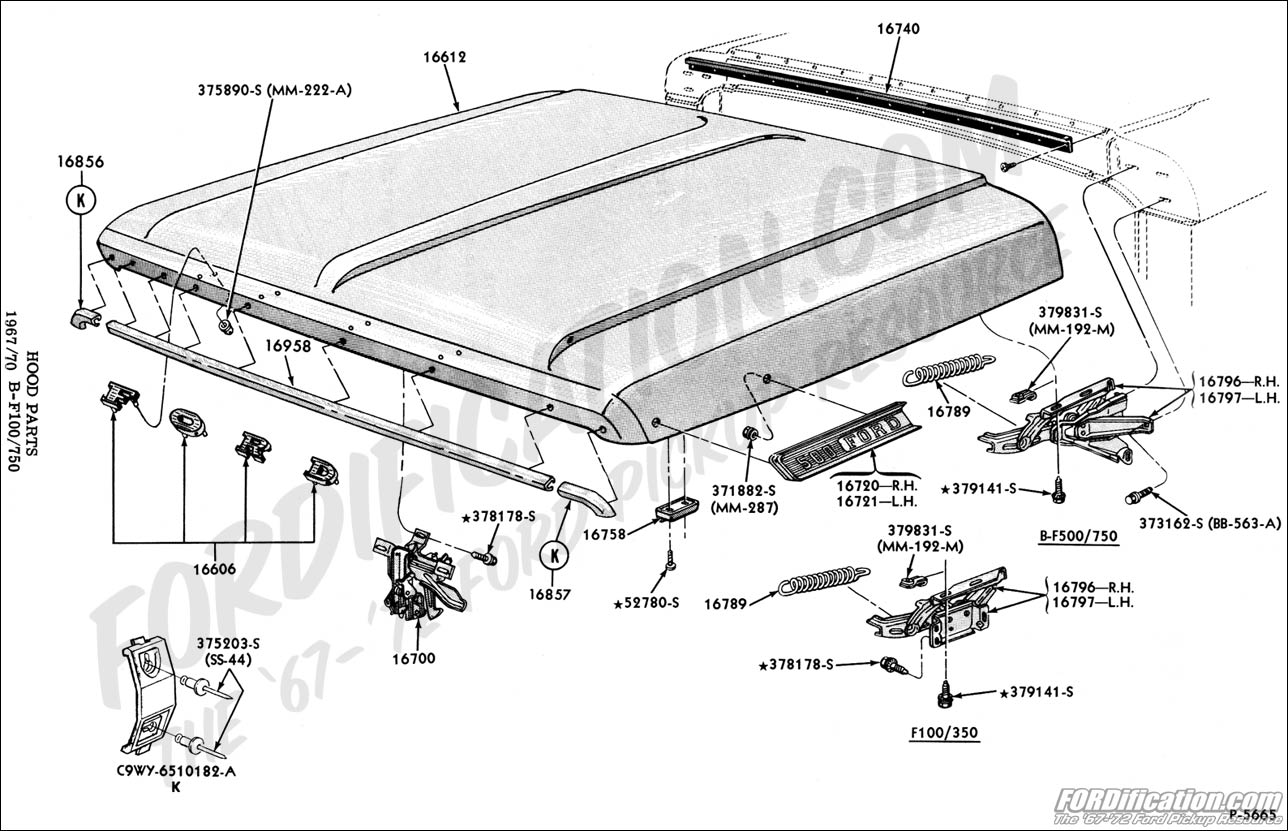

Hood Parts
1967-1970 F100/350

1288 x 831, 163K

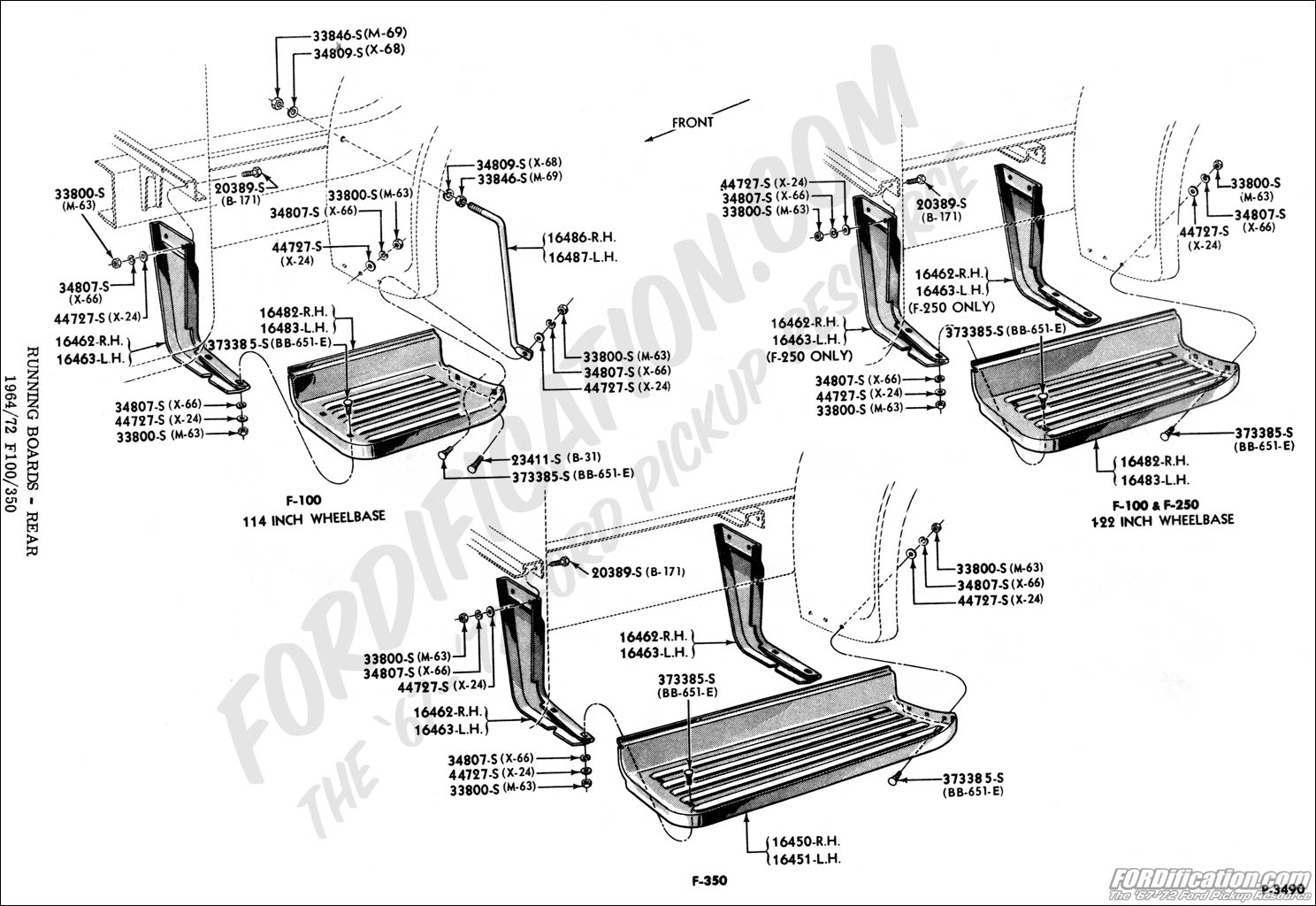

Running Boards, Rear
1964-1972 F100/350

1488 x 1024, 214K

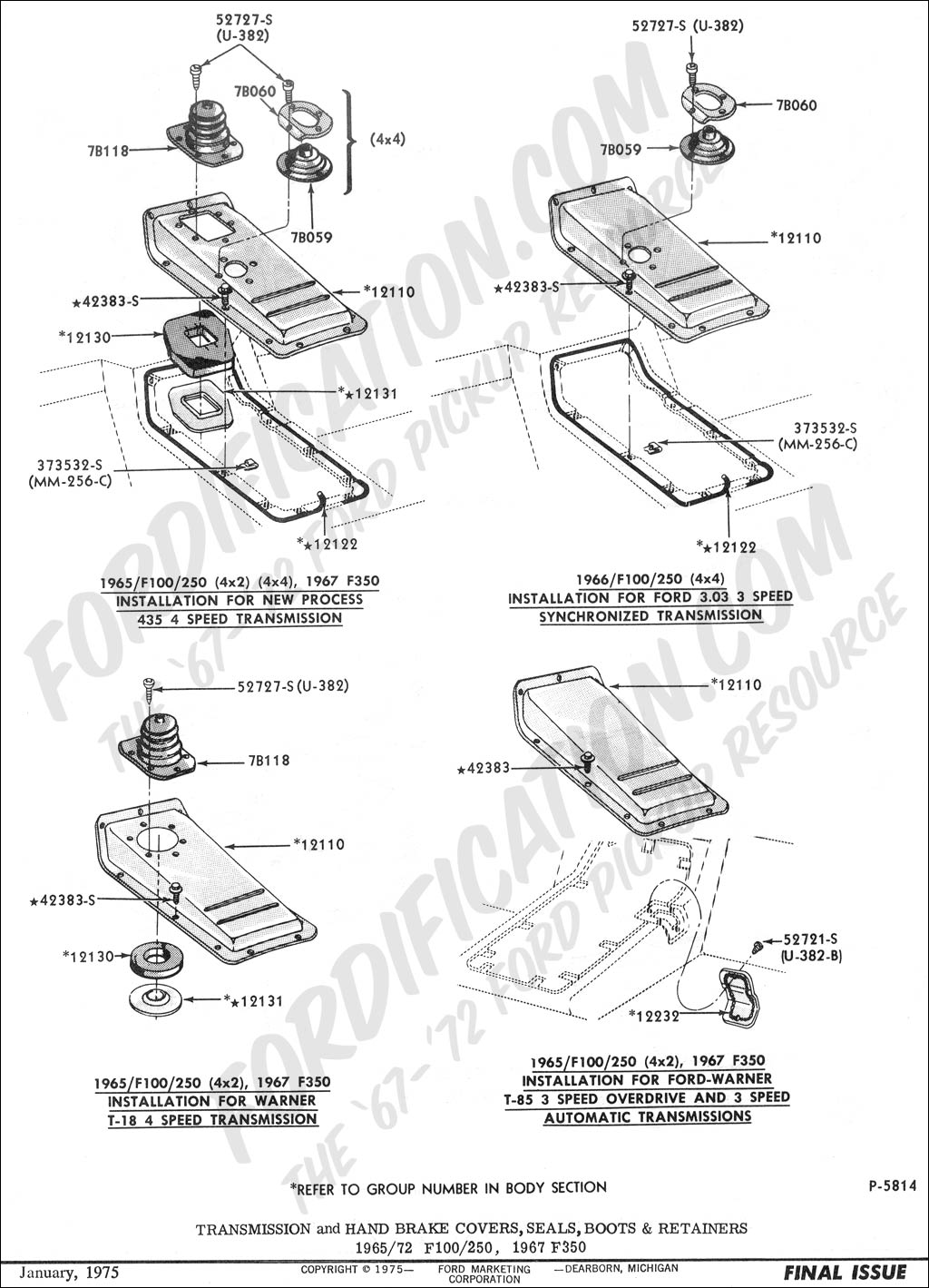

Transmission and Hand Brake Covers, Seals, Boots and Retainers
1965-1972 F100/250, 1967 F350

1024 x 1419, 195K

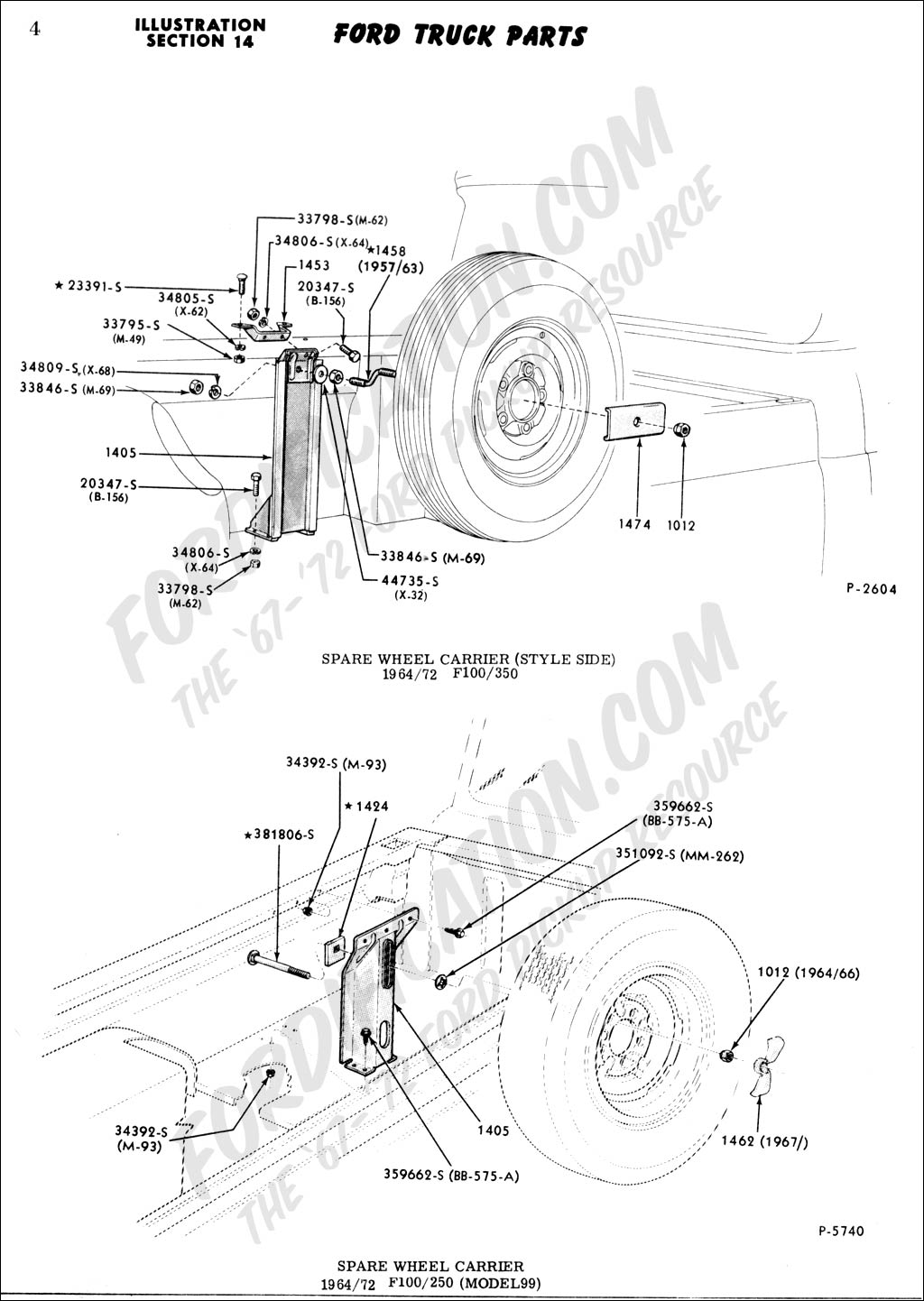

Spare Wheel Carrier (Style Side)
1964-1972 F100-F350

Spare Wheel Carrier
1964-1972 F100-F250 (Model 99)

1024 x 1442, 161K

Windshield Wiper Parts - Electric and Air
1964-1970 F-N-NT-T100/1100

1453 x 1024, 230K

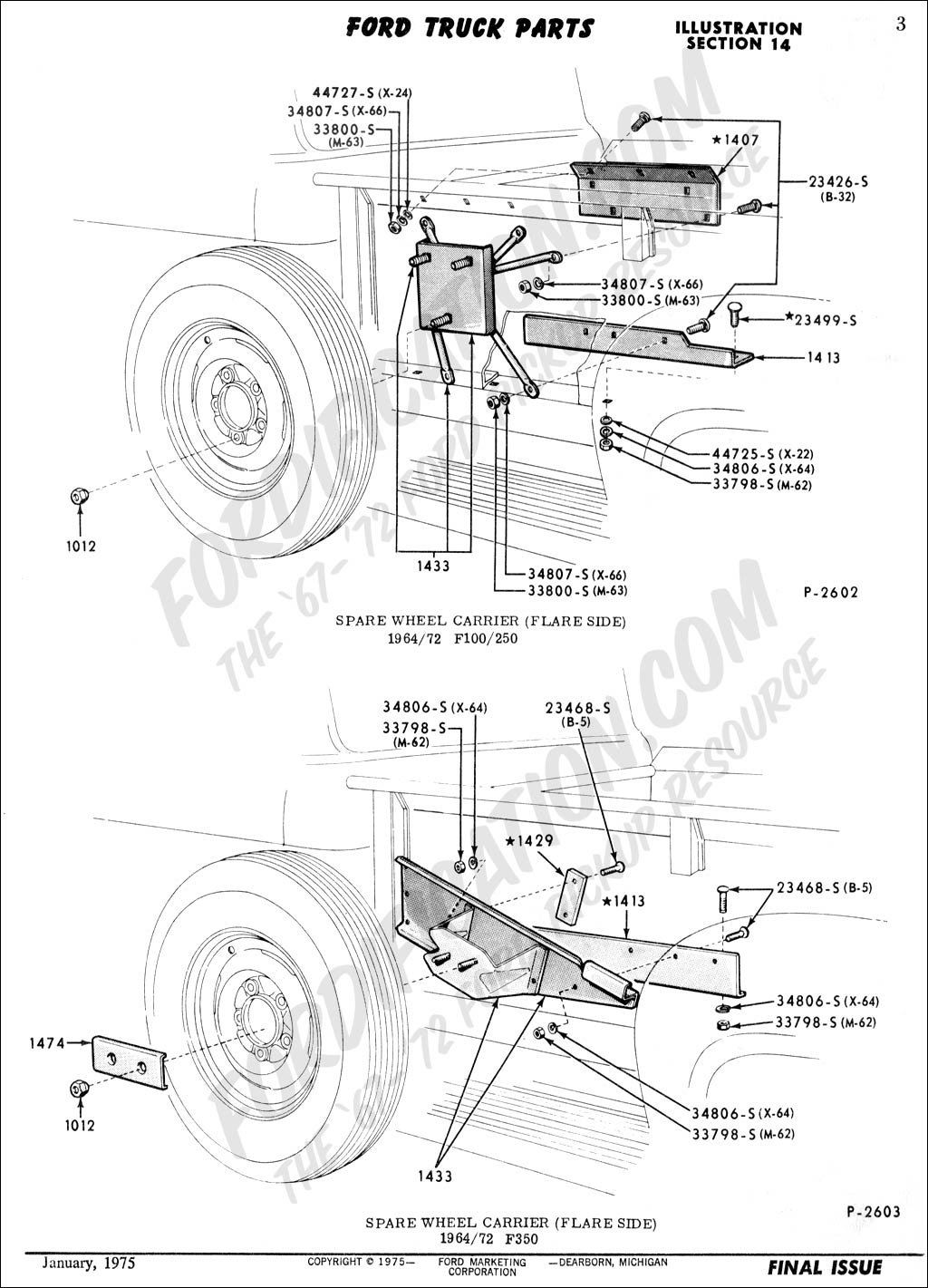

Spare Wheel Carrier (Flare Side)
1964-1972 F100-F250

Spare Wheel Carrier (Flare Side)
1964-1972 F
350

1024 x 1441, 197K

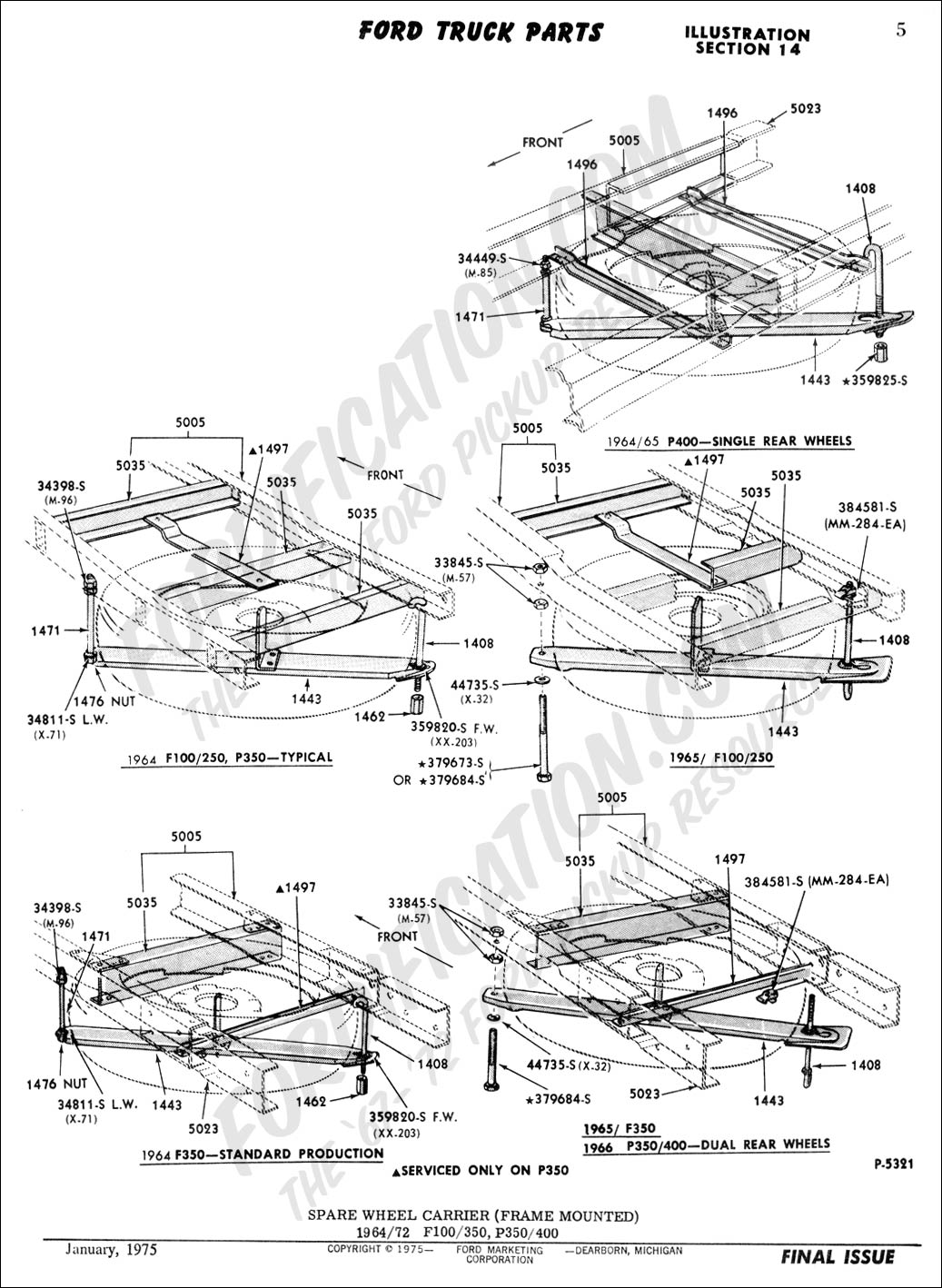

Spare Wheel Carrier (Frame Mounted)
1964-1972 F100-F350, P350-400

1037 x 1418, 231K

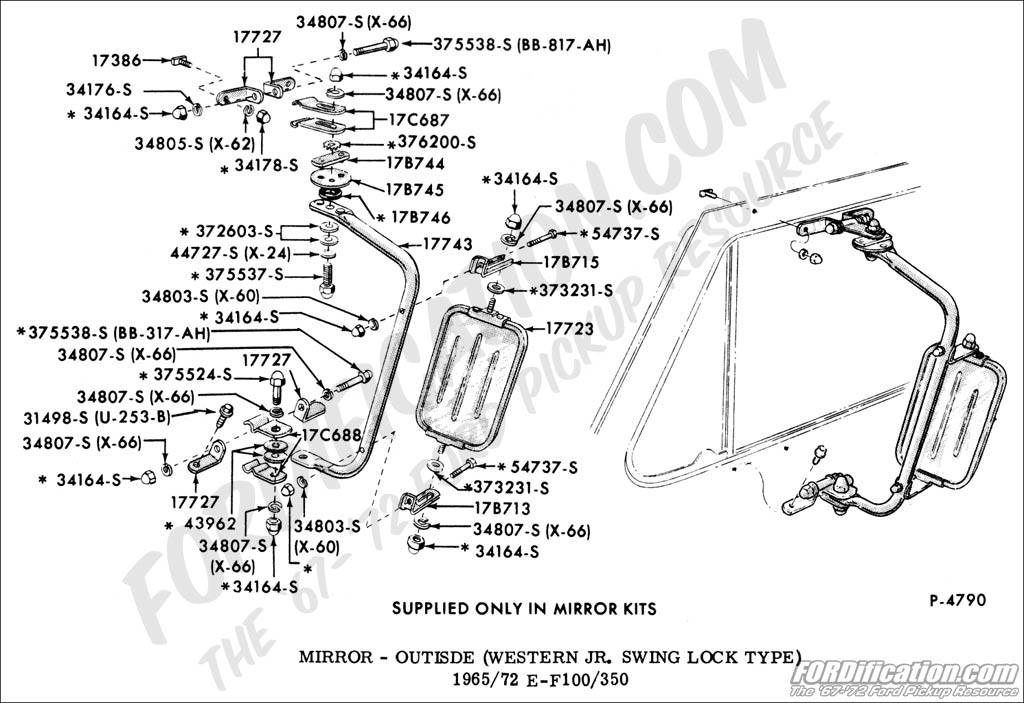

Mirror - Outside (Western Jr. Swing Lock Type)
1965-1972 E-F100/350

1024 x 703, 116K

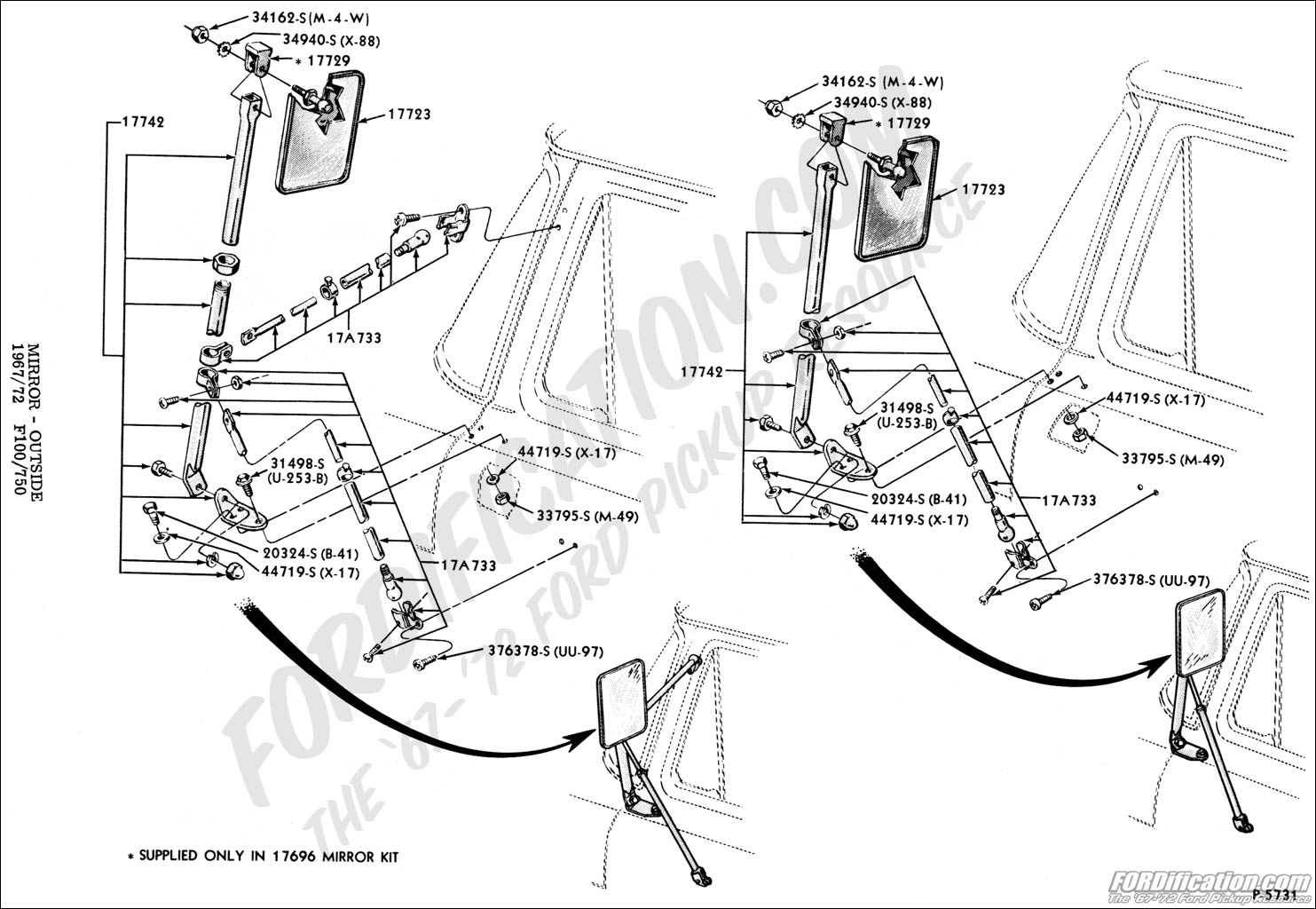

Mirror - Outside
1967-1972 F100/750

1483 x 1024, 197K

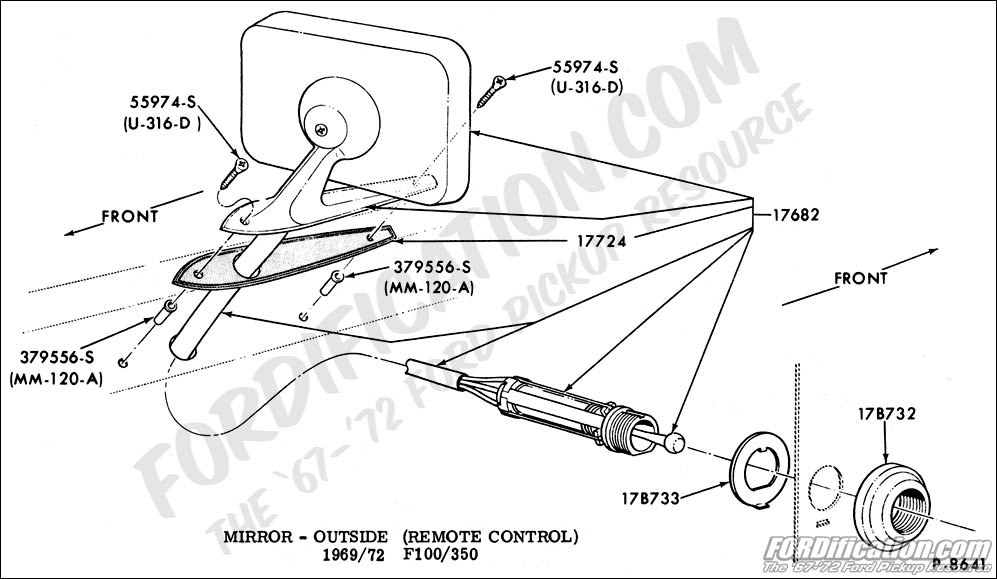

Mirror - Outside (Remote Control)
1969-1972 F100/350

997 x 579, 74K

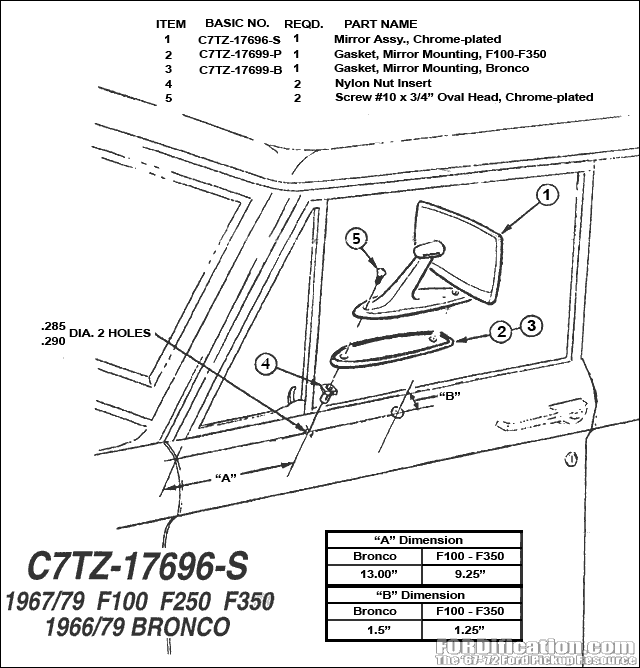

Rearview mirror mounting
1967-1979 F100-F350, 1966-1979 Bronco

640 x 668, 27K

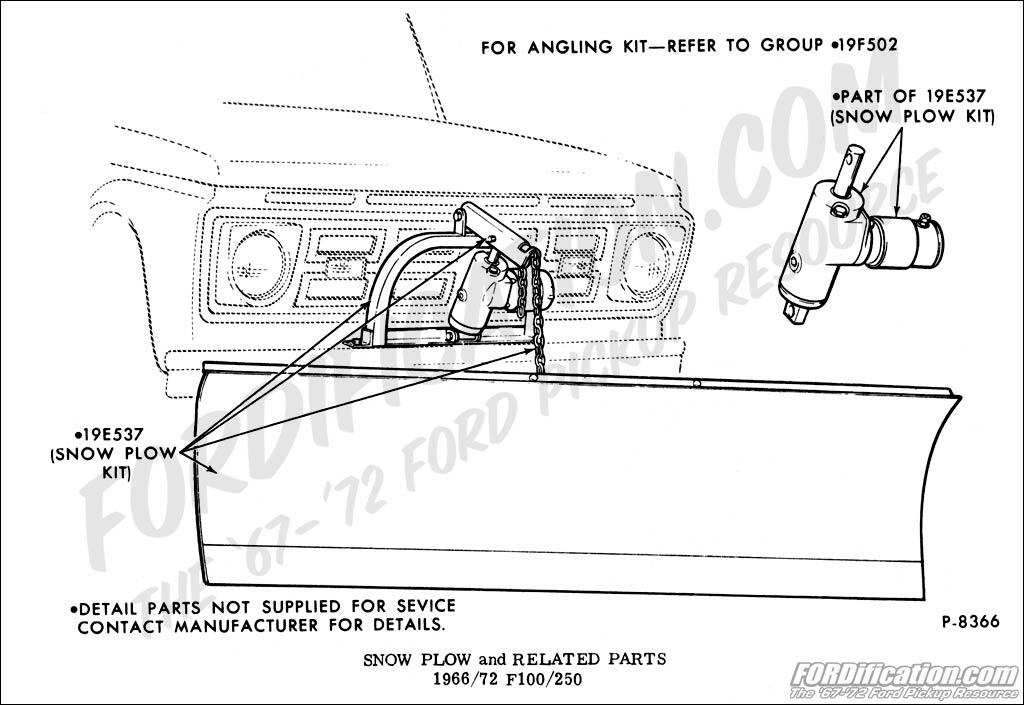

Snow Plow and Related Parts
1966-1972 F100/250

1024 x 705, 95K
