Technical Drawings and Schematics - Section B
Brake Systems and Related Components

Parking Brake System - Cable Operated Rear Brakes
1967-1972 F100 (4x2), F100 (4x4), (F250 - 4x2 w/Std. Brakes)

1482 x 1024, 264K

Parking Brake System - Cable Operated Rear Brakes w/Hand Control
1967 F250 (4x2) with H/D Brakes, F250 (4x4)

1491 x 1037, 199K

Parking Brake System - Cable Operated Rear Brakes w/Foot  Control
1967-1972 F250 (4x2) w/Bendix (BX) Brakes & F350

1482 x 1024, 208K

Front & Rear Brakes - Self Adjusting - Typical
1964-1972 F100 (4x2), E100/200, P100
1967 F100 (4x4), F250, P350/400

1024 x 1409, 220K

Bendix 12" x 2-1/2", 12-1/8" x 2" & 12" x 3" (BX) Brakes
1966-1972 F250 (4x2), F350, E300, P350/400

1024 x 1415, 214K

Front Disc Brakes and Related Parts
1968-1972 F250, F350 (Before Serial M80,001)

1024 x 710, 112K

Front Disc Brakes and Related Parts
1968-1972 F250, F350 (From Serial M80,001)

1024 x 830, 112K

Bendix Brake Master Cylinder
1967-1972 F100/350, P350/400
1969-1972 E100/300

1032 x 902, 107K

Hydraulic Brake System
1967-1972 F100/350 (4x2)

1456 x 1024, 275K

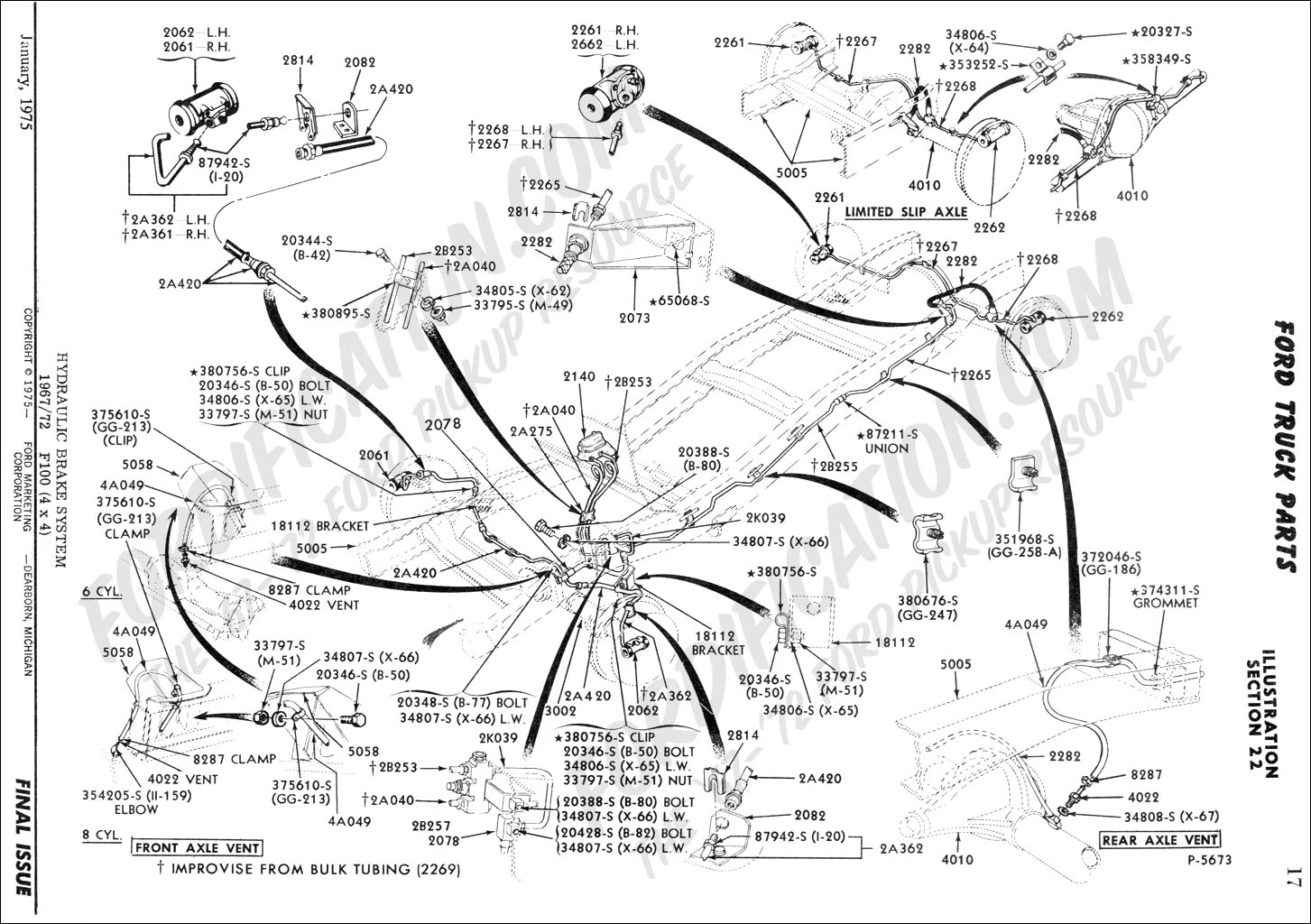

Hydraulic Brake System
1967-1972 F100 (4x4)

1453 x 1024, 265K

Hydraulic Brake System
1967-1972 F250 (4x4)

1462 x 1037, 236K

Brake Booster (Vacuum) (Dash-Mounted) - Bendix Diaphragm Type (Master Vacuum)
1967-1972 F100-F350

1024 x 1430, 220K

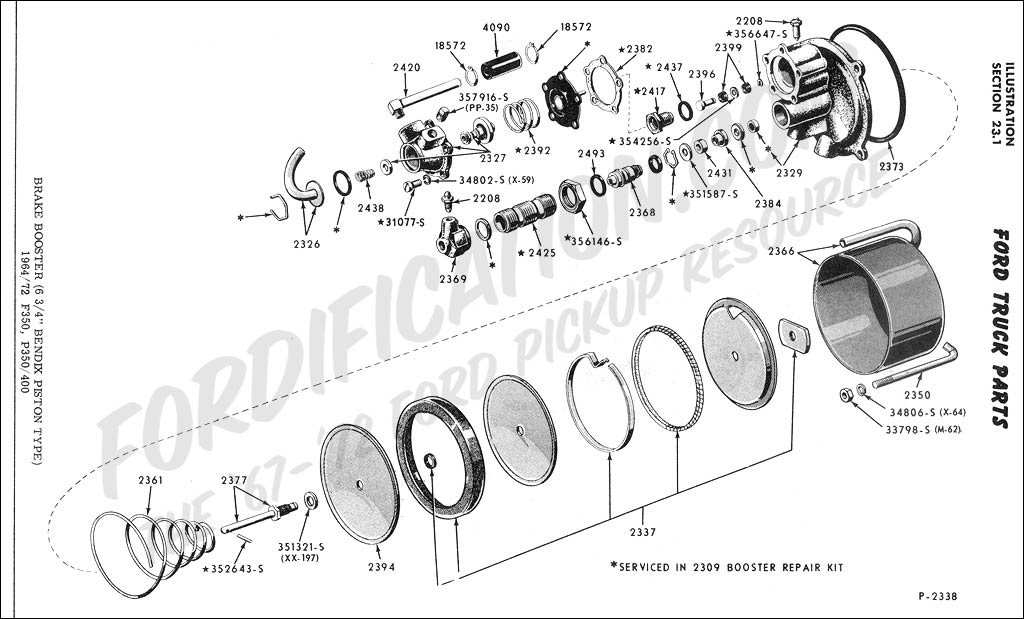

Brake Booster (6-3/4" Bendix Piston Type)
1964-1972 F350, P350/400

1024 x 619, 97K

Brake and Clutch Pedal Parts
1967/68 F100/F350 (Standard & Automatic Transmissions)

1200 x 828, 176K

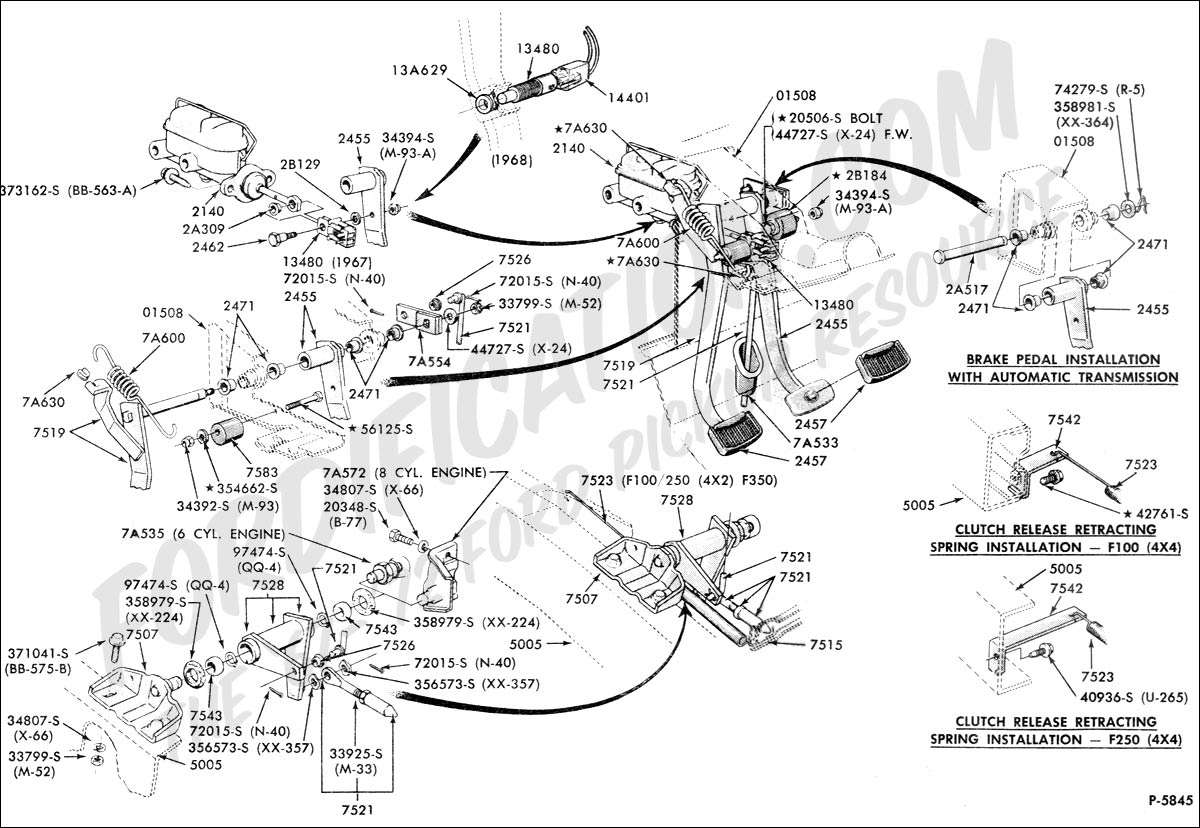

Brake and Clutch Pedals and Related Parts
1969/72 F100/F350

1200 x 833, 203K

F600 Brake System Schematics

Hydraulic Brake System - Rear Axle Tubing
1964-1967 B-F600/750

1409 x 988, 127K

Hydraulic Brake System - Rear Axle Tubing
1964-1967 B-F600/750

727 x 1093, 70K

Hydraulic Brake System (Split) - Front Section Tubing & Frame-mounted Booster
1968-1972 B-F500/750

1403 x 975, 134K

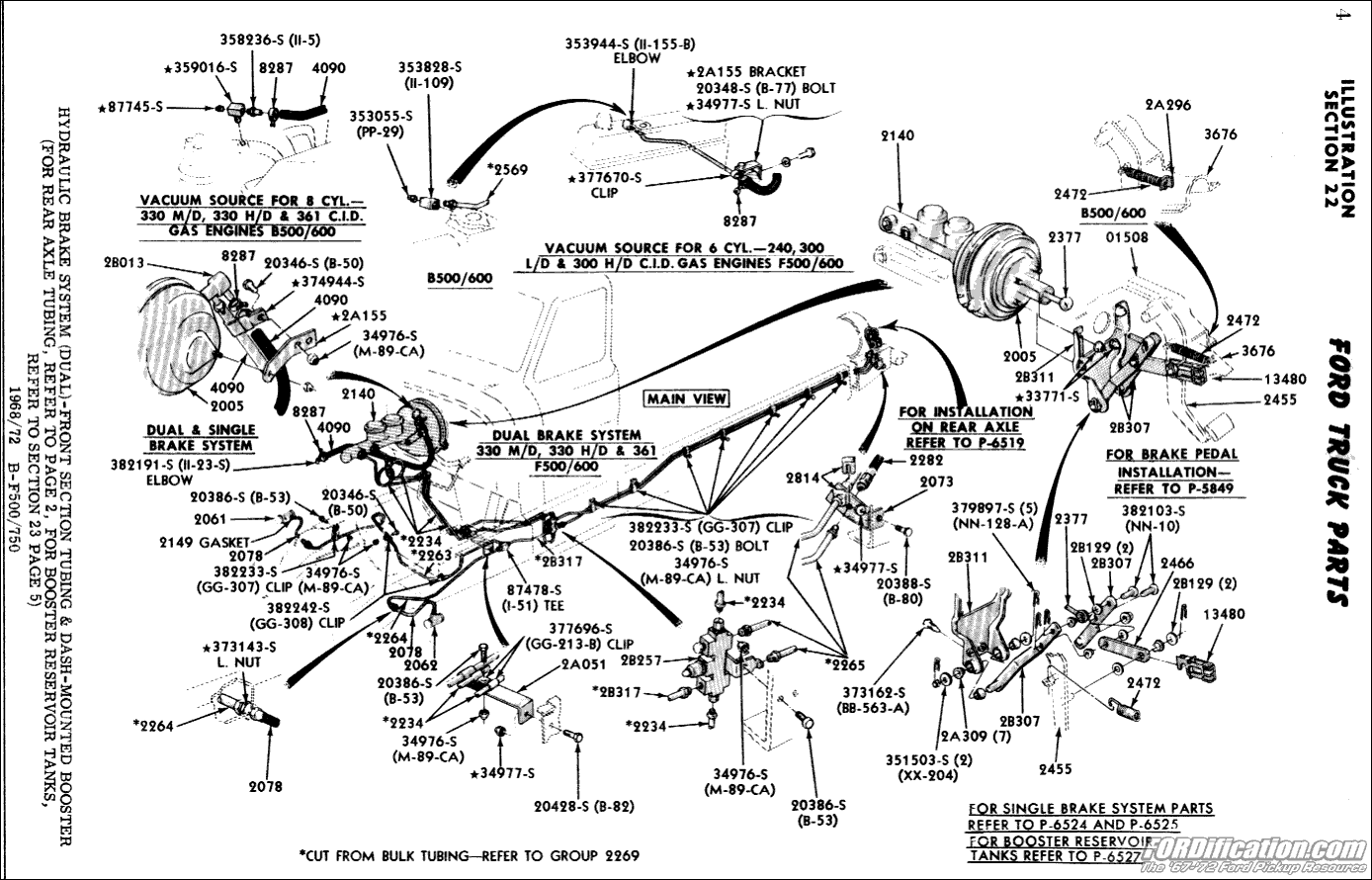

Hydraulic Brake System (Dual) - Front Section Tubing & Dash-mounted Booster
1968-1972 B-F500/750

1388 x 890, 106K

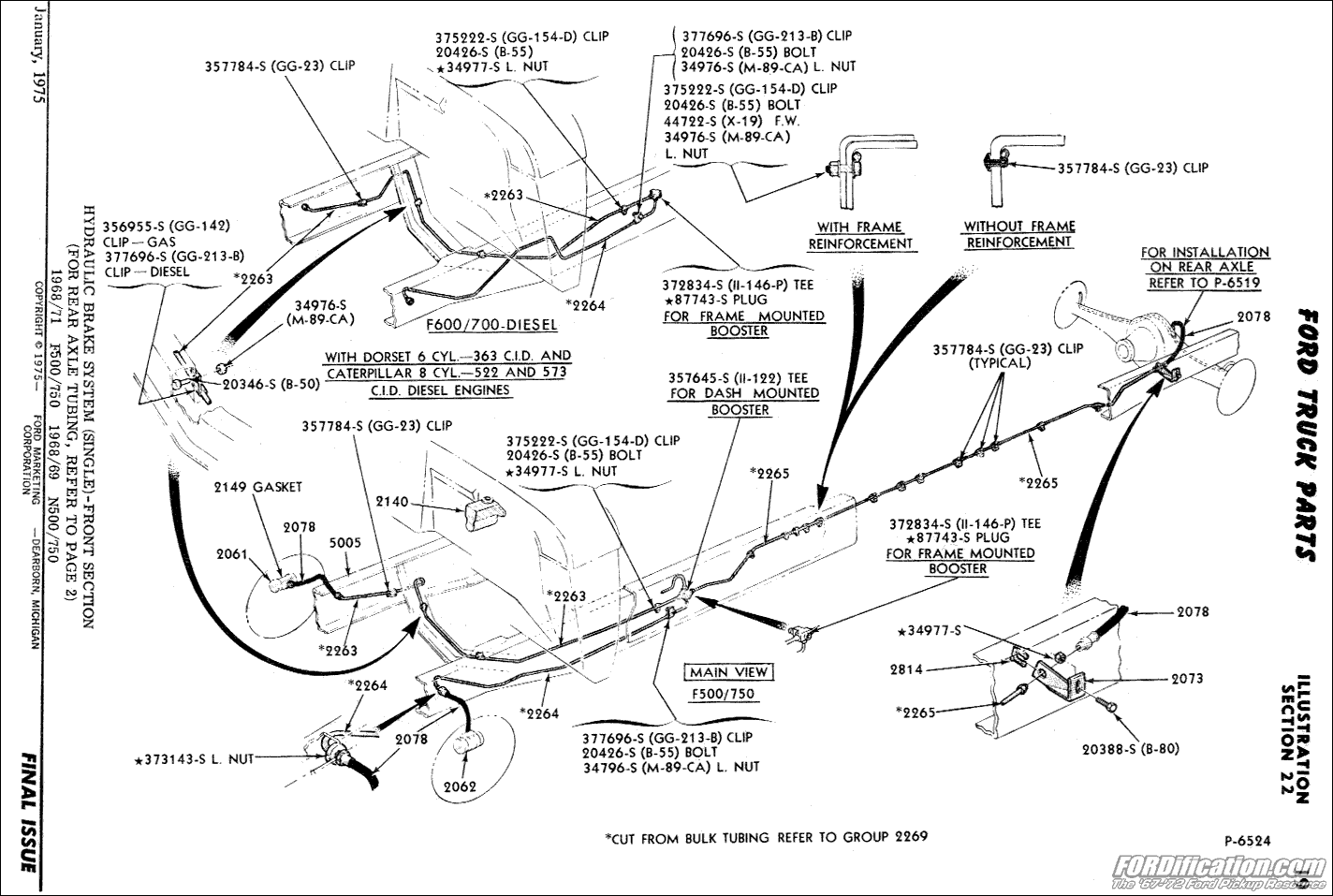

Hydraulic Brake System (Single) - Front Section
1968-1971 F500/750, 1968-1969 N500/750

1424 x 957, 85K

Hydraulic Brake System (Single) with Frame-mounted Booster
1972 F500/750

900 x 1198, 106K
