1967 Pickup Dimensions and Curb Weights

The information on this page was obtained from a factory Ford brochure given to salesmen at the beginning of the 1967 model year, to acquaint the sales staff with the new upcoming models.

All dimensions (in.) on this page are for base models with standard equipment. Weights (lb.) include standard equipment, fuel, water and oil.

NOTE: WB = wheelbase; IL = inside length; LH = load height; OAL = overall length;
CH = cab height; FH = frame height; TW = track width

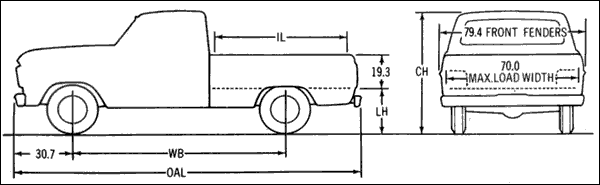

 F-100 Styleside

DIMENSIONS

BASE CURB WEIGHTS

Model WB IL LH
Empty
LH
Loaded
CH
Empty
OAL Front Rear Total
F-100 115 78.2 27.4 24.5 70.9 191.3 2010 1450 3460
F-100 131 98.2 27.0 24.5 70.6 211.3 2055 1505 3560
F-100 4x4 115 78.2 30.2 28.0 74.4 191.3 2395 1515 3910
F-100 4x4 131 98.2 29.9 28.0 74.2 211.3 2415 1605 4020

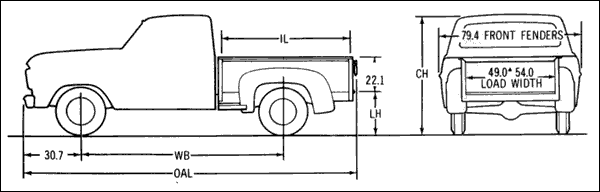

 F-100 Flareside

DIMENSIONS

BASE CURB WEIGHTS

Model WB IL LH
Empty
LH
Loaded
CH
Empty
OAL Front Rear Total
F-100 115 77.9 27.6 24.6 70.9 189.3 2010 1405 3415
F-100 131 96.0 28.3 25.4 70.7 215.3 2050 1465 3515
F-100 4x4 115 77.9 30.4 28.1 74.4 189.3 2395 1470 3865
F-100 4x4 131 96.0 30.9 28.9 74.3 215.3 2415 1570 4005

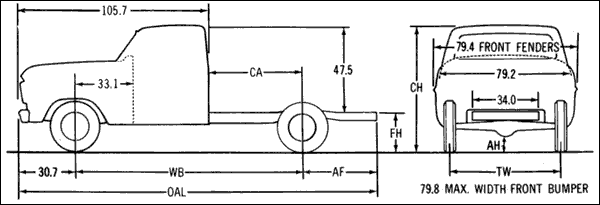

 F-100 Cab & Chassis

DIMENSIONS

BASE CURB WEIGHTS

Model WB CA AF FH
Empty
FH
Loaded
AH TW CH
Empty
OAL Front Rear Total
F-100 115 40 36.8 27.6 21.7 7.3 60.4 71.5 182.5 1990 1105 3095
F-100 131 56 40.6 26.2 21.7 7.3 60.4 71.2 202.3 2035 1160 3195
F-100 4x4 115 40 36.8 28.9 25.2 7.1 60.4 74.9 182.5 2395 1150 3545
F-100 4x4 131 56 27.8 27.8 25.2 7.1 60.4 74.2 202.3 2405 1180 3585

 F-250 Styleside

DIMENSIONS

BASE CURB WEIGHTS

Model WB IL LH
Empty
LH
Loaded
CH
Empty
OAL Front Rear Total
F-250 131 98.2 29.2 24.8 71.4 211.3 2190 1625 3815
F-250 4x4 131 98.2 32.8 28.8 75.9 211.3 2520 1740 4260

 F-250 Flareside

DIMENSIONS

BASE CURB WEIGHTS

Model WB IL LH
Empty
LH
Loaded
CH
Empty
OAL Front Rear Total
F-250 131 96.0 30.3 25.7 71.3 215.3 2190 1610 3800
F-250 4x4 131 96.0 33.4 30.3 75.9 215.3 2520 1725 4245

 F-250 Cab & Chassis

DIMENSIONS

BASE CURB WEIGHTS

Model WB CA AF FH
Empty
FH
Loaded
AH TW CH
Empty
OAL Front Rear Total
F-250 131 56 40.6 28.4 22.1 7.6 62.2 73.2 202.3 2195 1185 3380
F-250 4x4 131 56 40.6 30.4 26.0 7.4 62.2 77.3 202.3 2500 1325 3825

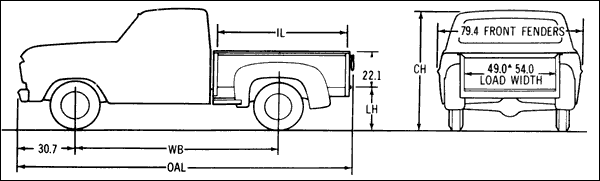

 F-350 Flareside

DIMENSIONS

BASE CURB WEIGHTS

Model WB IL LH
Empty
LH
Loaded
CH
Empty
OAL Front Rear Total
F-350 135 108.1 30.5 26.3 72.1 218.6 2450 1860 4310

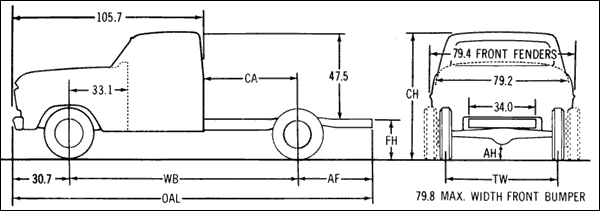

 F-350 Cab & Chassis

DIMENSIONS

BASE CURB WEIGHTS

Model WB CA AF FH
Empty
FH
Loaded
AH TW CH
Empty
OAL Front Rear Total
F-350 135 60 38.5 27.9 23.0 6.5 63.5* 72.4 204.2 2520 1330 3850
F-350 159 84 47.5 27.2 23.0 6.5 63.5* 72.3 237.2 2560 1540 4100
* 64.3 with dual rear tires
