Servicing Your Truck's Air-Conditioning Setup

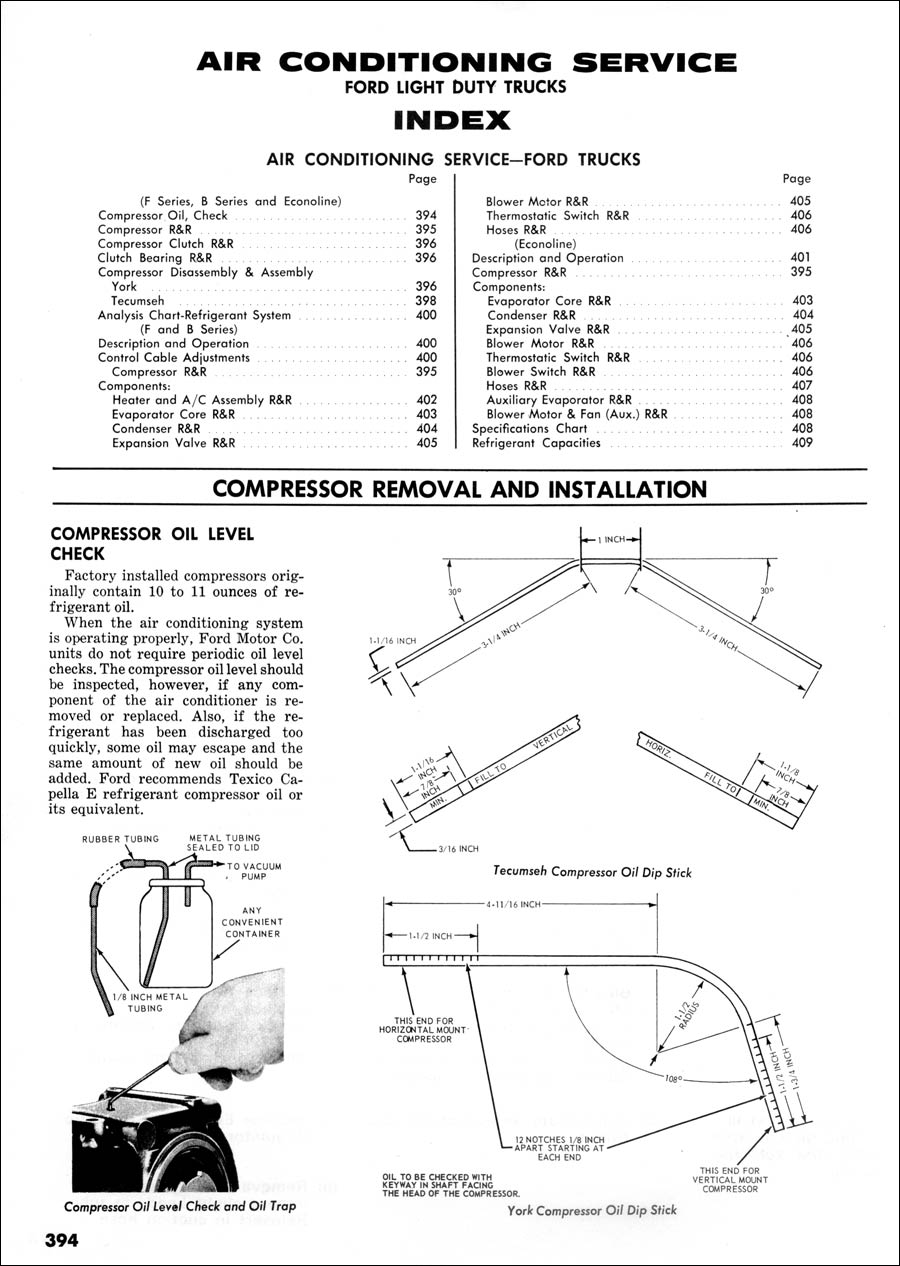

Fig. 01 - Page 394

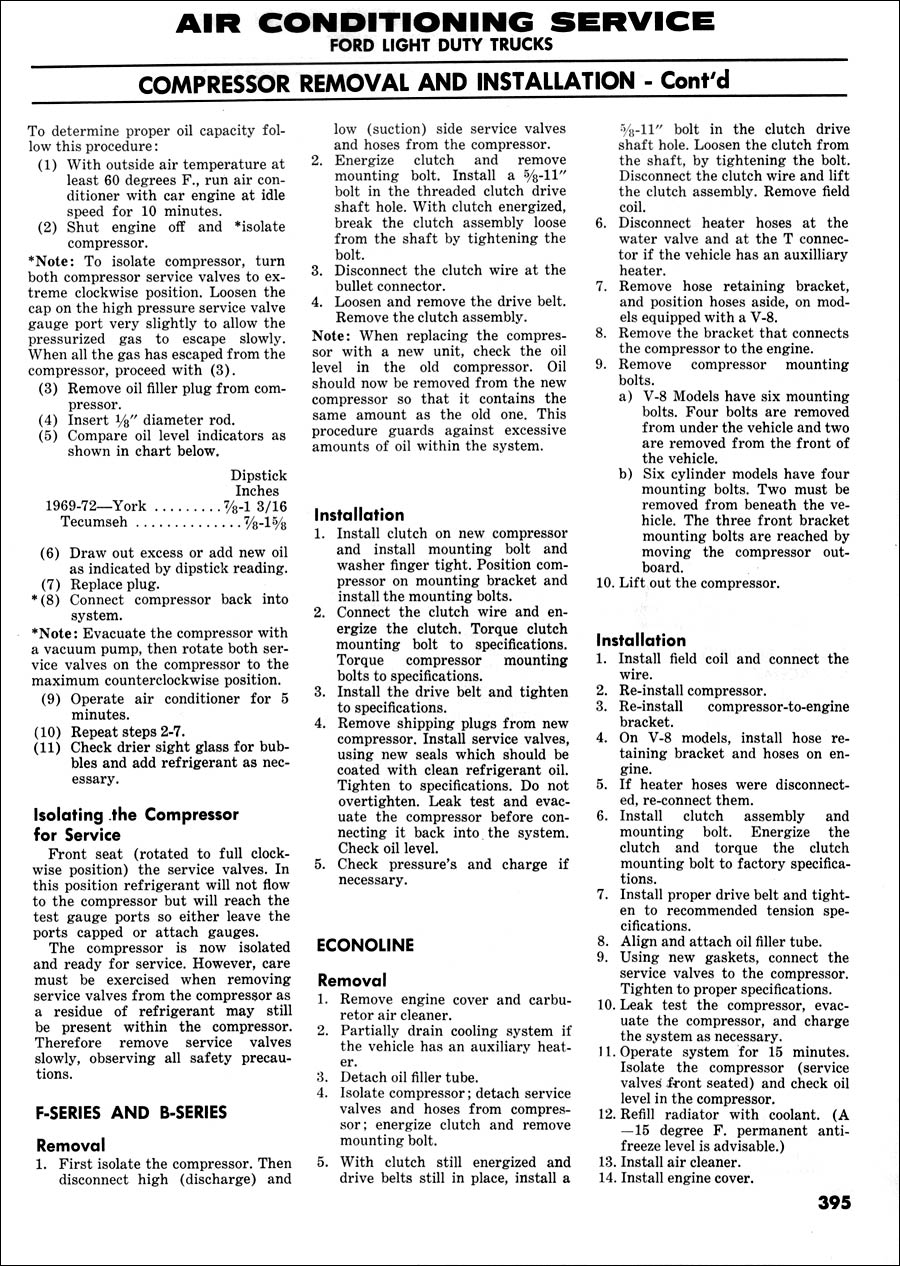

Fig. 02 - Page 395

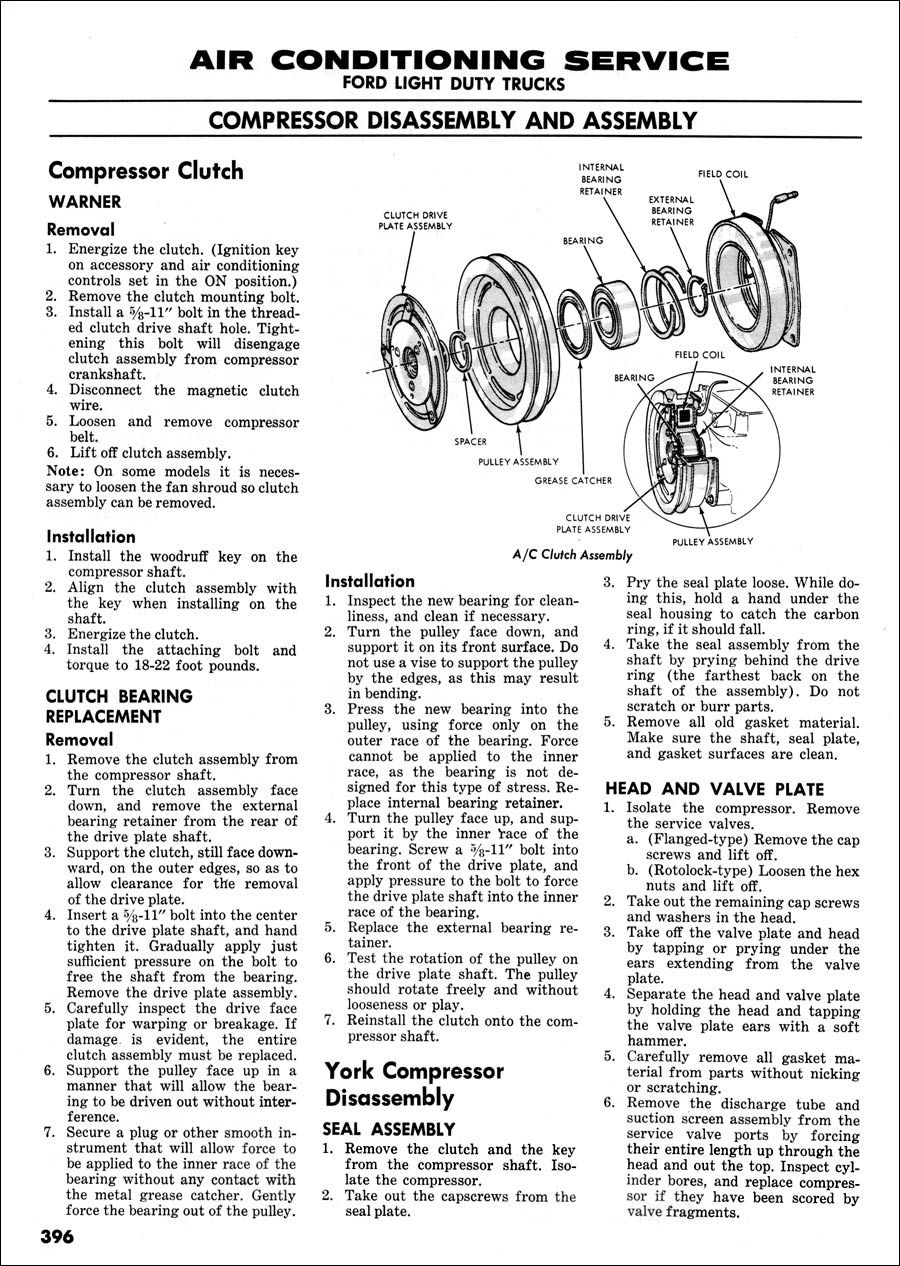

Fig. 03 - Page 396

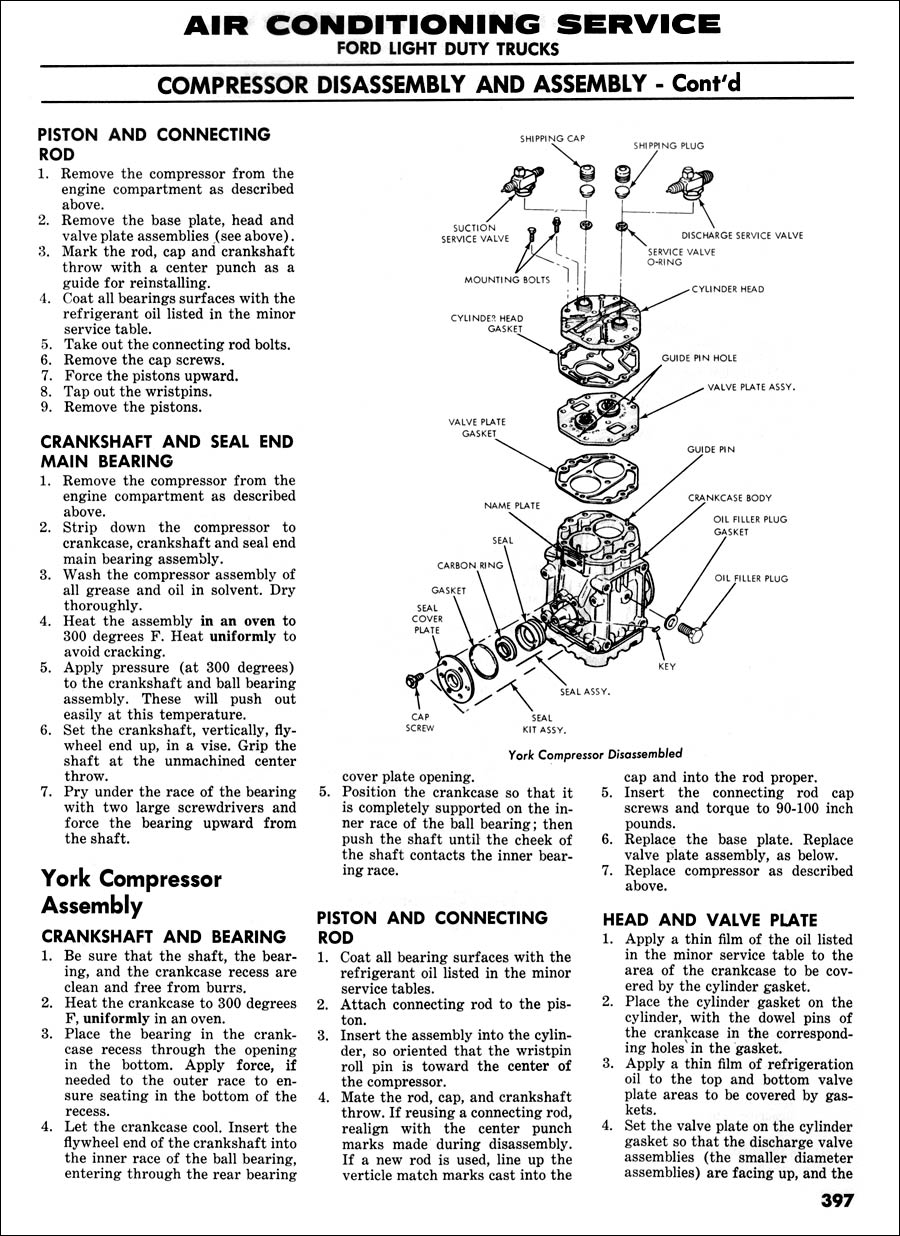

Fig. 04
- Page 397






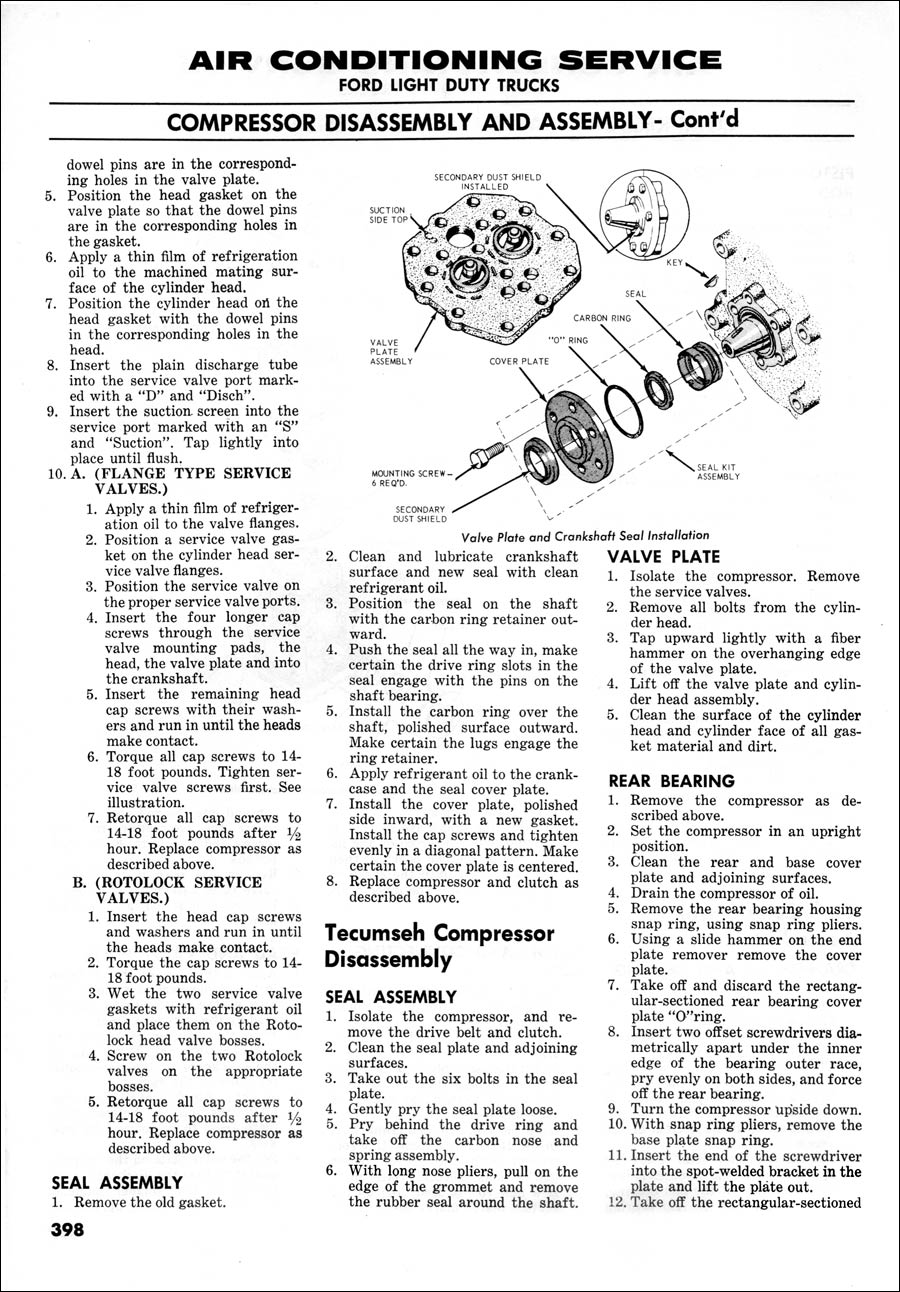

Fig. 05
- Page 398

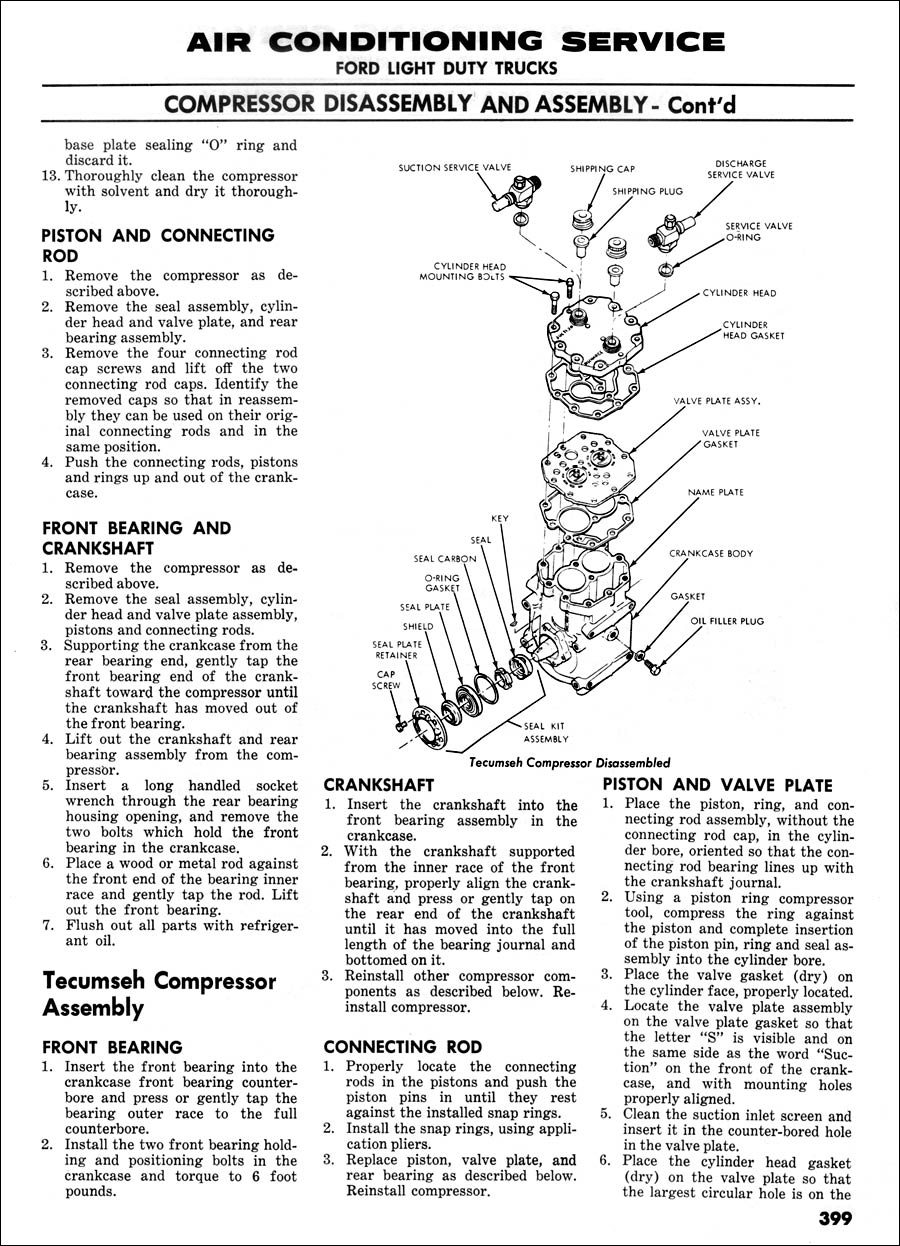

Fig. 06
- Page 399

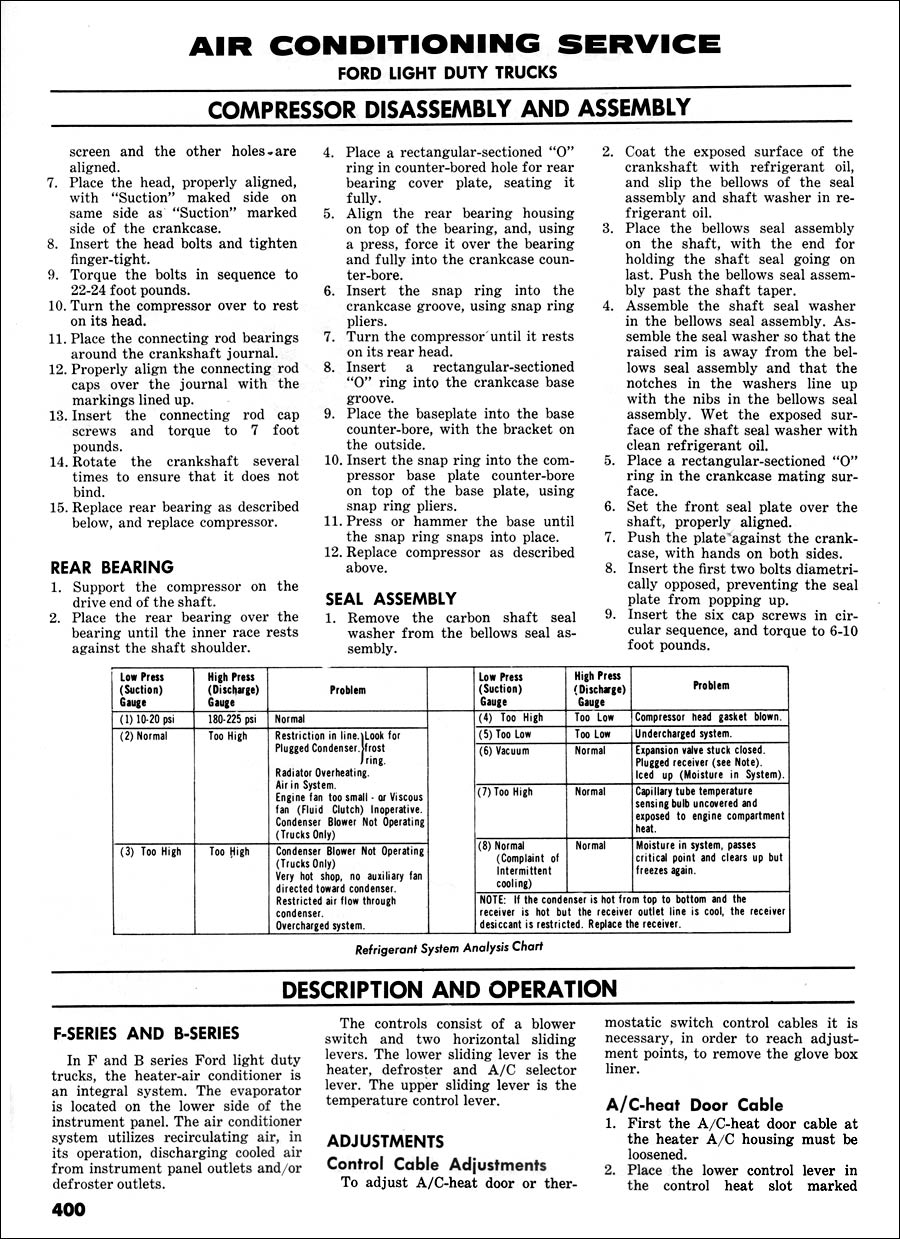

Fig. 07
- Page 400

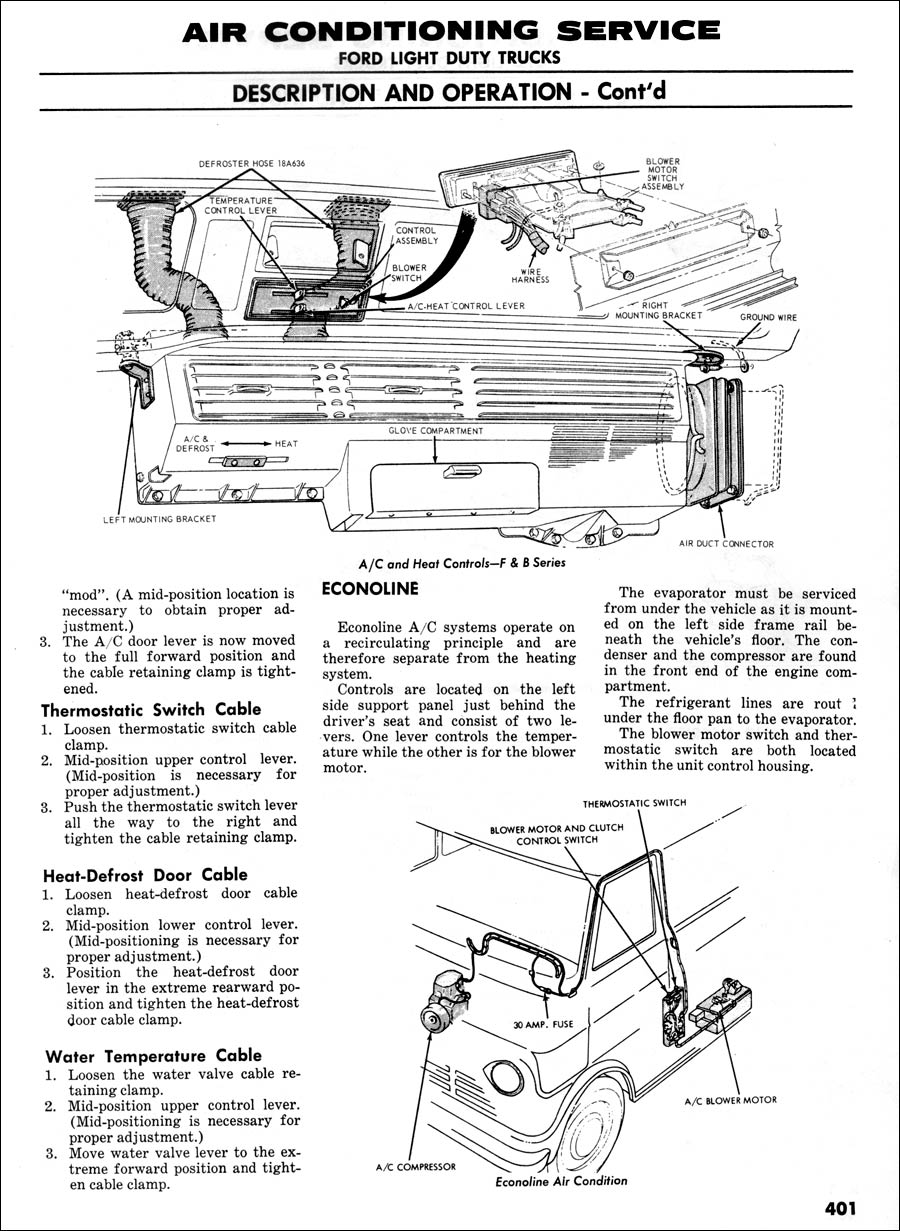

Fig. 08
- Page 401

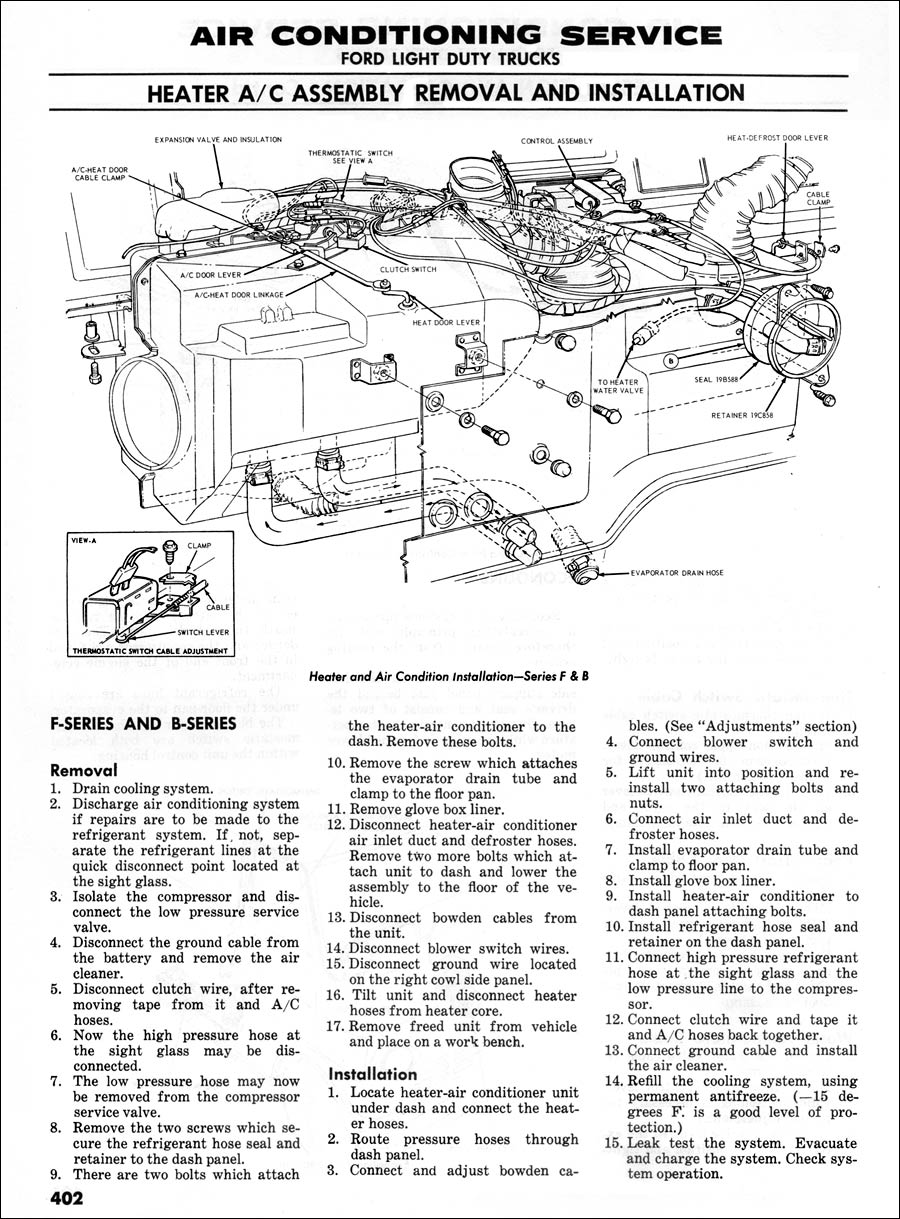

Fig. 09
- Page 402

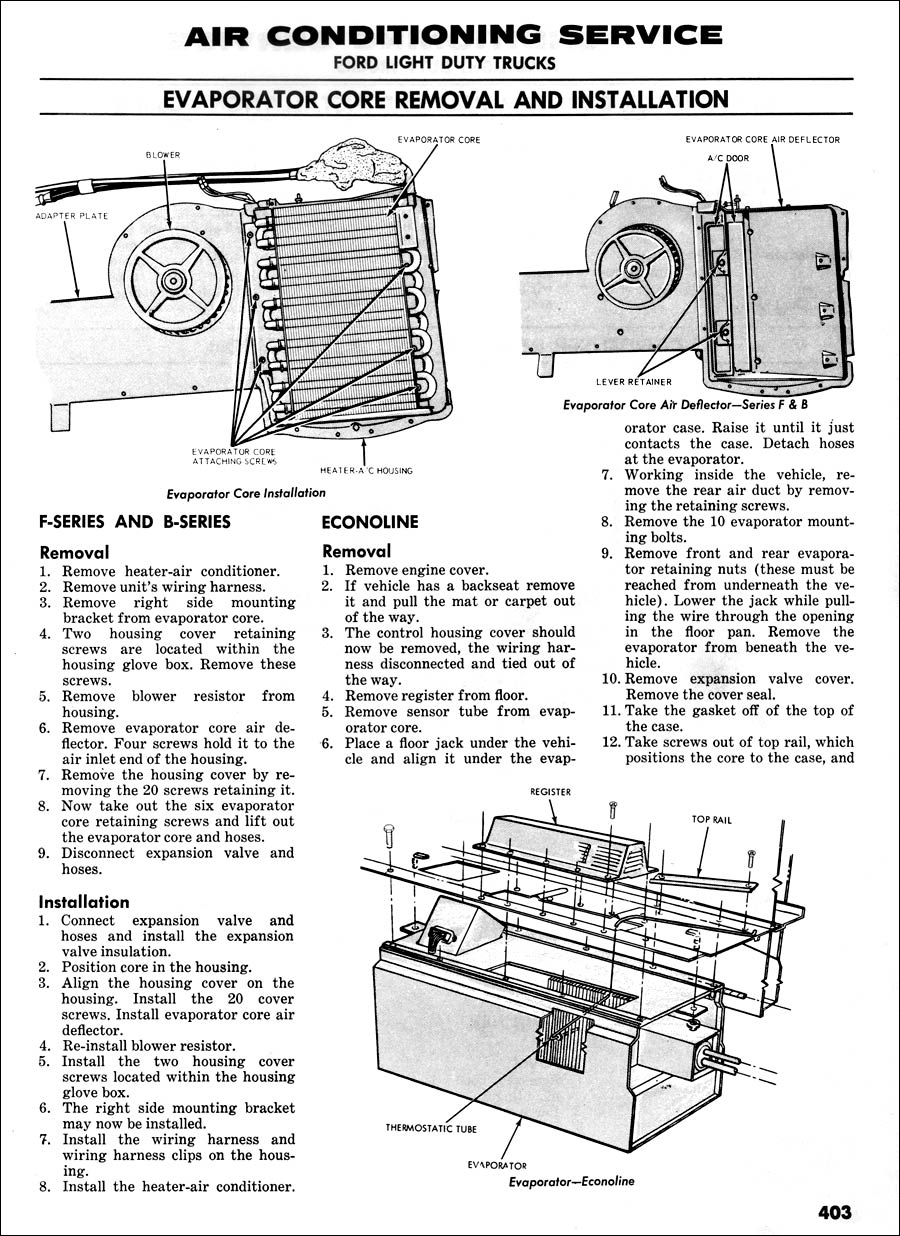

Fig. 10
- Page 403

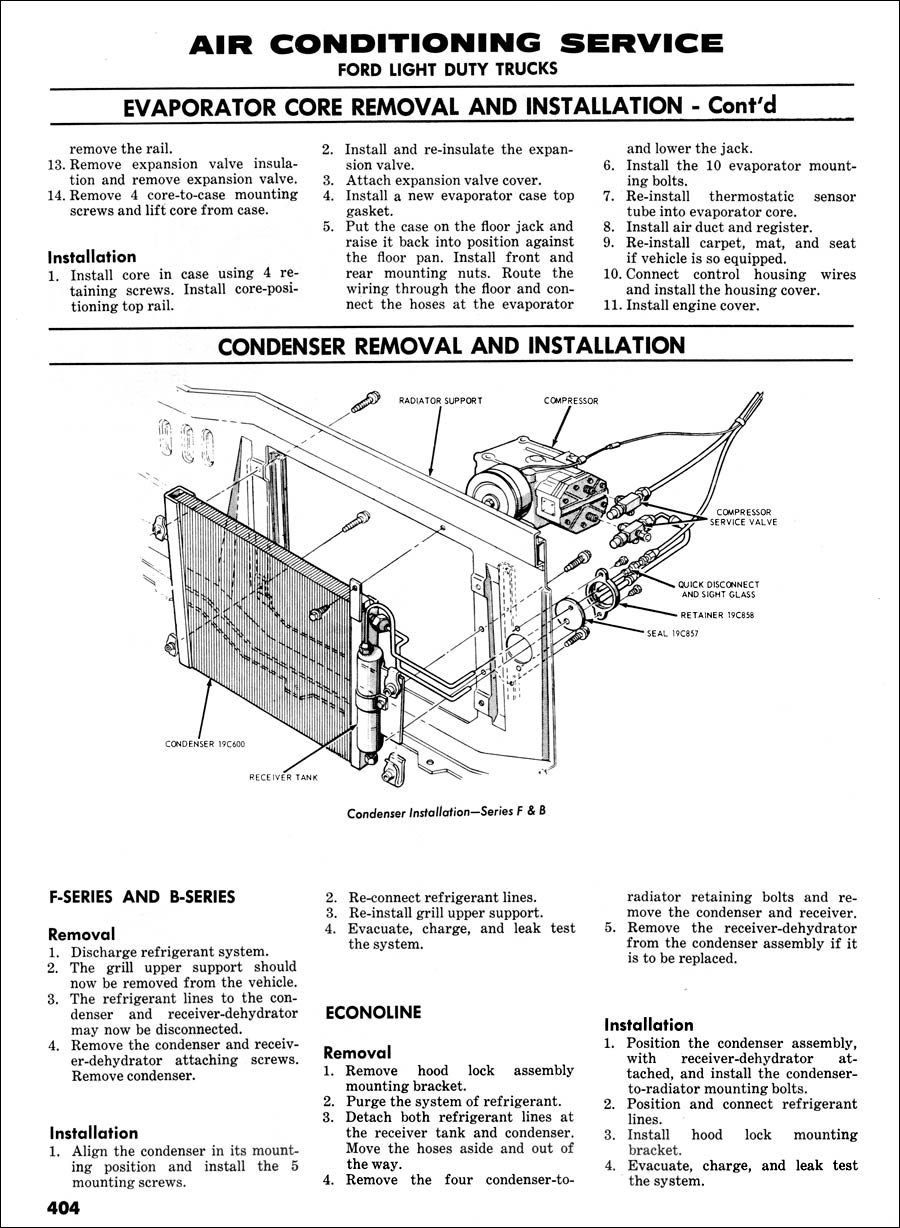

Fig. 11
- Page 404

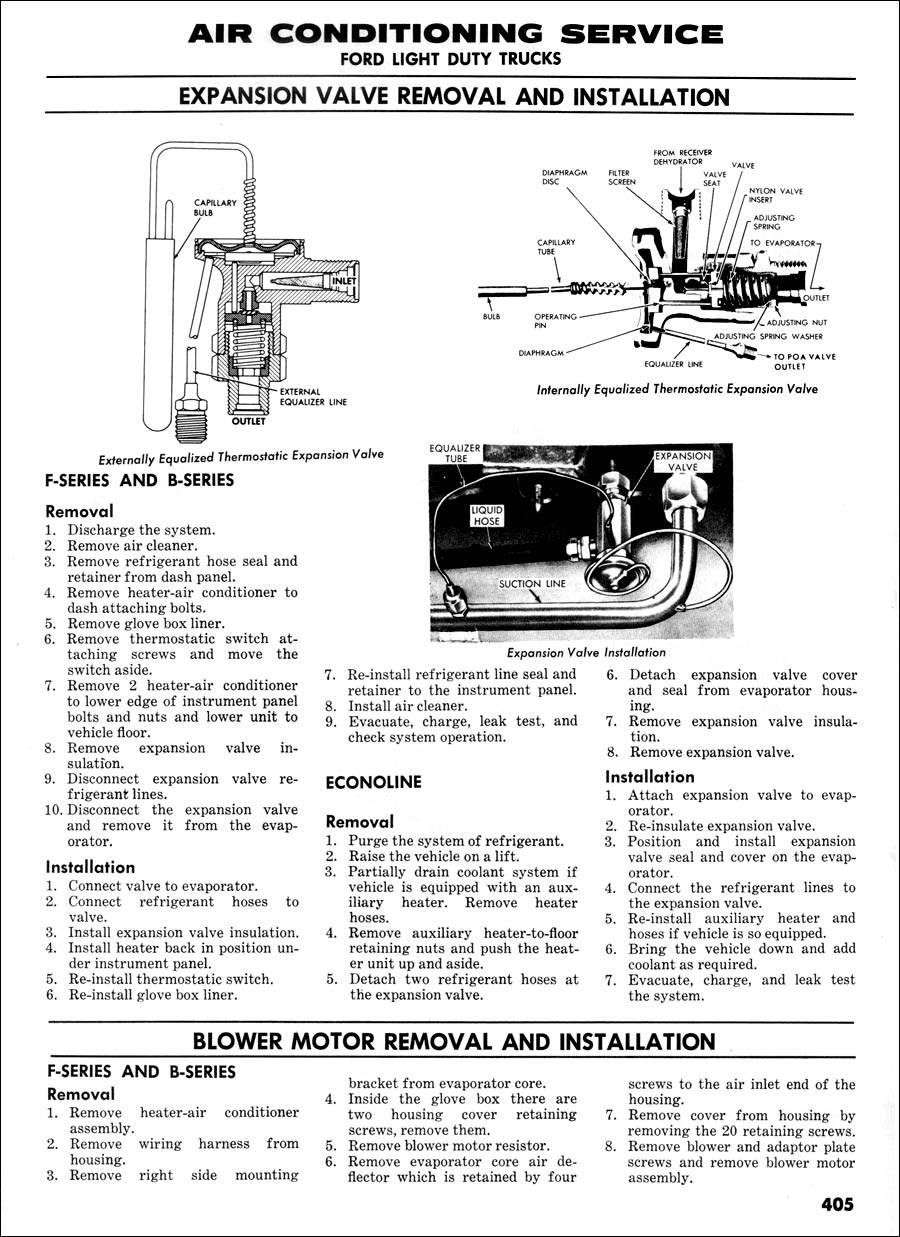

Fig. 12
- Page 405






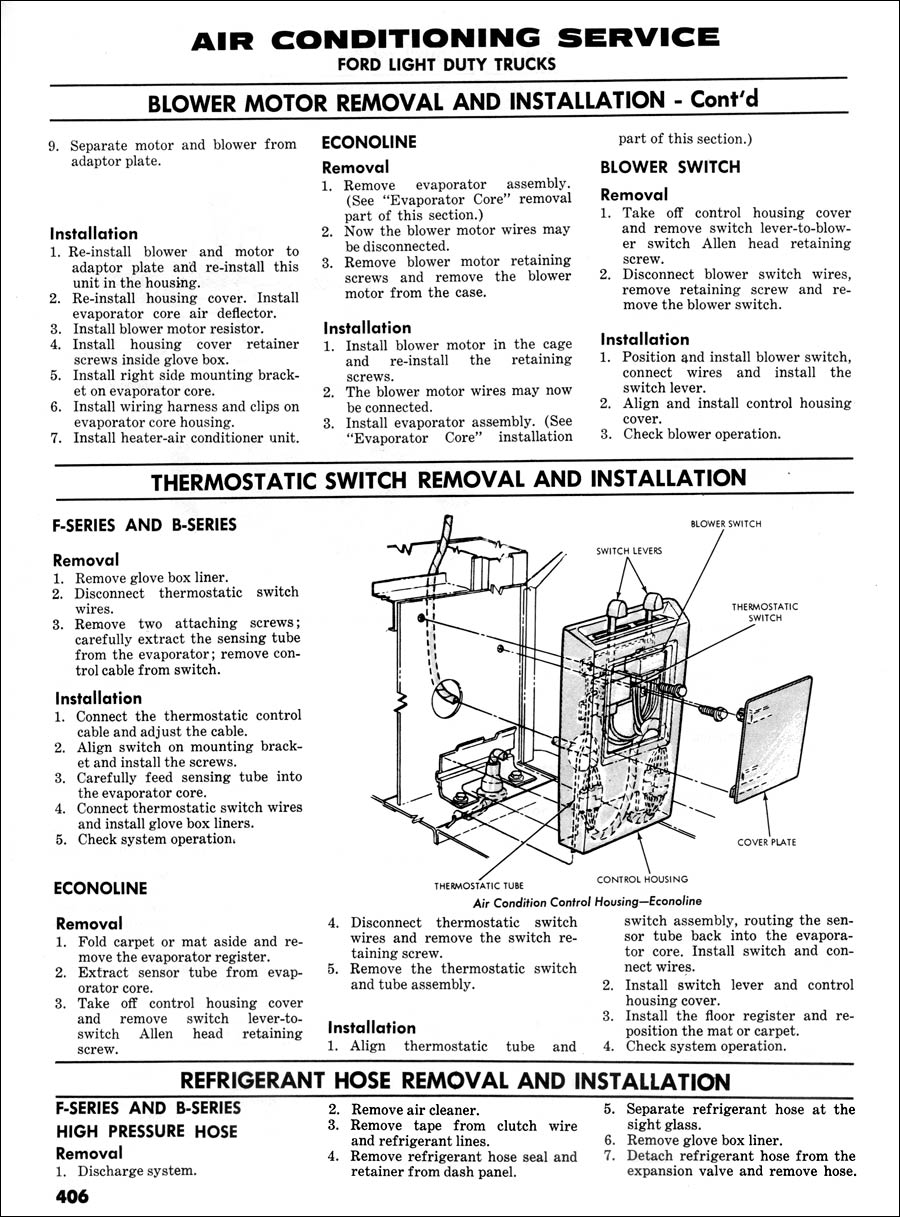

Fig. 13
- Page 406

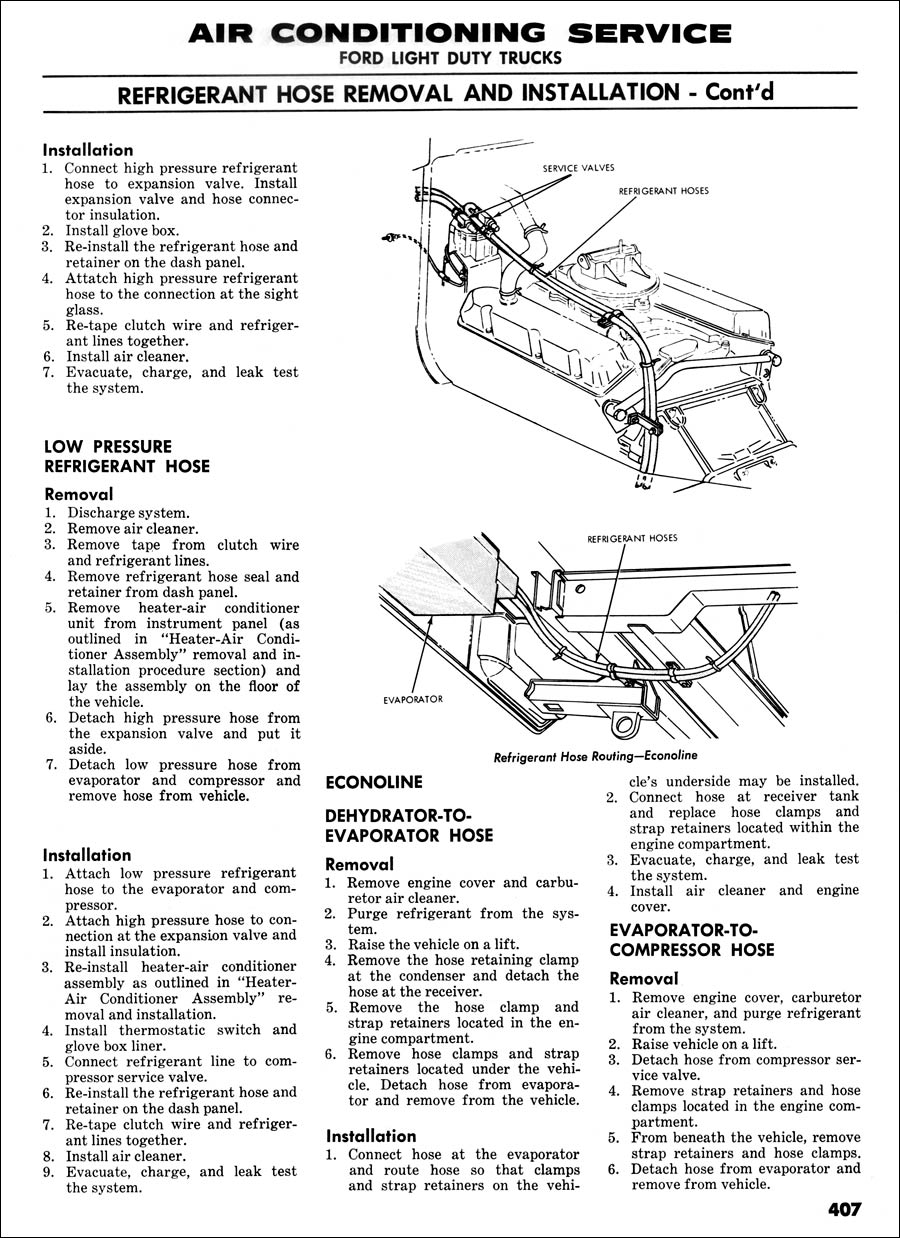

Fig. 14
- Page 407

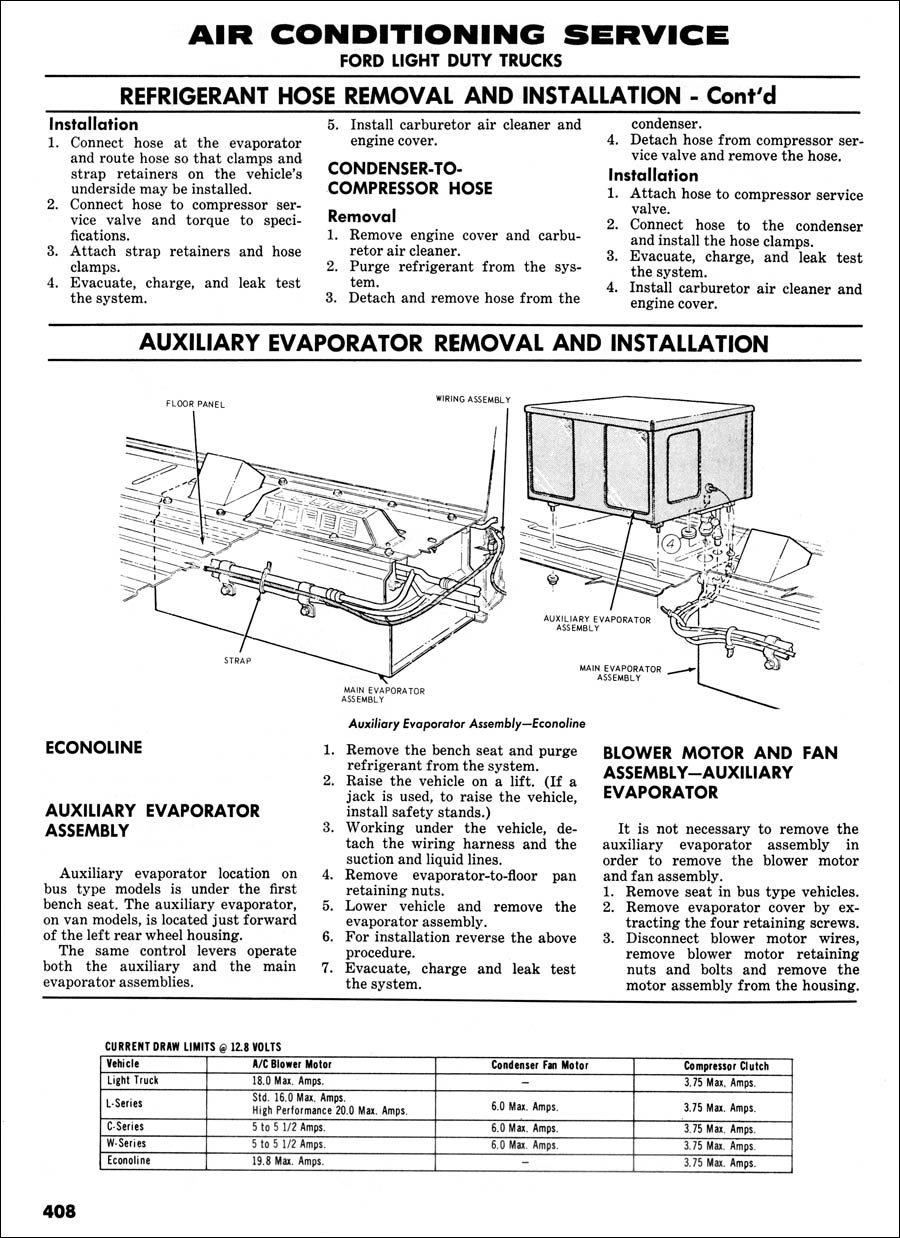

Fig. 15
- Page 408

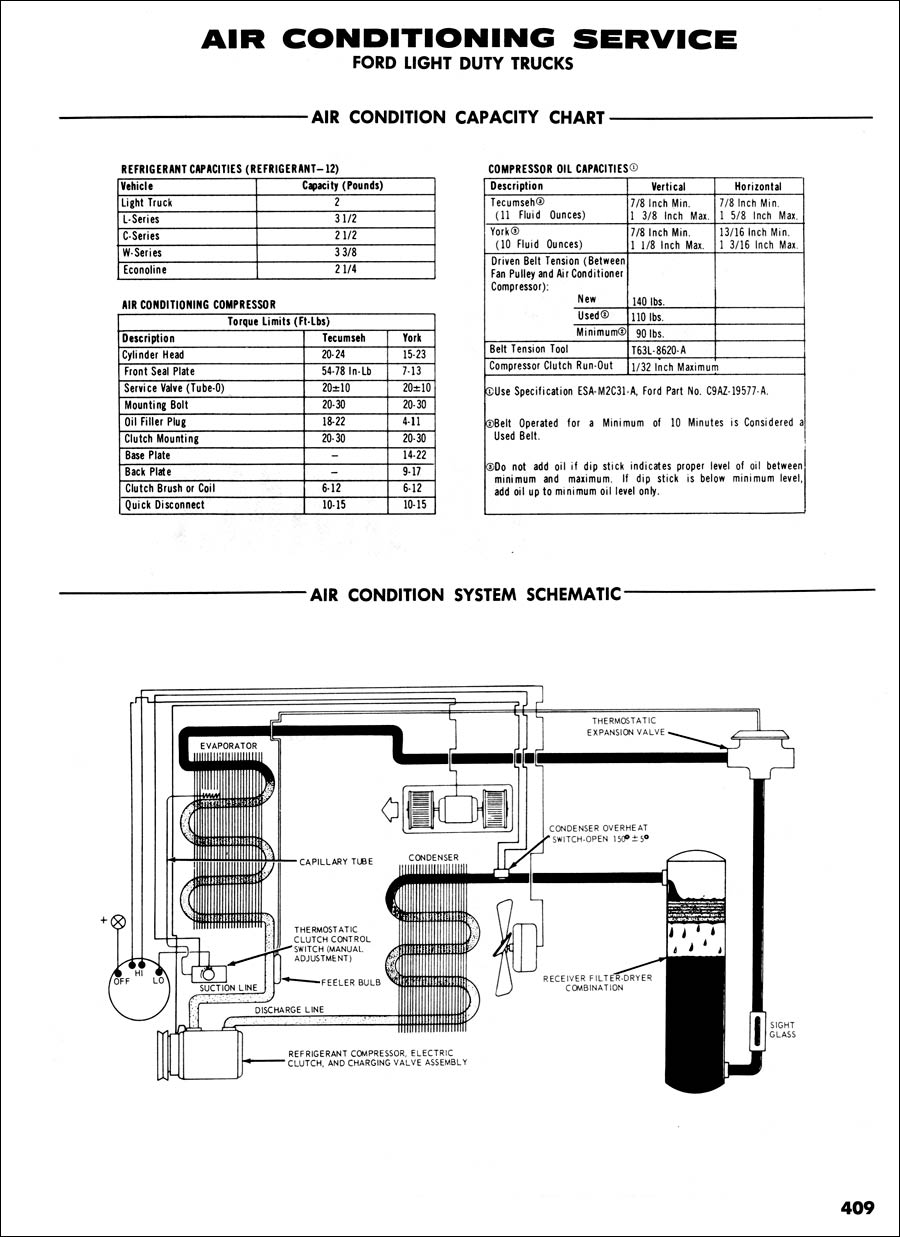

Fig. 16
- Page 409




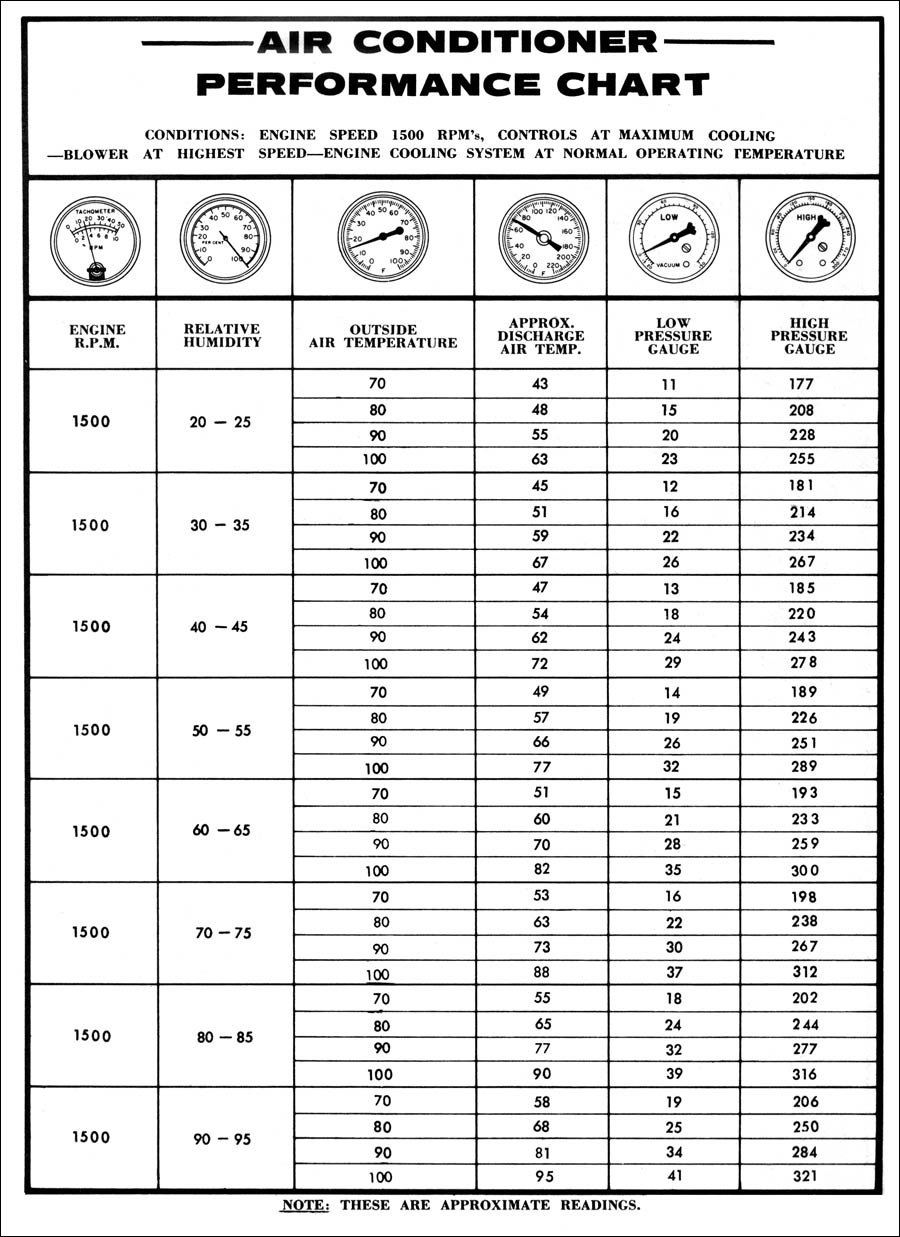

Fig. 17 - Inside Cover

Fig. 18 - Front Cover
