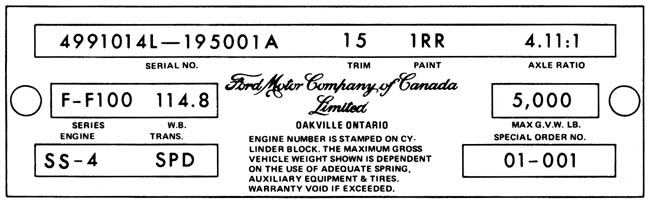

1965 RATING or WARRANTY PLATE - TYPICAL

(Canadian built vehicles)

Installed in the following locations:

  • All except P100/500 (88)......................... Left hand front body pillar
  • P100/500(88).............................................Upper right corner of the radiator support

The Rating or Warranty Plate includes:

  • 1. Serial Number (first line) consisting of Codes which identify Engine, Body Type, Series, Wheelbase, Drive, Numerical Sequence of Assembly and Gross Vehicle Weight range. The first line also includes Codes which identify Trim and Color of Exterior Paint and the actual rear axle ratio.
  • 2. Miscellaneous Vehicle Data (second line) consisting of Codes which identify Model and Series. The actual wheelbase and Gross Vehicle Weight Rating are also indicated.
  • 3. The third line consists of a code which identifies Engine. The number of Transmission Speeds and a Code which identifies the D.S.O. number (when applicable).

The page number (s) on which the Codes are listed is shown in parenthesis.

(FIRST LINE) SERIAL NUMBER, ETC.(4991 01 4L-1 95000A 50 1RR 4.11:1)
"4" - 8 Cyl. Engine
"99" - Conventional Cab with a Styleside Pickup Box
"10" - 100 Series
"14" - 114.8" Wheelbase
"L" - Left Hand Drive
"195001" - First unit built at Oakville during Model Year
"A" - Gross Vehicle Weight Range from 3.6M to 5.6M
"15" - Red vinyl and red woven plastic
(Refer to 1965 Soft Trim Section for complete instructions and Trim Codes)
"1" - Red
"RR" - Red
"4.11: 1" - Rear Axle Ratio of 4.11 to 1



(SECOND LINE) MISCELLANEOUS VEHICLE DATA (F-F100 114.8 5,000)
"F" - Ford
"F100" - F100 Series Conventional Cab
"114.8" - 114.8" Wheelbase
"5000" - Gross Vehicle Weight of 5M



(THIRD LINE) ENGINE, TRANSMISSION and SPECIAL ORDER NUMBER (Q 4 SPD. 01-001)
"SS" - 8 Cyl. Engine-352 C.I.D.
"4 Spd." - 4 Speed Manual Transmission
"01-001" - D.S.O. number (when applicable)


Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
          a. Part is superseded and replaced as indicated in the description column of text
          b. Part can be improvised as indicated in the description column of text
          c. Due to it's function there would be little or no demand		 - Identifies unique Canadian part numbers and application and have been and footnoted.
- Identifies unique U.S. part numbers and application and have been footnoted.
  - Site Admin notes (not part of the original MPC)
