Fuel Tank (Auxiliary) and Related Items



NOTE: Part and Numbers included on this page pertain to the under-cab auxiliary fuel tank setup only. They do NOT pertain to the standard in-cab fuel tank setup unless otherwise noted. Items listed might have other applications (other than '67-'72 F100/350 models) that are not included here.

 Body Codes:
 Cab Parts

› 81 - Conventional cab
 › 84 - Cowl
 › 85 - Cowl/Windshield
 Behind Cab Parts

› 83 - Flareside box
 › 86 - Platform/Rack
 › 99 - Styleside box

All part numbers and specifications are as reported in the 1964-1972 Ford Truck Master Parts Catalog 1975 Final Issue unless otherwise noted.

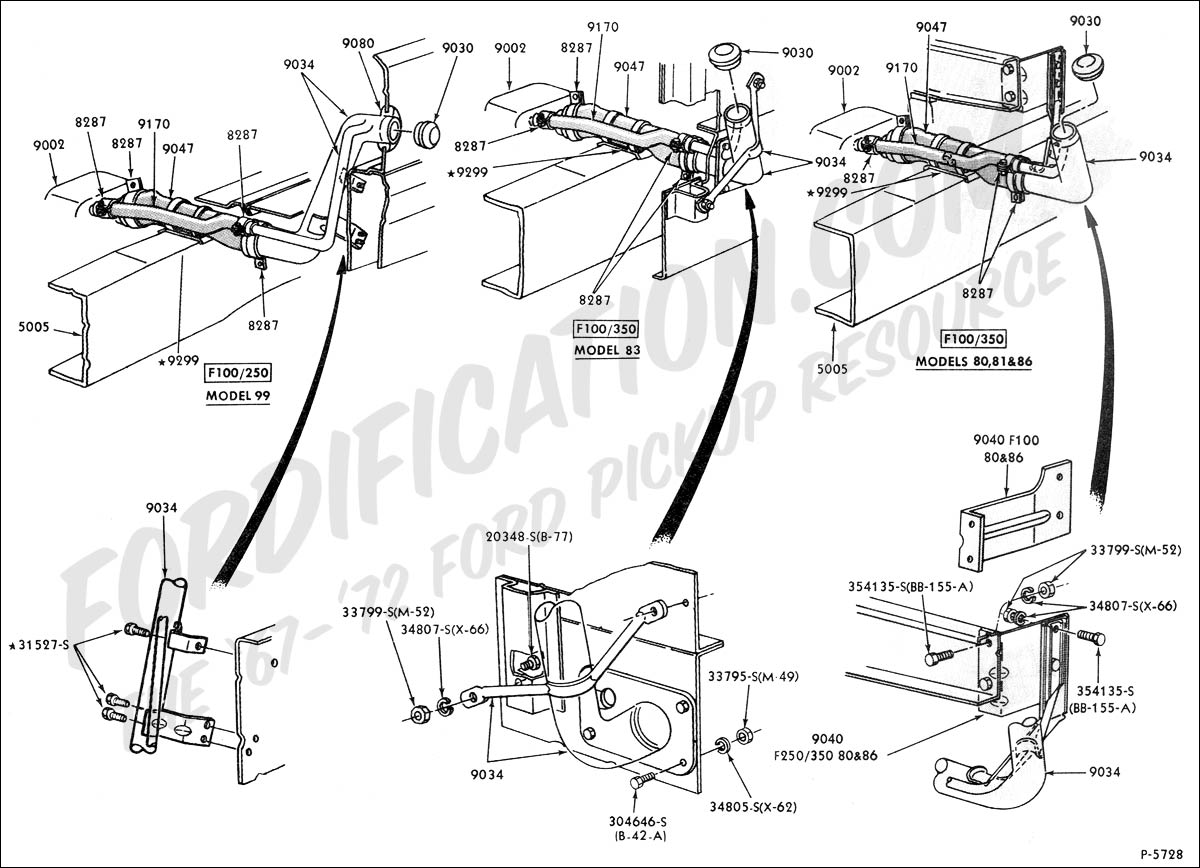

Fuel Filler Pipe Installations (Auxiliary Under Cab Tank)
'67-'72 F100/350

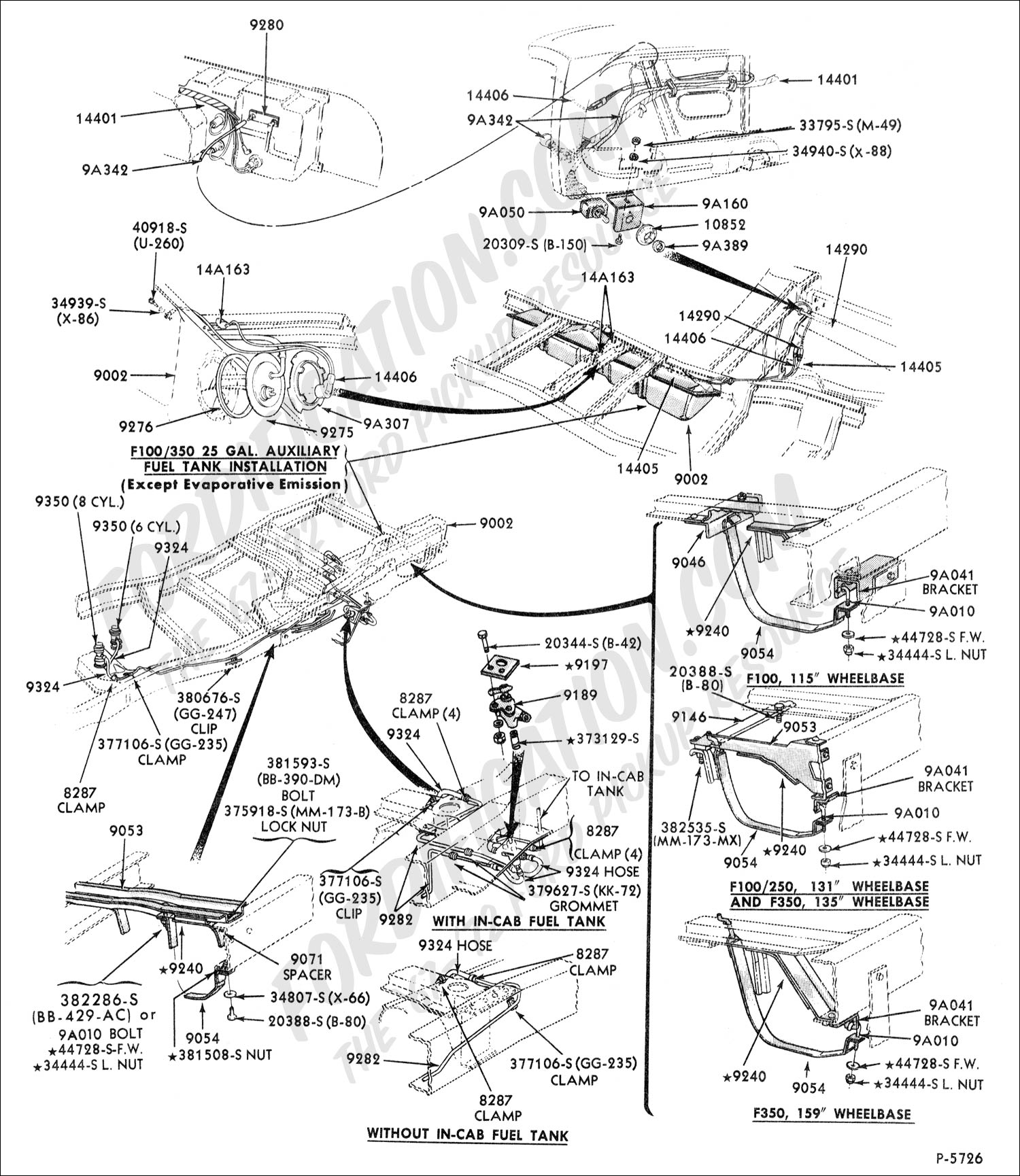

Auxiliary Under Cab Fuel Tank
'67-'72 F100/350 exc. 84, 85

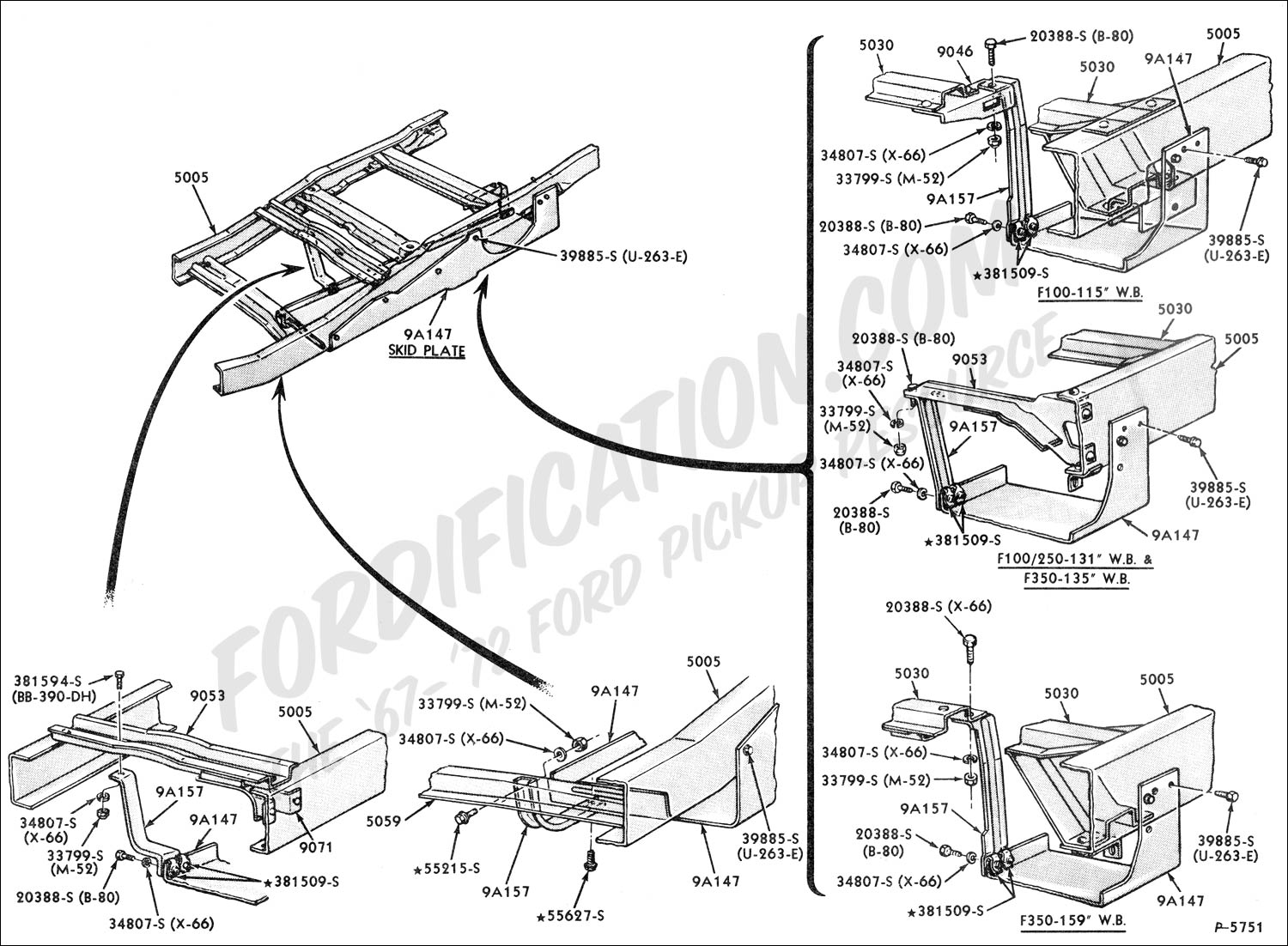

Skid Plate Installation Auxiliary Under Cab Fuel Tank
'67-'72 F100/350

Evaporative Emission System (Auxiliary Under Cab Fuel Tank) 25-gal. capacity
'70 F100

Auxiliary Under Cab Fuel Tank (21.5-gal. capacity w/ev/em)
'71-'72 F100 4x2
Application Part Number Notes
9002 - Tank Assy., Fuel
  '67-'69 F100/350 (4x2) (exc. 84, 85)

C8TZ-9002-C

25 gallon capacity - Left side, inside frame
Use in place of or in addition to in-cab tank.
  '65-'69 F100/F350 (84, 85)
'70-'71 F250 (85)

C5TZ-9002-A

17 gallon capacity
Mounted left side, inside frame
  '70 F100 (4x2) (exc. 85) (with ev/em)

D3TZ-9002-C

20.2 gallon capacity - under cab in-frame
left side (midship tank)
  '71 F250/350 (4x2)(exc. 84, 85)(exc. ev/em)

D3TZ-9002-B

25 gallon capacity
replaces D1TZ-9002-B (10-74)
  '70 F100/350 (4x2)(exc. 84, 85)(exc. ev/em)
  '72 F250/350 (4x2)
  '71 F250/350 (4x2)(exc. 84, 85)(exc. ev/em)

D3TZ-9002-B

22.5 gallon capacity
  '70 F100/350 (4x2)(exc. 84, 85)(exc. ev/em)
  '72 F250/350 (4x2)
  '71-'72 F100 (4x2)(exc. 85)(with ev/em)

D3TZ-9002-C

21.5 gallon capacity
Use in place of or in addition to in-cab tank.
Replaces D1TZ-9002-C
9B008 - Filter Assembly, Fuel Vapor Valve Tube Air
  '70 F100 (with ev/em) D0TZ-9B008-A
9A010 - Bolt, Fuel Tank Strap
  '67 F100/350 C8AZ-9A010-A 3/8"-16 x 4.5" carriage bolts (strap to bracket)
Use with auxiliary under cab fuel tank
  '67-'72 F100/350 C7DZ-9A010-B 3/8"-16 x 4.20 " long including loop
Use with auxiliary under cab fuel tank
9030 - Cap Assembly, Fuel Tank Filler
  '67-up F100/350

B6TZ-9030-A

Use with auxiliary under cab fuel tank
Vented anti-surge - chrome
  '64-'69 F100
'70-up F100/350 (exc. ev/em)
C4RZ-9030-C Ventilated - locking type - 2.5" O.D.
  '64-'69 F100/350 C7AZ-9030-C Ventilated - locking type - 2.94" O.D.
  '70-'72 F100 (with ev/em) D1PZ-9030-C
(FC-752)
Non-vented - locking type - 2.5" O.D. - chrome
Use with in-cab or auxiliary under cab fuel tank
  '70-'72 F100 (with ev/em) D1PZ-9030-K Non-vented - 3.25" dia. - stainless steel
Use with in-cab or auxiliary under cab fuel tank
9034 - Pipe Assembly, Fuel Tank Filler
  '67 F100/250 (99)

C7TZ-9034-A

Used with auxiliary under cab fuel tank
  '67 F100/350 (81) C7TZ-9034-E Used with auxiliary under cab fuel tank
  '68-'69 F100/350 (80, 86) C8TZ-9034-C Used with auxiliary under cab fuel tank
  '68-'69 F100/350 (83) C8TZ-9034-D Used with auxiliary under cab fuel tank
  '68-'69 F100/350 (99) C8TZ-9034-E Used with auxiliary under cab fuel tank
  '68-'69 F100/350 (81) C8TZ-9034-F Used with auxiliary under cab fuel tank
  '70 F100/350 (80, 86)(exc. ev/em)
'71-'72 F250/350 (80, 86)
D0TZ-9034-N Used with auxiliary under cab fuel tank
  '70 F100/350 (83)(exc. ev/em)
'71-'72 F250/350 (83)
D0TZ-9034-L Used with auxiliary under cab fuel tank
  '70 F100/350 (81)(exc. ev/em)
'71-'72 F250/350 (81)
D0TZ-9034-M Used with auxiliary under cab fuel tank
  '70 F100 4x2 (81)(with ev/em) D0TZ-9034-B Used with auxiliary under cab fuel tank
  '70 F100 4x2 (99)(with ev/em) D0TZ-9034-C Used with auxiliary under cab fuel tank
  '70 F100/250 4x2 (99)(with ev/em)
'71-'72 F250 4x2 (99)
D0TZ-9034-D Used with auxiliary under cab fuel tank
  '70 F100 4x2 (81)(with ev/em) D0TZ-9034-E Used with auxiliary under cab fuel tank
  '71-'72 F100 4x2 (81)(with ev/em) D1TZ-9034-A Used with auxiliary under cab fuel tank
  '70-'72 F100 4x2 (83)(with ev/em) D1TZ-9034-B Used with auxiliary under cab fuel tank
  '71-'72 F100 4x2 (99)(with ev/em) D1TZ-9034-C Used with auxiliary under cab fuel tank
9040 - Bracket, Fuel Tank Filler Pipe
  '67-'69 F100 (exc. 84, 85)

C7TZ-9040-A

Used with auxiliary under cab fuel tank
  '67-'72 F250/350 (exc. 84, 85)

C7TZ-9040-B

Used with auxiliary under cab fuel tank
9A041 - Bracket, Fuel Tank Support Rear
(also refer to Group 9A004)
  '67-'69 F100 (115" W.B.)(exc. 84, 85)

C7TZ-9A041-D

L.H.
  '67-'72 F350 (158" W.B.)(exc. 84, 85) C7TZ-9A041-E L.H.
  '67 F100/350 131", 134" W.B.)(exc. 84, 85)
'68-'72 F100/350 (131" W.B.)(exc. 84, 85)
C7TZ-9A041-F L.H.
  '70-'72 F100 (115" W.B.)(exc. 85) D0TZ-9A041-A L.H.
9046 - Bracket
  No text listing in MPC
9047 - Hose, Fuel Tank to Filler Pipe (vent hose)
  '67 F100/250 (80, 81, 86) C7TZ-9047-A Use with auxiliary under cab fuel tank
  '67 F100/250 (99) C7TZ-9047-B Use with auxiliary under cab fuel tank
  '67 F100/250 (83)(131" W.B.) C7TZ-9047-D Use with auxiliary under cab fuel tank
  '68-'69 F100/250 (80, 81, 86) C8TZ-9047-F Use with auxiliary under cab fuel tank
Replaces C8TZ-9047-B
  '67-'68 F100 (83) (115" W.B.) C8TZ-9047-C Use with auxiliary under cab fuel tank
  '68-'69 F100/250 (83)(115" W.B.) C8TZ-9047-F Use with auxiliary under cab fuel tank
Replaces C8TZ-9047-D
  '68-'69 F350 (exc. 84, 85) C8TZ-9047-E Use with auxiliary under cab fuel tank
  '68-'69 F100/250 (99) C8TZ-9047-F Use with auxiliary under cab fuel tank
  '70 F100/250 (80, 81, 86)(exc. ev/em) D0TZ-9047-G Use with auxiliary under cab fuel tank
  '70 F100 (83)(115" W.B.)(exc. ev/em) D0TZ-9047-B Use with auxiliary under cab fuel tank
  '70 F100/250 (83)(131" W.B.)(exc. ev/em) D0TZ-9047-C Use with auxiliary under cab fuel tank
  '70 F100/250 (99) (exc. ev/em) D0TZ-9047-J Use with auxiliary under cab fuel tank
  '70 F100 (81)(with ev/em) D0TZ-9047-H Use with auxiliary under cab fuel tank
  '70 F100 (83)(115" W.B.)(with ev/em) D0TZ-9047-E Use with auxiliary under cab fuel tank
  '70 F100 (83)(131" W.B.)(with ev/em) D0TZ-9047-F Use with auxiliary under cab fuel tank
  '70 F100 (99)(with ev/em) D0TZ-9047-K Use with auxiliary under cab fuel tank
  '70 F350 (exc. 84, 84) D0TZ-9047-D Use with auxiliary under cab fuel tank
  '71-'72 F100 4x2 (83)(115" W.B.)(with ev/em) D1TZ-9047-A Use with auxiliary under cab fuel tank
  '71-'72 F250 (131" W.B.) D5TZ-9047-C Use with auxiliary under cab fuel tank
Replaces D1TZ-9047-C
  '71-'72 F100 (81, 99)(115" W.B.)(with ev/em)
'71-'72 F100 (131" W.B.)(with ev/em)
D1TZ-9047-D Use with auxiliary under cab fuel tank
  '71-'72 F350 (exc. 84, 85) D1TZ-9047-E Use with auxiliary under cab fuel tank
  All 8A-8287 Clamp assy. filler hose - adjustable 1-1/2" I.D. to 2-3/4" I.D.
9049 - Hose Assembly, Fuel Tank Vent Expansion Tank
  '70 F100 (exc. 84, 85)(with ev/em)

D0TZ-9049-B

Used with auxiliary under cab fuel tank
  '70 F100 (81, 83, 99)(with ev/em) D0TZ-9049-C .222" I.D. - .438" O.D. - Approx. 8.46" long
Used with auxiliary under cab fuel tank
    382846-S32 Clamp, fuel tank vent expansion tank hose - 3/8" hose
9049 - Tube, Fuel Tank Vent, Upper
  '71-'72 F100 (81)

D1TZ-9049-AA

5/8" dia. - 22" long
Make from 8QH-2269-C tubing
9050 - Switch Assembly, Fuel Tank Selector
  '67-'72 F100/350

D3TZ-9A050-B

Used with auxiliary under cab fuel tank
9053 - Support, Fuel Tank
  '67-'69 F100/350 (84, 85)
'70-'71 F250 (85), F350 (84, 85)
21C-9053
  '67 F100/350 (84, 85)
'68-'71 F250/350 (84, 85)
C6TZ-9053-A Used with 17 gallon frame mounted tank
  '67-'71 F100/250 (131" W.B.)(exc. 84, 85)
'72 F100/250 (131" W.B.)
C7TZ-9053-A Rear - use with auxiliary under cab fuel tank
  '67-'71 F350 (135" W.B.)(exc. 84, 85)
'72 F350 (135" W.B.)
D6TZ-9053-C Rear - use with auxiliary under cab fuel tank
Replaces C7TZ-9053-B
9054 - Strap Assembly, Fuel Tank
  '67 F100/250 (exc. 84, 85)
'67 F350 (135" W.B.)(exc. 84, 85)

 C7TZ-9054-C

Front - use with auxiliary under cab fuel tank

C7TZ-9054-E

Rear - use with auxiliary under cab fuel tank
  '68-'69 F100/F250 (exc. 84, 85)
'68-'69 F350 (135" W.B.)(exc. 84, 85)

C8TZ-9054-A

Front - use with auxiliary under cab fuel tank

C8TZ-9054-C

Rear - use with auxiliary under cab fuel tank
  '68-'70 F350 (159" W.B.)(exc. 84, 85)
"Before Ser. G10,001"

C8TZ-9054-B

Front - use with auxiliary under cab fuel tank

C8TZ-9054-D

Rear - use with auxiliary under cab fuel tank
  '68-'69 F100 (115" W.B.)(exc. 84, 85)

C8TZ-9054-E

Rear - use with auxiliary under cab fuel tank
  '70-71 F100/250 (exc. 85)
'70-'71 F350 (135" W.B.)(exc. 84, 85)
'72 F100/250
'72 F350 (135" W.B.)

D0TZ-9054-A

Front - use with auxiliary under cab fuel tank
  '70-up F100 (115" W.B.)

D0TZ-9054-B

Rear - use with auxiliary under cab fuel tank
  '70-71 F100/350 (131", 135" W.B.)(exc. 84, 85)
'72 F100/350 (131", 135" W.B.)

D0TZ-9054-C

Rear - use with auxiliary under cab fuel tank
  '70-'71 F350 (159" W.B.)(exc. 84, 85) "From Ser. G10,001"
'72 F350 (159" W.B.)

D0TZ-9054-D

Front - use with auxiliary under cab fuel tank

D0TZ-9054-E

Rear - use with auxiliary under cab fuel tank
9068 - Strap, Fuel Tank Hanger
  '67-'69 F100/250 (84) "From Ser. 775001"
'70-'71 F250 (85), F350 (84, 85)

21C-9068

Used with 17 gallon frame mounted fuel tank
9069 - Grommet, Fuel Tank Vent Tube
  '70 F100/350 (exc. 84, 85)

D0TZ-9069-A

Use with in-cab tank or with auxiliary under cab fuel tank
9071 - Spacer, Fuel Tank Bracket to Frame
  '67-'71 F100/350 (exc. 84, 85)(exc. 158" W.B.)
'72 F100/350

C7TZ-9071-A

Use with auxiliary under cab fuel tank
9080 - Grommet, Fuel Tank Filler Neck
  '67-'69 F100/350 (81)

C7TZ-9080-B

2.16" dia. - 3.12" O.D.
Use with auxiliary under cab fuel tank
  '70-'72 F100/250 (99) D0TZ-9080-A 2.15" dia. - 3.36" O.D. - 1.30" thick
Use with auxiliary under cab fuel tank
    B7QH-9080-A Plug, Back Panel Fuel Tank Filler Pipe Opening
Used to plug hole when gas tank is mounted outside
9A086 - Tube Assembly, Fuel Vapor Expansion Connection with Flange
  '70 F100 (exc. 84, 85)(with ev/em)

D0TZ-9A086-A

Use with 25 gallon auxiliary under cab fuel tank
D0TZ-9A086-B Use with 25 gallon auxiliary under cab fuel tank
without in-cab fuel tank
55981-S2 Screw, tube assy. to floor pan
1/4"-14 x 1/2" hex. head self-tapping
9A091 - Tank Assembly, Fuel Tank Vent Expansion
  '70 F100 (exc. 84, 85)(with ev/em)

D0TZ-9A091-D

Use with 25 gallon auxiliary under cab fuel tank without
in-cab fuel tank
  '70 F100 (exc. 84, 85)(with ev/em)

D0TZ-9A091-E

Use with 25 gallon auxiliary under cab fuel tank with
in-cab fuel tank
9A091 - Chamber Assembly, Fuel Tank Vent Vapor
  '71-'72 F100 (81)

D1TZ-9A091-C



40905-S7

Screw, chamber assy. to inner body panel
No. 10-24 x 3/8"hex washer head - self-tapping
9146 - Bracket, Fuel Tank Retaining
  '68-'71 F100/350 (exc. 84, 85)
'72 F100/350

C8TZ-9146-A

Use with auxiliary under cab fuel tank
9A147 - Plate, Fuel Tank Skid
  '67-'72 F100/350 (81)
(exc. F100 2WD w/115" W.B.)

C7TZ-9A147-C

Use with auxiliary under cab fuel tank
  '67-'72 F100 2WD w/115" W.B.)

C7TZ-9A147-D

Use with auxiliary under cab fuel tank


39885-S7-8

Screw, skid plate to frame
3/8"-16 x 1/2" hex. washer head tapping
9A157 - Bracket, Fuel Tank Skid Plate
  '67-'72 F100/250 (except 84, 85) C7TZ-9A157-A Front (inner) - use with auxiliary under cab fuel tank
  '67-'72 F350 (except 84, 85) C7TZ-9A157-B Front (inner) - use with auxiliary under cab fuel tank
  '67-'72  F100/250 (with 3/S/T & C4, C/M)(exc. 84, 85)
'67-'72 F350 (with C4, C/M)(exc. 84, 85)

C7TZ-9A157-C

Front (end) - use with auxiliary under cab fuel tank
  '67-'72 F100/250 (with O/D)(exc. 84, 85)
'67-'72 F100/350 (with 4/S/T)(exc. 84, 85)
C7TZ-9A157-D Front (end) - use with auxiliary under cab fuel tank
  '67-'69  F100 (115" W/B)(exc. 84, 85)
'67-'69 F350 (159" W/B)(exc. 84, 85)
C7TZ-9A157-F Rear - use with auxiliary under cab fuel tank
  '67-'72  F100/250 (131" W/B)(exc. 84,85)
'67-'72 F350 (135" W/B)(exc. 84, 85)
C7TZ-9A157-H Rear - use with auxiliary under cab fuel tank
  '68-'72 F100/250 (81)(115", 131"W/B)(with C6)(8 cyl.) C8TZ-9A157-A Front (end) - use with auxiliary under cab fuel tank
  '68-'72 F350 (81)(135", 158" W/B)(with C6) C8TZ-9A157-B Front (end) - use with auxiliary under cab fuel tank
  '70-'72 F100 (115" W/B)
'70-'72 F350 (159" W/B)(exc. 84, 85)
D0TZ-9A157-A Rear - use with auxiliary under cab fuel tank
  '67-'72 F100/350 20388-S8 Bolt (bracket to frame cross member)
3/8"-16 x 1.00" hex. head
Bolt (bracket to skid plate)
381594-S2 Bolt (bracket to fuel tank support) - 3/8"-16 x 1.25" hex. head knurled shoulder
34807-S8 Lockwasher - 3/8"
33799-S7 Nut - 3/8"-16 hex.
9A160 - Bracket, Fuel Tank Selector Switch Mounting
  '67-'72 F100/350

C7TZ-9A160-A

Used with auxiliary under cab fuel tank
    20308-S7-8 Bolt, bracket to instrument panel
1/4"-20 x 1/2" hex head
    34940-S7-8 Lockwasher - 1/4" external tooth
    33795-S7 Nut - 1/4"-20 hex.
9170 - Hose, Fuel Tank Vent Tube
  '67-'69 F100/250 (99)
"Before Ser. F20,001"
C7TA-9170-A Use with auxiliary under cab fuel tank
.75" I.D. - 1.00" O.D. - 16.50" long
(Cut from C7TZ-9170-A hose)
  '67-'69 F100/250 (131" W/B)(83)
    "Before Ser. F20,001"
'67-'69 F 100/350 (80, 81, 86)
    "Before Ser. F20,001"
'67-'69 F350 (83) "Before Ser. F20, 001"
C7TA-9170-B Use with auxiliary under cab fuel tank
1.75" I.D.- 1.00" O.D. - 15.00" long
  '67-'69 F100 (115" W/B)(83)
    "Before Ser. F20,001"
C7TA-9170- C Use with auxiliary under cab fuel tank
1.75" I.D. - 1.00" O.D. - 12.50" long
  '69 F100/350
    "From Ser. F20,001"
'70 F100(except 83 with 115" w/B)
'70 F250/350
C7TZ-9170-A Use with 25 gallon frame mounted fuel tank
1.75" I. D. - 1.06" O.D. - 16.50" long
  '70 F100 (83 with 115" W/B) D0TA-9170- M 1.04" O.D. - 12.50" long - (Cut from C7TZ-9170-A)
9189 - Valve Assembly, Fuel Tank Selector
  '67 F100/350 - "Before Ser. A70,001"

C1TZ-9189-B

Use with auxiliary under cab fuel tank
  '67-'69 F100/350 - "From Ser. A70,001" C7TZ-9189-B Use with auxiliary under cab fuel tank
  '69-'71 F100/250 4x2, F350 D2TZ-9189-A Used with 21.5 or 25 gallon auxiliary under cab
fuel tank and standard in-cab tank.
Replaces D0TZ-9189-B (2-74)
  '72 F100/250 4x2, F350 D2TZ-9189-A Used with 21.5 gallon auxiliary under cab
fuel tank and standard in-cab tank.
9197 - Plate, Fuel Tank Selector Valve Reinforcement
  '67-'69 F100/350 (81)

C7TZ-9197-A

Stamped "OFF-AUX-MAIN" - used with auxiliary tank
  '70-'72 F100/350

D0TZ-9197-A

Stamped "OFF-AUX-MAIN" - used with auxiliary tank
9202 - Float Assembly, Fuel Tank Sender
  '67-'72 All Trucks

C0AZ-9202-A


9A206 - Gasket, Fuel Vapor Expansion Tank Tube Connector Flange
  '70 F100 (with ev/em)

D0TZ-9A206-A

Use with 25 gallon frame mounted fuel tank
9236, 9237 - Tube Assembly, Fuel Tank Outlet
  '67 F100/350 (exc. 84, 85)

C7TA-9237-C

Use with auxiliary under cab fuel tank
5/16" O.D. steel tubing x 30.99" long
Make from 8C 2269-A bulk tubing
  '68-'69 F100/350 (exc. 84, 85) C8TA-9237-A Use with auxiliary under cab fuel tank and in-cab tank
5/16" O.D. steel tubing x 27.75" long
Make from 8C 2269-A bulk tubing
  '68-'69 F100/350 (exc. 84, 85) C8TA-9237-B Use with auxiliary under cab fuel tank and in-cab tank
5/16" O.D. steel tubing x 18.97" long
Make from 8C 2269-A bulk tubing
  '70-'72 F100/350 D0TZ-9237-F Use with 21.5 or 25 gallon auxiliary under cab
fuel tank
3/8" O.D. steel tubing x 25.27" long
Make from 8C 2269-A bulk tubing
9240 - Insulator, Fuel Tank
  Light truck applications not shown in MPC
9275 - Gauge Assembly, Fuel, Tank Unit (tank sending unit)
  '67 F100/350 C7TZ-9275-B Use with auxiliary under cab fuel tank
Service pkg. includes (1) C0AF-9276-A gasket
  '68-'69 F100/350 D0TZ-9275-D Use with auxiliary under cab fuel tank
Service pkg. includes (1) C0AF-9276-A gasket
Replaces C8TZ-9275-A (11-71)
  '70 F100/350 "Before Ser. H70,001" D7TZ-9275-B Use with auxiliary under cab fuel tank
Service pkg. includes (1) C0AF-9276-A gasket
Replaces D0TZ-9275-D
  '70-'72 F100/350 "From Ser. H70,001" D7TZ-9275-B Identified D0TF-9275-B
Service pkg. includes (1) C0AF-9276-A gasket and
(1) C8AF-9327-A hose
Use with 21.5 or 25 gallon under cab fuel tank
Replaces D0TZ-9275-D
  '67-'72 F100/F350 34803-S7 Lockwasher - No. 10
370050-S2 Screw, sending unit to fuel tank
No. 10-32 x .50" hex. head slotted
9276 - Gasket, Fuel Gauge, Tank Unit (sending unit gasket)
  '67-'72 F100/350

C0AF-9276-A

Cork & rubber - 2.41" I.D. - 2.58" O.D. - .125 thick
Used with 21.5 or 25 gallon auxiliary under cab fuel tank
9282 - Fuel Line
  "Fuel line replacements are to be made from bulk tubing stock listed by size and part number under basic group 2269."
(Group 2269 is a listing of 25-ft. rolls of steel and plastic tubing of various sizes, as well as associated nuts, connectors and fittings.)
9299
  No text listing in MPC
9A307 - Ring, Fuel Tank Sending Unit
  '67-'69 F100/350

C0AZ-9A307-A


  '70-'72 F100/350

C0AZ-9A307-A

Used with 21.5 and 25-gal. auxiliary under-cab fuel tank
9F309 - Retainer, Fuel Expansion Vent Tube to Front
  '70 F100 (with ev/em)

D0TZ-9F309-A

Use with 25 gallon under cab fuel tank
9324 - Hose, Fuel Tube Connector
  See Fuel Hose / Tubing for a complete listing of fuel hoses used for in-cab and/or under-cab fuel tanks.
9A342 - Wiring Assembly, Ignition Switch to Fuel Pump Switch
  '67 F100/350 (81)
"Before Ser. A42,001"

C3TZ-9A342-J

Used with auxiliary under-cab fuel tank
  '67-'69 F100/350 (81)
"From Ser. A42,001"

C7TZ-9A342-G

Used with auxiliary under-cab fuel tank -
identification tag C7TB-9A342-G
  '70-'72 F100/350 (81)

D0TZ-9A342-A

Used with 25-gal. auxiliary under-cab fuel tank -
identification tag D0TB-9A342-A
9A389 - Nut, Fuel Pump Manual Control (auxiliary tank switch bezel retaining nut)
  '67-'72 F100/350

C1TZ-9A389-A

Used with auxiliary fuel tank selector switch
9D683 - Tube Assembly, Fuel Vapor Tank to Canister, Crossover
  '71-'72 F100

D1TA-9D683-BB

5/16" O.D. steel tubing 27.59" long - cut from 8C-2269-A
Use with 25 gallon auxiliary fuel tank
10852 - Bezel, Instrument Cluster Control
  '67-'72 F100/350

C1TZ-10852-A

"L FUEL TANKS R"

Misc. Related Parts
203-88-S8 (B80) - Bolt, Strap to Frame
  '67 F100/350

203-88-S8

3/8"-16 x 1.00" hex head
Used with auxiliary under cab fuel tank
20348-S2 (B77) - Bolt, , Fuel Tank Filler Pipe to Floor Pan
  '67 F100/350 (83)
'70-'72 F100 (with ev/em)

20348-S2

3/8"-16 x 3/4" hex. head
Use with 33799-S7 (M52) nut (3/8"-16 hex)
and 34807-S8 (X66) lockwasher (3/8")
354135-S7-8 (BB155A) - Bolt, Fuel Tank Filler Pipe to Bracket
  '67 F100/350 (exc. 83, 84, 85)

354135-S7-8

3/8"-16 x 1-1/8" hex. head
(NOTE: Also used with 9040 bracket above,
with 33799-S7 (M52) nut (3/8"-16 hex)
and 34807-S8 (X66) lockwasher (3/8")
304646-S8 (B-43-A) - Bolt, Fuel Tank Filler Pipe to Body Side Panel
  '70-72 F100  (with ev/em)

304646-S8

1/4"-20 x .75 hex. head
Use with 34975-S2 nut 1/4"-20 hex lock
353055-S7 (PP29) - Plug, Fuel Tank Drain
  '67-'72 F100/350

353055-S7

1/4"-18
370050-S2 (BB537) - Screw, Fuel Tank Gauge to Fuel Tank (sending unit to tank)
  '67-'72 F100/350

370050-S2

No. 10-32 x .50" hex head slotted
371315





372047-S100 (GG217) - Clip, Fuel Line to Fuel Tank
  '70 F100 (with ev/em)

372047-S100


375474-S8 (MM-120-B) - Nut, Pipe Assy. to Body
  '67-'72 F100/350 (83)

375474-S8

3/8"-16 rivet type
Used with auxiliary under-cab fuel tank
379628-S (KK-72) - Grommet, Fuel Line to Floor Pan
  '67-'72 F100/350

379628-S


382286-S (BB429AC) - Bolt, Strap to Bracket
  '68-up F100/350

382286-S

3/8"-16 x 2.62" hex head
Used with auxiliary under cab fuel tank



Symbol (in the text listings or exploded-view diagram) indicates part is not supplied for service due to the following:
  a. Part is superseded and replaced as indicated in the description column of text
b. Part can be improvised as indicated in the description column of text
c. Due to it's function there would be little or no demand



You are here: Home Part Numbers Index Fuel - Fuel Tank (Auxiliary) & Related Items


Want to link to this site? Please save this banner to your hard drive to place on your webpage.
The correct link to use is http://www.fordification.com


Copyright library© 1999-2019 FORDification.com unless otherwise noted. All rights reserved.
All brand names and product names used on this website are trade names, service marks or registered trademarks of their respective holders.
No portion or content of this site may be reproduced or otherwise used without explicit permission.
To report problems or provide comments or suggestions, please click here.
