Technical Drawings and Schematics - Section E
Engine and Related Components

Engine Assembly - 6 Cylinder 240 and 300 - Typical
1965-1972

1024 x 1502, 223K

Cylinder Block & Related Parts, External
6 Cylinder 240 and 300 engines

1965-1972

1452 x 1024, 268K

Cylinder Block & Related Parts, Internal
6 Cylinder 240 and 300 engines

1965-1972

1341 x 1024, 215K

Engine Assembly - 8 Cylinder 352, 360, 390 (FE) - Typical
1965-1972

1024 x 1525, 243K

Cylinder Block & Related Parts - 8 Cylinder 330 M/D, 330 H/D, 352, 360, 361, 390, 391 (FE) - Typical
1964-1972

1266 x 1024, 230K

Engine Assembly - 8 Cylinder 302 - Typical
1969-1972

899 x 1442, 209K

Cylinder Block & Related Parts - External - 8 Cylinder 302
1969-1972

1024 x 701, 132K

Cylinder Block & Related Parts - Internal - 8 Cylinder 302
1969-1972

1427 x 1024, 214K

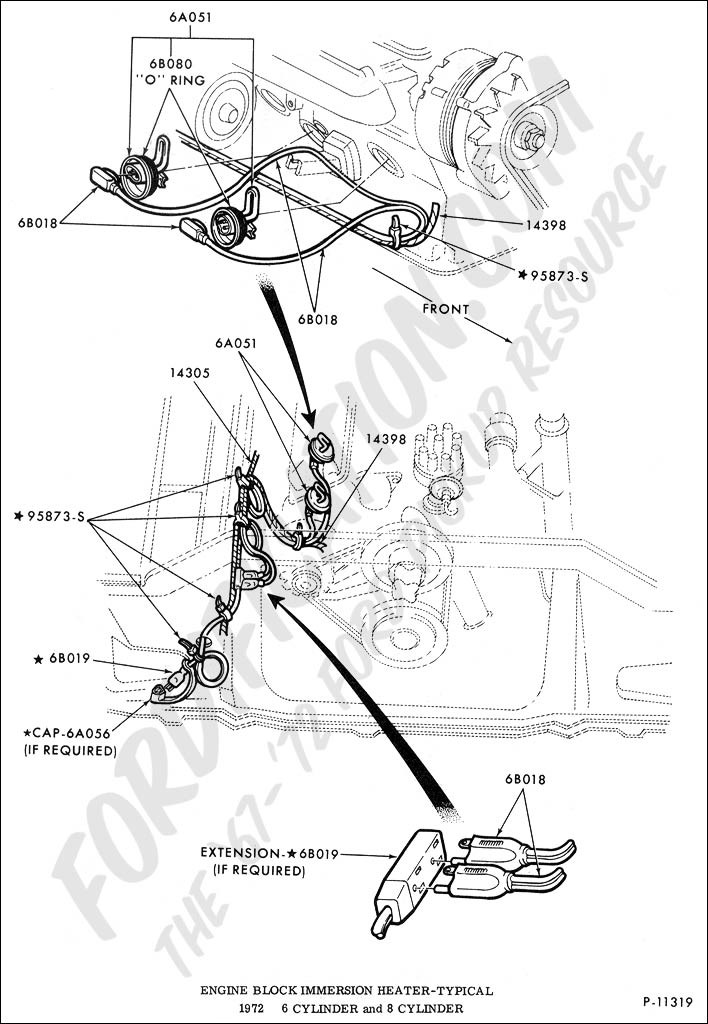

Engine Block Immersion Heater - Typical
1972 6 Cylinder and 8 Cylinder

708 x 1024, 113K

Engine Supports, Insulators, and Related Parts - Front and Rear - Typical
1965-1972 F100/250 (4x2) 6 Cyl. 240, 300 and 8 Cyl. 302, 352, 360, 390

1024 x 690, 148K

Engine Supports, Insulators, and Related Parts - Front and Rear - Typical
1966-1972 F100 (4x4) 6 Cyl. 240, 300 and 8 Cyl. 302, 352, 360
1967-1972 F250 (4x4), F350 6 Cyl. 240, 300 and 8 Cyl. 302, 352, 360

1204 x 909, 159K

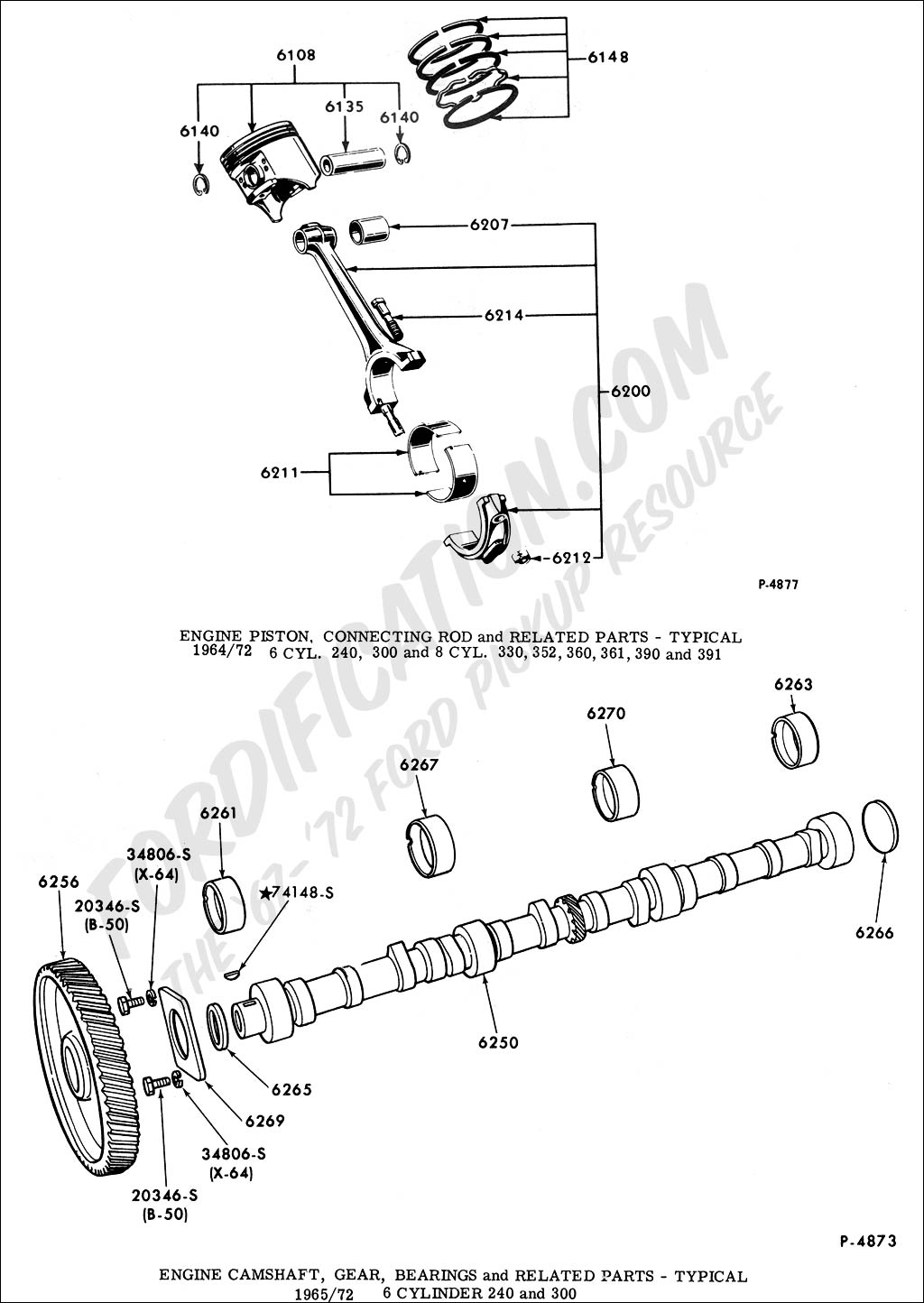

Engine Piston, Connecting Rod and Related Parts - Typical
1964-1972 6 Cyl. 240, 300 and 8 Cyl. 330, 352, 360, 361, 390 and 391

Engine Camshaft, Gear, Bearings and Related Parts - Typical
1965-1972 6 Cyl. 240 and 300

1024 x 1444, 131K

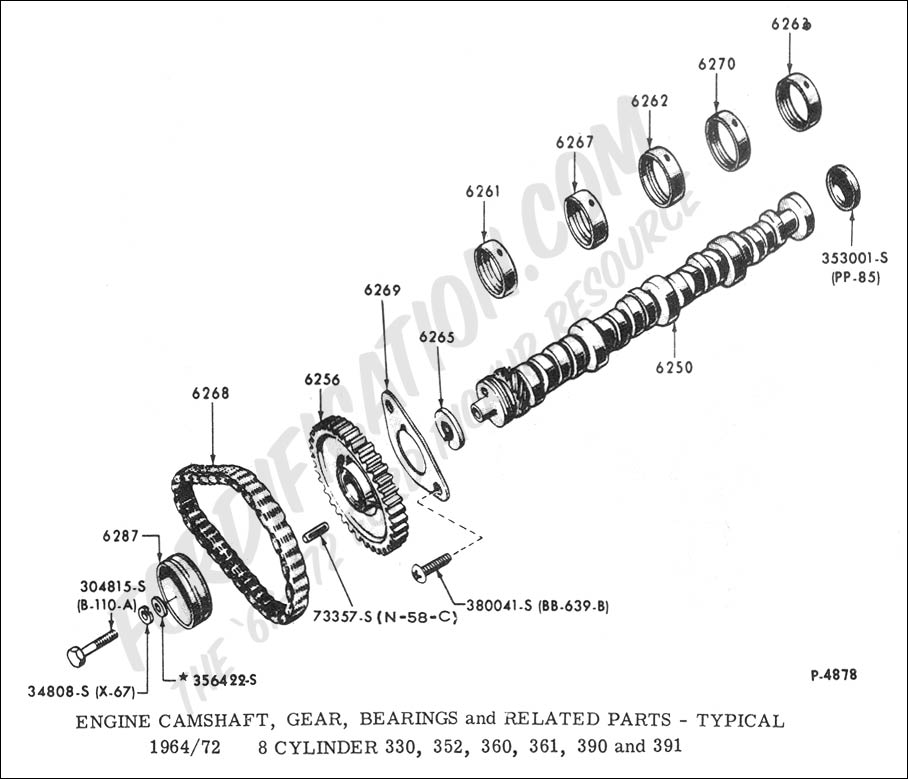

Engine Piston, Connecting Rod and Related Parts - Typical
1964-1972
8 Cylinder 330, 352, 360, 361, 390, 391

908 x 779, 67K

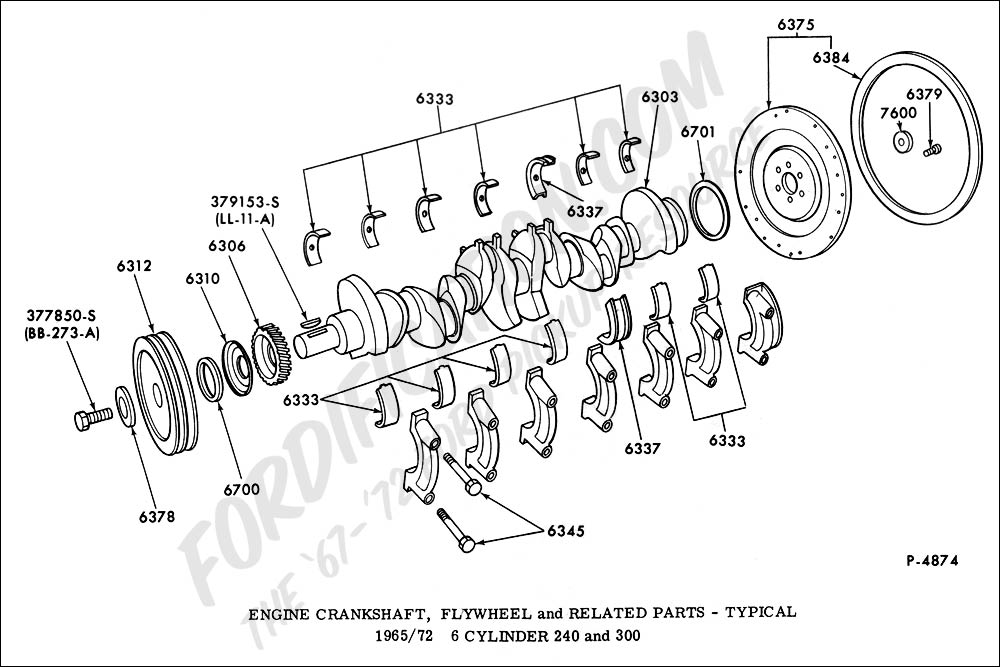

Engine Crankshaft, Flywheel and Related Parts - Typical
1965-1972
6 Cylinder 240 and 300

1000 x 667, 92K

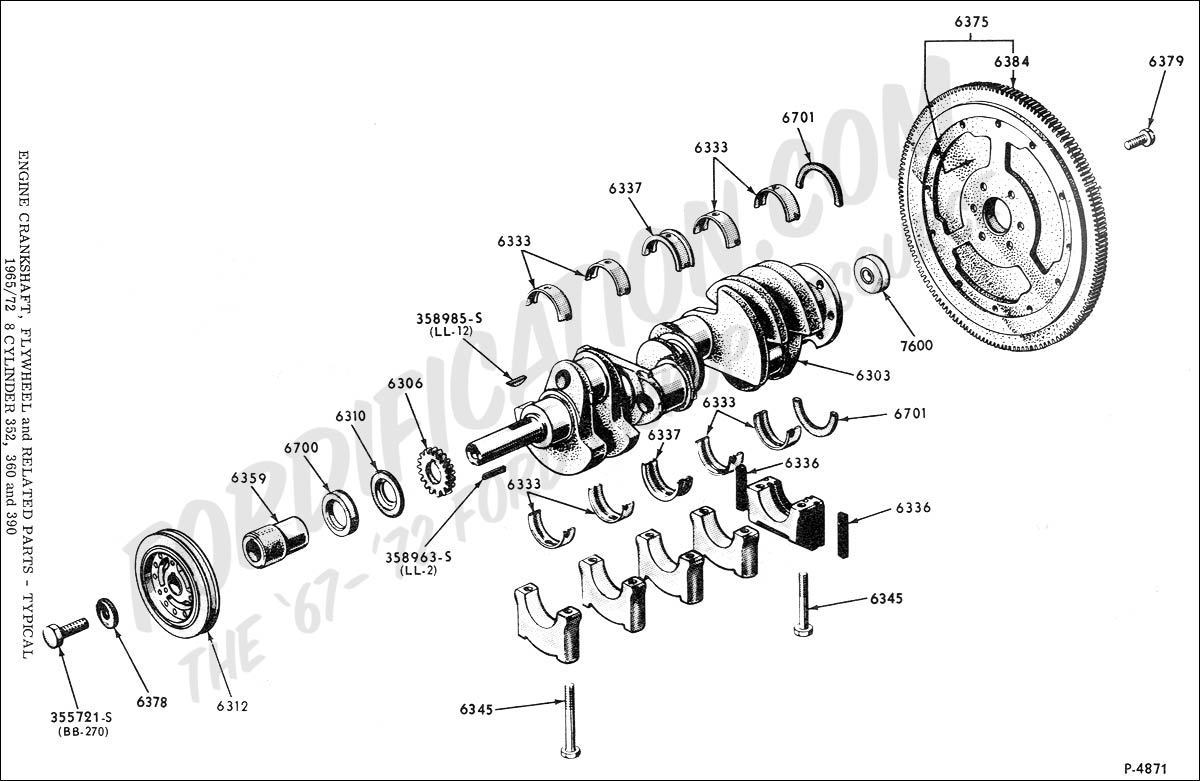

Engine Crankshaft, Flywheel and Related Parts - Typical
1965-1972
8 Cylinder 352, 360 and 390

1200 x 781, 111K

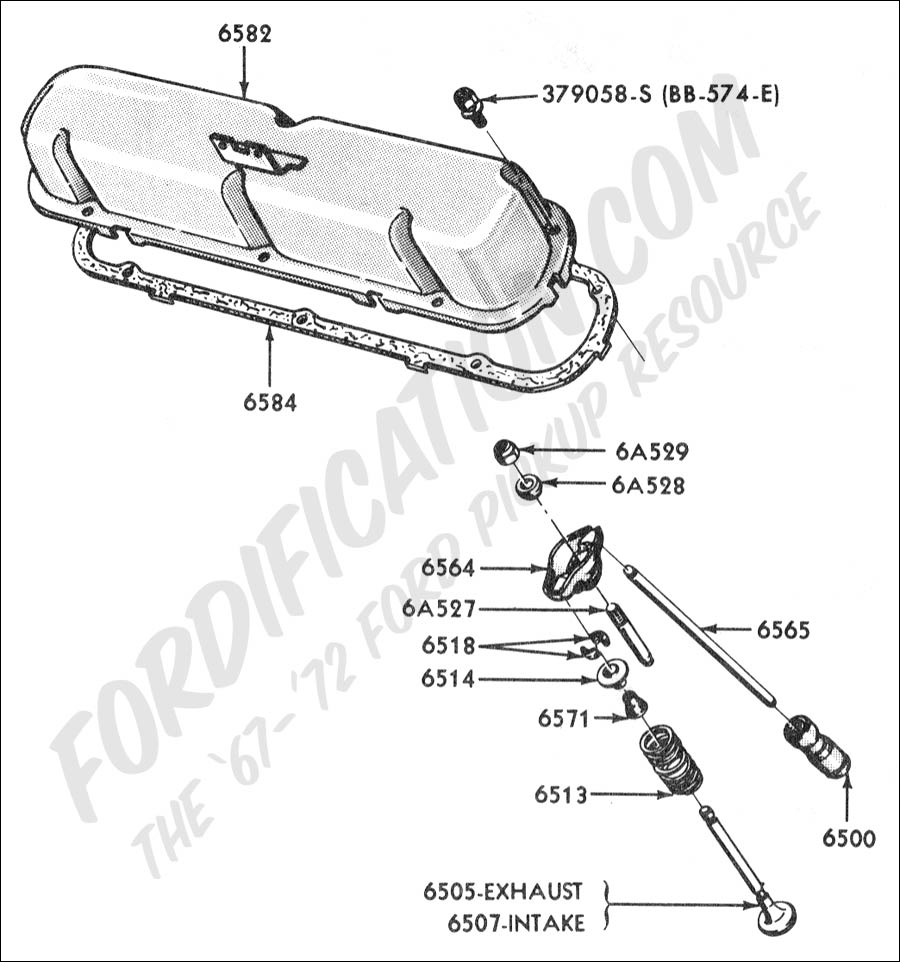

Engine Valves, Push Rods, Rocker Arm Cover and Related Parts - Typical
1965-1972
6 Cylinder 240 and 300

900 x 962, 94K

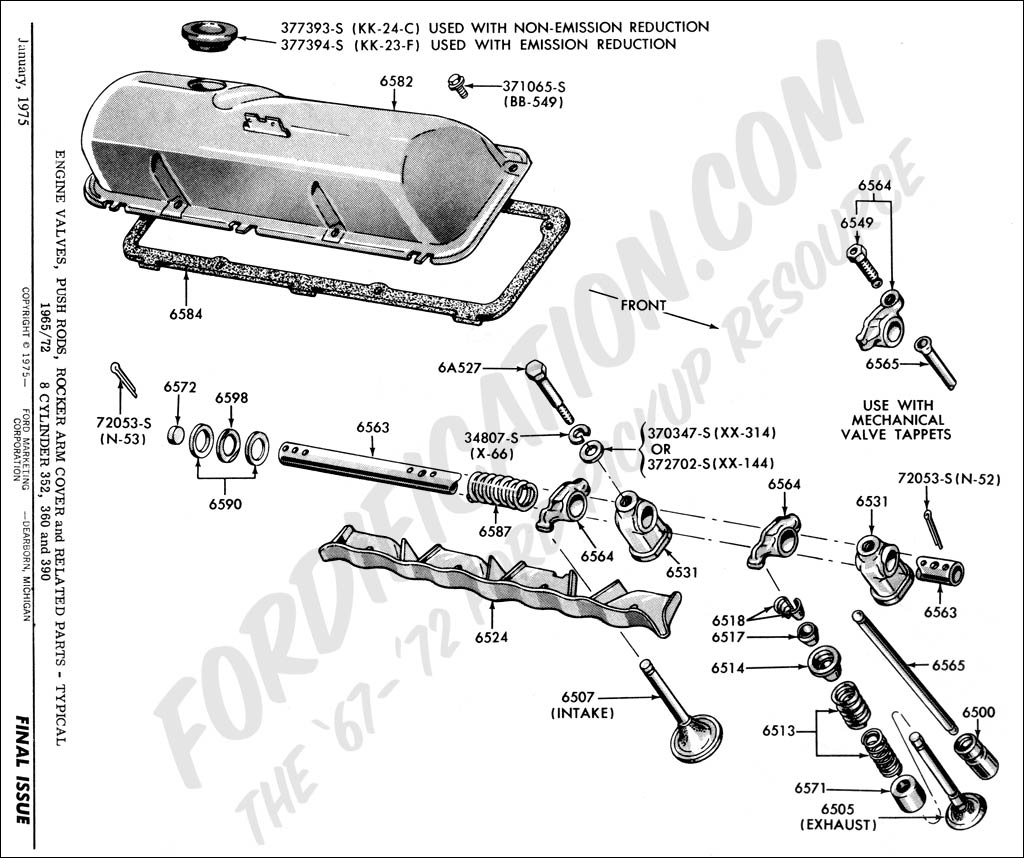

Engine Valves, Push Rods, Rocker Arm Cover and Related Parts - Typical
1965-1972
8 Cylinder 352, 360 and 390

1024 x 858, 132K

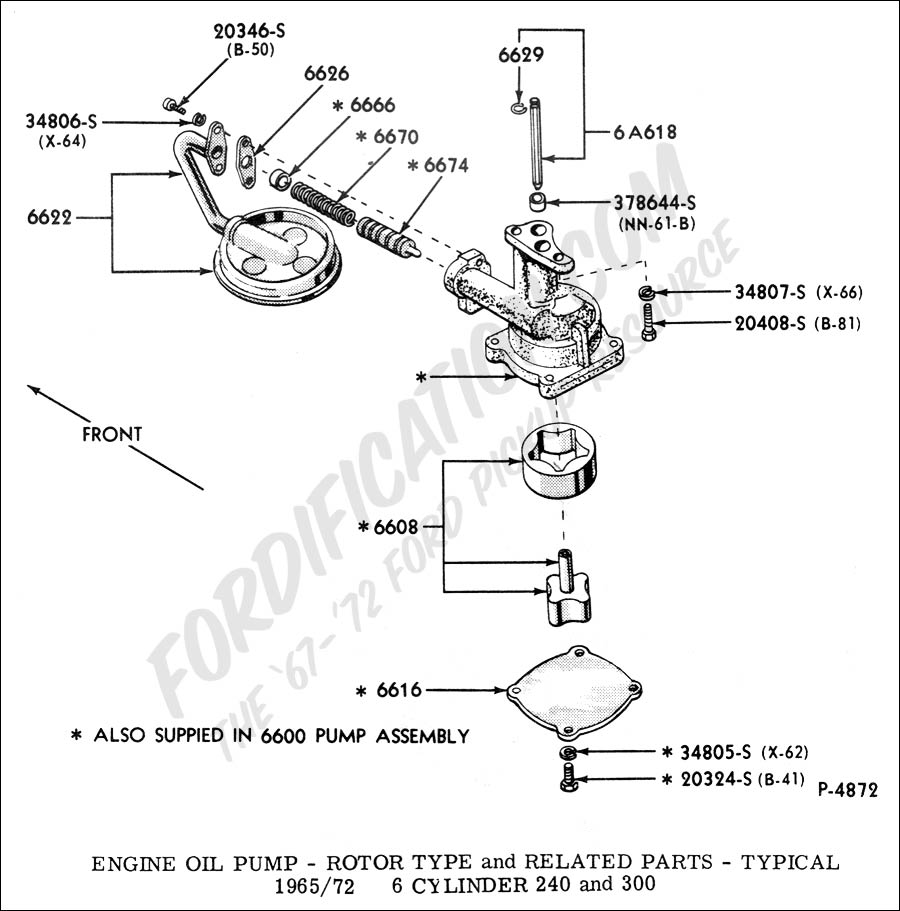

Engine Oil Pump - Rotor Type and Related Parts - Typical
1965-1972
6 Cylinder 240 and 300

900 x 911, 85K

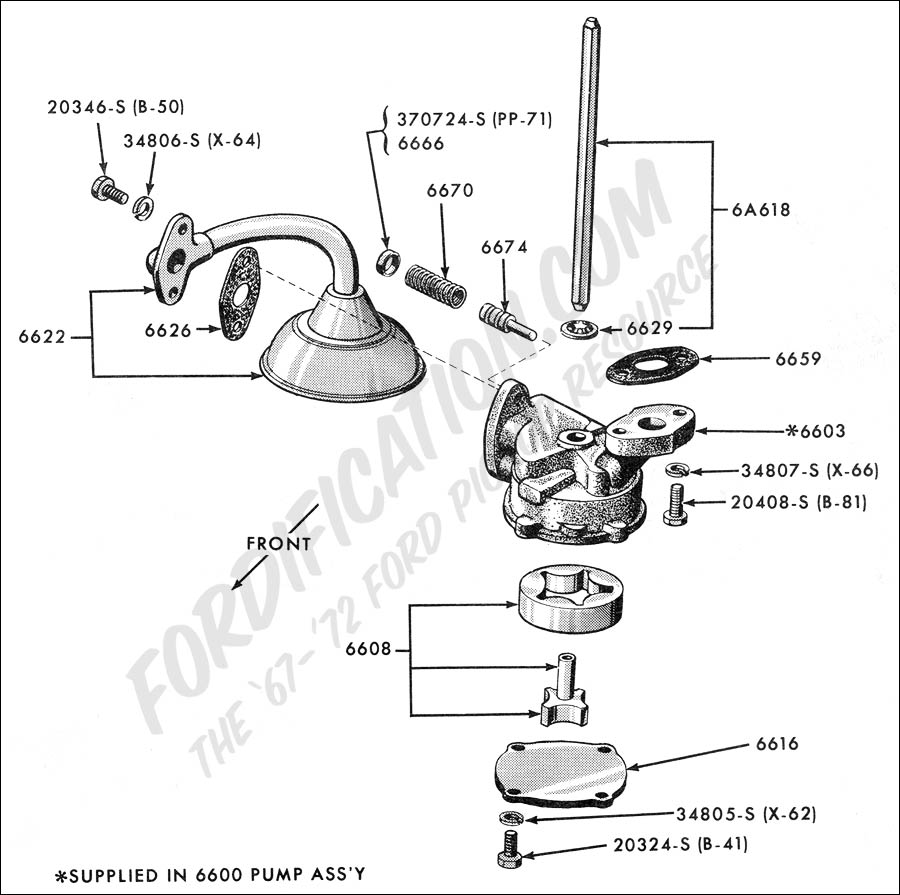

Engine Oil Pump - Rotor Type and Related Parts - Typical
1965-1972
8 Cylinder 352, 360 and 390

900 x 895, 89K

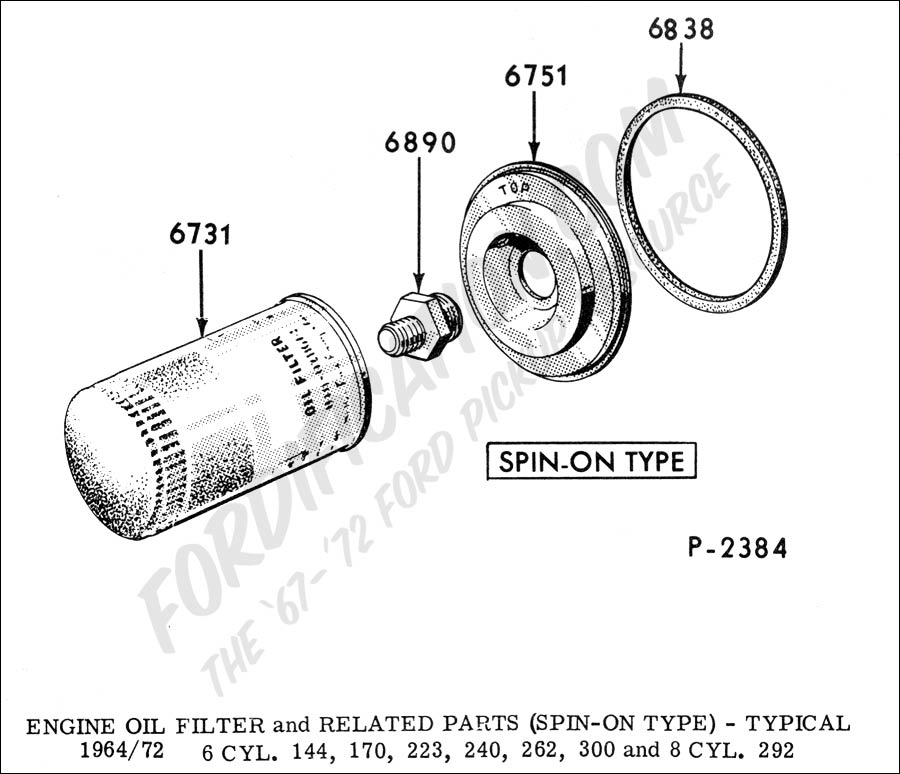

Engine Oil Filter and Related Parts (Spin-On Type) - Typical
1964-1972
6 Cyl. 144, 170, 223, 240, 262, 300 and 8 Cyl. 292

900 x 774, 80K

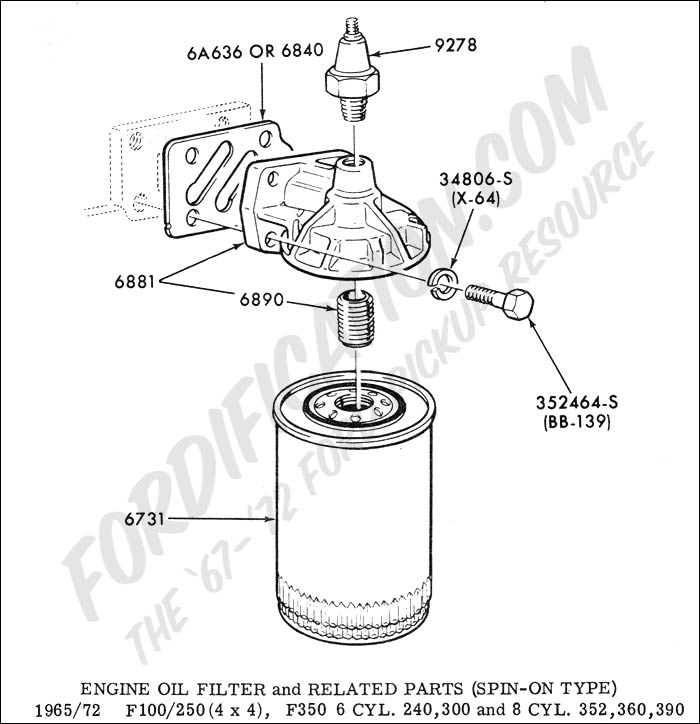

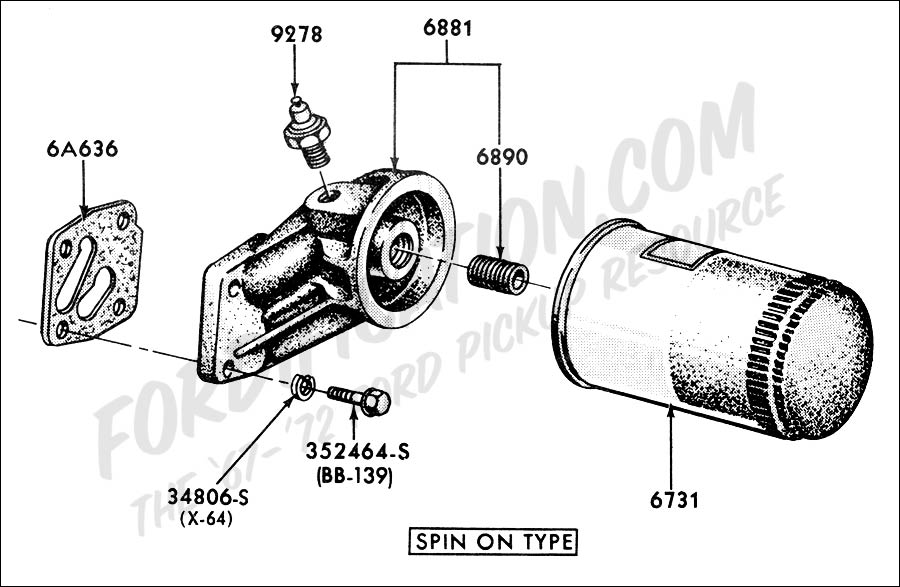

Engine Oil Filter and Related Parts (Spin-On Type) - Typical
1965-1972 F100/250 (4x4), F350 6 Cyl. 240, 300 and 8 Cyl. 352, 360 and 390

700 x 724, 59K

Engine Oil Filter and Related Parts (Spin-On Type) - Typical
196
4-1972 8 Cyl. 330 M/D
1965-1967 F100/250 (4x2) 8 Cyl. 352

900 x 587, 76K

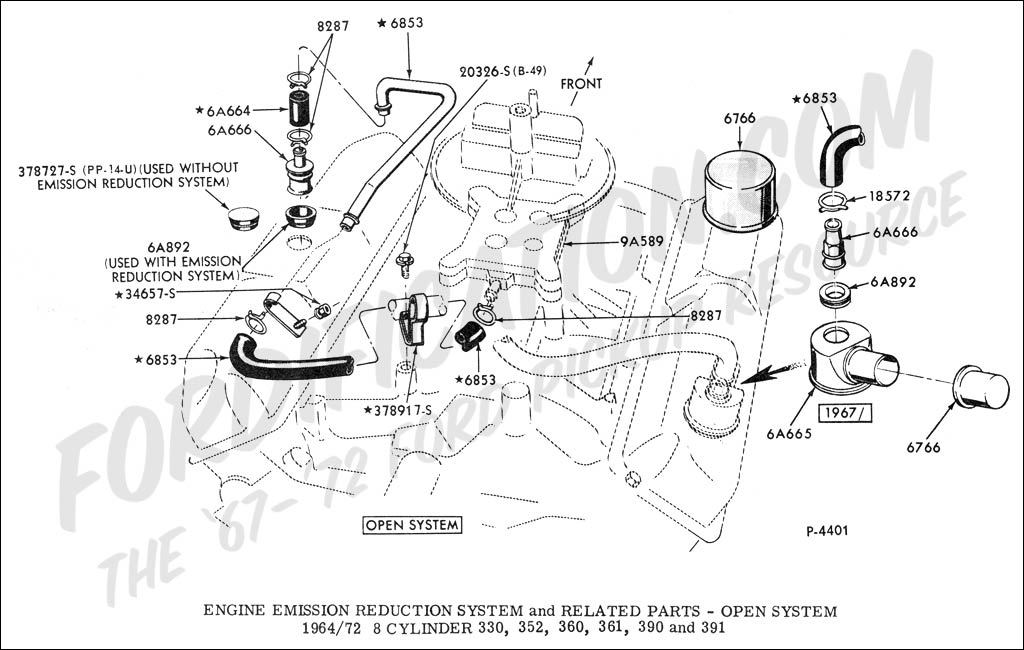

Engine Emission Reduction System and Related Parts - Open System
196
4-1972 8 Cyl. 330, 352, 360, 361, 390, 391

1024 x 650, 98K

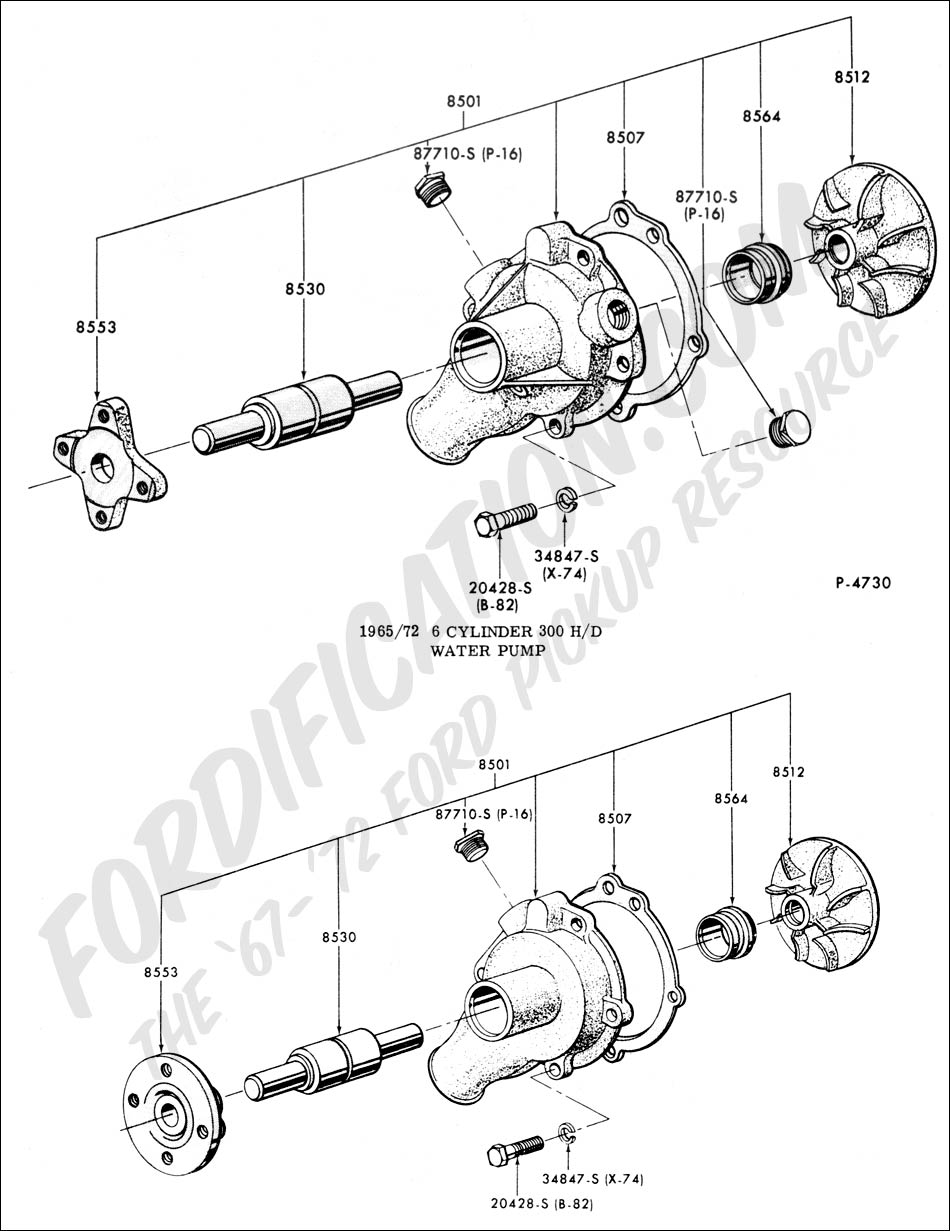

Water Pump
1965-1972
6 Cylinder 300 H/D
1965-1972 6 Cylinder 240, 300 L/D

950 x 1231, 126K

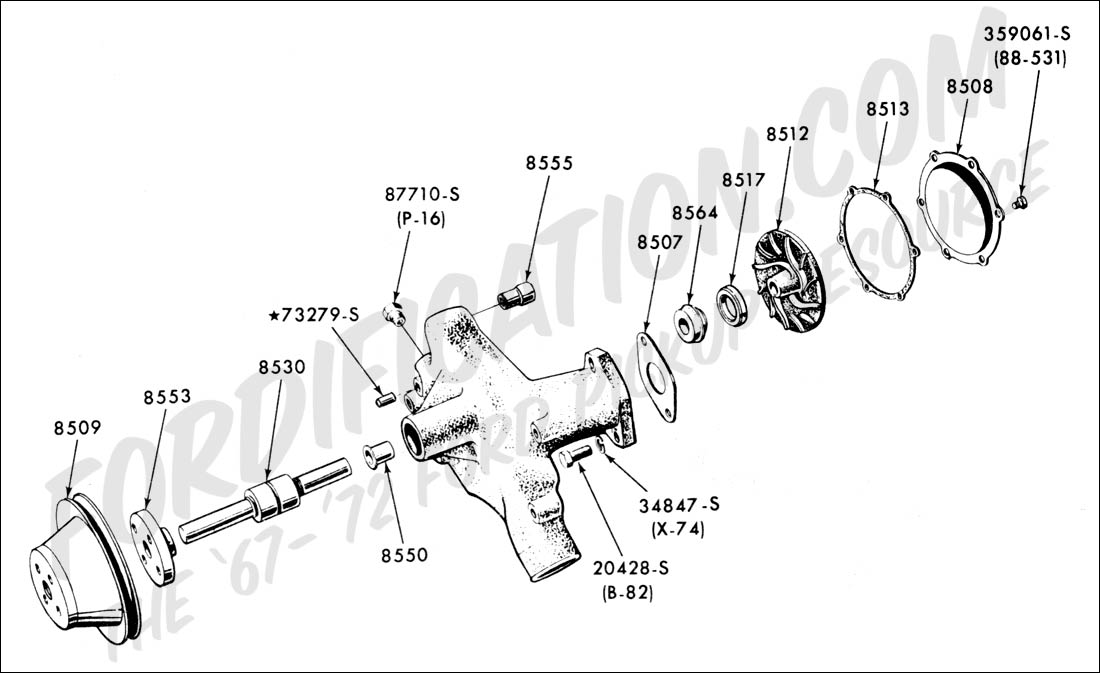

Water Pump
1964-1972
8 Cylinder 330 M/D, 352, 360, 390

1100 x 673, 66K

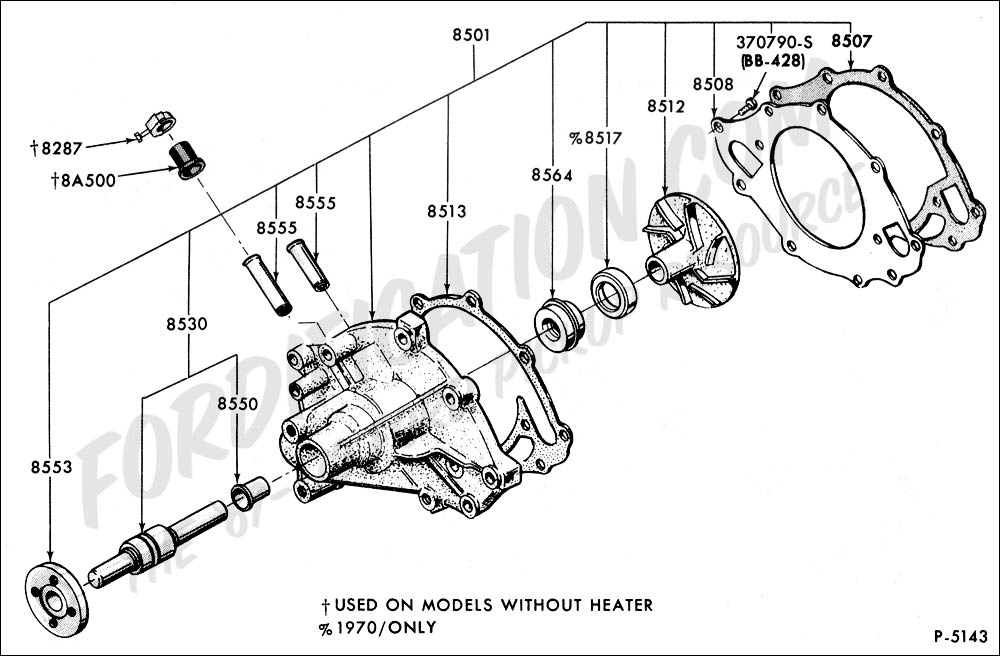

Water Pump
1969-1972
8 Cylinder 302

1000 x 656, 89K

Fuel System and Related Parts - (In-Cab Tank) - Typical
1964-1972 F100/F750

1100 x 1312, 182K

Fuel System and Related Parts (Evaporative Emission System - (with In-Cab Fuel Tank)
1970 F100 6 Cyl. 240, 300 and 8 Cyl. 302, 360, 390 engines

1200 x 1498, 301K

Fuel System and Related Parts (Evaporative Emission System - (with In-Cab Fuel Tank)
1971-1972 F100 6 Cyl. 240, 300 and 8 Cyl. 302, 360, 390 engines

1172 x 1605, 325K

Fuel Filler Pipe Installations (Auxiliary Under-Cab Tank)
1967-1972 F100/F350 Models 80, 81, 83, 86 and 99
  w/6 Cyl. 240 and 8 Cyl. 300, 302, 352, 360, 390 engines

1100 x 1312, 182K

Auxiliary Under-Cab Fuel Tank
1967-1972 F100/F350 w/6 Cyl. 240/300 and 8 Cyl. 302, 352, 360, 390 engines (except Models 84, 85)


1500 x 1730, 402K

Evaporative Emission System (Auxiliary Under-Cab Fuel Tank) - (25-gallon capacity)
1970 F100 6 Cyl. 240, 300 and 8 Cyl. 302, 360, 390 engines

1556 x 1086, 231K

Auxiliary Under-Cab Fuel Tank) - (21.5-gallon capacity) (w/Evaporative Emission System)
1971/1972 F100 4x2
   6 Cyl. 240, 300 and 8 Cyl. 302, 360, 390 engines

1071 x 1465, 252K

Skid Plate Installation Auxiliary Under-Cab Fuel Tank
1967-1972 F100/F350
   w/6 Cyl. 240/300 and 8 Cyl. 302, 352, 360, 390 engines

1500 x 1102, 250K

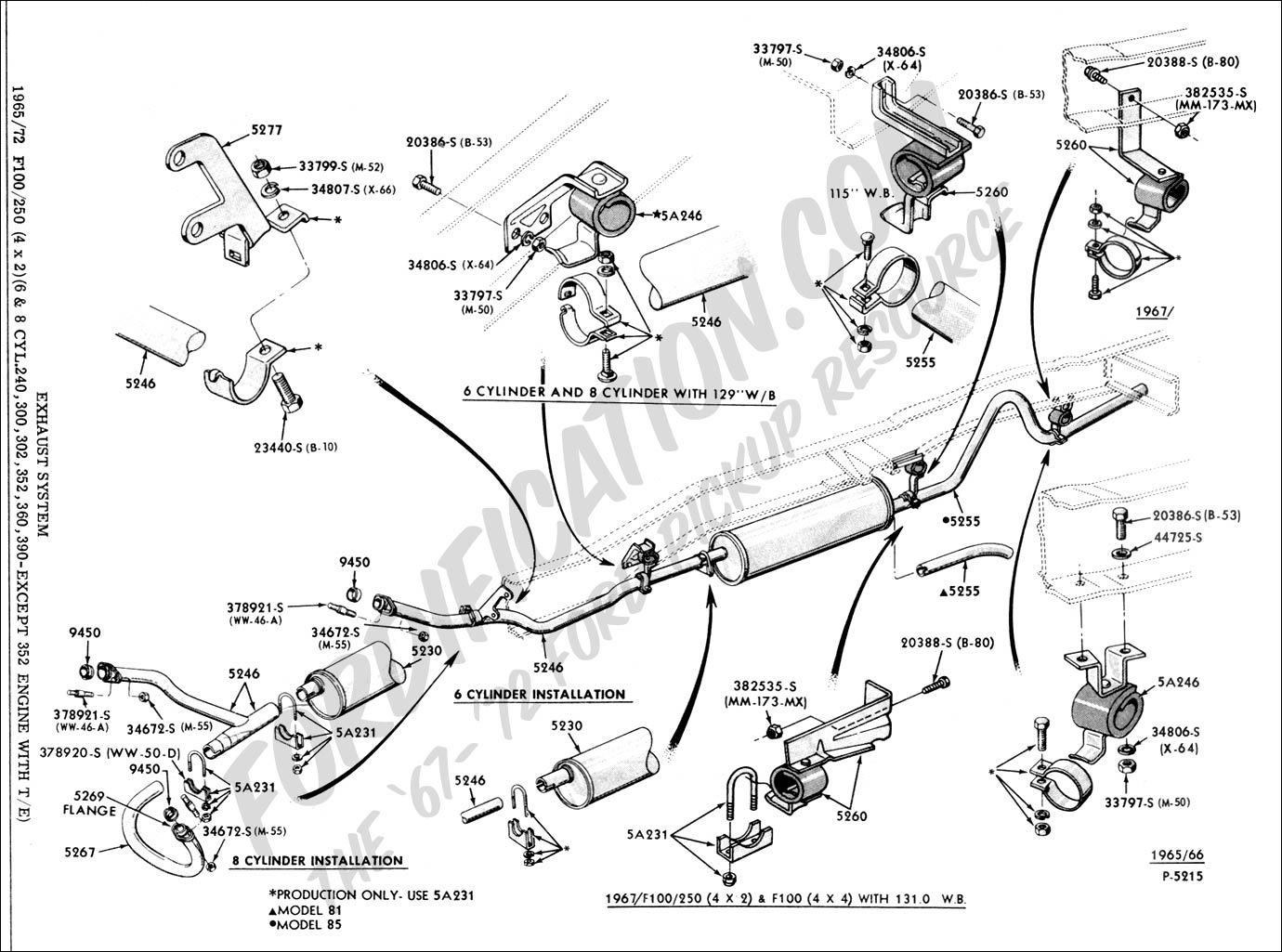

Exhaust System
1965-1972 F100/F250 (4x2) (6 & 8 cyl. 240, 300, 302, 352, 360, 390 - Except 352 engine with T/E)

1380 x 1025, 198K

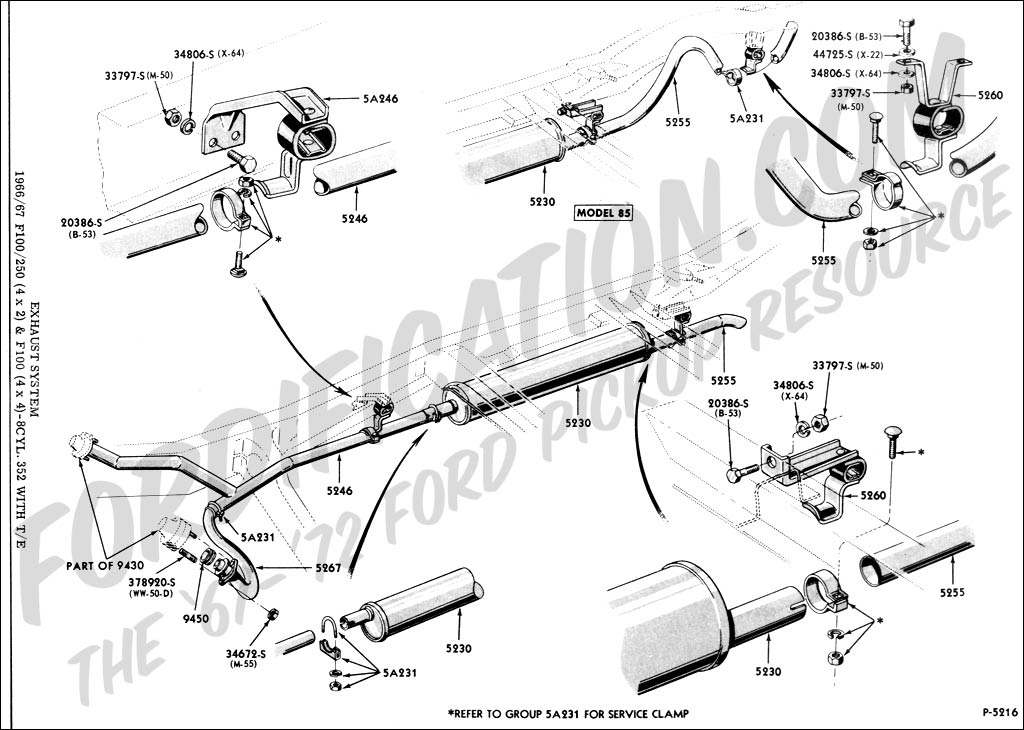

Exhaust System
1966-1967 F100/F250 (4x2) and F100 (4x4) - 8 cyl. 352 with T/E

1024 x 730, 115K

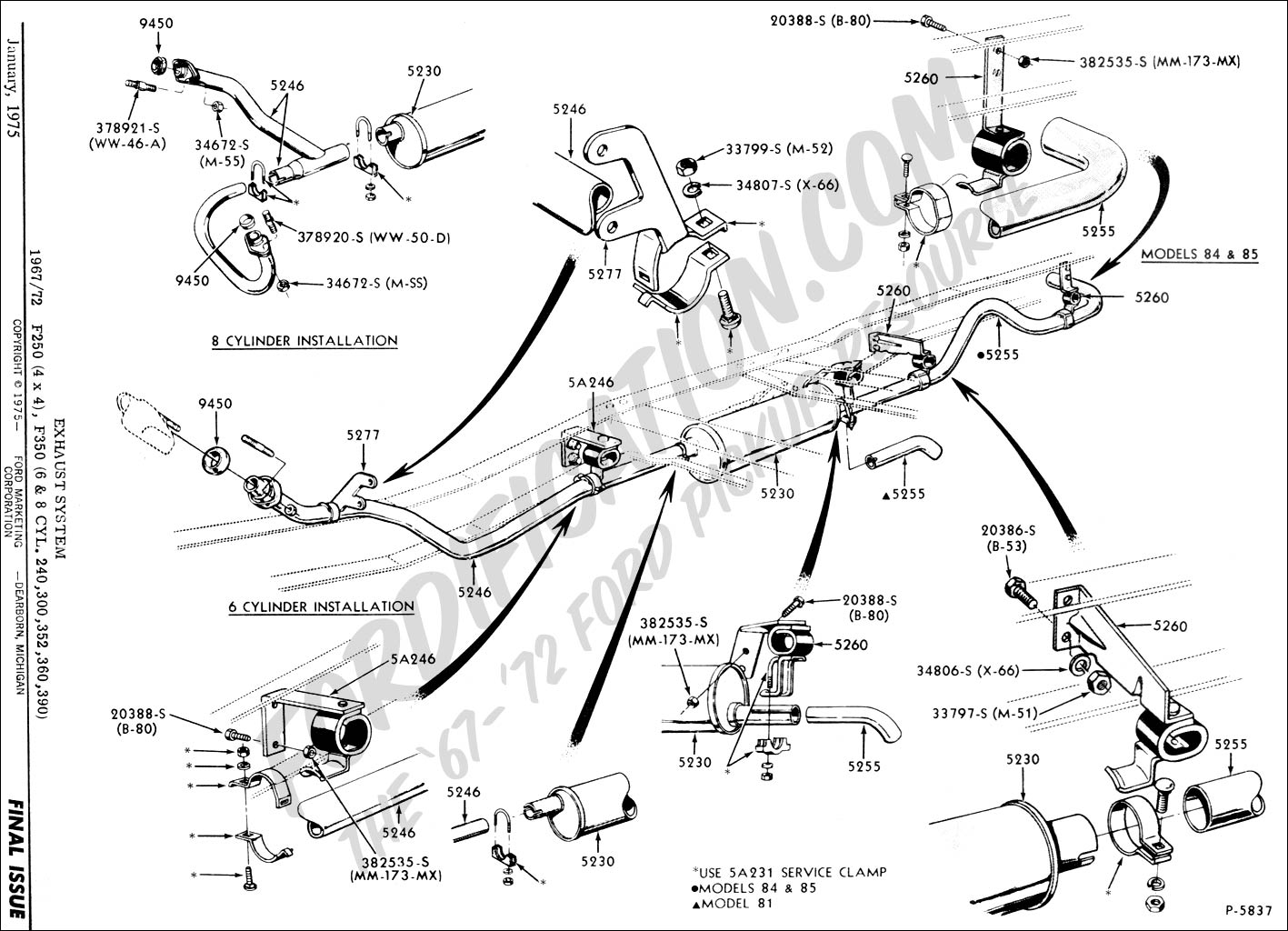

Exhaust System
1966-1972 F250 (4x4), F350 (6 & 8 cyl. 240, 300, 352, 360, 390)

1417 x 1024, 210K

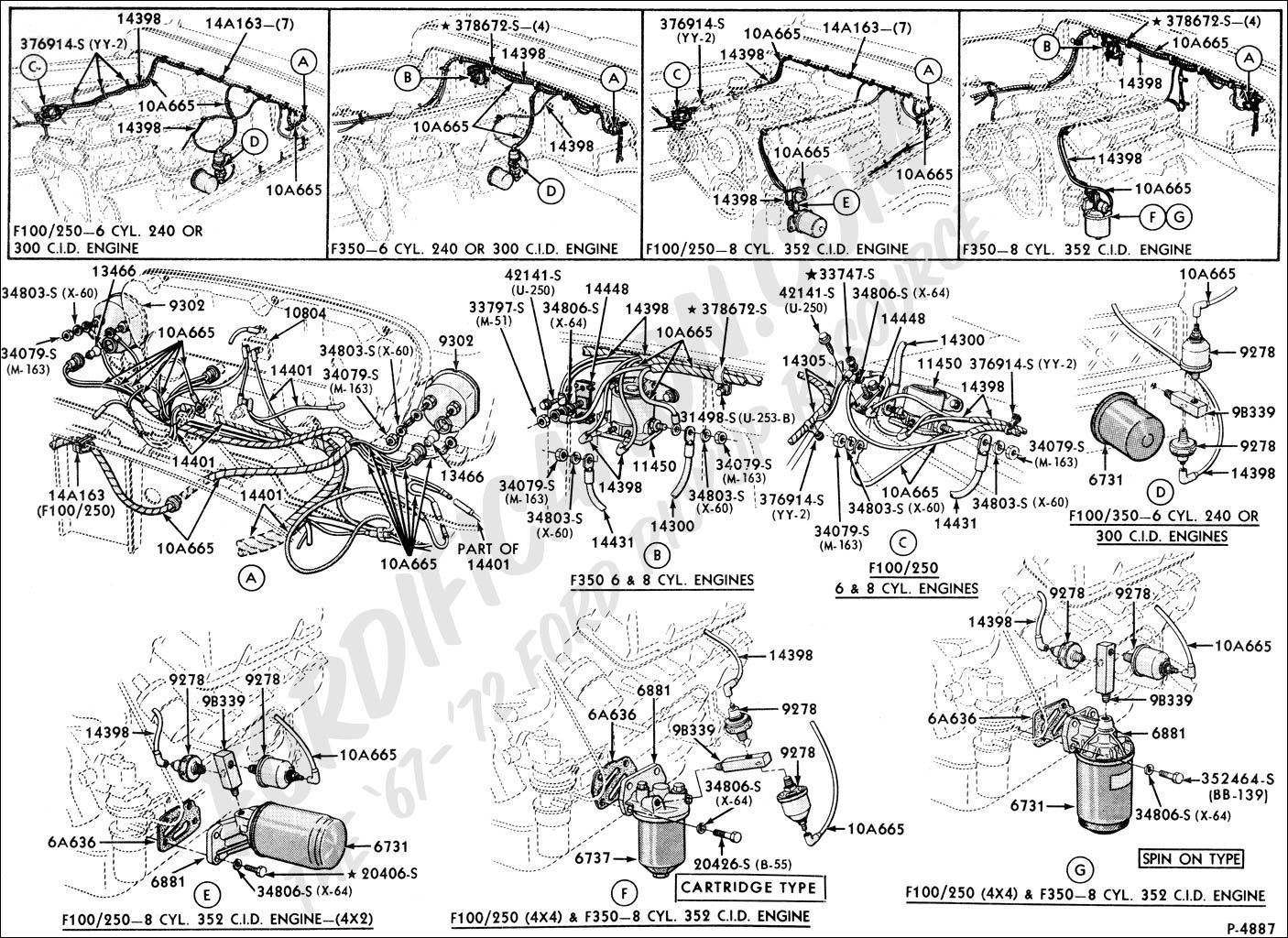

Oil Pressure Sender Installation with Warning Lights and Gauges
1965-1972 (6 Cyl. 240, 300 and 8 Cyl. 302, 352, 360, 390 engines) - F100/350

1406 x 1024, 383K

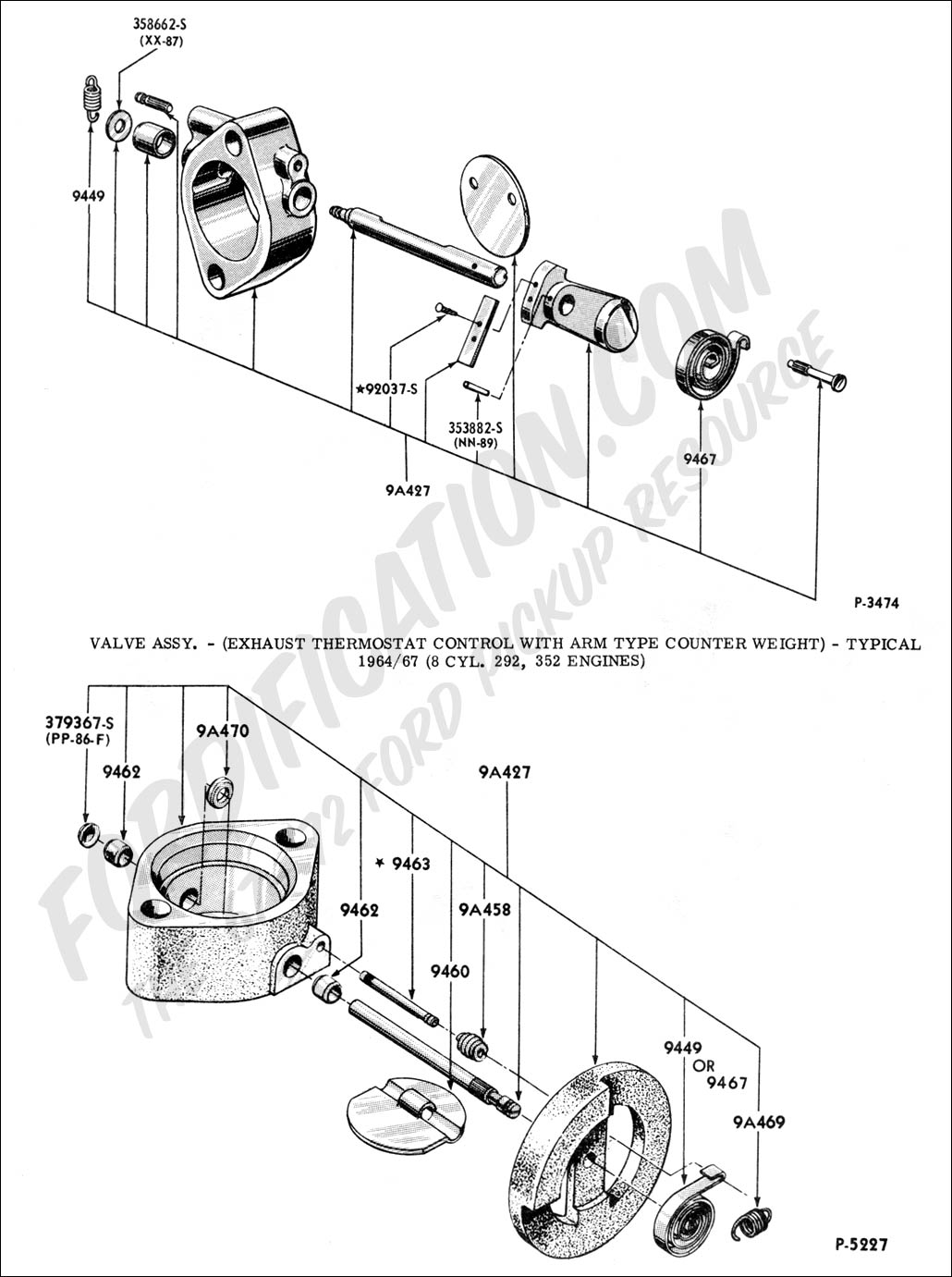

Valve Assy. - (Exhaust Thermostat Control with Arm Type Counter Weight - Typical
1964-1967 (8 Cyl. 292, 352 engines)

Valve Assy. - (Exhaust Thermostat Control with Wheel Type Counter Weight - Typical
1964-1967 (8 Cyl. 292, 352 engines)

1030 x 1381, 138K

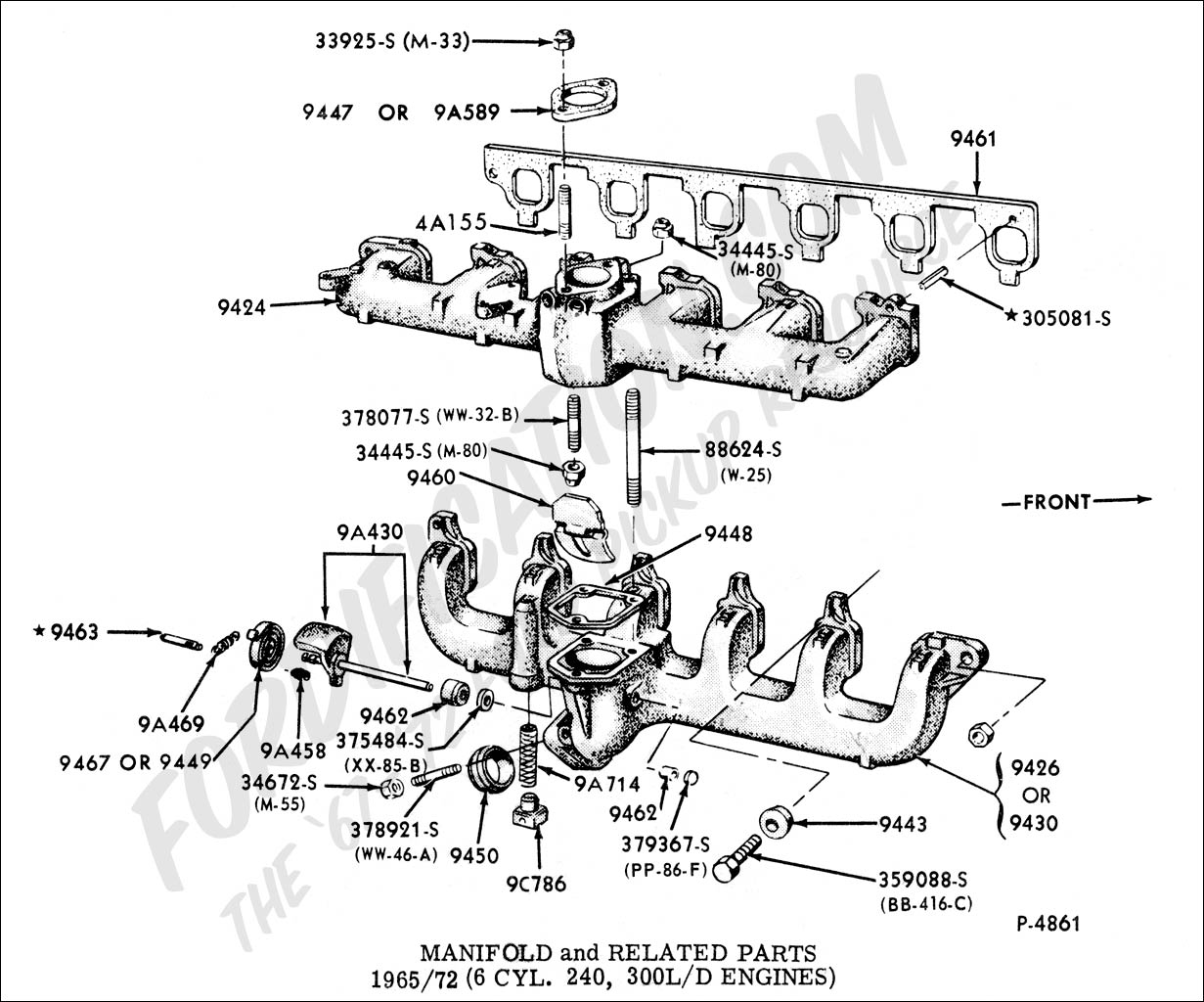

Exhaust Manifold and Related Parts
1965-1972 (6 Cyl. 240, 300L/D engines)

1231 x 1024, 170K

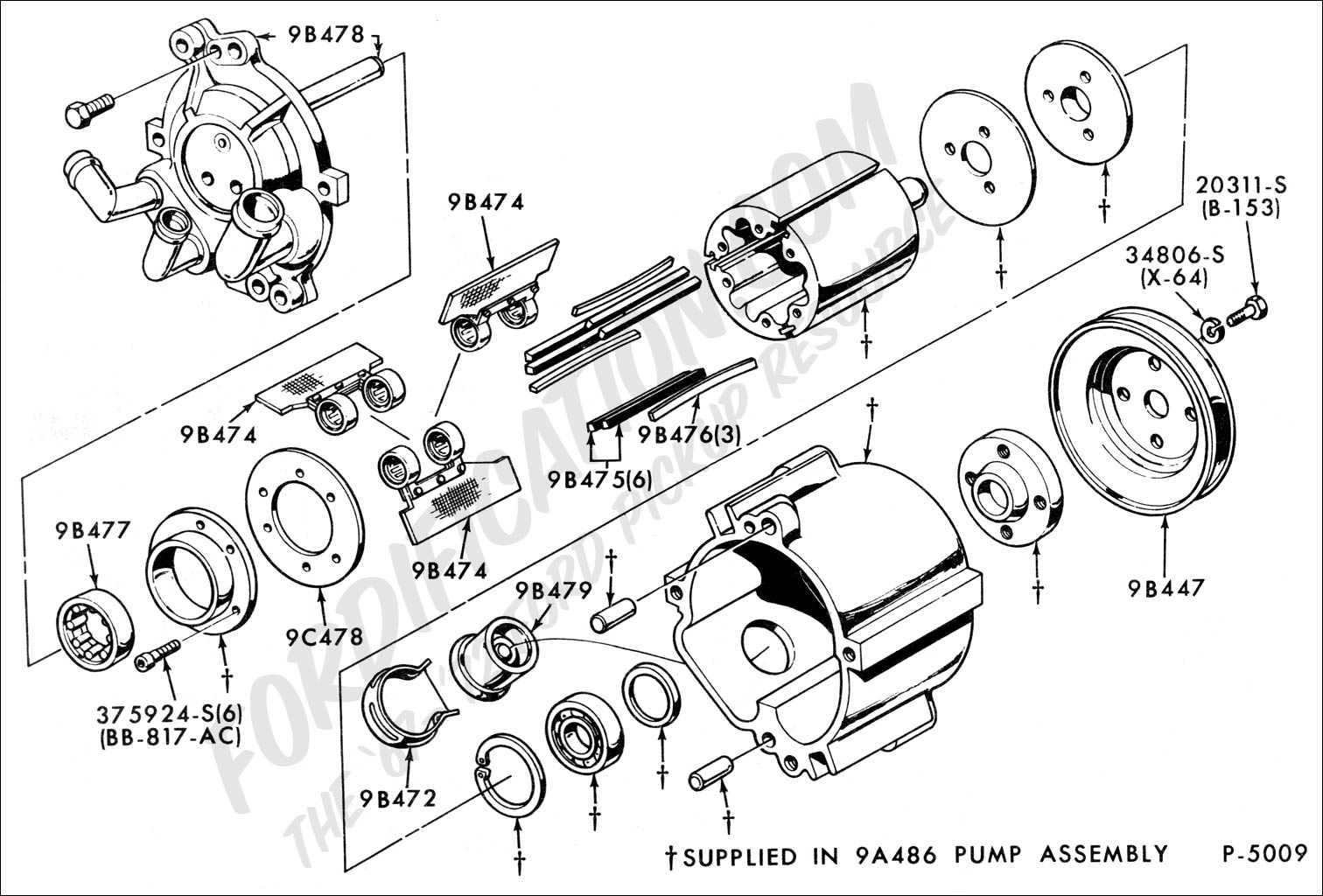

Exhaust Air Supply Pump - Thermactor Emission Control System
1966-1967 (6 and 8 Cyl. engines)

1512 x 1024, 209K

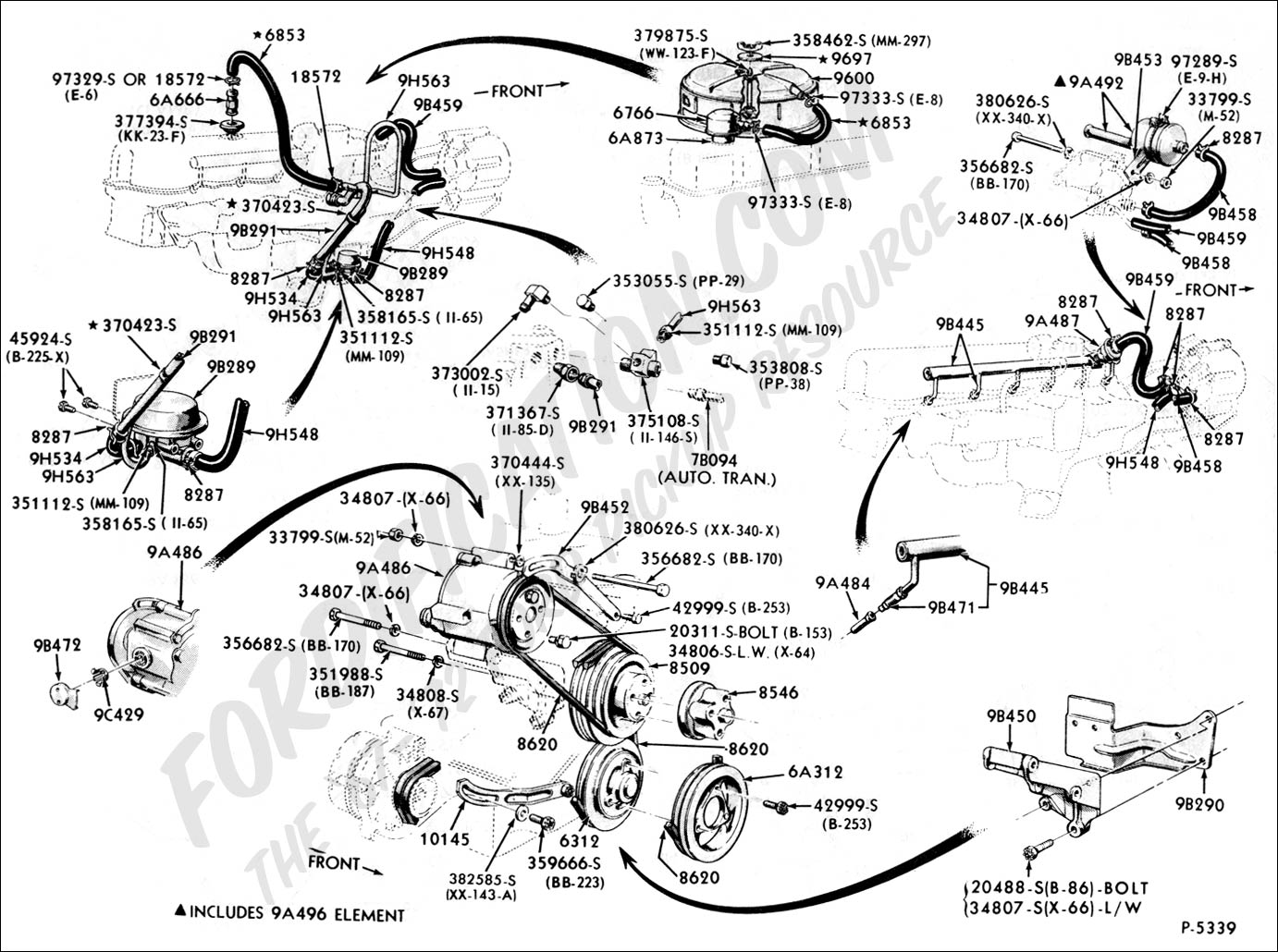

Thermactor Emission Control System
1966-1967 (6 Cyl. engine) E100

1512 x 1024, 209K

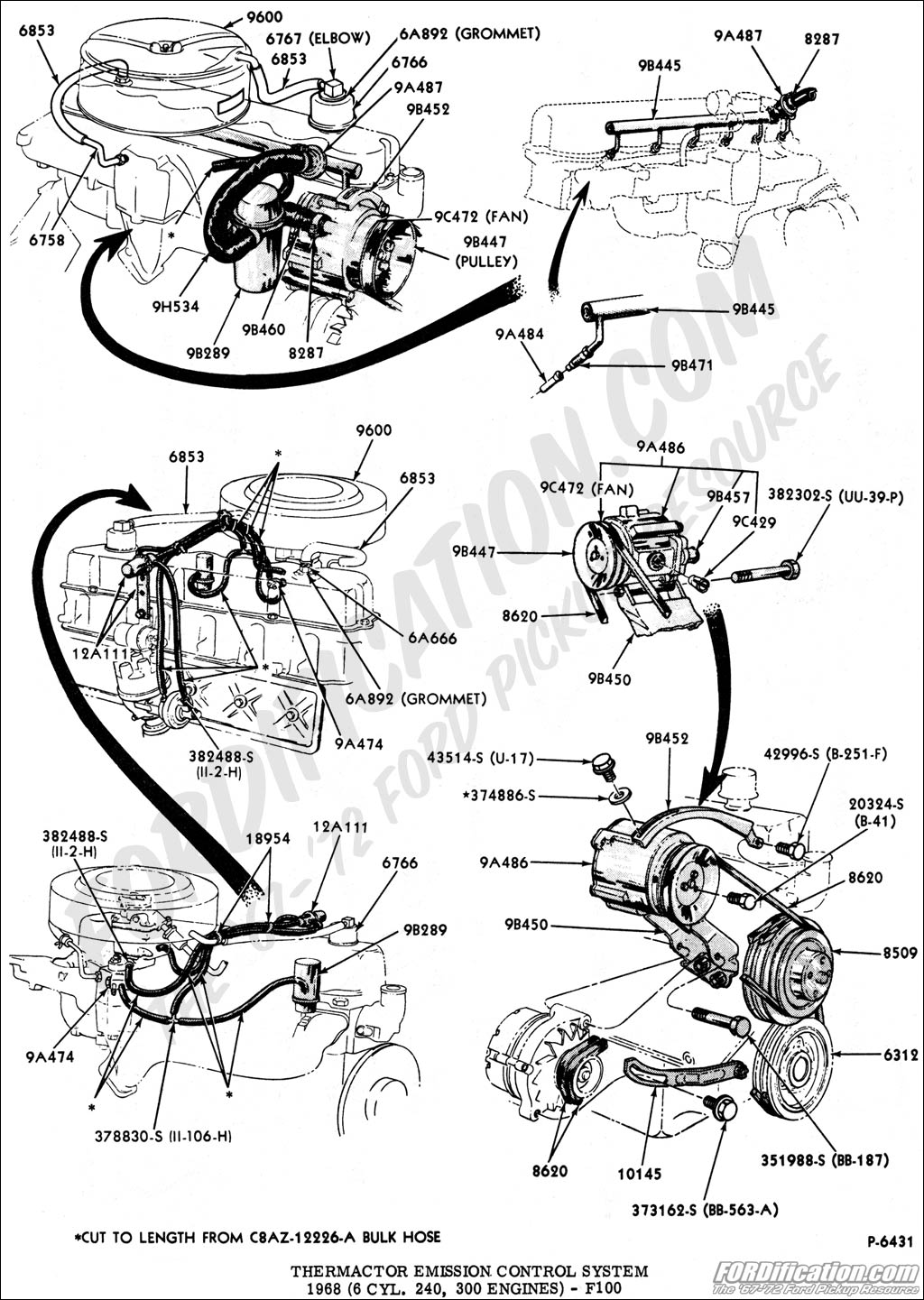

Thermactor Emission Control System
1968 (6 Cyl. 240, 300 engines) F100

1024 x 1441, 260K

Carburetor - Holley - 1 barrel
196
4-1969 (6-cyl. 144, 170, 223, 240, 262, 300 engines)

1014 x 1436, 180K

Carburetor - Ford - 2 barrel
196
4-1972 (8-cyl. 330 M/D, 352 engines)

1024 x 1410, 186K

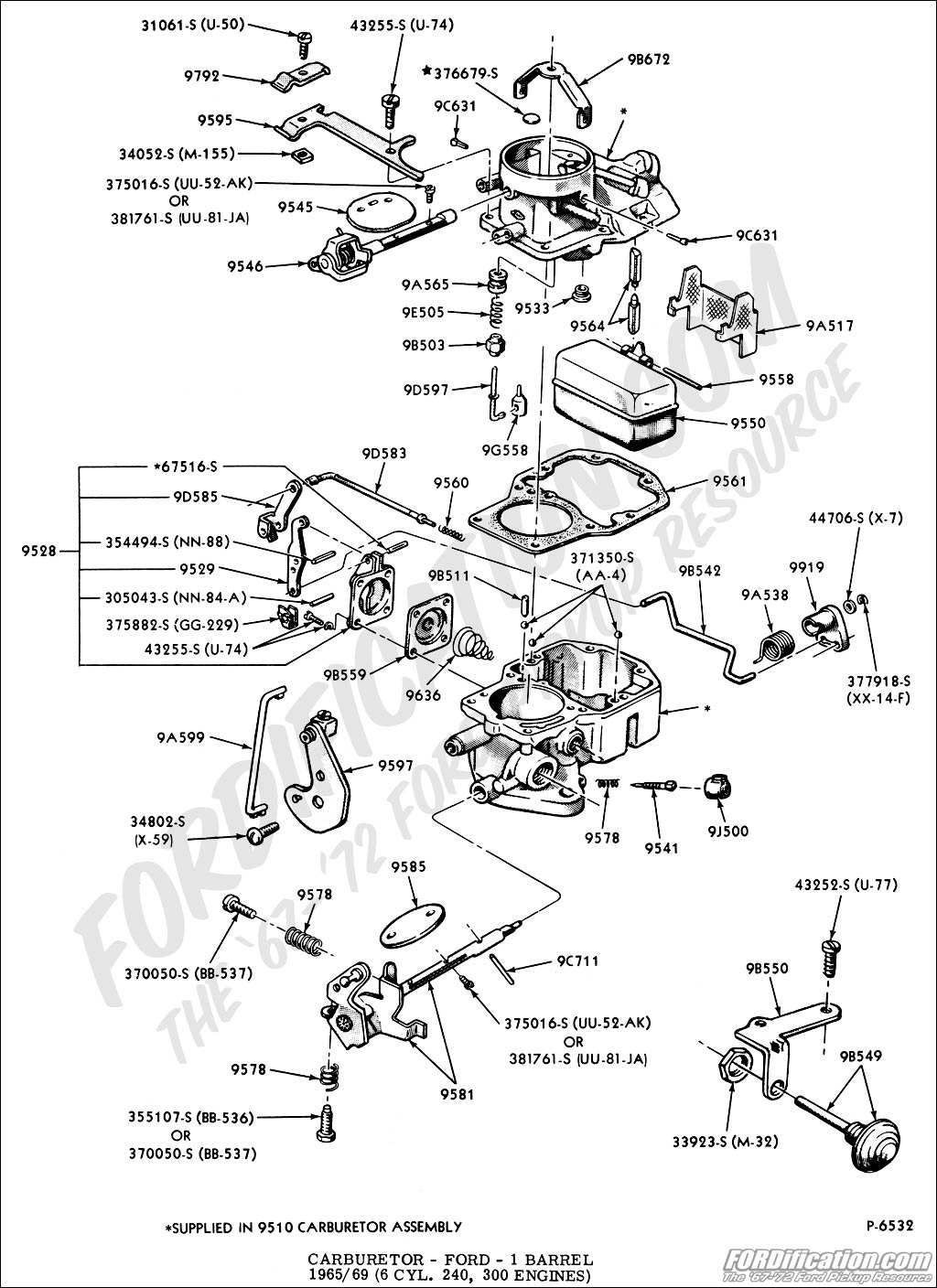

Carburetor - Ford - 1 barrel
196
5-1969 (6-cyl. 240, 300 engines)

1024 x 1408, 208K

Carburetor - Ford - 2 barrel
19
70-1971 (8-cyl. 302, 360, 390 engines)

1024 x 727, 160K

Carburetor - Ford - 2 barrel
19
68-1969 (8-cyl. 302, 360, 390 engines)

1024 x 1602, 238K

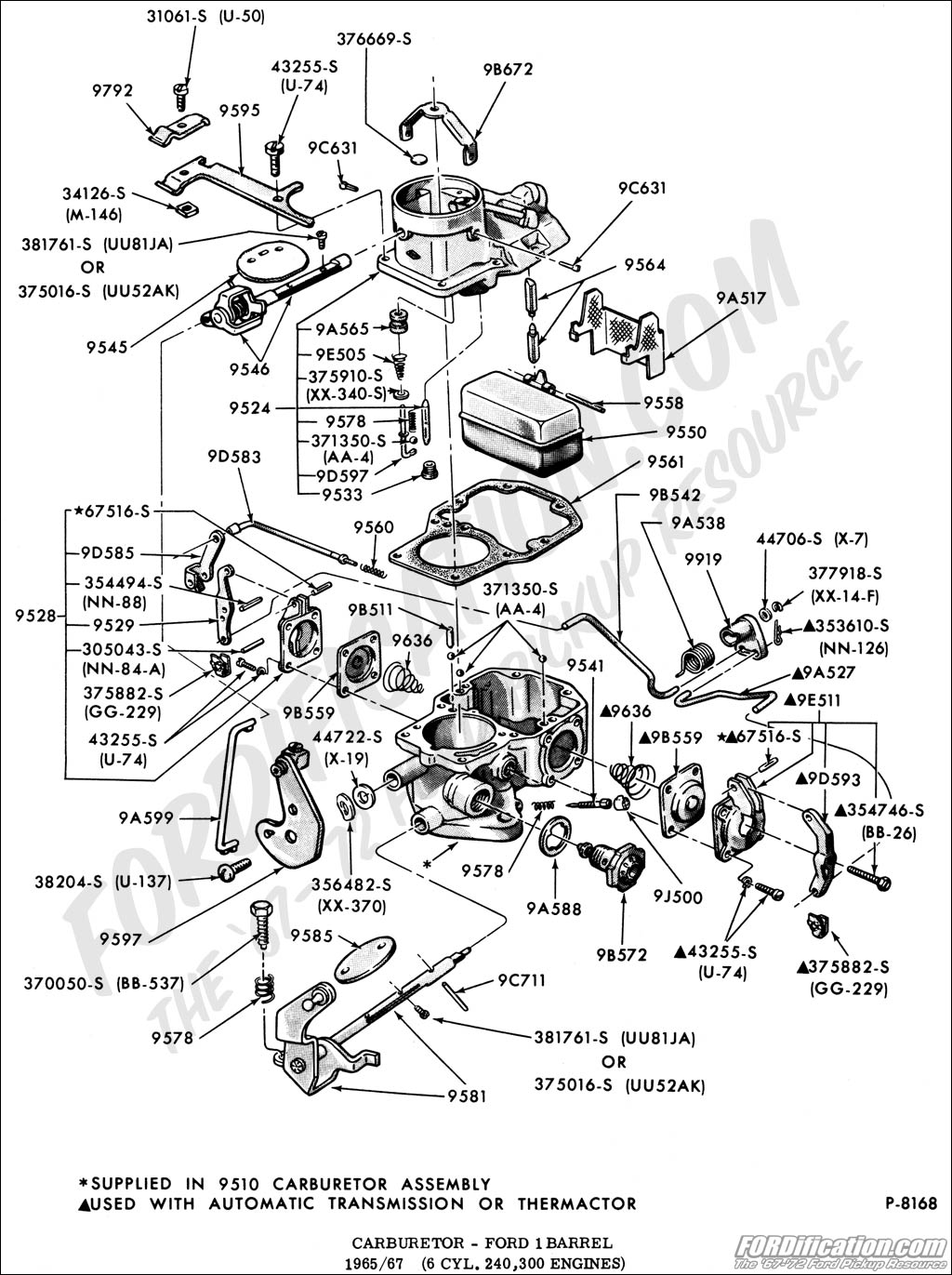

Carburetor - Ford - 1 barrel
19
65-1967 (6-cyl. 240, 300 engines)

1024 x 1371, 229K

Carburetor - Ford - 1 barrel (Thermostatic Choke)
1970 (6-cyl. 170, 240, 300 engines) E100/300, F100/F350

1024 x 1443, 248K

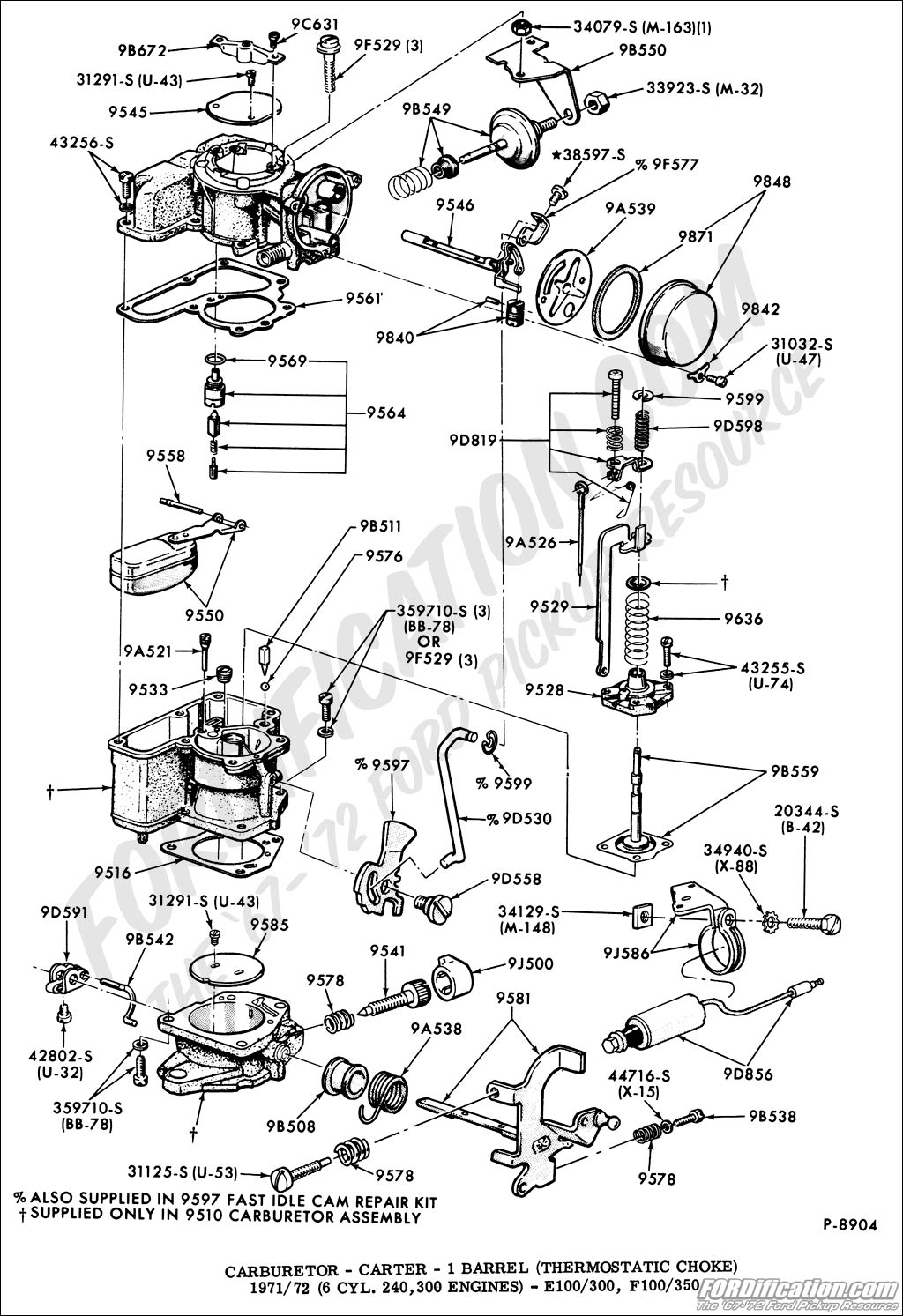

Carburetor - Ford - 1 barrel (Thermostatic Choke)
1971-1972 (6-cyl. 170, 240, 300 engines) E100/300, F100/F350

1024 x 1493, 251K

Carburetor - Ford - 2 barrel
1972 (8-cyl. 302, 360, 390 engines)

1433 x 1024, 257K

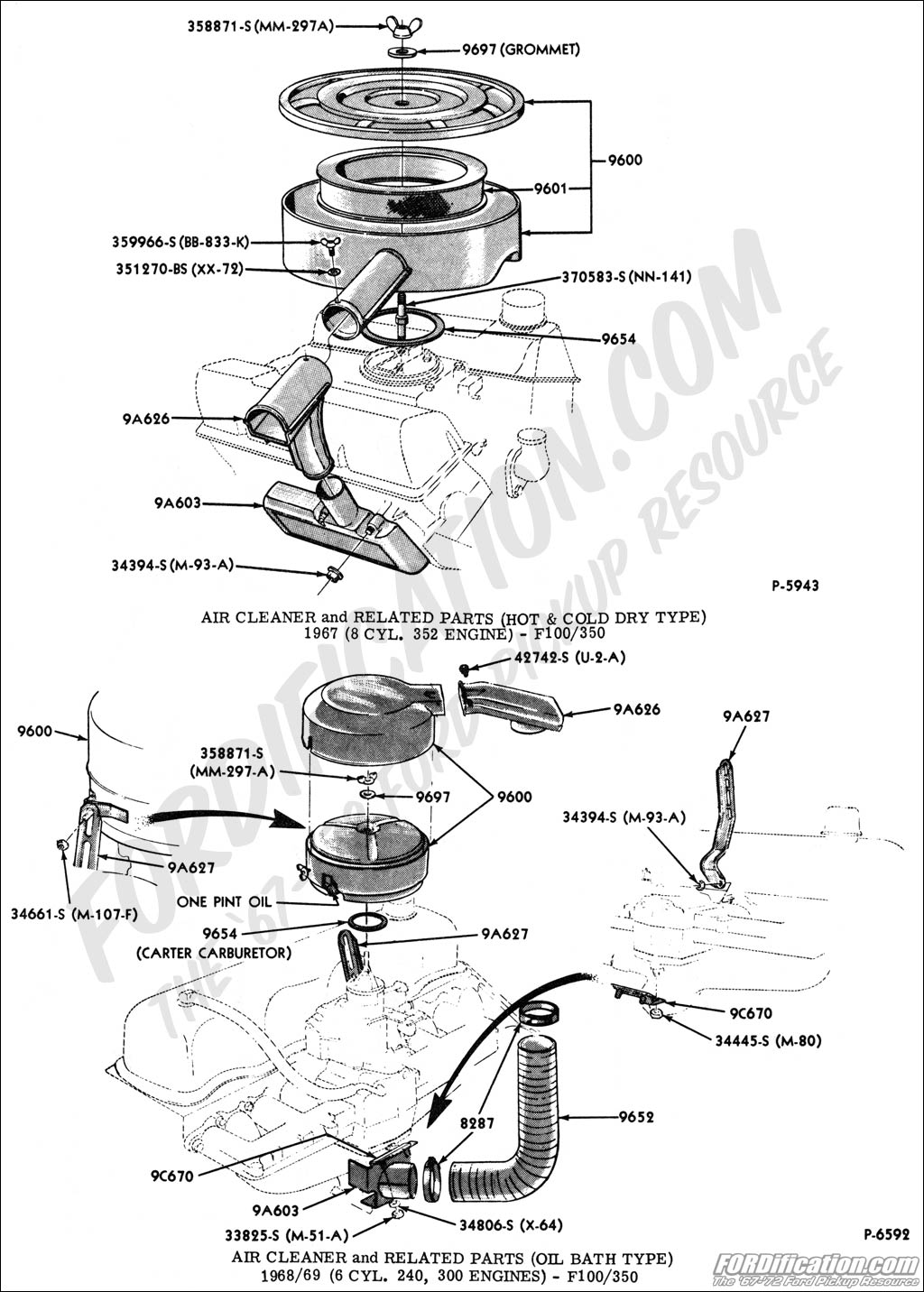

Air Cleaner and Related Parts (Hot & Cold Dry Type)
1967 (8-cyl. 352 engine) - F100/350

Air Cleaner and Related Parts (Oil Bath Type)
1968-1969 (6-cyl. 240, 300 engines) - F100/350

1024 x 1432, 202K

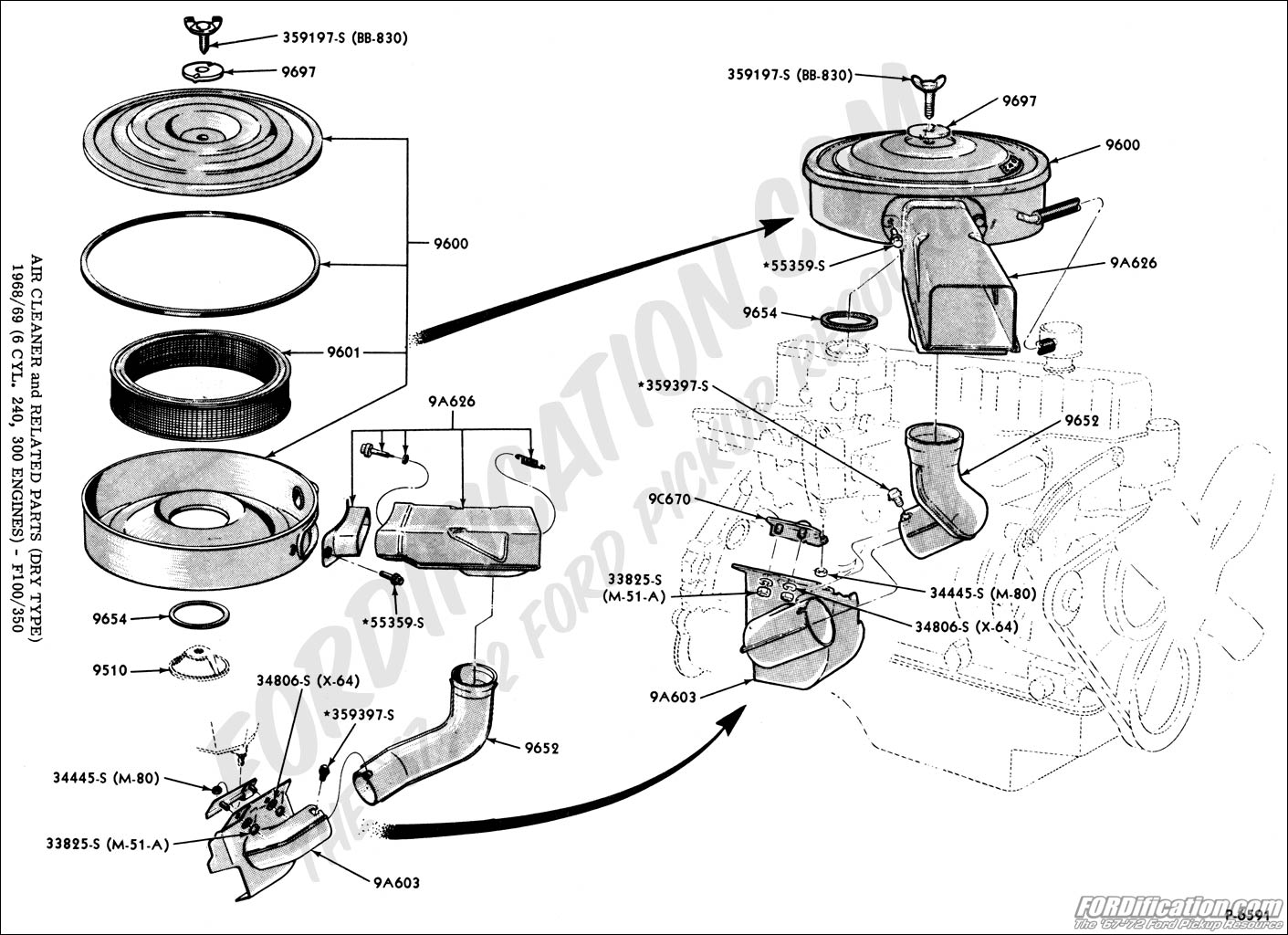

Air Cleaner and Related Parts (Dry Type)
1968-1969 (6-cyl. 240, 300 engines) - F100/350

1411 x 1024, 211K

Air Cleaner and Related Parts (Dry & Oil Bath Types)
1968-1972 (8-cyl. 360, 390 engines) - F100/350

1242 x 1024, 174K

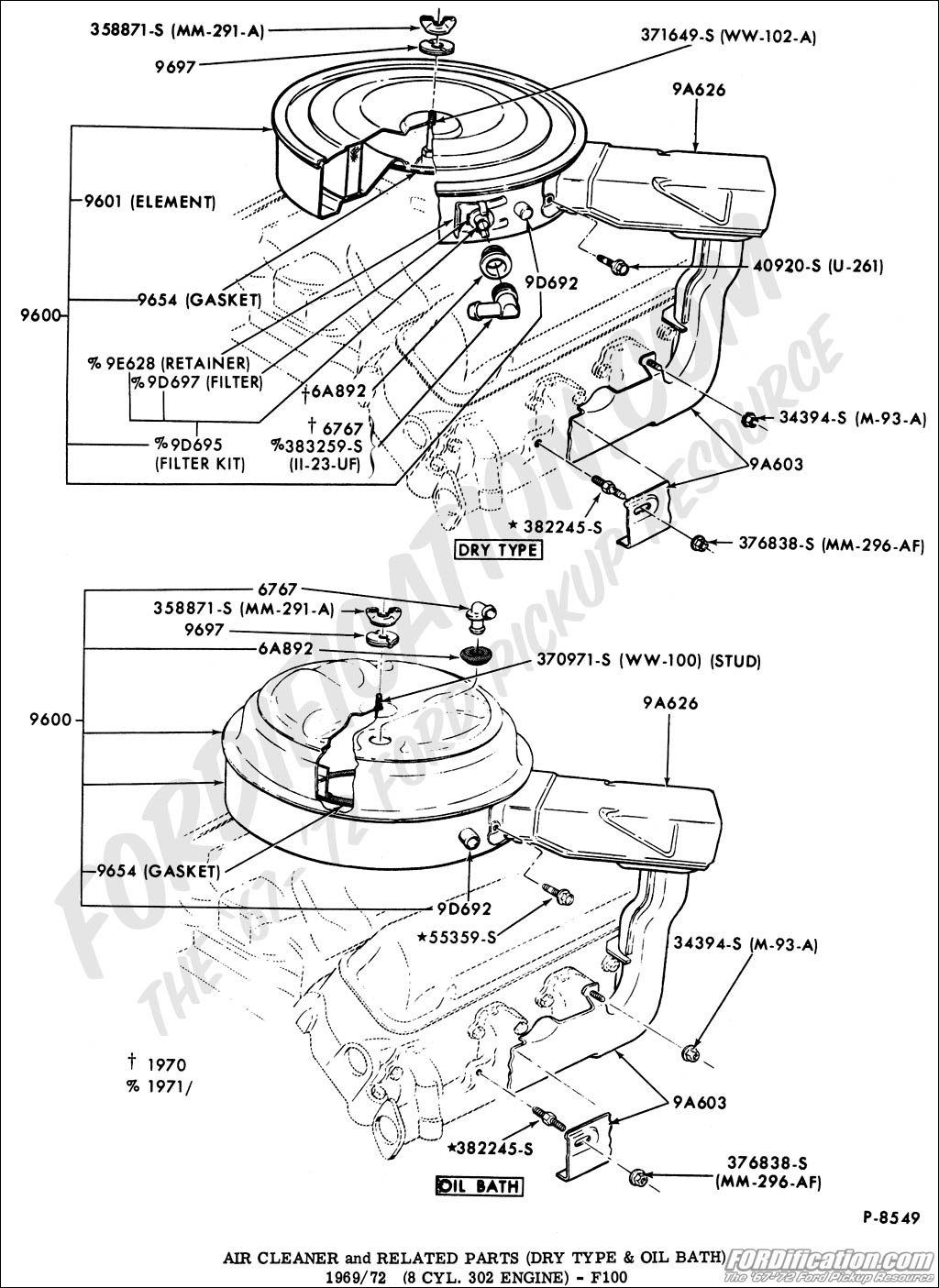

Air Cleaner and Related Parts (Dry Type & Oil Bath)
1969-1972 (8-cyl. 302 engine) - F100

1024 x 1405, 211K

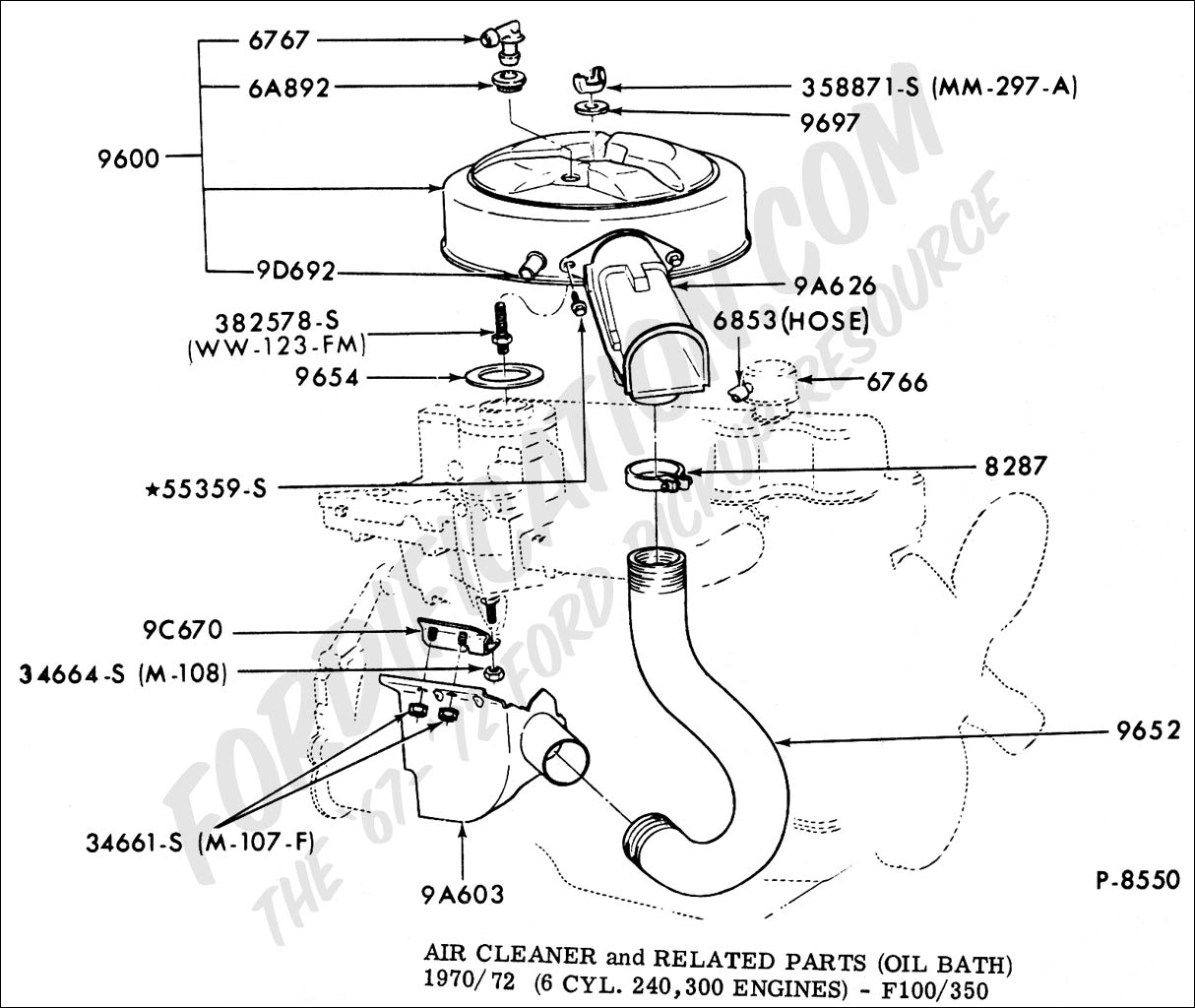

Air Cleaner and Related Parts (Oil Bath)
1970-1972 (6-cyl. 240, 300 engines) - F100/350

1214 x 1024, 141K

Accelerator and Transmission Linkage
1967-1972 (6 cyl. 240, 300 engines) - F100/350

1388 x 1024, 182K

Accelerator and Transmission Linkage
1967-1972 (8 cyl. 302, 352, 360, 390 engines) - F100/350
Before Serial P60,001

1388 x 1024, 182K

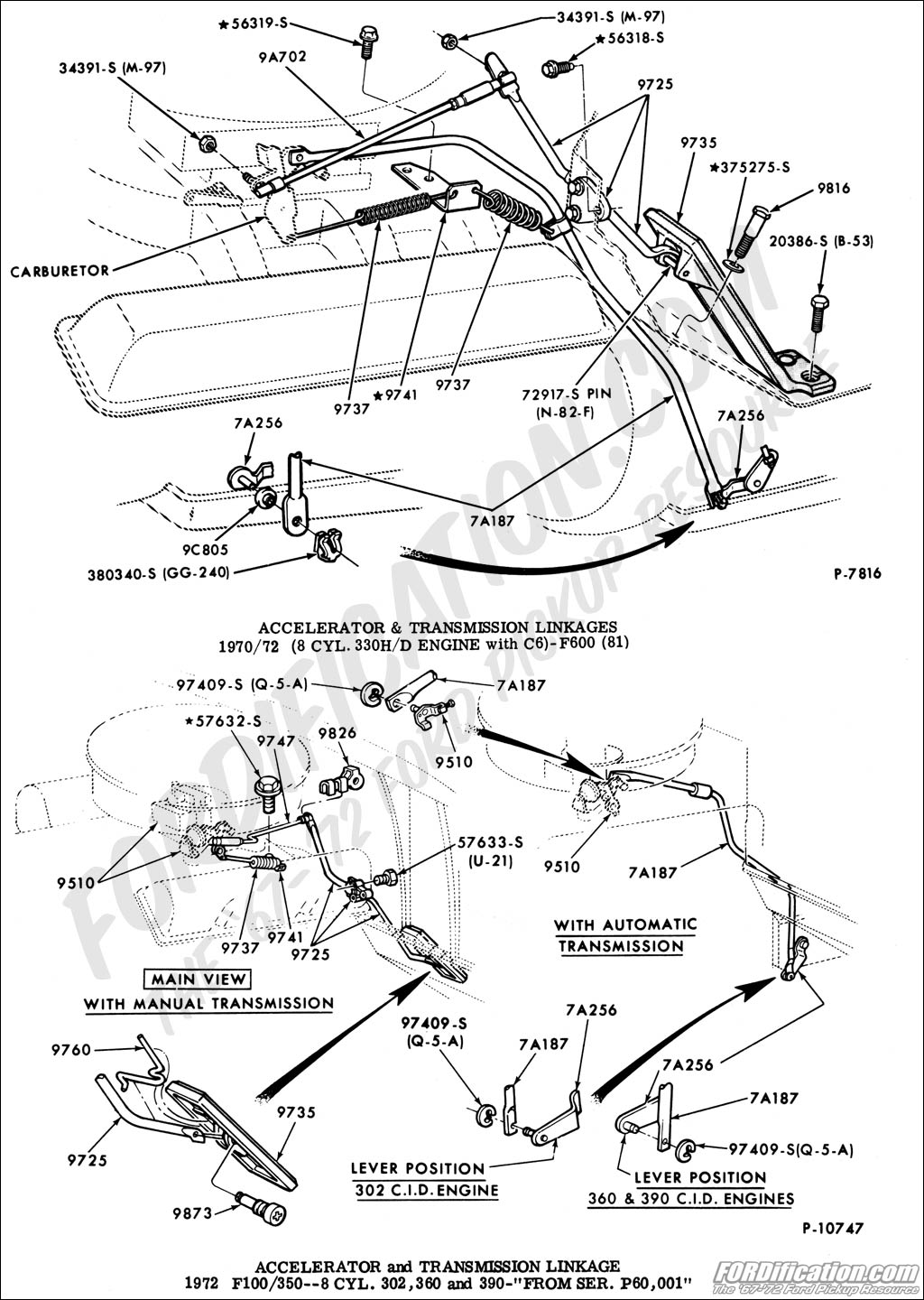

Accelerator and Transmission Linkage
1970-1972 (8 cyl. 330 engines with C6) - F600 (81)

Accelerator and Transmission Linkage
1972 (8 cyl. 302, 360, 390 engines) - F100/350
From Serial P60,001

1388 x 1024, 182K
